Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
0 - Engine, Emission, Engine Electrical
▶

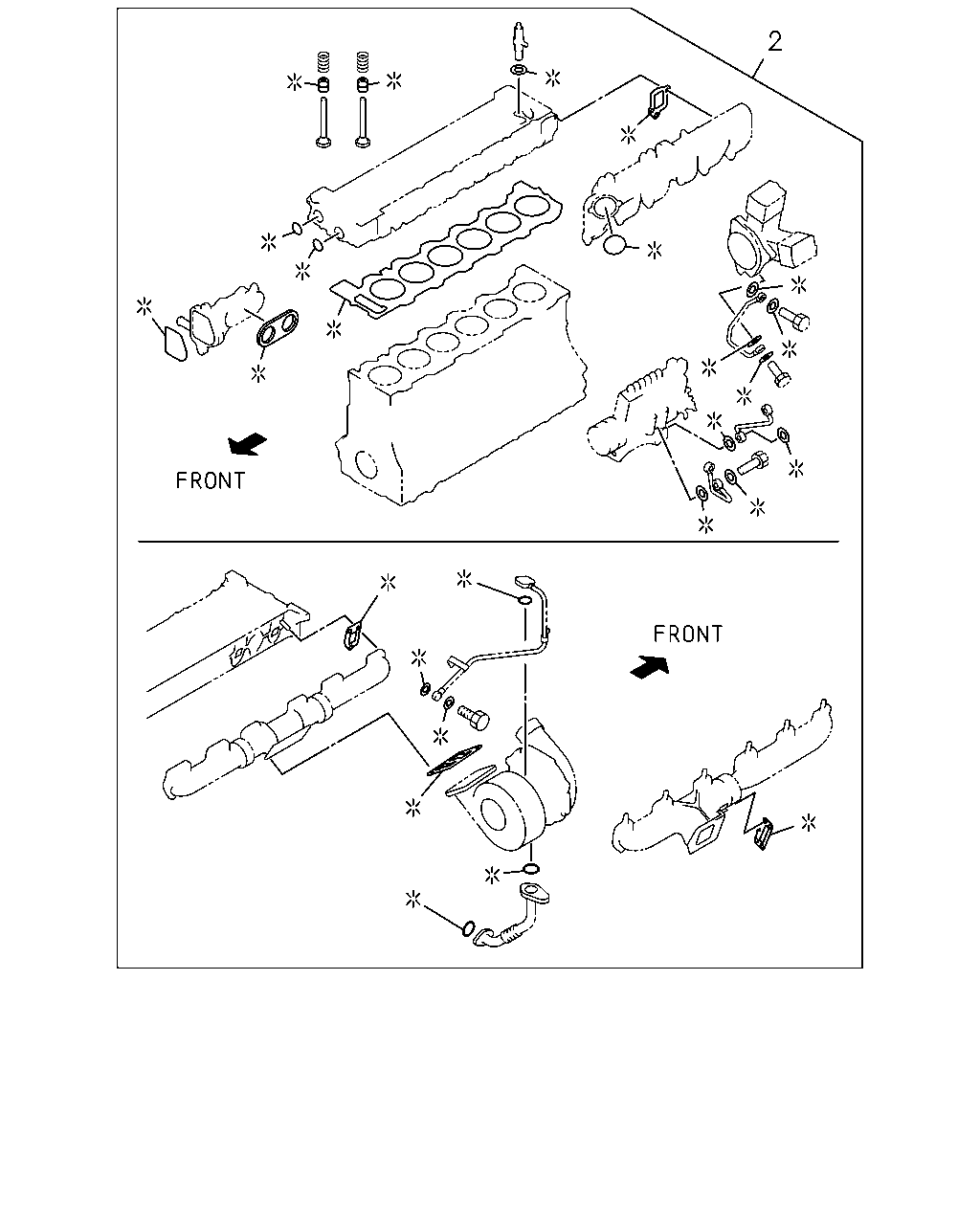

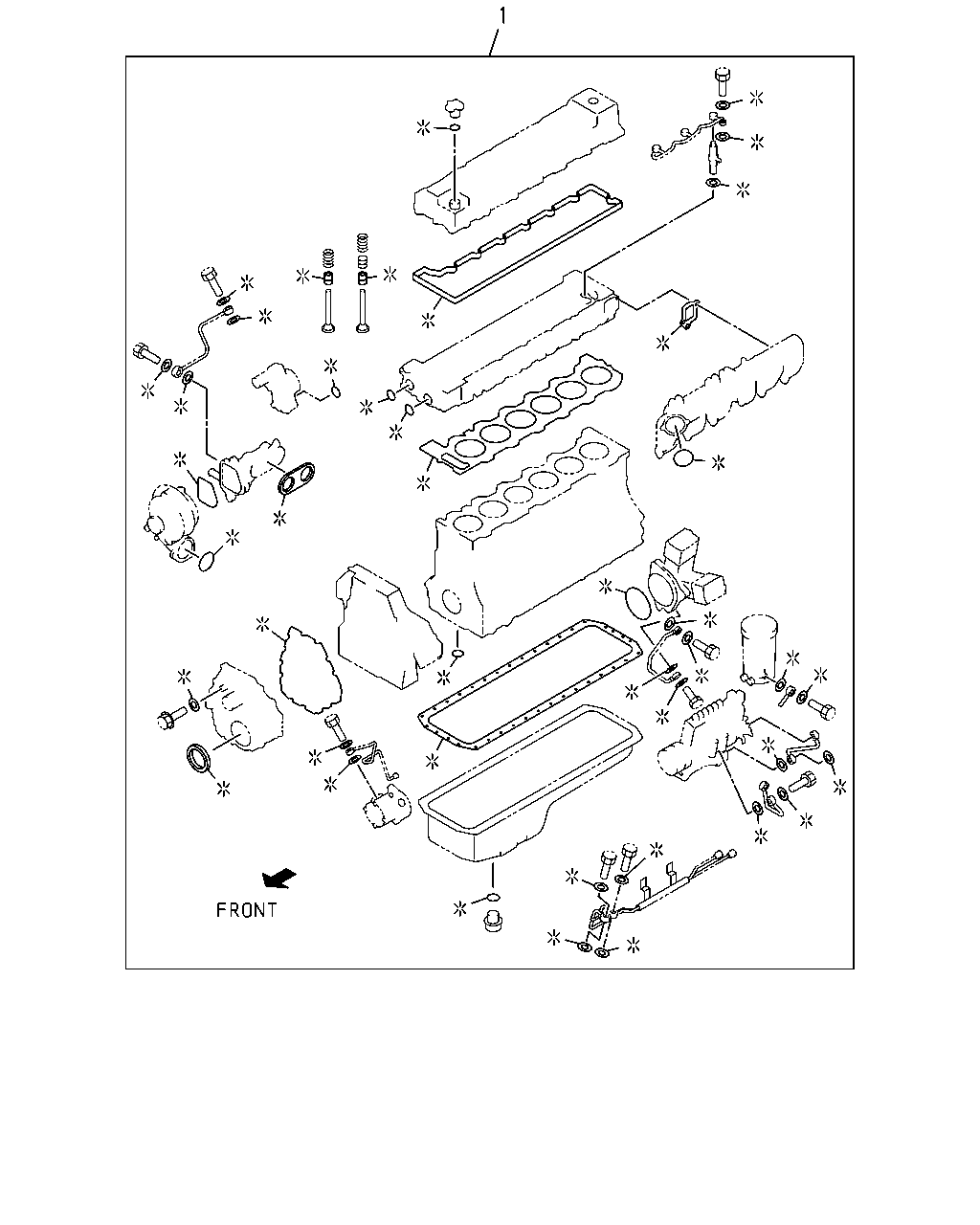

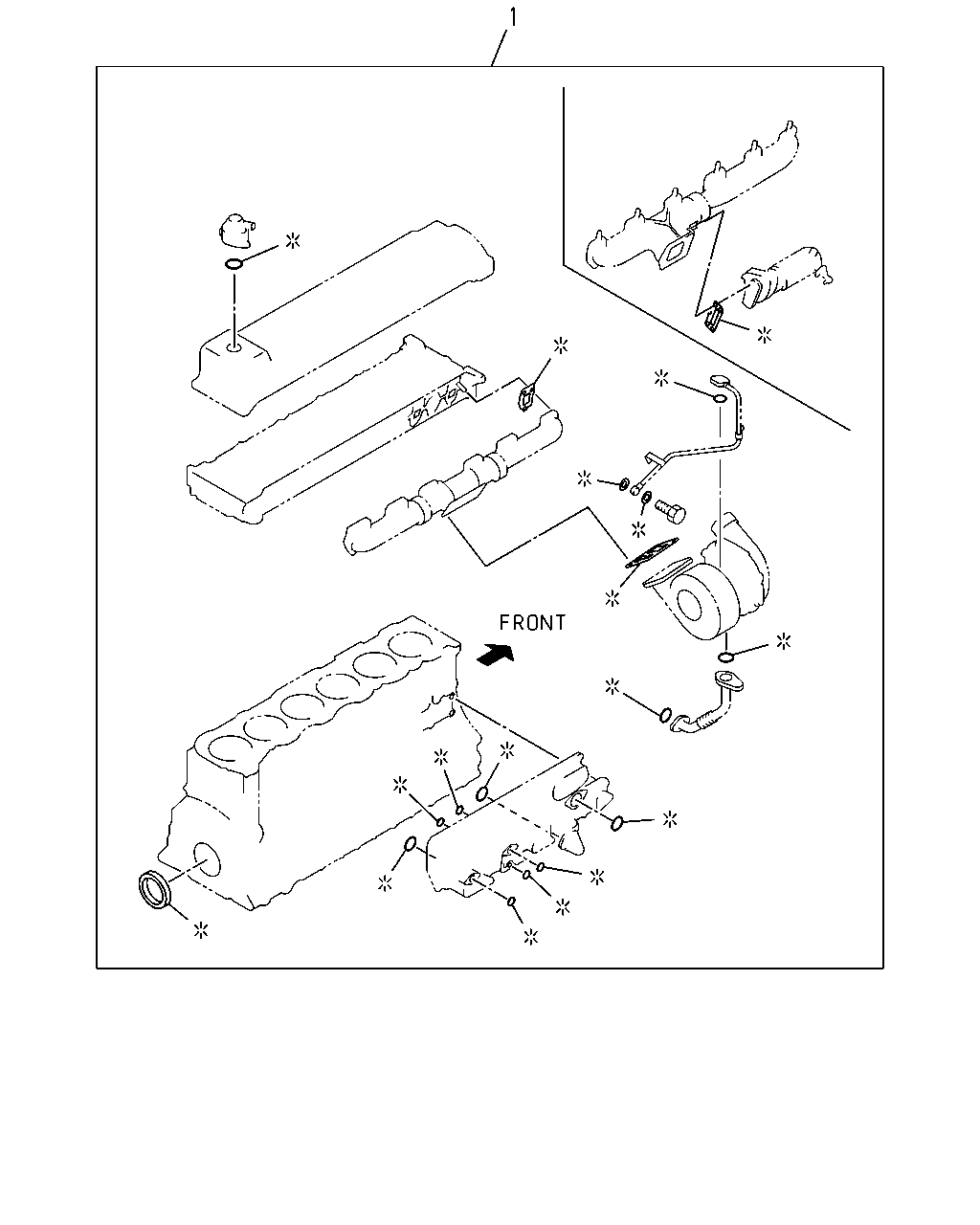

0-05A - ENGINE GASKET KIT
▶
0-05A — ENGINE GASKET KIT
(#5466) — 27 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-C
C - 6WA1 TC-N
D - 6WA1 TC-R
◀
[005A] NO.1 (10 parça)
[005A] NO.2 (10 parça)
[005A] NO.3 (7 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GASKET SET; ENG OVERHAUL
1-87811-110-2
01
1
9603-9607
●
1
GASKET SET; ENG OVERHAUL
1-87811-257-0
01
1
9608-9702
●
1
GASKET SET; ENG OVERHAUL
1-87811-323-0
01
1
9703-9709
●
1
GASKET SET; ENG OVERHAUL
1-87811-821-0
01
1
9710-9802
●
1
GASKET SET; ENG OVERHAUL
1-87811-834-0
01
1
9803-9804
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9805-9810
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9811-9904
●
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9905-0005
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87812-115-0
01
1
0006-0011
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87812-143-0
01
1
0012-
●
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GASKET SET; ENG OVERHAUL
1-87811-110-2
01
1
9603-9607
●
1
GASKET SET; ENG OVERHAUL
1-87811-257-0
01
1
9608-9702
●
1
GASKET SET; ENG OVERHAUL
1-87811-323-0
01
1
9703-9709
●
1
GASKET SET; ENG OVERHAUL
1-87811-821-0
01
1
9710-9802
●
1
GASKET SET; ENG OVERHAUL
1-87811-834-0
01
1
9803-9804
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9805-9810
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9811-9904
●
●
1
GASKET SET; ENG OVERHAUL
1-87811-880-0
01
1
9905-0005
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87812-115-0
01
1
0006-0011
●
●
●
1
GASKET SET; ENG OVERHAUL
1-87812-143-0
01
1
0012-
●
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
GASKET SET; ENG HD OVERHAUL
1-87811-061-2
01
1
9603-9607
●
2
GASKET SET; ENG HD OVERHAUL
1-87811-259-0
01
1
9608-9802
●
2
GASKET SET; ENG HD OVERHAUL
1-87811-826-0
01
1
9803-9804
●
2
GASKET SET; ENG HD OVERHAUL
1-87811-881-0
01
1
9805-9810
●
2
GASKET SET; ENG HD OVERHAUL
1-87811-881-0
01
1
9811-9904
●
●
2
GASKET SET; ENG HD OVERHAUL
1-87811-881-0
01
1
9905-0005
●
●
●
2
GASKET SET; ENG HD OVERHAUL
1-87812-118-0
01
1
0006-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
