Sayfa 2-53 - Isuzu EPC

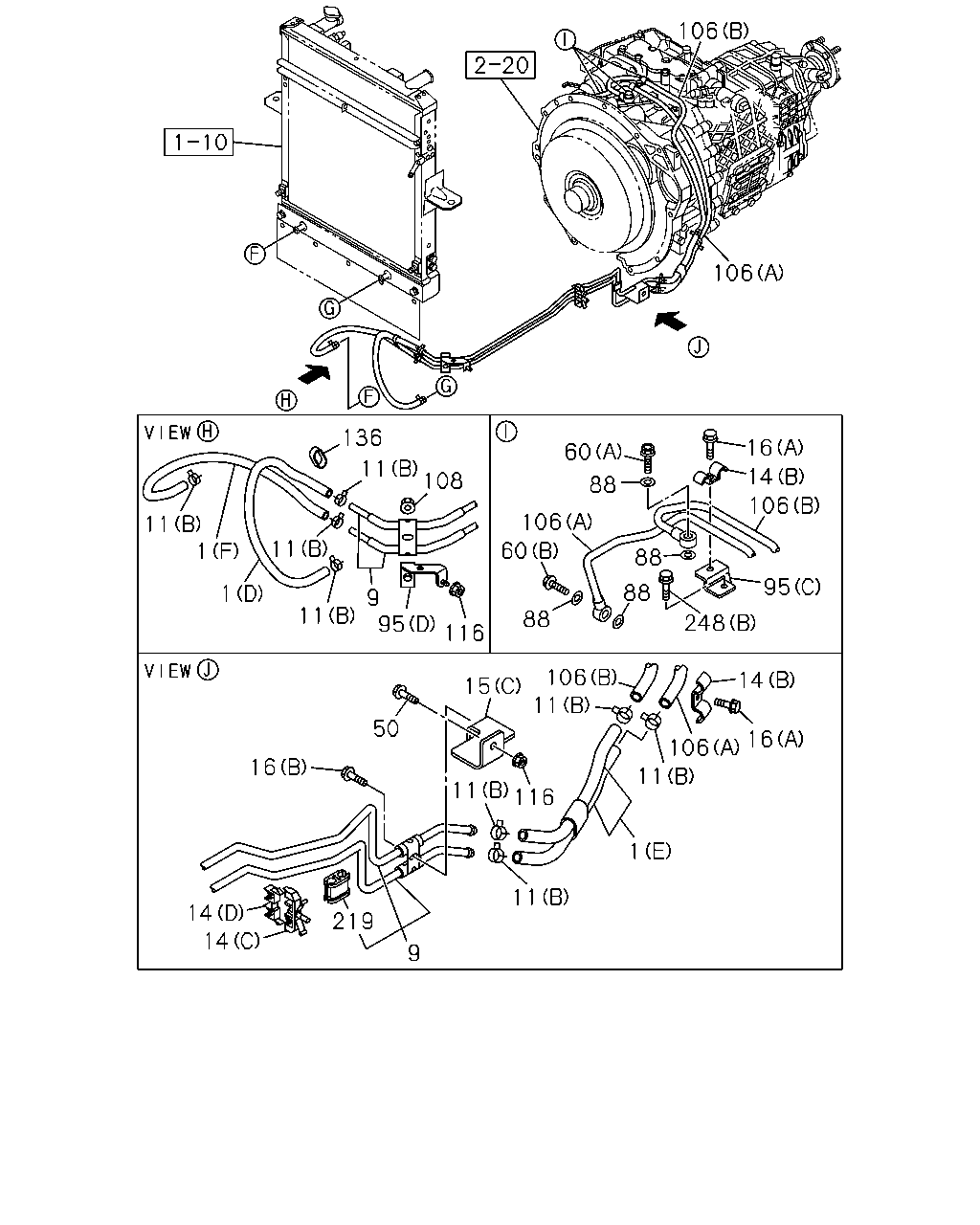

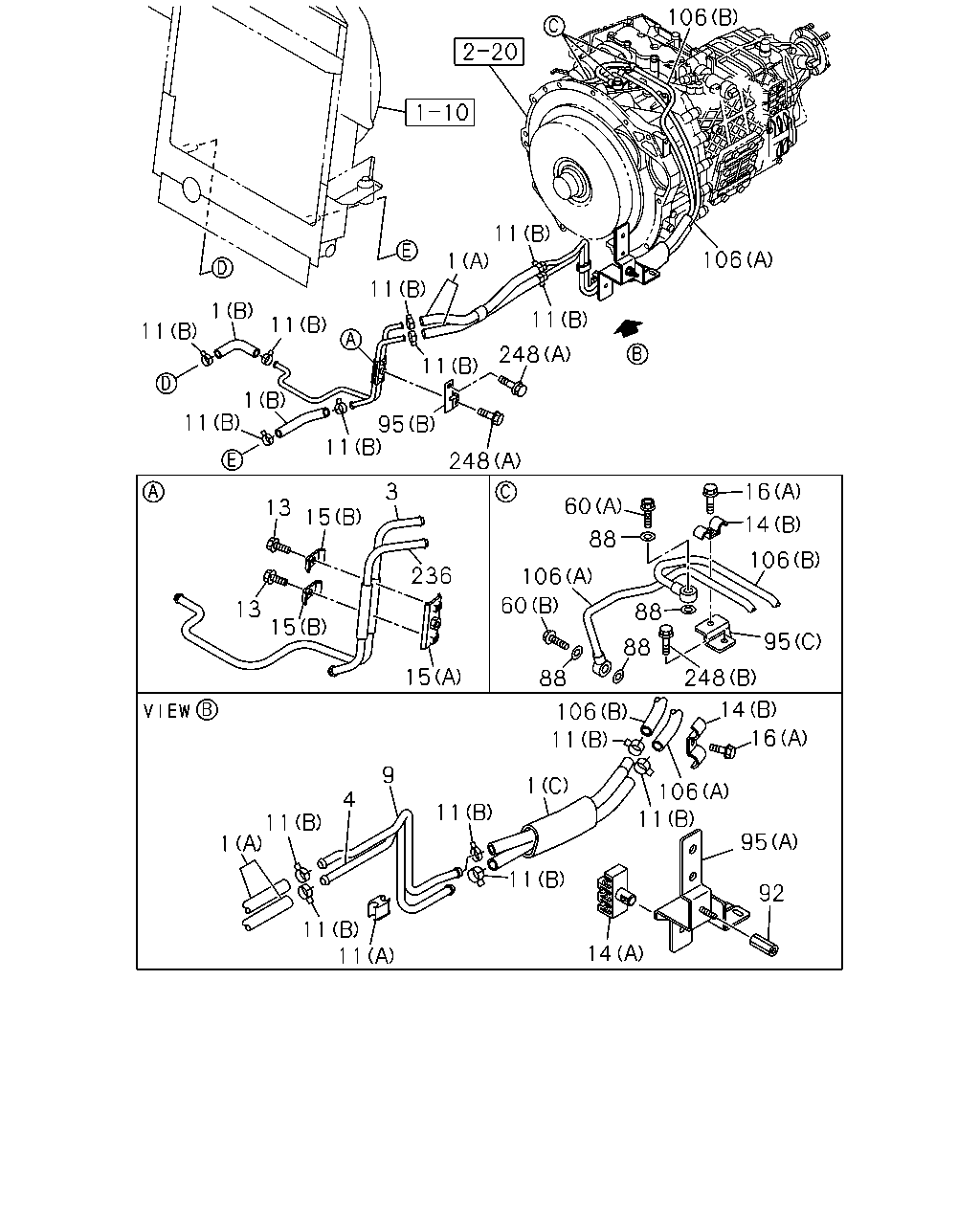

2-53 — TRANSMISSION OIL COOLER SYSTEM (#54657) — 142 parça

106 11 106 1 11 1 11 11 11 248 11 1 11 95 11 248 3 16 60 13 15 14 88 106 236 106 60 13 88 15 95 88 15 248 88 14 106 11 16 9 1 106 11 4 11 11 95 1 11 92 11 11 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0710-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0710-0810	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0710-	●	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0710-	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0710-0810	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0710-	●		●	●
3	04.128 PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	0710-	●	●	●	●
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-612-0	01	1	0710-0801	●	●	●	●
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-268-0	01	1	0802-0810	●	●	●	●
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	0811-	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0710-0810	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0710-0810	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●		●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0710-	●		●	●
13	04.128 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	0710-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=10X2 & 4.76	8-97305-170-0	01	1	0710-0801	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0802-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0710-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0710-	●		●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0710-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0710-	●		●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0710-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●	●	●
92	04.128 NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0710-	●		●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0710-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0710-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0710-		●		●
236	04.128 PIPE; OIL,OIL COOLER TO A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	0710-	●	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●	●	●

106 106 136 16 60 11 108 14 88 106 106 11 1 11 60 88 95 88 1 9 95 11 88 248 116 106 11 14 15 50 16 106 16 11 11 116 1 11 14 14 219 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0710-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0710-0810	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0710-	●	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0710-	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0710-0810	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0710-	●		●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0710-0810	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0710-0810	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●		●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0710-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=10X2 & 4.76	8-97305-170-0	01	1	0710-0801	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0802-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0710-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0710-	●		●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0710-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0710-	●		●	●
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0906	●	●	●	●
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●	●
50	04.128 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●		●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0710-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0710-	●		●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0710-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0710-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0710-		●		●
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-	●		●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●		●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0710-	●		●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0710-1402	●		●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-	●		●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●	●	●

11 1 1 11 11 9 95 116 15 108 11 136 106 60 60 88 88 88 106 88 11 172 11 50 16 14 14 219 11 116 11 106 16 106 106 248 14 16 172 14 95 106 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0710-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0710-0810	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-	●	●	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0710-	●	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0710-	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0710-0810	●		●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0710-	●		●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0710-0810	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-	●	●	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0710-0810	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●		●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●		●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0710-	●	●	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0710-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=10X2 & 4.76	8-97305-170-0	01	1	0710-0801	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0802-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0710-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0710-	●		●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0710-	●	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0710-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0710-	●		●	●
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0906	●	●	●	●
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●	●
50	04.128 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●		●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0710-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0710-	●	●	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0710-	●		●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0710-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0710-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0710-		●		●
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-	●		●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●		●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0710-	●		●	●
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	0811-	●		●	●
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	0811-	●		●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0710-1402	●		●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-	●		●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
