9-01 — TOOLS (#5465) — 164 parça

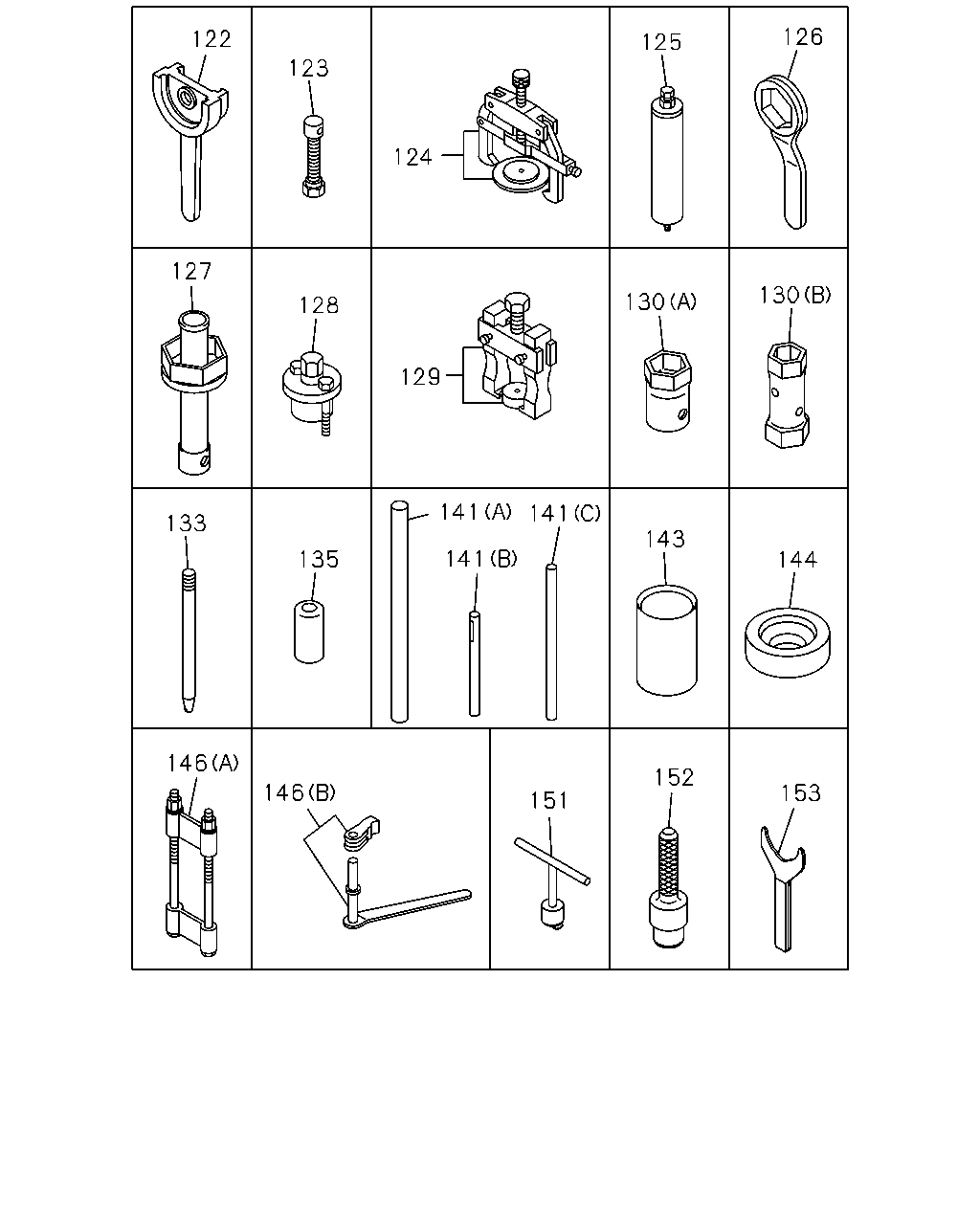

çizim 40448
126 122 125 123 124 127 130 130 128 129 141 141 133 143 141 135 144 146 152 146 153 151
BalonParca AdiParca NoAdetTipApplied Date
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9601-
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 9601-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9601-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9601-
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9601-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 9601-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 9601-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9601-
130 WRENCH; BOX
(A) B=63 		9-85111-368-0 01 1 9601-
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 9601-
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9601-
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9601-
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9601-
133 WRENCH; NUT STARTER
V TYPE ENG<91L> 		1-85221-030-0 02 1 9601-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9601-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9601-
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9601-
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 9601-
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9601-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9601-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9601-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 9601-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 9601-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9601-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9601-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9601-

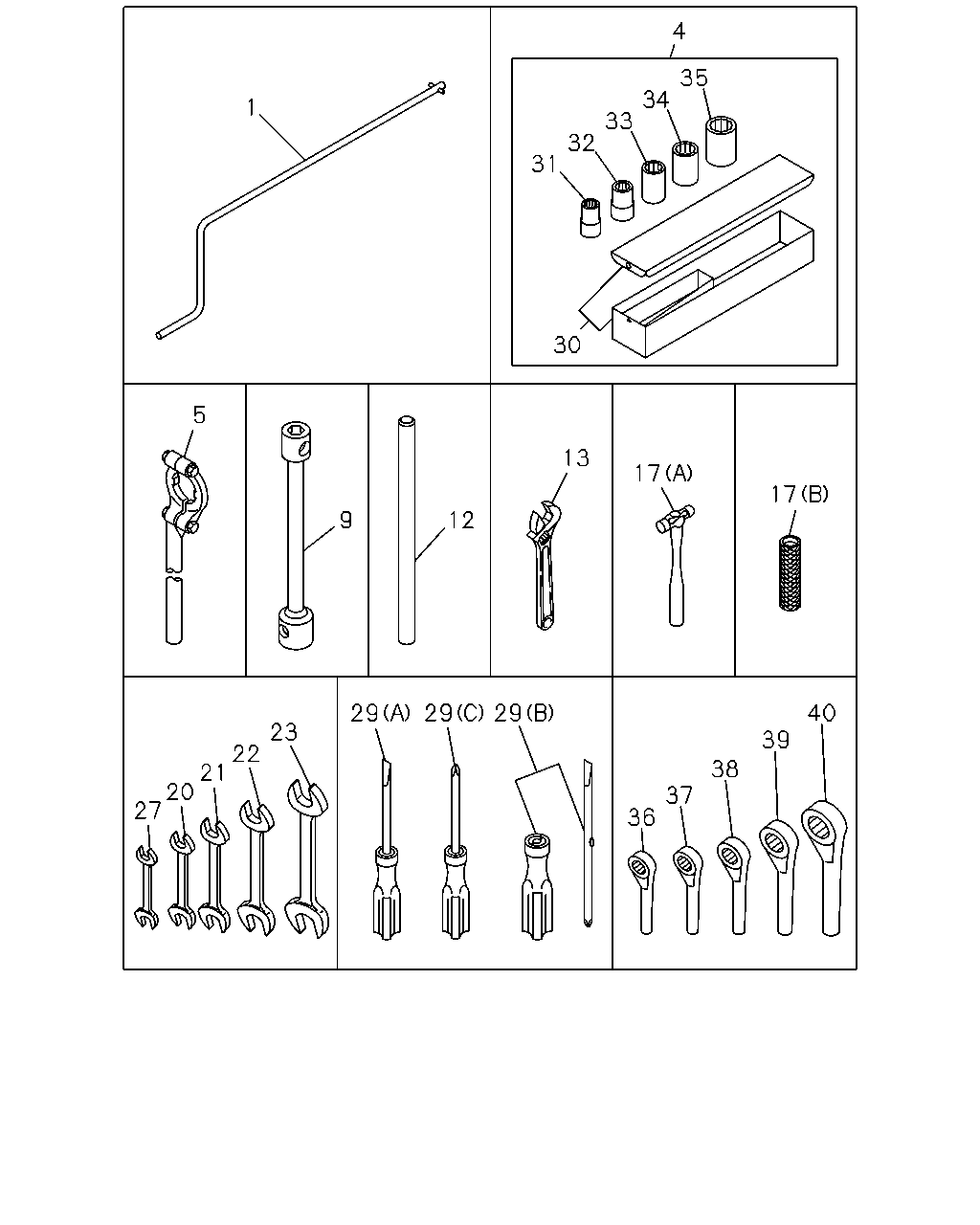

çizim 42067
4 35 34 33 32 1 31 30 5 13 17 17 9 12 29 40 23 22 21 20 27 39 38 37 36 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9601-
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9601-
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 9601-
9 WRENCH; WHEEL PIN 1-85111-033-1 01 1 9601-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9601-
13 WRENCH; MONKEY
L=255 L=255 		1-85117-002-1 01 1 9601-
17 HAMMER
(A) 		9-85121-406-0 01 1 9601-
17 HAMMER
V TYPE ENG<91L> (B) 		1-85220-021-0 01 1 9601-9603
17 HAMMER
V TYPE ENG<91L> (B) 		1-85220-021-0 01 1 9605-
20 WRENCH; 10X12
L=130 10X12 		9-09592-110-0 01 1 9601-
21 WRENCH; 14X17
L=165 14X17 		9-09592-114-0 01 1 9601-
22 WRENCH; 19X22
L=205 19X22 		9-99592-119-0 01 1 9601-
23 WRENCH; 24X27
L=245 24X27 		9-09592-124-0 01 1 9601-
27 WRENCH; OPEN END 5.5X7
L=120 8X10 		9-99592-108-0 01 1 9601-9904
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 9601-
29 DRIVER; SCREW
(B) <+>,<-> L=160 		8-94242-798-1 01 1 9601-
29 DRIVER; SCREW
(C) <+> L=275 		9-09595-023-0 01 1 9601-
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9601-
31 WRENCH; 12 9-09590-012-0 01 1 9601-
32 WRENCH; 14 9-09590-014-0 01 1 9601-
33 WRENCH; 17 9-09590-017-0 01 1 9601-
34 WRENCH; 19 9-09590-019-0 01 1 9601-
35 WRENCH; 22 9-09590-022-0 01 1 9601-
36 WRENCH; 24 9-85111-377-0 01 1 9601-
37 WRENCH; 27 9-85111-375-0 01 1 9601-
38 WRENCH; 32 9-85111-358-0 01 1 9601-
39 WRENCH; 36 9-85111-374-0 01 1 9601-
40 WRENCH; 41 9-85111-356-0 01 1 9601-
çizim 42099
227 232 218 219 230 237 296 299 329 363 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
218 PLUG
V TYPE ENG<91L> 		1-15629-043-0 01 1 9601-
219 GASKET
V TYPE ENG<91L> 		9-09720-555-0 01 1 9601-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9601-
230 PUMP; GREASE 1-85556-007-2 01 1 9601-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9601-
237 BAG; TOOL 8-97130-902-0 01 1 9601-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 9601-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 9601-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 9601-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 9601-
248 CHAIN; TIRE,1000-20,DOUBLE
TIRE 1000-20 10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 9601-
248 CHAIN; TIRE,1000-20,DOUBLE
TIRE 1100-20 		9-85591-260-0 AR 1 9601-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 9601-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 9601-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 9601-
296 REPLACER; SLINGER
L TYPE ENG<90L> 		1-85210-027-0 01 1 9601-
299 PULLER ASM; TRANS CONTROL
ZF M/T<X9E> 		1-85210-081-0 01 1 9601-
329 PULLER ASM; SLINGER
V TYPE ENG<91L> ID=124 		1-85220-052-0 01 1 9601-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9905-

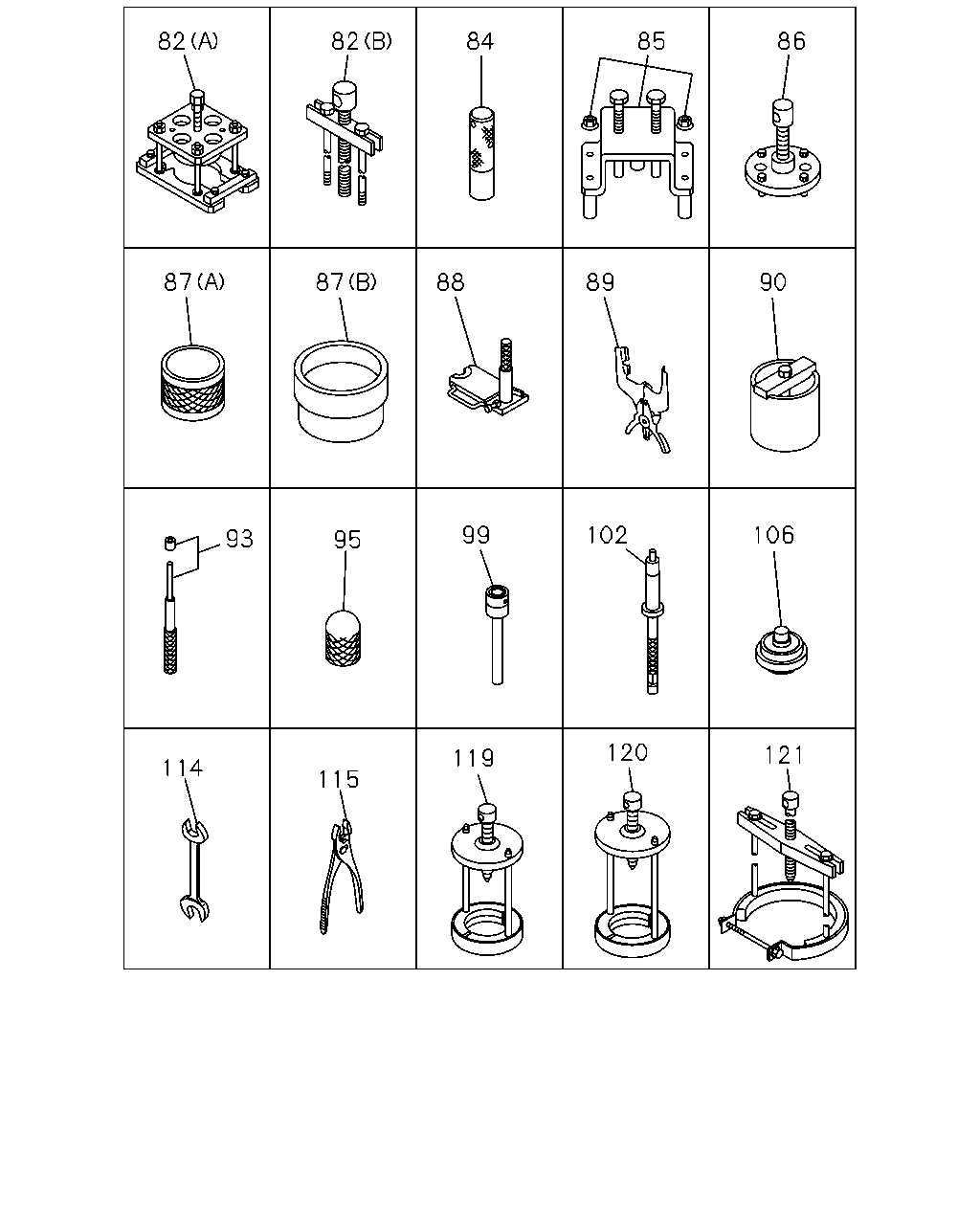

çizim 42540
82 82 84 85 86 87 87 88 89 90 99 102 106 93 95 120 121 119 114 115
BalonParca AdiParca NoAdetTipApplied Date
82 PULLER ASM; CR/SHF GEAR
L TYPE ENG<90L> (A) 		1-85210-064-0 01 1 9601-
82 PULLER ASM; CR/SHF GEAR
V TYPE ENG<91L> (B) 		9-85211-139-0 01 1 9601-
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> 		1-85221-136-0 01 1 9601-9609
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> 		1-85221-140-1 01 1 9601-9612
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> INLET 		1-85221-187-0 01 1 9701-
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> EXHAUST 		1-85221-184-0 01 1 9610-
85 REPLACER ASM; VALVE SPR
L TYPE ENG<90L> 		1-85235-010-0 01 1 9601-9609
85 REPLACER ASM; VALVE SPR
L TYPE ENG<90L> 		1-85235-013-0 01 1 9610-
86 REPLACER; FLYWHEEL
V TYPE ENG<91L> 		1-85230-006-0 01 1 9601-
87 TOOL; PISTON
L TYPE ENG<90L> (B) 		1-85220-046-0 01 1 9601-
87 TOOL; PISTON
V TYPE ENG<91L> (A) 		1-85220-058-0 01 1 9601-9806
87 TOOL; PISTON
V TYPE ENG<91L> (A) 		1-85220-082-0 01 1 9807-0001
87 TOOL; PISTON
V TYPE ENG<91L> (A) 		1-85220-082-0 01 1 0002-
88 TOOL; CONNROD BUSHING
V TYPE ENG<91L> 		1-85220-002-0 01 1 9601-
89 TOOL; PISTON RING
L TYPE ENG<90L> 		1-85221-029-0 01 1 9603-
89 TOOL; PISTON RING
V TYPE ENG<91L> 		1-85221-029-0 01 1 9603-
90 PULLER; INJ PUMP BRG
V TYPE ENG<91L> 		1-85210-039-0 01 1 9601-
93 SETTING KIT; VALVE GUIDE
L TYPE ENG<90L> L=260 		9-85231-202-0 01 1 9603-
93 SETTING KIT; VALVE GUIDE
V TYPE ENG<91L> L=260 		9-85231-202-0 01 1 9603-
95 SETTING TOOL; BRIDGE GUIDE
L TYPE ENG<90L> 		9-85221-324-0 01 1 9601-
99 WRENCH; CYL HD BOLT
V TYPE ENG<91L> 		1-85115-013-0 01 1 9601-
102 ADAPTER; COMP GAGE
L TYPE ENG<90L> 		1-85317-019-0 01 1 9601-
106 TOOL; SETTING PILOT BRG
L TYPE ENG<90L> 		1-85221-057-0 01 1 9603-
106 TOOL; SETTING PILOT BRG
V TYPE ENG<91L> 		1-85221-057-0 01 1 9603-
114 WRENCH; INJ PUMP
V TYPE ENG<91L> L=280 		1-85220-027-0 01 1 9601-
115 PLIER
L=203 		5-85171-001-0 01 1 9601-
119 PULLER ASM; TOP GEAR BRG
ISUZU M/T<X9A> L=235 		9-85210-190-0 01 1 9601-
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 9601-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> 		1-85210-069-0 01 1 9601-

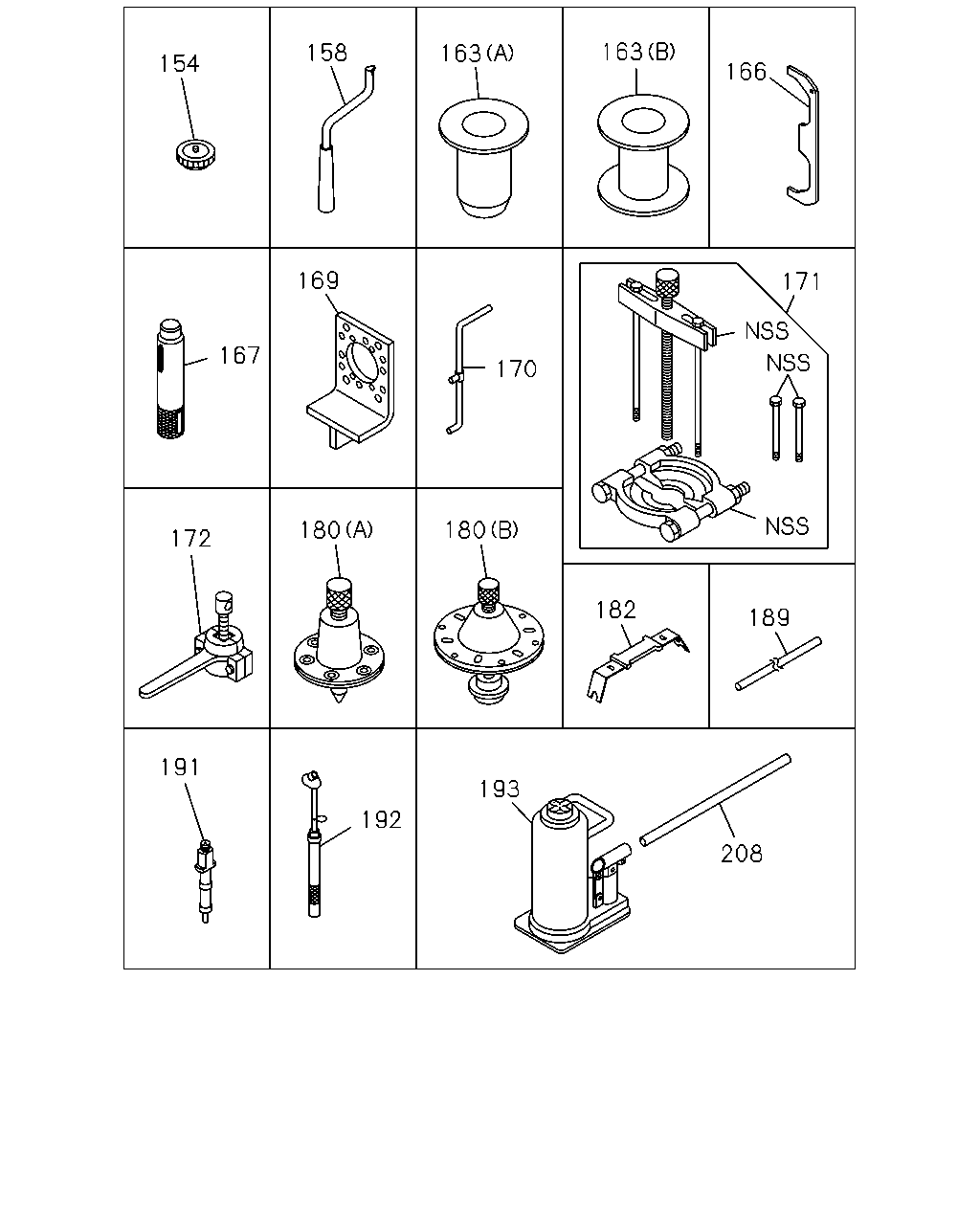

çizim 42572
163 158 163 154 166 169 171 167 170 180 180 172 182 189 191 193 192 208
BalonParca AdiParca NoAdetTipApplied Date
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9601-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9601-
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9601-
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9601-
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 9601-
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5 		1-85253-010-0 01 1 9601-9610
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5 		1-85253-010-0 01 1 9611-
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9601-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9601-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9601-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9601-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9601-
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9601-
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9601-
182 REMOVER ASM 1-85239-008-0 01 1 9601-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9601-
191 ADAPTER
V TYPE ENG<91L> 		1-85317-002-0 01 1 9601-
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-001-0 01 1 9601-9912
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0001-
193 JACK ASM
15TON 		1-85510-019-0 01 1 9601-9608
193 JACK ASM
15TON 		1-85510-019-1 01 1 9710-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9601-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-

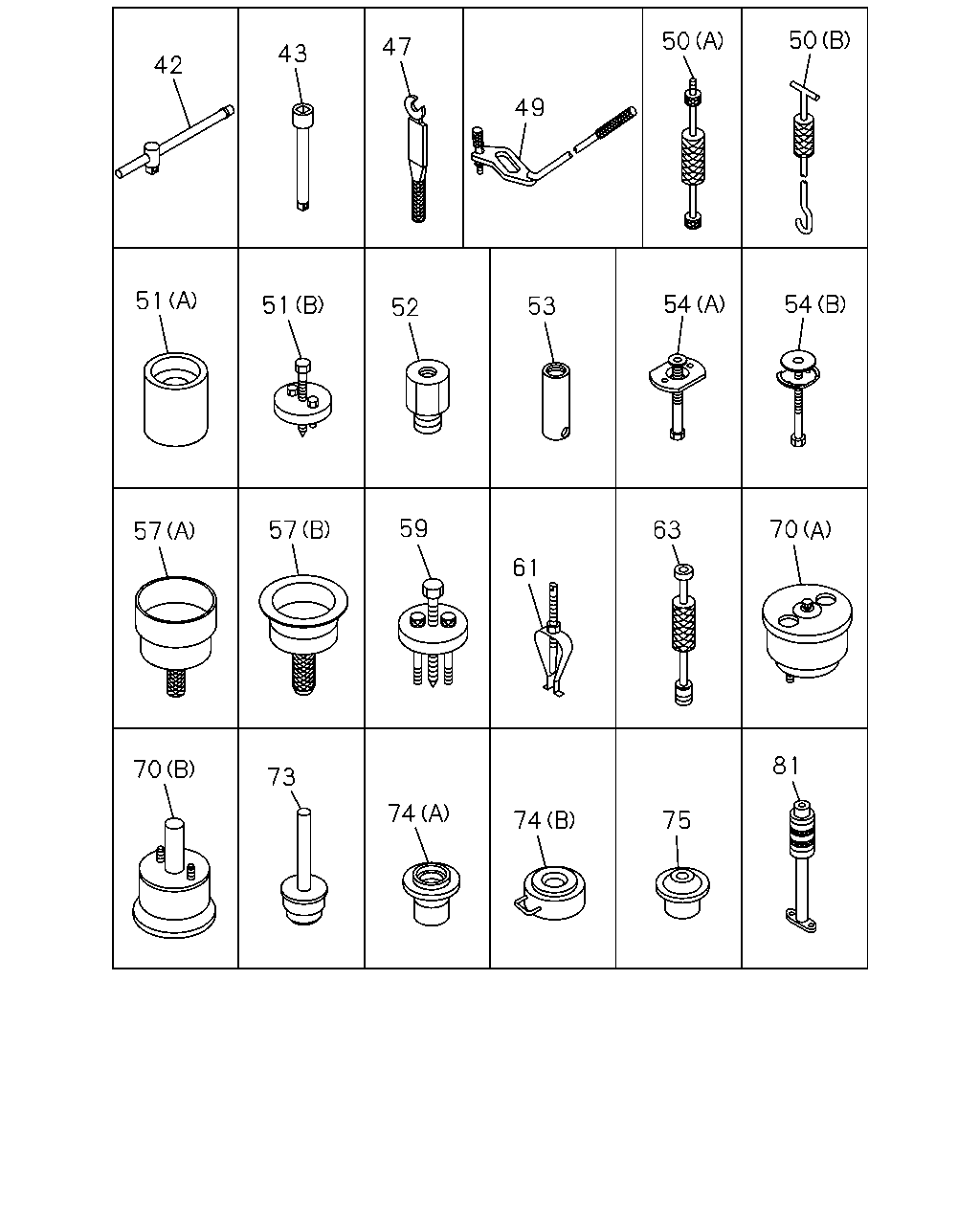

çizim 43116
50 50 47 43 42 49 51 54 54 51 53 52 59 70 63 57 57 61 81 70 73 74 74 75
BalonParca AdiParca NoAdetTipApplied Date
42 HANDLE; SLIDING 9-09590-512-0 01 1 9601-
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9601-
47 WRENCH ASM; UNIVERSAL,INJ PUMP
V TYPE ENG<91L> 		1-85220-018-0 01 1 9601-9904
47 WRENCH ASM; UNIVERSAL,INJ PUMP
V TYPE ENG<91L> 		1-85220-018-0 01 1 9905-
49 REPLACER ASM; VALVE
V TYPE ENG<91L> 		1-85235-001-0 01 1 9601-9904
49 REPLACER ASM; VALVE
V TYPE ENG<91L> 		1-85235-001-0 01 1 9905-
50 REPLACER; NOZZLE HOLDER
L TYPE ENG<90L> (A) L=300 		1-85230-013-0 01 1 9601-
50 REPLACER; NOZZLE HOLDER
V TYPE ENG<91L> (B) L=500 		1-85230-007-0 01 1 9601-0001
50 REPLACER; NOZZLE HOLDER
V TYPE ENG<91L> (B) L=500 		1-85230-007-0 01 1 0002-
51 PULLER ASM; WATER PUMP
L TYPE ENG<90L> (A) 		1-85220-047-0 01 1 9601-
51 PULLER ASM; WATER PUMP
V TYPE ENG<91L> (B) 		1-85210-028-0 01 1 9601-
52 REMOVER; WATER PUMP
L TYPE ENG<90L> 		1-85210-062-0 01 1 9601-
53 PULLER; TAPER BUSHING
L TYPE ENG<90L> 		1-85210-063-0 01 1 9601-
54 PULLER; THERMOSTAT SEAL
L TYPE ENG<90L> (B) 		1-85210-067-0 01 1 9601-
54 PULLER; THERMOSTAT SEAL
V TYPE ENG<91L> (A) 		1-85210-029-0 01 1 9601-0001
54 PULLER; THERMOSTAT SEAL
V TYPE ENG<91L> (A) 		1-85210-029-0 01 1 0002-
57 TOOL; SETTING CRANK GEAR
L TYPE ENG<90L> (A) OD=162 		1-85220-045-0 01 1 9601-
57 TOOL; SETTING CRANK GEAR
V TYPE ENG<91L> (B) OD=175 		1-85221-028-0 01 1 9601-0001
57 TOOL; SETTING CRANK GEAR
V TYPE ENG<91L> (B) OD=175 		1-85221-028-0 01 1 0002-
59 PULLER ASM; TIMING GEAR
L TYPE ENG<90L> 		1-85210-065-0 01 1 9601-
61 PULLER ASM; PILOT BRG
L TYPE ENG<90L> 		9-85210-157-0 01 1 9603-9904
61 PULLER ASM; PILOT BRG
V TYPE ENG<91L> 		9-85210-157-0 01 1 9603-0001
61 PULLER ASM; PILOT BRG
V TYPE ENG<91L> 		9-85210-157-0 01 1 0002-
61 PULLER ASM; PILOT BRG
L TYPE ENG<90L> 		9-85210-157-0 01 1 9905-
63 PULLER; NOZZLE SLEEVE
V TYPE ENG<91L> 		1-85210-026-0 01 1 9601-9904
63 PULLER; NOZZLE SLEEVE
V TYPE ENG<91L> 		1-85210-026-0 01 1 9905-
70 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> (A) 		1-85220-043-0 01 1 9601-
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL SEAL 		1-85220-051-0 01 1 9601-9904
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9601-9904
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL SEAL 		1-85220-051-0 01 1 9905-0001
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL SEAL 		1-85220-051-0 01 1 0002-
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9905-0001
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL THROWER 		1-85220-053-0 01 1 0002-
73 TOOL; SETTING,THERMOSTAT SEAL
L TYPE ENG<90L> 		1-85221-034-0 01 1 9603-
73 TOOL; SETTING,THERMOSTAT SEAL
V TYPE ENG<91L> 		1-85221-034-0 01 1 9603-
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (A) 		1-85220-019-0 01 1 9601-
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (B) 		1-85220-020-1 01 1 9601-
75 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> 		1-85220-049-0 01 1 9601-
81 PULLER; BRG CAP
V TYPE ENG<91L> 		1-85210-015-0 01 1 9601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
