◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#54640) — 38 parça

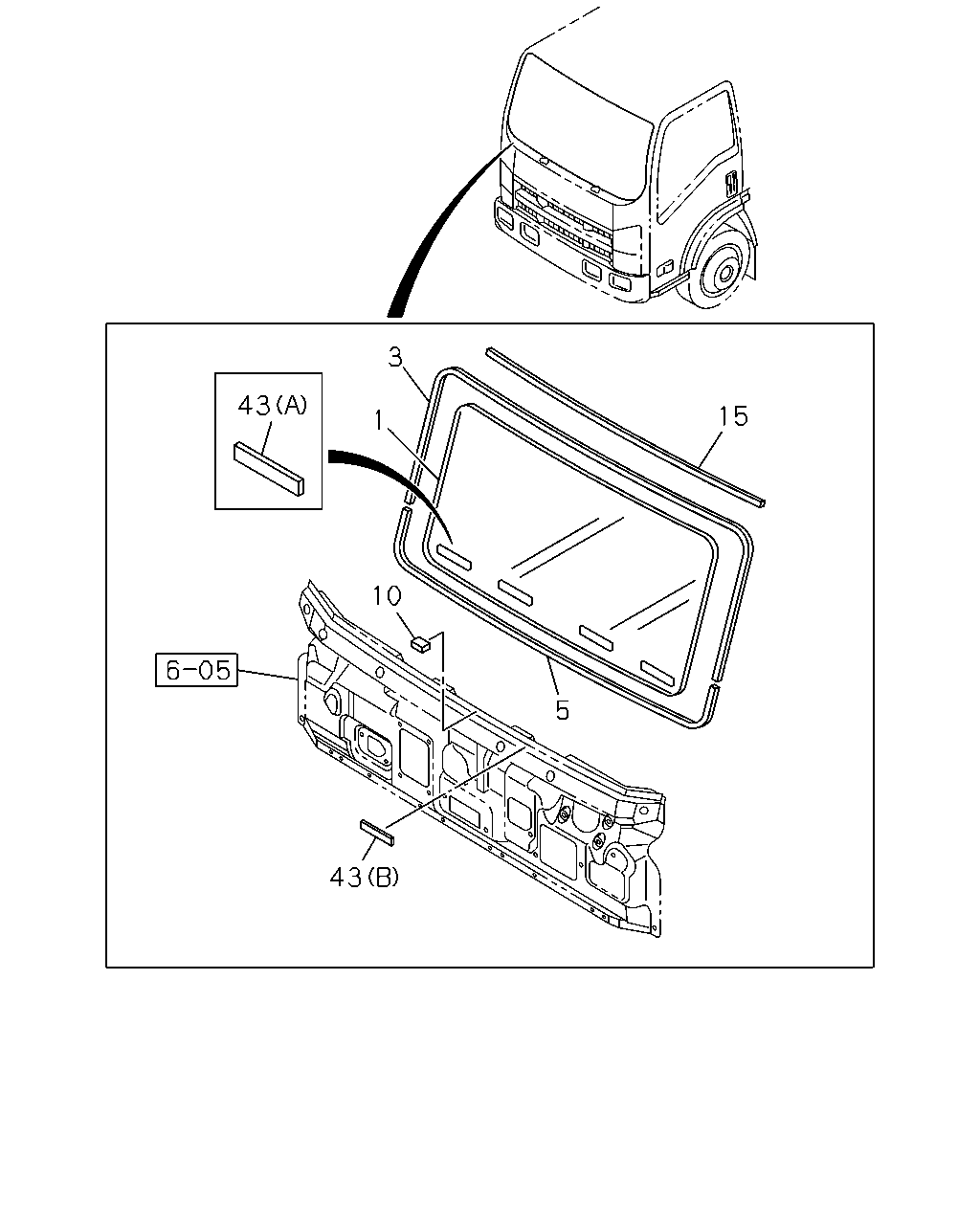

çizim 120010
3 43 15 1 10 5 43
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.005 GLASS; WINDSHIELD 8-98029-063-1 01 1 0803-0803 ● ●
1 16.005 GLASS; WINDSHIELD 8-98029-063-1 01 1 0804-0808 ● ● ●
1 16.005 GLASS; WINDSHIELD 8-98029-063-1 01 1 0809- ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0803-0803 ● ●
3 16.470 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0804-0808 ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0809- ● ● ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0803-0803 ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0804-0808 ● ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0809- ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0803-0803 ● ●
10 08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0804-0808 ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0809- ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 0803-0803 ● ●
15 16.041 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 0804-0807 ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 0808-0808 ●
15 16.041 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 0808-0808 ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 0809- ●
15 16.041 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 0809- ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1007- ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 04 1 1007- ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1007- ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 04 1 1007- ● ● ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 1007- ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 1007- ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-0 04 1 0804-0807 ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-0 04 1 0808-0808 ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-0 04 1 0808-0808 ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-0 04 1 0809-1006 ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-0 04 1 0809-1006 ● ● ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-0 04 1 0804-0807 ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-0 04 1 0808-0808 ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-0 04 1 0808-0808 ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-0 04 1 0809-1006 ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-0 04 1 0809-1006 ● ● ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-0 09 1 0808-1006 ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-0 09 1 0808-1006 ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-0 04 1 0803-0803 ● ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-0 04 1 0803-0803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
