1 |

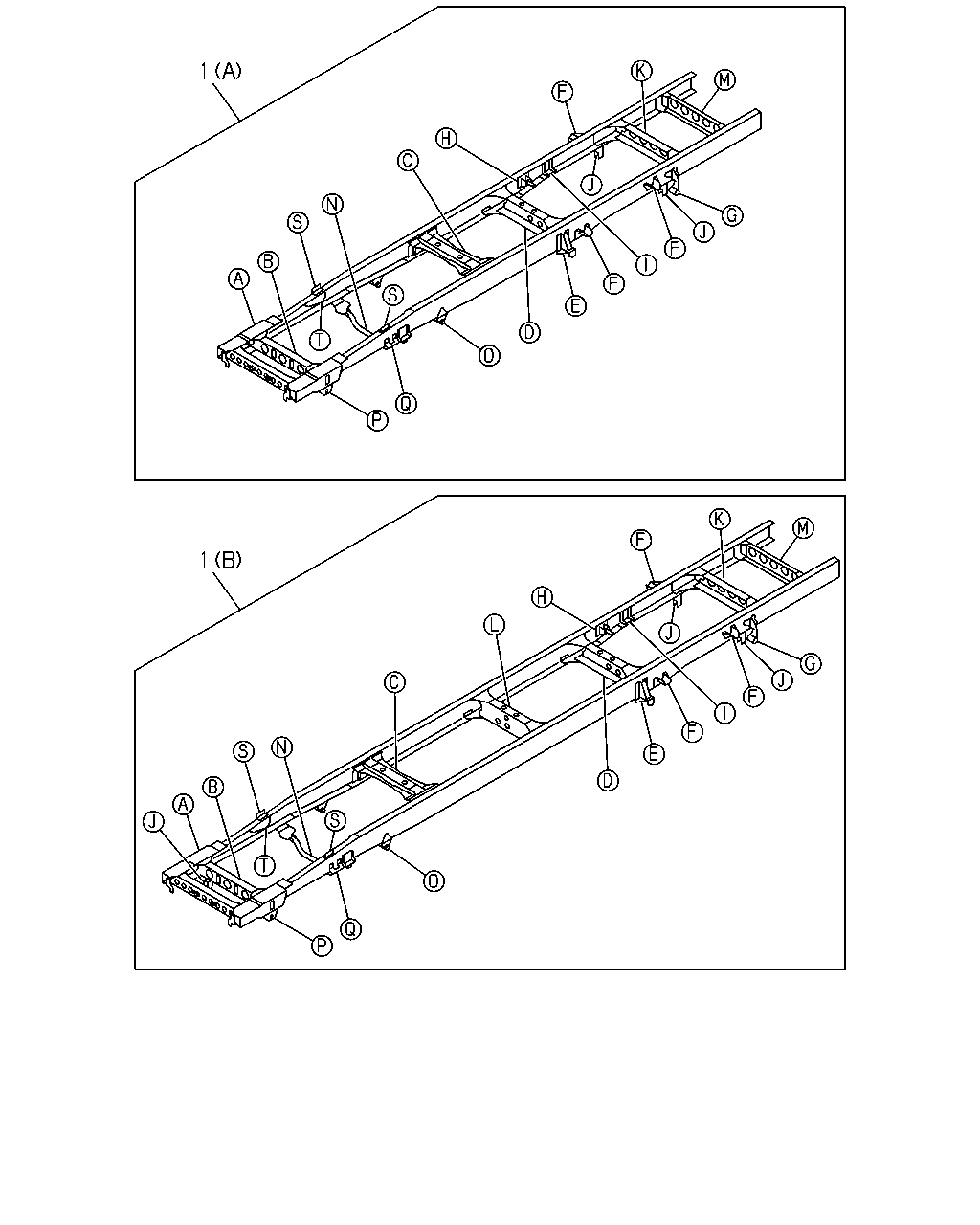

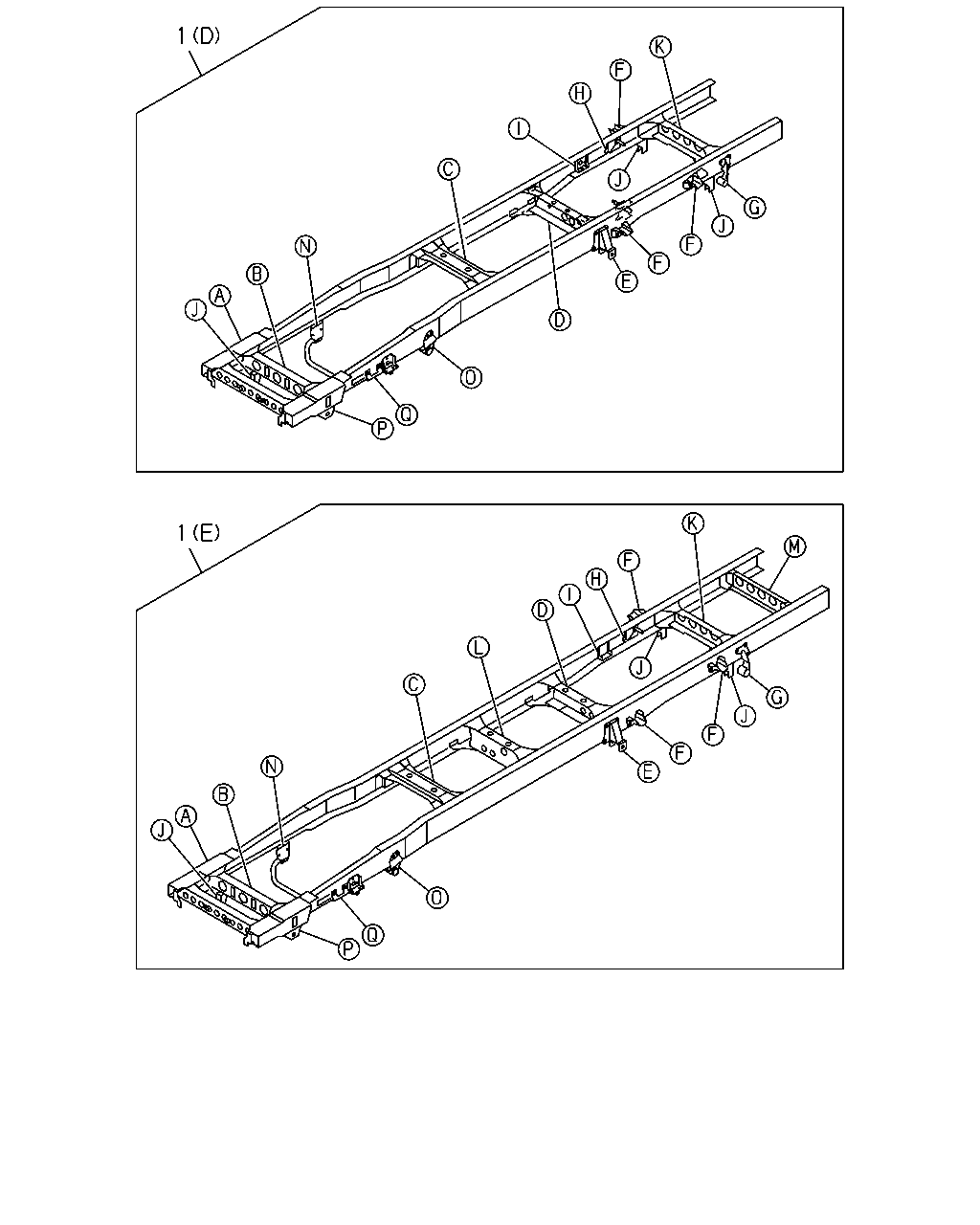

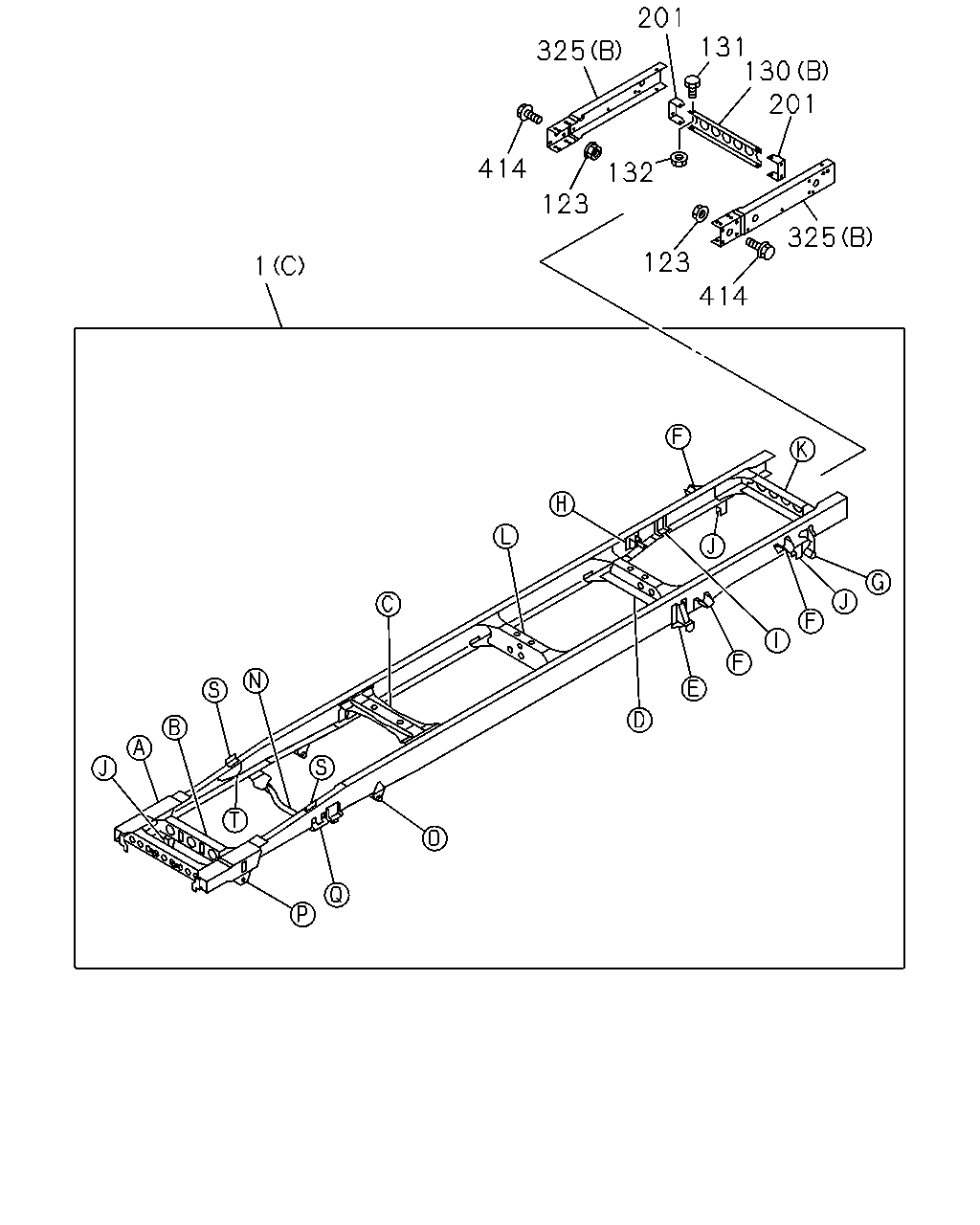

07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
STABILIZER REAR<GN1>
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98273-260-0 |
01 |
1 |
1405- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,SPARE TIRE CARRIER IN
SIDE MOUNTED<P15>
(B)
|
8-98099-797-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,SPARE TIRE CARRIER IN
SIDE MOUNTED<P15>
(B)
|
8-98099-797-0 |
01 |
1 |
1107-1109 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(B)
|
8-98099-797-0 |
01 |
1 |
1107-1109 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
|
8-98170-973-0 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98170-973-0 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
EURO4 SPECIFICATION(NT4)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,STABILIZER REAR<GN1>,FUEL TANK
140 LITTER<N19>,MINI BUS CHASSIS
VAR.2(6GQ)
(B)
|
8-98157-951-1 |
01 |
1 |
1005- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),FRAME
STRAIGHT TYPE<7KJ>
(E)
|
8-98157-978-0 |
01 |
1 |
1005- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,STABILIZER REAR<GN1>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>
,MINI BUS CHASSIS VAR.2(6GQ)
(B)
|
8-98157-952-1 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
STABILIZER REAR<GN1>
(B)
|
8-98157-952-1 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,STABILIZER REAR<GN1>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>
,MINI BUS CHASSIS VAR.2(6GQ)
(B)
|
8-98157-952-1 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,STABILIZER REAR<GN1>
(B)
|
8-98157-952-1 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,STABILIZER REAR<GN1>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>
,MINI BUS CHASSIS VAR.2(6GQ)
(B)
|
8-98157-952-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,STABILIZER REAR<GN1>,MINI
BUS CHASSIS VAR.2(6GQ)
(B)
|
8-98157-952-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-953-1 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-98157-953-1 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-953-1 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,MINI BUS
CHASSIS(V4B)
(C)
|
8-98157-953-1 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-953-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-953-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-955-1 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B)
(C)
|
8-98157-955-1 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-955-1 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B)
(C)
|
8-98157-955-1 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-955-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B),MIN
I BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-955-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>
(B)
|
8-98134-377-1 |
01 |
1 |
0811-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98134-377-1 |
01 |
1 |
0811-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>
(B)
|
8-98134-377-1 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(B)
|
8-98134-377-1 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98134-378-1 |
01 |
1 |
0811- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
(B)
|
8-98071-648-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
(C)
|
8-98071-663-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,MINI BUS CHASSIS VAR.
2(6GQ)
(C)
|
8-98071-663-4 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98071-663-4 |
01 |
1 |
0804-0808 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>,MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98071-663-4 |
01 |
1 |
0809-1004 |
● |
|
|
|
| |
1 |

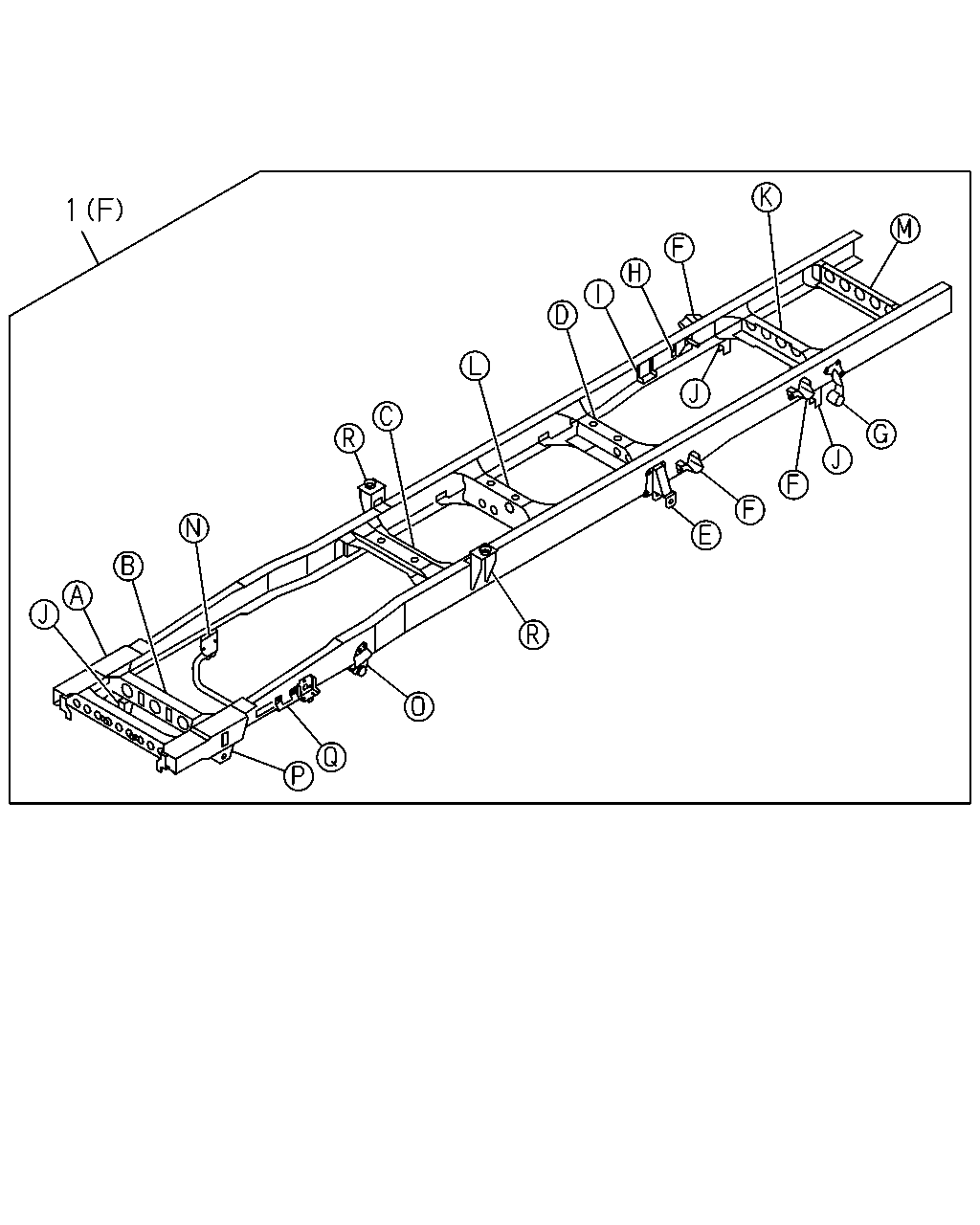

07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98071-663-4 |
01 |
1 |
0809-1004 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>,MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98071-663-5 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98071-663-5 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>,MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98071-663-5 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(C)
|
8-98071-663-5 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>,MINI BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98071-663-5 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,MINI BUS
CHASSIS VAR.2(6GQ)
(C)
|
8-98071-663-5 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
DUMP CHASSIS(V4D)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04)
(A)
|
8-98088-801-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
DUMP CHASSIS(V4D)
EXC. TAIWAN EQUIPMENT(B04)
(A)
|
8-98088-801-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04)
,DUMP CHASSIS(V4D)
(A)
|
8-98071-612-5 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,TAIWAN EQUIPMENT(B04)
,DUMP CHASSIS(V4D)
(A)
|
8-98071-612-5 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-621-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-621-4 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-621-4 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-621-4 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98101-572-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98101-572-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-641-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-641-4 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(B)
|
8-98071-641-4 |
01 |
1 |
0809-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(B)
|
8-98071-641-4 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-641-4 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98071-658-3 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,MINI BUS CHASSIS VAR.
2(6GQ)
(C)
|
8-98071-658-3 |
01 |
1 |
0804-0912 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
(C)
|
8-98071-658-3 |
01 |
1 |
0804-0912 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-98071-658-3 |
01 |
1 |
0804-0912 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,MINI BUS CHASSIS VAR.
2(6GQ)
(C)
|
8-98071-658-4 |
01 |
1 |
1001-1004 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-98071-658-4 |
01 |
1 |
1001-1004 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>,MINI
BUSCHASSIS VAR.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),FUEL
TANK 140 LITTER<N19>,MINI BUS CHASSIS VAR
.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98157-950-0 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
(B)
|
8-98157-950-0 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>,MINI
BUSCHASSIS VAR.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),FUEL
TANK 140 LITTER<N19>,MINI BUS CHASSIS VAR
.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(B)
|
8-98157-950-0 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>
(B)
|
8-98157-950-0 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),FUEL TANK 140 LITTER<N19>,MINI
BUSCHASSIS VAR.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,EURO4 SPECIFICATION(NT4),FUEL
TANK 140 LITTER<N19>,MINI BUS CHASSIS VAR
.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,MINI BUS
CHASSIS VAR.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,MINI BUS CHASSIS
VAR.2(6GQ)
(B)
|
8-98157-950-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98088-794-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98101-571-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98101-570-1 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98110-997-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,MINI BUS CHASSIS VAR.
2(6GQ)
(B)
|
8-98110-997-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-802-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-802-2 |
01 |
1 |
0809-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-802-2 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(C)
|
8-98099-802-2 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98099-799-1 |
01 |
1 |
0804-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98099-799-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(B)
|
8-98099-799-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(E)
|
8-98116-128-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(E)
|
8-98116-129-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(E)
|
8-98116-131-0 |
01 |
1 |
0804-1004 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,EURO4
SPECIFICATION(NT4),FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98116-131-1 |
01 |
1 |
1005-1404 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,STABILIZER REAR<GN1>,EURO4
SPECIFICATION(NT4),FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98116-131-1 |
01 |
1 |
1405- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TAIWAN EQUIPMENT(B04)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98071-613-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TAIWAN EQUIPMENT(B04)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98071-613-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TAIWAN EQUIPMENT(B04)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98071-614-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TAIWAN EQUIPMENT(B04)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98071-614-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-619-3 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-619-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-620-3 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,SPARE TIRE CARRIER IN
SIDE MOUNTED<P15>
(B)
|
8-98071-620-7 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,SPARE TIRE CARRIER IN
SIDE MOUNTED<P15>,MINI BUS CHASSIS
VAR.2(6GQ)
(B)
|
8-98071-620-7 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,SPARE TIRE CARRIER IN
SIDE MOUNTED<P15>,MINI BUS CHASSIS
VAR.2(6GQ)
(B)
|
8-98071-620-7 |
01 |
1 |
1006- |
● |
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-638-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,MINI BUS CHASSIS VAR.
2(6GQ)
(B)
|
8-98071-638-4 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-638-4 |
01 |
1 |
0804-0808 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FUEL TANK 140
LITTER<N19>,MINI BUS CHASSIS VAR.2(6GQ)

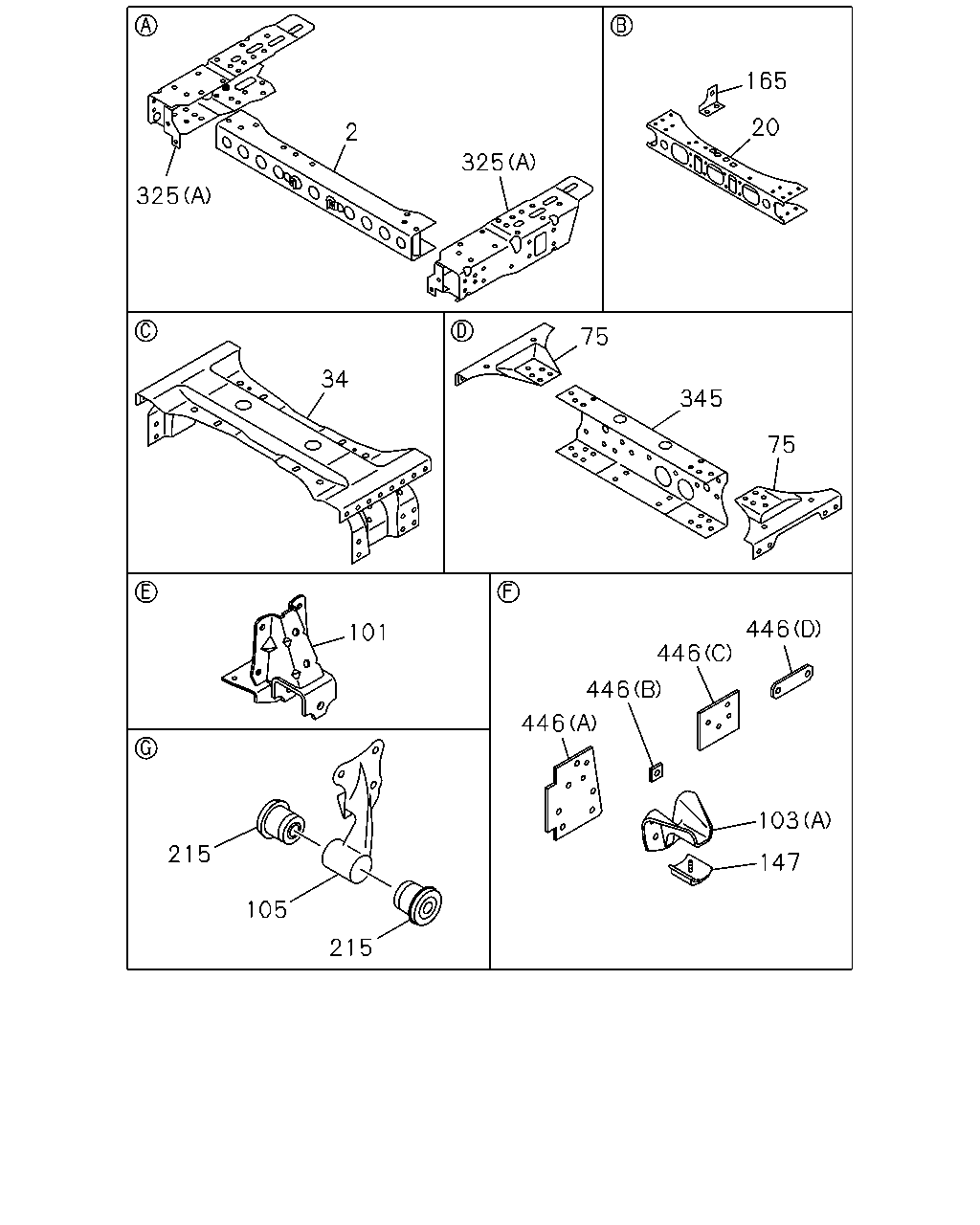

(B)
|
8-98071-638-4 |
01 |
1 |
0809-1004 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-638-4 |
01 |
1 |
0809-1004 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FUEL TANK 140 LITTER<N19>,MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-956-1 |
01 |
1 |
1005-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
(C)
|
8-98157-956-1 |
01 |
1 |
1005-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FUEL TANK 140 LITTER<N19>,MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-956-1 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>
(C)
|
8-98157-956-1 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FUEL TANK 140 LITTER<N19>,MINI
BUS CHASSIS VAR.2(6GQ)
(C)
|
8-98157-956-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,FRONT
STABILIZER SHAFT<F59>,MINI BUS CHASSIS
VAR.2(6GQ)
(C)
|
8-98157-956-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-639-4 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-639-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-628-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-628-2 |
01 |
1 |
0809-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-628-2 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-628-2 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-629-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-629-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-648-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-648-2 |
01 |
1 |
0804-0808 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-648-2 |
01 |
1 |
0809-0810 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-648-2 |
01 |
1 |
0809-0810 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98071-648-3 |
01 |
1 |
0811- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-649-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(B)
|
8-98071-649-2 |
01 |
1 |
0809-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(B)
|
8-98071-649-2 |
01 |
1 |
1006- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-649-2 |
01 |
1 |
1006- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-650-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-650-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
|
8-98071-670-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
|
8-98071-670-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98071-671-2 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98071-671-2 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(D)
|
8-98071-512-3 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(D)
|
8-98071-512-3 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM)
WHEEL BASE 2700MM(27W)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(D)
|
8-98071-512-3 |
01 |
1 |
0809- |
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98101-478-1 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98101-478-1 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(D)
|
8-98101-478-1 |
01 |
1 |
0809- |
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-519-1 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-519-1 |
01 |
1 |
0809-1004 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(E)
|
8-98071-519-1 |
01 |
1 |
0809-1004 |
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
EURO4 SPECIFICATION(NT4)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRONT STABILIZER SHAF
T<F59>,FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-519-1 |
01 |
1 |
1005- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(E)
|
8-98071-519-1 |
01 |
1 |
1005- |
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-520-1 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-520-1 |
01 |
1 |
0809- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(E)
|
8-98071-520-1 |
01 |
1 |
0809- |
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-521-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRAME STRAIGHT
TYPE<7KJ>
(E)
|
8-98071-525-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-526-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98071-527-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98099-796-1 |
01 |
1 |
0804-1105 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98099-796-1 |
01 |
1 |
1106-1109 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(B)
|
8-98099-796-1 |
01 |
1 |
1110- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(B)
|
8-98099-796-1 |
01 |
1 |
1110- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-803-1 |
01 |
1 |
0804-0912 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
(C)
|
8-98099-803-1 |
01 |
1 |
0804-0912 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-803-1 |
01 |
1 |
1001-1005 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98099-803-1 |
01 |
1 |
1001-1005 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-803-1 |
01 |
1 |
1006-1106 |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(C)
|
8-98099-803-1 |
01 |
1 |
1006-1106 |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(C)
|
8-98099-803-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>
(C)
|
8-98099-803-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
(F)
|
8-98071-531-1 |
01 |
1 |
0804-0909 |
|
|
|
● |
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
(F)
|
8-98071-531-2 |
01 |
1 |
0910- |
|
|
|
● |
| |
123 |
07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0803- |
● |
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
(B)
|
8-97205-394-0 |
01 |
1 |
0803- |
● |
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0804-0808 |
● |
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
EXC. TAIWAN EQUIPMENT(B04)
(A)
|
8-97080-872-0 |
01 |
1 |
0809- |
● |
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0809- |
● |
● |
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4JJ1-TCC ENG(RDU)
(A)
|
8-98000-492-0 |
01 |
1 |
0804-0808 |
● |
|
|
● |
| |
130 |
07.014 MEMBER; CROSS,END
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98000-492-0 |
01 |
1 |
0809- |
● |
|
|
● |
| |
130 |
07.014 MEMBER; CROSS,END
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
|
8-98000-492-0 |
01 |
1 |
0809- |
|
|
● |
|
| |
131 |
07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
07.833
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
0803- |
● |
● |
|
|
| |
132 |
07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0803- |
● |
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
|
8-97096-871-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
|
8-97096-871-0 |
02 |
1 |
0804-0808 |
● |
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
EXC. TAIWAN EQUIPMENT(B04)
|
8-97096-871-0 |
02 |
1 |
0804-0808 |
● |
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
|
8-97096-871-0 |
02 |
1 |
0804-0808 |
|
|
|
● |
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
|
8-97096-871-0 |
02 |
1 |
0809- |
● |
● |
● |
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
EXC. TAIWAN EQUIPMENT(B04)
|
8-97096-871-0 |
02 |
1 |
0809- |
● |
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
|
8-97096-871-0 |
02 |
1 |
0809- |
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(B)
|
8-97128-752-3 |
01 |
1 |
0803- |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(B)
|
8-97128-753-3 |
01 |
1 |
0803- |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
(B)
|
8-97222-891-1 |
01 |
1 |
0803- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
(B)
|
8-97222-892-1 |
01 |
1 |
0803- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-350-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-350-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(A)
|
8-98073-350-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-350-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(A)
|
8-98073-350-0 |
01 |
1 |
1006- |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-351-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-351-1 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(A)
|
8-98073-351-1 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-351-1 |
01 |
1 |
1006- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(A)
|
8-98073-351-1 |
01 |
1 |
1006- |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BAS
E 4100MM(41W)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98073-346-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
(A)
|
8-98073-346-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98073-346-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BAS
E 4100MM(41W)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98073-347-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
(A)
|
8-98073-347-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98073-347-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCC ENG(RDU)
(A)
|
8-98073-342-0 |
01 |
1 |
0804-0808 |
● |
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCC ENG(RDU)
(A)
|
8-98073-342-0 |
01 |
1 |
0809- |
● |
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
(A)
|
8-98073-342-0 |
01 |
1 |
0809- |
|
|
● |
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCC ENG(RDU)
(A)
|
8-98073-343-0 |
01 |
1 |
0804-0808 |
● |
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCC ENG(RDU)
(A)
|
8-98073-343-0 |
01 |
1 |
0809- |
● |
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
(A)
|
8-98073-343-0 |
01 |
1 |
0809- |
|
|
● |
|
| |
414 |
07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
06.509
M12X30 FLANGE
|
0-28661-230-0 |
12 |
1 |
0803- |
● |
● |
|
|
| |
414 |
07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
M12X40 FLANGE
|
0-28661-240-0 |
04 |
1 |
0803- |
● |
● |
|
|
