2 |

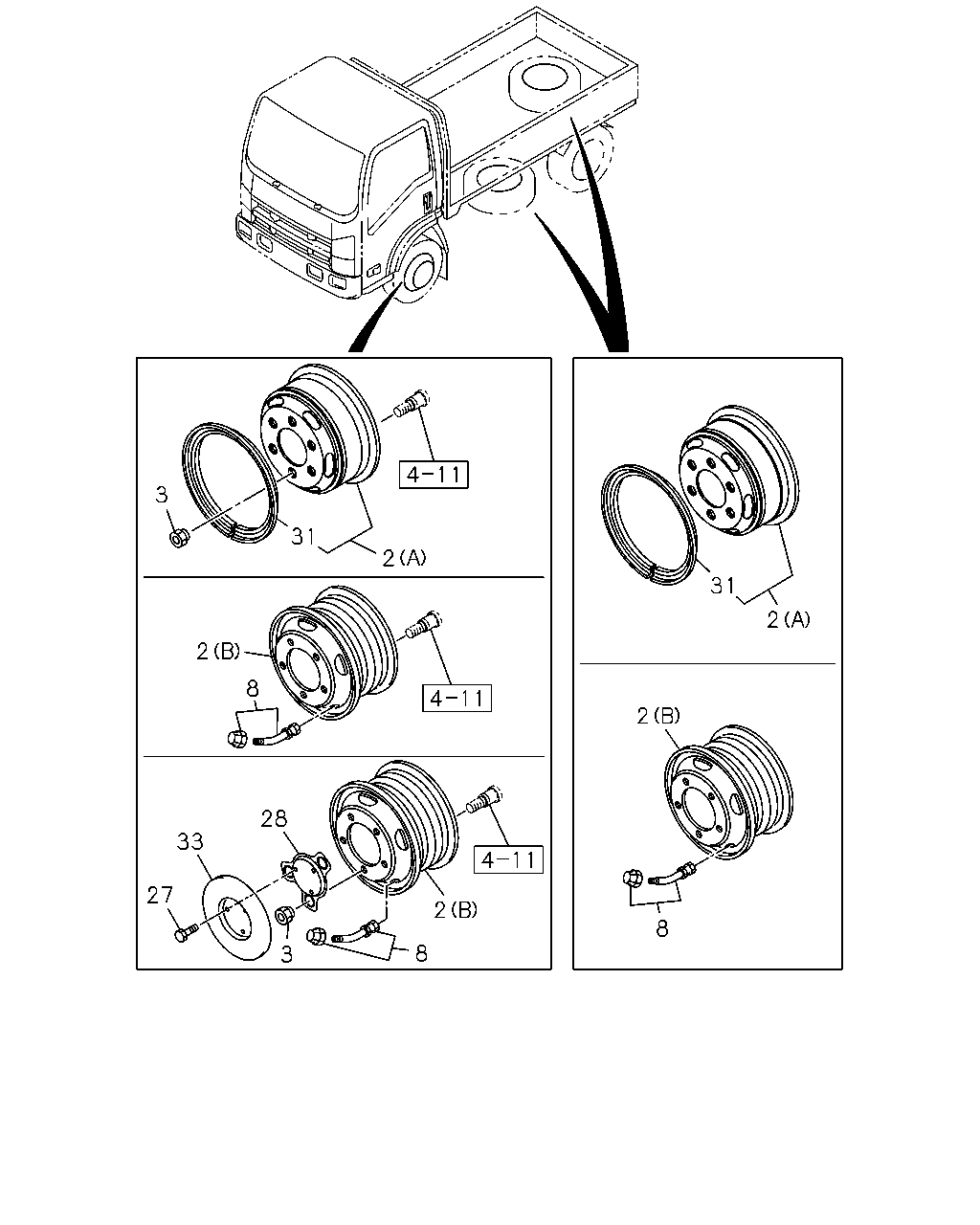

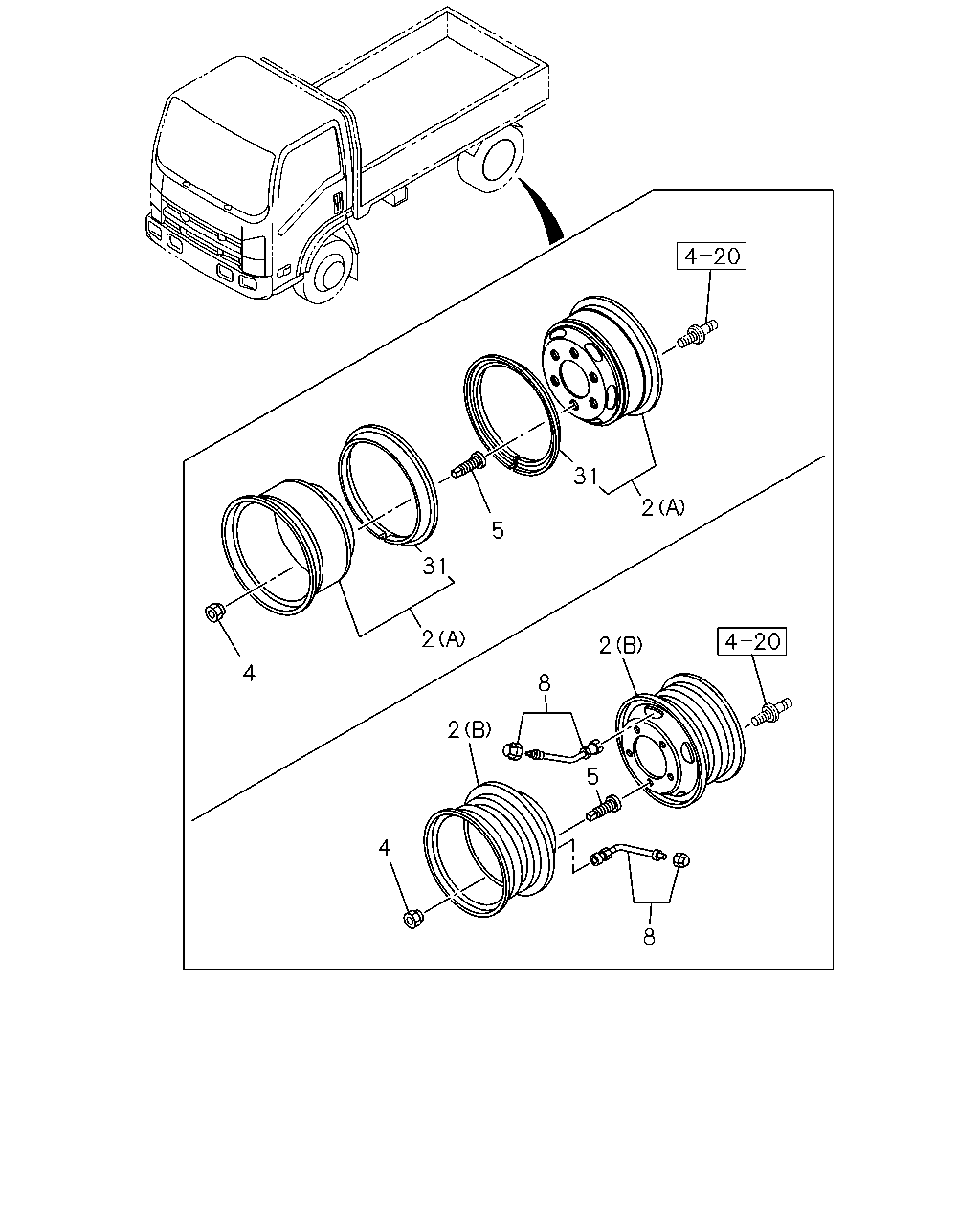

05.803 WHEEL; DISC
FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR
225/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB)
(B) FRONT,REAR
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
06 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ)
(B) FRONT,REAR
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
06 |
1 |
0804- |
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0803-0803 |
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR
225/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB)
(B) SPARE
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ)
(B) SPARE
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
01 |
1 |
0804- |
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR
225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R
16 16X6K-128 6-WHL/NUT(CUB)
(B) SPARE
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR
225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R
16 16X6K-128 6-WHL/NUT(CUB)
(B) FRONT,REAR
16X6K OFFSET=128 PLATINUM SILVER 6-HOLE
|
8-97233-665-1 |
06 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-
127 6-WHL/NUT DYNAMIC(97V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0804-0809 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810-1007 |
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-14 6GSX16-127(CWD),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7
.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
1008- |
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-
127 6-WHL/NUT DYNAMIC(97V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0803-0803 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0804-0809 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810-1007 |
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-14 6GSX16-127(CWD),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7
.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
1008- |
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127
SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127
SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0804-0807 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0808-0808 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0809-1005 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0809-1005 |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
1006-1010 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
1006-1010 |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
02 |
1 |
1011- |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
02 |
1 |
1011- |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127
SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127
SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0804-0807 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0808-0808 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0809-1005 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0809-1005 |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
1006-1010 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
1006-1010 |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
04 |
1 |
1011- |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
04 |
1 |
1011- |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0803-0807 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0808-0808 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0809-1010 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0809-1010 |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1011- |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1011- |
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
06 |
1 |
0803-1005 |
● |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.
5(CSB)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0804- |
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA)
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA)
(B) REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
04 |
1 |
0804- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G
SX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0804-0809 |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0810- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G
SX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0804-0809 |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0810- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0804-0809 |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11
5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0810- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0804-0809 |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11
5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0810- |
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0804-0809 |
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/
NUT(CUZ)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0810- |
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0804-0809 |
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/
NUT(CUZ)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0810- |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FRT&R
R 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FR
T&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G
SX16-127 6-WHL/NUT(9BP),FRT&RR
7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT
&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNA
MIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0804-0804 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0804-0804 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0804-0804 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R 215/85R16 16X6K-128(CSC),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 22
5/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR
7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FR
T&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V),FRT&RR 7.5-16-14
6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5
-16-10 6GSX16-127 6-WHL/NUT
DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0805-0807 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0805-0807 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0805-0807 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0808-0808 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0808-0808 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0808-0808 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0809-0809 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0809-0809 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0809-0809 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0809-0809 |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1007 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1007 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1007 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1007 |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1008- |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR
T&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1008- |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1008- |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1008- |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 225/85R16 16X6K-
128(CNY),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D
ISC 6.00GSX16-127(CTF),FRT&RR
225/85R1616X6K-128 SILVER(CTZ),FRT&RR 215/85R16
16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16
-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&
RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C)
,FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16
-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DY
NAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0803-0803 |
|
|
● |
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FRT&R
R 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FR
T&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G
SX16-127 6-WHL/NUT(9BP),FRT&RR
7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT
&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNA
MIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0804-0804 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0804-0804 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0804-0804 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R 215/85R16 16X6K-128(CSC),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 22
5/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR
7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FR
T&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V),FRT&RR 7.5-16-14
6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5
-16-10 6GSX16-127 6-WHL/NUT
DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0805-0807 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0805-0807 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0805-0807 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0808-0808 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0808-0808 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0808-0808 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0809-0809 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0809-0809 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0809-0809 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0809-0809 |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1007 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1007 |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1007 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1007 |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1008- |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR
T&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1008- |
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1008- |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1008- |
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 225/85R16 16X6K-
128(CNY),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D
ISC 6.00GSX16-127(CTF),FRT&RR
225/85R1616X6K-128 SILVER(CTZ),FRT&RR 215/85R16
16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16
-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&
RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C)
,FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16
-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DY
NAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0803-0803 |
|
|
● |
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0804-0804 |
● |
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1
15(07H),FRT&RR 7.5-16-8 6GSX16-127(10H)
,FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-
16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 1
6X5.5F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0805-0809 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0805-0809 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6.
00GSX16-127(CUV),FRT&RR 7.00R-16-10
R/LDISC 5.50FX16-115(CUW),FRT&RR7.50R-16-
12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5R-16-12 6GSX16-127(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810- |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12
R/L6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-
16-10 16X5.5F-115(07H),FRT&RR
7.5R-16-12 6GSX16-127(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810- |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0804-0804 |
● |
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1
15(07H),FRT&RR 7.5-16-8 6GSX16-127(10H)
,FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-
16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 1
6X5.5F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0805-0809 |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0805-0809 |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6.
00GSX16-127(CUV),FRT&RR 7.00R-16-10
R/LDISC 5.50FX16-115(CUW),FRT&RR7.50R-16-
12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5R-16-12 6GSX16-127(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810- |
● |
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12
R/L6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-
16-10 16X5.5F-115(07H),FRT&RR
7.5R-16-12 6GSX16-127(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810- |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R 215/85R16 16X6K-128(CSC),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 22
5/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR
7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FR
T&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V),FRT&RR 7.5-16-14
6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5
-16-10 6GSX16-127 6-WHL/NUT
DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0804-0807 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0804-0807 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0804-0807 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0808-0808 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0808-0808 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0808-0808 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0809-0809 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0809-0809 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0809-0809 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0809-0809 |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1007 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1007 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1007 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1007 |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1008- |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR
T&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1008- |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1008- |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1008- |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 225/85R16 16X6K-
128(CNY),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D
ISC 6.00GSX16-127(CTF),FRT&RR
225/85R1616X6K-128 SILVER(CTZ),FRT&RR 215/85R16
16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16
-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&
RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C)
,FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16
-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DY
NAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0803-0803 |
|
|
● |
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 17.5
X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R
R 215/85R16 16X6K-128(CSC),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 22
5/85R16 16X6K-128 SILVER(CTZ),FRT&RR
215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR
7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FR
T&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V),FRT&RR 7.5-16-14
6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5
-16-10 6GSX16-127 6-WHL/NUT
DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0804-0807 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0804-0807 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0804-0807 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0808-0808 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0808-0808 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0808-0808 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6G
SX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5
R-16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0809-0809 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6
GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.
5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135
6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00G
S-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16-10L
6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC
(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0809-0809 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0809-0809 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0809-0809 |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1007 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1007 |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1007 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1007 |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB&
LUG 17.5X6.00-127BLACK(CQB),FRT&RR
215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR
T&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16
16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX
16-127(CTF),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1008- |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER
(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14
DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),
FRT&RR8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR
T&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1008- |
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1
27(BUM),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1008- |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1008- |
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 225/85R16 16X6K-
128(CNY),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D
ISC 6.00GSX16-127(CTF),FRT&RR
225/85R1616X6K-128 SILVER(CTZ),FRT&RR 215/85R16
16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16
-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR
7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&
RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C)
,FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.5-16
-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DY
NAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0803-0803 |
|
|
● |
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1
15(07H),FRT&RR 7.5-16-8 6GSX16-127(10H)
,FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-
16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 1
6X5.5F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0804-0809 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0804-0809 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6.
00GSX16-127(CUV),FRT&RR 7.00R-16-10
R/LDISC 5.50FX16-115(CUW),FRT&RR7.50R-16-
12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810- |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12
R/L6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-
16-10 16X5.5F-115(07H),FRT&RR
7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810- |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5F-1
15(07H),FRT&RR 7.5-16-8 6GSX16-127(10H)
,FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-
16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 1
6X5.5F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0804-0809 |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H)
,FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-1
6-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16
-127(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-
115(96H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0804-0809 |
|
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6.
00GSX16-127(CUV),FRT&RR 7.00R-16-10
R/LDISC 5.50FX16-115(CUW),FRT&RR7.50R-16-
12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810- |
● |
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12
R/L6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-
16-10 16X5.5F-115(07H),FRT&RR
7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810- |
|
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
SPARE
|
8-98221-112-0 |
01 |
1 |
0803- |
● |
|
● |
|
| |
8 |
05.875 VALVE; TIRE
SPARE
|
8-98221-112-0 |
01 |
1 |
0803- |
|
|
|
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
FRONT
|
8-98221-112-0 |
02 |
1 |
0803- |
● |
|
● |
|
| |
8 |
05.875 VALVE; TIRE
FRONT
|
8-98221-112-0 |
02 |
1 |
0803- |
|
|
|
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12
7BLACK(CQB),FRT&RR 215/75R17.5 RIB
17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R1
7.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
REAR
|
8-98221-112-0 |
04 |
1 |
0803- |
● |
|
● |
|
| |
8 |
05.875 VALVE; TIRE
REAR
|
8-98221-112-0 |
04 |
1 |
0803- |
|
|
|
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA)
FRONT
|
8-98221-106-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA)
REAR
|
8-98221-106-0 |
04 |
1 |
0804- |
● |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-12
8(CSC),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL
/NUT(CUB)
SPARE
|
8-98221-106-0 |
01 |
1 |
0803- |
● |
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.
5(CSA),FRT&RR 225/85R16 16X6K-128
SILVER(CTZ)
SPARE
|
8-98221-106-0 |
01 |
1 |
0803- |
|
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.
5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),
FRT&RR 215/85R16 16X6K-128
6-WHL/NUT(CUB)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
0803- |
● |
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
0803- |
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0803-0803 |
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0803-0803 |
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-
127 6-WHL/NUT DYNAMIC(97V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0804-0809 |
● |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810-1007 |
● |
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-14 6GSX16-127(CWD),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7
.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
1008- |
● |
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-
127 6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0803-0803 |
● |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12
L 6GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),F
RT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY
NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127
6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0804-0809 |
● |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810-1007 |
● |
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU
LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC
6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12
R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7
.5R-16-14 6GSX16-127(CWD),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7
.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
1008- |
● |
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G
SX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0804-0809 |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0810- |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G
SX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0804-0809 |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0810- |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0804-0809 |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11
5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0810- |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0804-0809 |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11
5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0810- |
● |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0804-0809 |
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/
NUT(CUZ)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0810- |
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N
UT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-1356-WHL/NUT(9ZP)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0804-0809 |
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/
NUT(CUZ)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0810- |
|
|
● |
|
