◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶

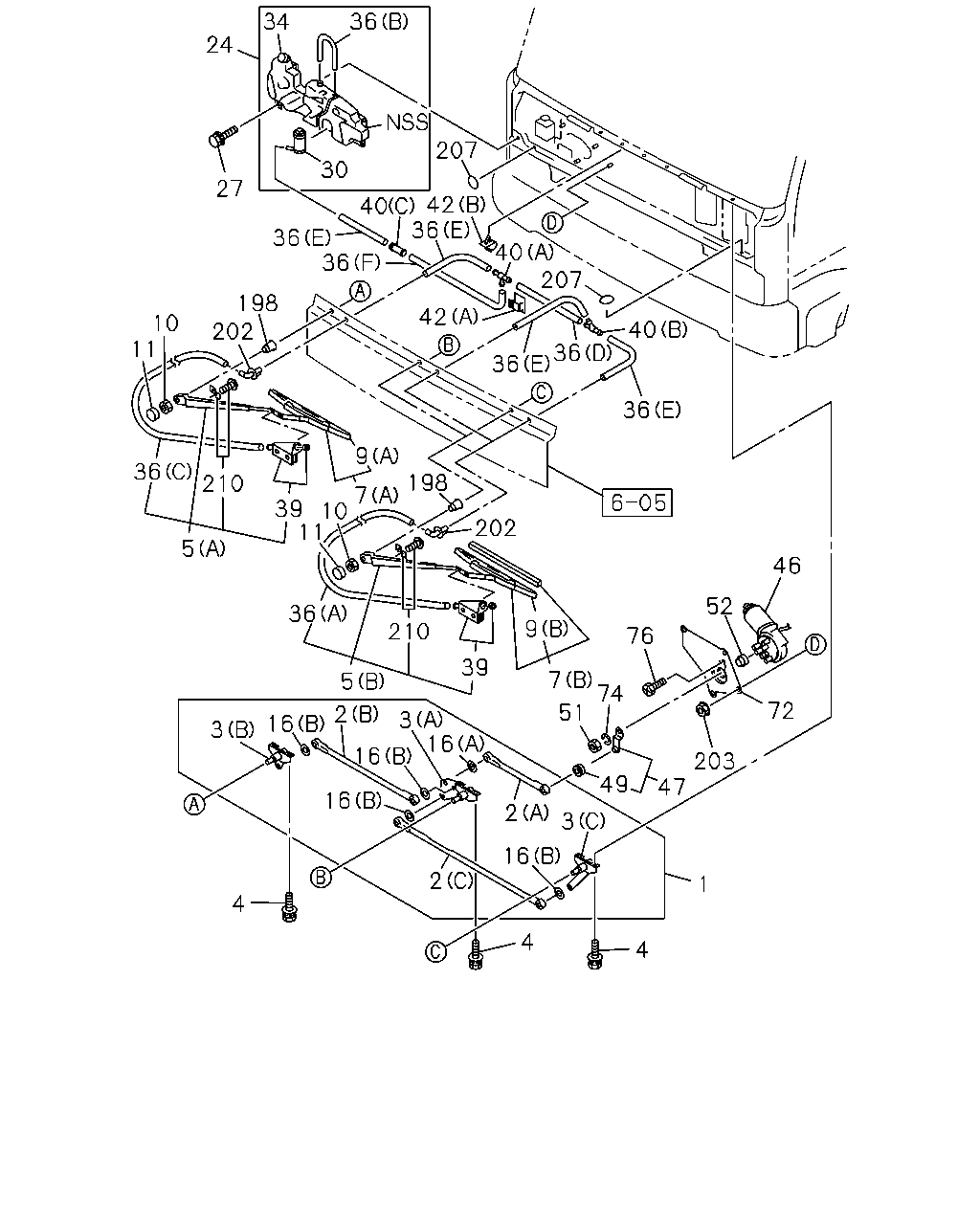

8-80 — WINDSHIELD WIPER AND WASHER (#5463) — 61 parça
çizim 9260
34 36 24 207 30 27 36 36 36 40 207 198 202 42 10 11 40 36 36 36 9 36 210 198 7 39 10 11 202 5 46 52 36 9 210 76 39 7 74 5 72 51 2 16 3 16 3 16 203 47 49 16 2 3 16 2 1 4 4 4 40 42
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-107-0 01 1 9601-9607
1 LINK ASM; FRT WIPER 1-83312-112-1 01 1 9608-
2 LINK; FRT WIPER
(C) 		1-83312-108-0 01 1 9601-9607
2 LINK; FRT WIPER
(C) 		1-83312-131-0 01 1 9608-
2 LINK; FRT WIPER
(B) 		1-86810-129-0 01 1 9601-9607
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 9608-
2 LINK; FRT WIPER
(A) 		1-86810-130-0 01 1 9601-9607
2 LINK; FRT WIPER
(A) 		1-83312-133-0 01 1 9608-
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-125-0 01 1 9601-9701
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-106-0 01 1 9702-
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-126-0 01 1 9601-9701
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-105-0 01 1 9702-
3 PIVOT ASM; FRT WIPER
(B) 		1-86810-127-0 01 1 9601-9701
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-104-0 01 1 9702-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9601-
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 9601-
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 9601-
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 9601-
7 BLADE; WIPER
(B) L=500 		1-86810-030-0 02 1 9601-9602
7 BLADE; WIPER
(B) L=500 		1-83315-049-0 02 1 9603-9604
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 9605-
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 9601-
9 RUBBER; FRT WIPER BLADE
(B) 		1-86810-052-0 02 1 9601-9602
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 9603-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 9601-
11 COVER; WIPER ARM 1-86810-028-0 03 1 9601-
16 SEAL; BALL JOINT
(A) 		8-94167-624-0 01 1 9601-9607
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 9608-
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 04 1 9601-9607
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 9608-
24 TANK ASM; WASHER 1-86815-013-7 01 1 9601-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9601-
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9601-
34 CAP; WASHER TANK 1-86815-018-0 01 1 9601-
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 9601-
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 9601-
36 HOSE; WASHER
(B) L=260 		1-86815-019-0 01 1 9601-
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 9601-
36 HOSE; WASHER
(F) SERVICED BY L=10000 		9-09914-906-0 01 1 9601-
36 HOSE; WASHER
(D) SERVICED BY L=10000 		8-94153-780-0 01 1 9601-
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 9601-
40 JOINT; WASHER HOSE
(A) 3WAY 		1-83338-005-0 01 1 9601-
40 JOINT; WASHER HOSE
(B) 		5-83363-033-0 01 1 9601-
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 9811-
42 CLIP; WASHER HOSE
(B) 		1-09987-247-0 06 1 9601-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 0101-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 9601-9904
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-141-0 01 1 9905-
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 9601-
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER 8-94167-624-0 01 1 9601-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 9601-
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 9601-
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 9601-
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 9601-
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 9601-
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 9601-
202 GROMMET; WIPER 1-86815-003-2 03 1 9601-
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9601-9611
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612-
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9601-
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 9601-
