2 |

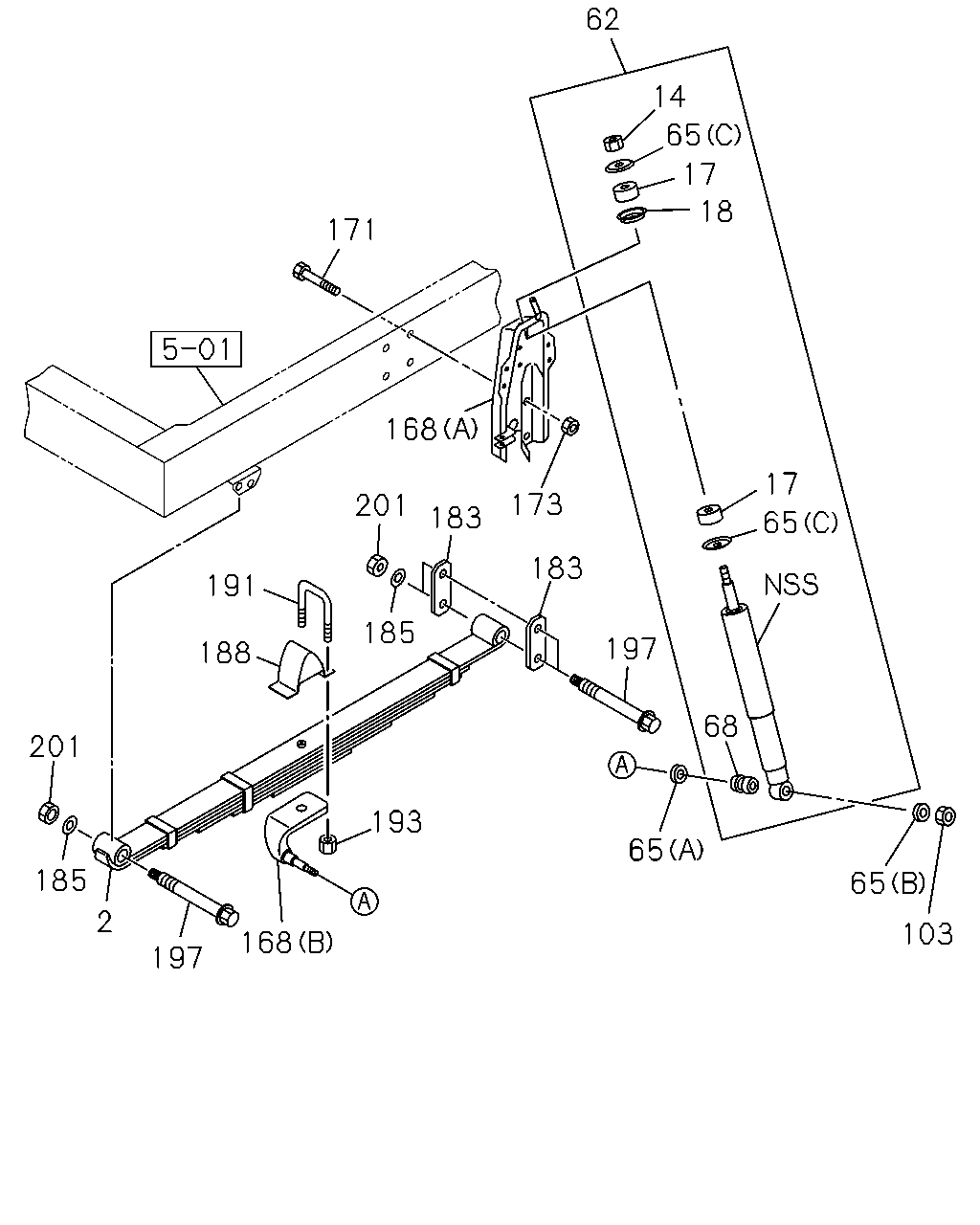

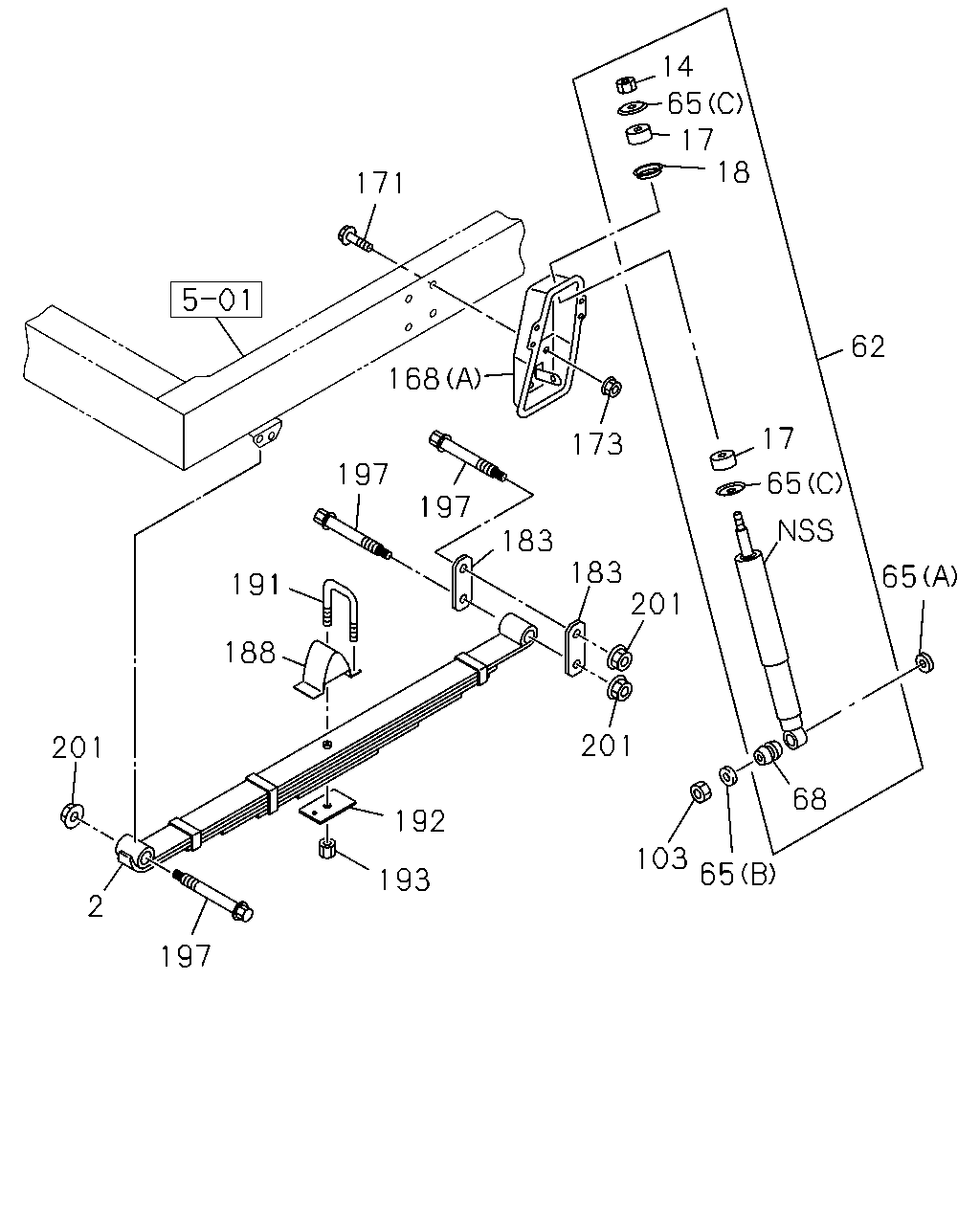

07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-541-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-541-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-541-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-541-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-542-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-542-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-542-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-542-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3)
6-LEAF
|
8-98190-543-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98190-543-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3)
6-LEAF
|
8-98190-543-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98190-543-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3)
6-LEAF
|
8-98190-544-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98190-544-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3)
6-LEAF
|
8-98190-544-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98190-544-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-539-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-539-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-539-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-539-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-540-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-540-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98190-540-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-540-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98190-537-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98190-537-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98190-538-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98190-538-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98141-450-0 |
01 |
1 |
0906-0909 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98141-450-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98154-915-0 |
01 |
1 |
0910-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-915-0 |
01 |
1 |
0910-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98154-915-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-915-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98154-915-0 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-915-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98141-451-0 |
01 |
1 |
0906-0909 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98141-451-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98154-916-0 |
01 |
1 |
0910-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-916-0 |
01 |
1 |
0910-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98154-916-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-916-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98154-916-0 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98154-916-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-454-0 |
01 |
1 |
0906-0909 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98141-454-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-455-0 |
01 |
1 |
0906-0909 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98141-455-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-456-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-456-0 |
01 |
1 |
0910-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-456-0 |
01 |
1 |
0910-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1304- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98141-456-0 |
01 |
1 |
1304- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-457-0 |
01 |
1 |
0906-0909 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-457-0 |
01 |
1 |
0910-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98141-457-0 |
01 |
1 |
0910-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98141-457-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B)
6-LEAF
|
8-98141-457-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ)
6-LEAF
|
8-98141-457-0 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98141-457-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98025-026-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98025-027-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRAME
STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98115-917-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98115-917-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>
6-LEAF
|
8-98115-917-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRAME
STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98115-920-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98115-920-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>
6-LEAF
|
8-98115-920-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
0804-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>,T
IRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1304-1404 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1304-1404 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1405- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1405- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-922-0 |
01 |
1 |
1405- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
0804-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),FRONT WIDE
TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>,T
IRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1304-1404 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1304-1404 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1405- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),MINI BUS
CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1405- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-920-0 |
01 |
1 |
1405- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0804-0808 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0809-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0809-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0809-0905 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-924-0 |
01 |
1 |
0906-1105 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV>,T
IRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1106-1106 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1107-1303 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1304- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1304- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1304- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-924-0 |
01 |
1 |
1304- |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0804-0808 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0804-0808 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0809-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0809-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0809-0905 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-923-0 |
01 |
1 |
0906-1105 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
TURKEY EQUIPMENT(B11)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),FRONT WIDE TREAD<7GV>,FRAME STRAIG
HT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV>,T
IRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1106-1106 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
TURKEY EQUIPMENT(B11)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ)
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1107-1303 |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1304- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1304- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ),FRONT WIDE TREAD<7GV>,TIRE SIZE 8.
25-16<7QP>
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1304- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98079-923-0 |
01 |
1 |
1304- |
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98025-025-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-025-0 |
01 |
1 |
0804-0905 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98025-025-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-025-0 |
01 |
1 |
0906-1105 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98025-025-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-025-0 |
01 |
1 |
1106- |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98025-024-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-024-0 |
01 |
1 |
0804-0905 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),FRONT WIDE
TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98025-024-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-024-0 |
01 |
1 |
0906-1105 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),MINI BUS CHASSIS VAR.2(6GQ),
FRONTWIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
6-LEAF
|
8-98025-024-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
6-LEAF
|
8-98025-024-0 |
01 |
1 |
1106- |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-019-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT WIDE TREAD<7GV>,FRAME
STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-019-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
6-LEAF
|
8-98190-546-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-546-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
6-LEAF
|
8-98190-546-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-546-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-018-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT WIDE TREAD<7GV>,FRAME
STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-018-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
6-LEAF
|
8-98190-545-1 |
01 |
1 |
1106-1106 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-545-1 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
MINI BUS CHASSIS VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
6-LEAF
|
8-98190-545-1 |
01 |
1 |
1107- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),TIRE
SIZE 8.25-16<7QP>
6-LEAF
|
8-98190-545-1 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-017-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
2-LEAF
|
8-98025-017-0 |
01 |
1 |
0804-0905 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
2-LEAF
|
8-98025-017-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
2-LEAF
|
8-98025-017-0 |
01 |
1 |
0906-1105 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-017-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
2-LEAF
|
8-98025-017-0 |
01 |
1 |
1106- |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-016-0 |
01 |
1 |
0804-0905 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
2-LEAF
|
8-98025-016-0 |
01 |
1 |
0804-0905 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>,FRAME STRAIGHT
TYPE<7KJ>
2-LEAF
|
8-98025-016-0 |
01 |
1 |
0906-1105 |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
2-LEAF
|
8-98025-016-0 |
01 |
1 |
0906-1105 |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,MINI
BUS CHASSIS VAR.2(6GQ),FRONT WIDE
TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98025-016-0 |
01 |
1 |
1106- |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
2-LEAF
|
8-98025-016-0 |
01 |
1 |
1106- |
|
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98025-027-0 |
01 |
1 |
0804-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98025-027-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98025-027-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98025-027-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
6-LEAF
|
8-98025-026-0 |
01 |
1 |
0804-0905 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98025-026-0 |
01 |
1 |
0906-1105 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),FRONT WIDE TREAD<7GV>
6-LEAF
|
8-98025-026-0 |
01 |
1 |
1106-1106 |
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3),MINI BUS
CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT
WIDE TREAD<7GV>
6-LEAF
|
8-98025-026-0 |
01 |
1 |
1107- |
|
● |
|
|
| |
14 |
07.389 NUT; S/ABS,UPR
M10 T=8
|
9-09640-020-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
14 |
07.389 NUT; S/ABS,UPR
M10 T=8
|
9-09640-020-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
14 |
07.389 NUT; S/ABS,UPR
M10 T=8
|
9-09640-020-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0803-0803 |
● |
● |
|
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0804-0808 |
● |
● |
|
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0809- |
● |
● |
● |
● |
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV>
|
8-98154-636-0 |
02 |
1 |
0910- |
● |
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-98080-130-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-98080-130-0 |
02 |
1 |
0804-0905 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT WIDE TREAD<7GV>
|
8-98080-130-1 |
02 |
1 |
0906-1303 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRONT
WIDE TREAD<7GV>
|
8-98080-130-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98080-129-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-98080-129-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98080-129-0 |
02 |
1 |
0804-0808 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-98080-129-0 |
02 |
1 |
0804-0808 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98080-129-0 |
02 |
1 |
0809-0905 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-98080-129-0 |
02 |
1 |
0809-0905 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-98080-129-0 |
02 |
1 |
0809-0905 |
|
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
FRONTWIDE TREAD<7GV>
|
8-98080-129-1 |
02 |
1 |
0906-1303 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
|
8-98080-129-1 |
02 |
1 |
0906-1303 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-98080-129-1 |
02 |
1 |
0906-1303 |
|
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. SAUDI ARABIA EQUIPMENT(GH3),4
WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD
<7GV>
|
8-98080-129-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
|
8-98080-129-1 |
02 |
1 |
1304- |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-98080-129-1 |
02 |
1 |
1304- |
|
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97253-617-0 |
02 |
1 |
0804-0808 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97253-617-0 |
02 |
1 |
0804-0808 |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),4 WHEEL
ANTILOCK BRAKE<JE5>
|
8-97253-617-0 |
02 |
1 |
0809-0905 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97253-617-0 |
02 |
1 |
0809-0905 |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),4 WHEEL
ANTILOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>
|
8-97253-617-1 |
02 |
1 |
0906-1303 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97253-617-1 |
02 |
1 |
0906-1303 |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
FRONTWIDE TREAD<7GV>
|
8-97253-617-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),4 WHEEL
ANTILOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>
|
8-97253-617-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97253-617-1 |
02 |
1 |
1304- |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97253-618-0 |
02 |
1 |
0804-0808 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11)
|
8-97253-618-0 |
02 |
1 |
0809-0905 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),FRONT WIDE
TREAD<7GV>
|
8-97253-618-1 |
02 |
1 |
0906-1303 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
SAUDI ARABIA EQUIPMENT(GH3)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT WIDE TREAD<7GV>
|
8-97253-618-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),FRONT WIDE
TREAD<7GV>
|
8-97253-618-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
|
8-98079-867-0 |
02 |
1 |
0803-0905 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV>
|
8-98079-867-0 |
02 |
1 |
0906-0909 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV>
EXC. TIRE SIZE 8.25-16<7QP>
|
8-98079-867-0 |
02 |
1 |
0906-0909 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
|
8-98079-867-0 |
02 |
1 |
0906-0909 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
EXC. FRONT WIDE TREAD<7GV>
|
8-98079-867-1 |
02 |
1 |
0910- |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),FRONT WIDE
TREAD<7GV>
BEST VALUE PARTS
|
5-87610-129-1 |
02 |
1 |
1304-1304 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
SAUDI ARABIA EQUIPMENT(GH3)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT WIDE TREAD<7GV>
BEST VALUE PARTS
|
5-87610-129-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),FRONT WIDE
TREAD<7GV>
BEST VALUE PARTS
|
5-87610-129-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),4 WHEEL
ANTILOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>
BEST VALUE PARTS
|
5-87610-128-1 |
02 |
1 |
1304-1304 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-128-1 |
02 |
1 |
1304-1304 |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
FRONTWIDE TREAD<7GV>
BEST VALUE PARTS
|
5-87610-128-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. TURKEY EQUIPMENT(B11),4 WHEEL
ANTILOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>
BEST VALUE PARTS
|
5-87610-128-1 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-128-1 |
02 |
1 |
1304- |
|
|
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
FRONTWIDE TREAD<7GV>
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304-1304 |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304-1304 |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304-1304 |
|
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. SAUDI ARABIA EQUIPMENT(GH3),4
WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD
<7GV>
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304- |
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE
8.25-16<7QP>
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304- |
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
|
5-87610-153-0 |
02 |
1 |
1304- |
|
|
● |
|
| |
65 |
07.347 WASHER; S/ABS
(A)
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
65 |
07.347 WASHER; S/ABS
(A)
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
65 |
07.347 WASHER; S/ABS
(A)
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
65 |
07.347 WASHER; S/ABS
(B)
ID=15
|
8-97360-056-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
65 |
07.347 WASHER; S/ABS
(B)
ID=15
|
8-97360-056-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
65 |
07.347 WASHER; S/ABS
(B)
ID=15
|
8-97360-056-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
65 |
07.347 WASHER; S/ABS
(C)
OD=40
|
9-51631-614-0 |
04 |
1 |
0803-0803 |
● |
● |
|
|
| |
65 |
07.347 WASHER; S/ABS
(C)
OD=40
|
9-51631-614-0 |
04 |
1 |
0804-0808 |
● |
● |
|
● |
| |
65 |
07.347 WASHER; S/ABS
(C)
OD=40
|
9-51631-614-0 |
04 |
1 |
0809- |
● |
● |
● |
● |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5>
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-404-1 |
01 |
1 |
0906- |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5>
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-405-1 |
01 |
1 |
0906- |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(B)
|
8-98139-556-0 |
01 |
1 |
0906- |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(B)
|
8-98139-557-0 |
01 |
1 |
0906- |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-98150-406-1 |
01 |
1 |
0906- |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-406-1 |
01 |
1 |
0906- |
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-98150-407-1 |
01 |
1 |
0906- |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-407-1 |
01 |
1 |
0906- |
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-001-0 |
01 |
1 |
0803-0803 |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-001-0 |
01 |
1 |
0804-0808 |
● |
● |
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-001-0 |
01 |
1 |
0809-0905 |
● |
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV>
(A)
|
8-98015-001-0 |
01 |
1 |
0906- |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-001-0 |
01 |
1 |
0906- |
|
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-002-0 |
01 |
1 |
0803-0803 |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-002-0 |
01 |
1 |
0804-0808 |
● |
● |
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-002-0 |
01 |
1 |
0809-0905 |
● |
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV>
(A)
|
8-98015-002-0 |
01 |
1 |
0906- |
● |
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
(A)
|
8-98015-002-0 |
01 |
1 |
0906- |
|
|
● |
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
09.003
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0803-0803 |
● |
● |
|
|
| |
171 |
07.395 BOLT; S/ABS BRKT
09.003
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0804-0808 |
● |
● |
|
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
09.003
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0809- |
● |
● |
● |
● |
| |
173 |
07.395 NUT; S/ABS
M12
|
8-97360-126-0 |
08 |
1 |
0803-0803 |
● |
● |
|
|
| |
173 |
07.395 NUT; S/ABS
M12
|
8-97360-126-0 |
08 |
1 |
0804-0808 |
● |
● |
|
● |
| |
173 |
07.395 NUT; S/ABS
M12
|
8-97360-126-0 |
08 |
1 |
0809- |
● |
● |
● |
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
0803-0803 |
● |
● |
|
|
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
0804-0808 |
● |
● |
|
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
0809- |
● |
● |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0804-0808 |
● |
● |
|
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0809-0906 |
● |
● |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY)
|
8-98033-516-0 |
02 |
1 |
0907-0907 |
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0907-0907 |
|
● |
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-98033-516-0 |
02 |
1 |
0907-0907 |
|
|
|
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-98033-516-0 |
02 |
1 |
0908- |
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0908- |
|
● |
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-98033-516-0 |
02 |
1 |
0908- |
|
|
|
● |
| |
191 |
07.417 U-BOLT; FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
L=115
|
8-94412-504-2 |
04 |
1 |
0803-0803 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
L=165
|
9-51171-075-1 |
04 |
1 |
0803-0803 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=165
|
9-51171-075-1 |
04 |
1 |
0803-0803 |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
L=165
|
9-51171-075-1 |
04 |
1 |
0804-0808 |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
0804-0808 |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
TURKEY EQUIPMENT(B11)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
L=165
|
9-51171-075-1 |
04 |
1 |
0809-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>
L=165
|
9-51171-075-1 |
04 |
1 |
0809-1303 |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
0809-1303 |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
TURKEY EQUIPMENT(B11)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>
L=165
|
9-51171-075-1 |
04 |
1 |
1304- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
EXC. SAUDI ARABIA EQUIPMENT(GH3),TIRE
SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
1304- |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,TIRE
SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
1304- |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
EXC. FRONT STABILIZER SHAFT<F59>,SAUDI
ARABIA EQUIPMENT(GH3)
L=165
|
9-51171-075-1 |
04 |
1 |
1304- |
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-3 |
04 |
1 |
0803-0803 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-3 |
04 |
1 |
0803-0808 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-3 |
04 |
1 |
0803-0808 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
TURKEY EQUIPMENT(B11)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
0809-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11)
L=135
|
5-51171-015-4 |
04 |
1 |
0809-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
0809-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=135
|
5-51171-015-4 |
04 |
1 |
0809-1303 |
|
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
1304-1404 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX)
EXC. TURKEY EQUIPMENT(B11),FRONT
STABILIZER SHAFT<F59>,SAUDI ARABIA
EQUIPMENT(GH3),FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
1304-1404 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
L=135
|
5-51171-015-4 |
04 |
1 |
1304-1404 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=135
|
5-51171-015-4 |
04 |
1 |
1304-1404 |
|
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
1405- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRAME STRAIGHT
TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
1405- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3)
L=135
|
5-51171-015-4 |
04 |
1 |
1405- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=135
|
5-51171-015-4 |
04 |
1 |
1405- |
|
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59>
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=115
|
8-94412-504-3 |
04 |
1 |
0804-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
L=115
|
8-94412-504-3 |
04 |
1 |
0804-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3),FRAME
STRAIGHT TYPE<7KJ>
L=115
|
8-94412-504-3 |
04 |
1 |
0804-1303 |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
L=115
|
8-94412-504-3 |
04 |
1 |
0804-1303 |
|
|
|
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
L=115
|
8-94412-504-3 |
04 |
1 |
0804-1303 |
|
|
|
● |
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
EXC. FRONT STABILIZER SHAFT<F59>,FRAME
STRAIGHT TYPE<7KJ>
L=115
|
8-94412-504-3 |
04 |
1 |
1304- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV)
EXC. TURKEY EQUIPMENT(B11),SAUDI
ARABIAEQUIPMENT(GH3),FRAME STRAIGHT
TYPE<7KJ>
L=115
|
8-94412-504-3 |
04 |
1 |
1304- |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
SAUDI ARABIA EQUIPMENT(GH3)
G.V.W. 6.5-7.0TON(RPW)
L=115
|
8-94412-504-3 |
04 |
1 |
1304- |
|
|
|
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV)
EXC. SAUDI ARABIA EQUIPMENT(GH3)
L=115
|
8-94412-504-3 |
04 |
1 |
1304- |
|
|
|
● |
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97093-554-1 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97093-554-1 |
02 |
1 |
0804-0808 |
● |
● |
|
|
| |
192 |
07.436 PIECE; DIST
|
8-97093-554-1 |
02 |
1 |
0804-0808 |
|
|
|
● |
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97093-554-1 |
02 |
1 |
0809-0909 |
● |
● |
|
|
| |
192 |
07.436 PIECE; DIST
|
8-97093-554-1 |
02 |
1 |
0809-0909 |
|
|
|
● |
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W)
|
8-97093-554-1 |
02 |
1 |
0809-0909 |
|
|
● |
|
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97093-554-1 |
02 |
1 |
0910- |
● |
● |
|
|
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-97093-554-1 |
02 |
1 |
0910- |
|
|
|
● |
| |
192 |
07.436 PIECE; DIST
WHEEL BASE 3300MM(33W)
|
8-97093-554-1 |
02 |
1 |
0910- |
|
|
● |
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ)
M16
|
8-97360-121-0 |
08 |
1 |
0803-0803 |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
M16
|
8-97360-121-0 |
08 |
1 |
0803-0803 |
|
● |
|
|
| |
193 |
07.417 NUT; U BOLT
M16
|
8-97360-121-0 |
08 |
1 |
0804-0808 |
|
● |
|
|
| |
193 |
07.417 NUT; U BOLT
TURKEY EQUIPMENT(B11)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
M16
|
8-97360-121-0 |
08 |
1 |
0809- |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
M16
|
8-97360-121-0 |
08 |
1 |
0809- |
|
● |
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 7.0-7.5TON(RPX)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0803-0803 |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0803-0803 |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0804-0808 |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0804-0808 |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0804-0808 |
|
|
|
● |
| |
193 |
07.417 NUT; U BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0809- |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURKEY EQUIPMENT(B11)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0809- |
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0809- |
|
|
|
● |
| |
193 |
07.417 NUT; U BOLT
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0809- |
|
|
● |
|
| |
197 |
07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF>
M16X122
|
8-98011-487-0 |
06 |
1 |
0803-0803 |
● |
● |
|
|
| |
197 |
07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF>
M16X122
|
8-98011-487-0 |
06 |
1 |
0804-0808 |
● |
● |
|
● |
| |
197 |
07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF>
M16X122
|
8-98011-487-0 |
06 |
1 |
0809- |
● |
● |
● |
● |
| |
197 |
07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
0803-0803 |
● |
● |
|
|
| |
197 |
07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
0804-0808 |
● |
● |
|
● |
| |
197 |
07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
0809- |
● |
● |
● |
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
M16
|
0-91110-516-0 |
06 |
1 |
0803-0803 |
● |
● |
|
|
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
M16
|
0-91110-516-0 |
06 |
1 |
0804-0808 |
● |
● |
|
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
M16
|
0-91110-516-0 |
06 |
1 |
0809- |
● |
● |
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
|
8-97360-125-0 |
06 |
1 |
0803-0803 |
● |
● |
|
|
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
|
8-97360-125-0 |
06 |
1 |
0804-0808 |
● |
● |
|
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
|
8-97360-125-0 |
06 |
1 |
0809- |
● |
● |
● |
● |
