Sayfa 4-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶

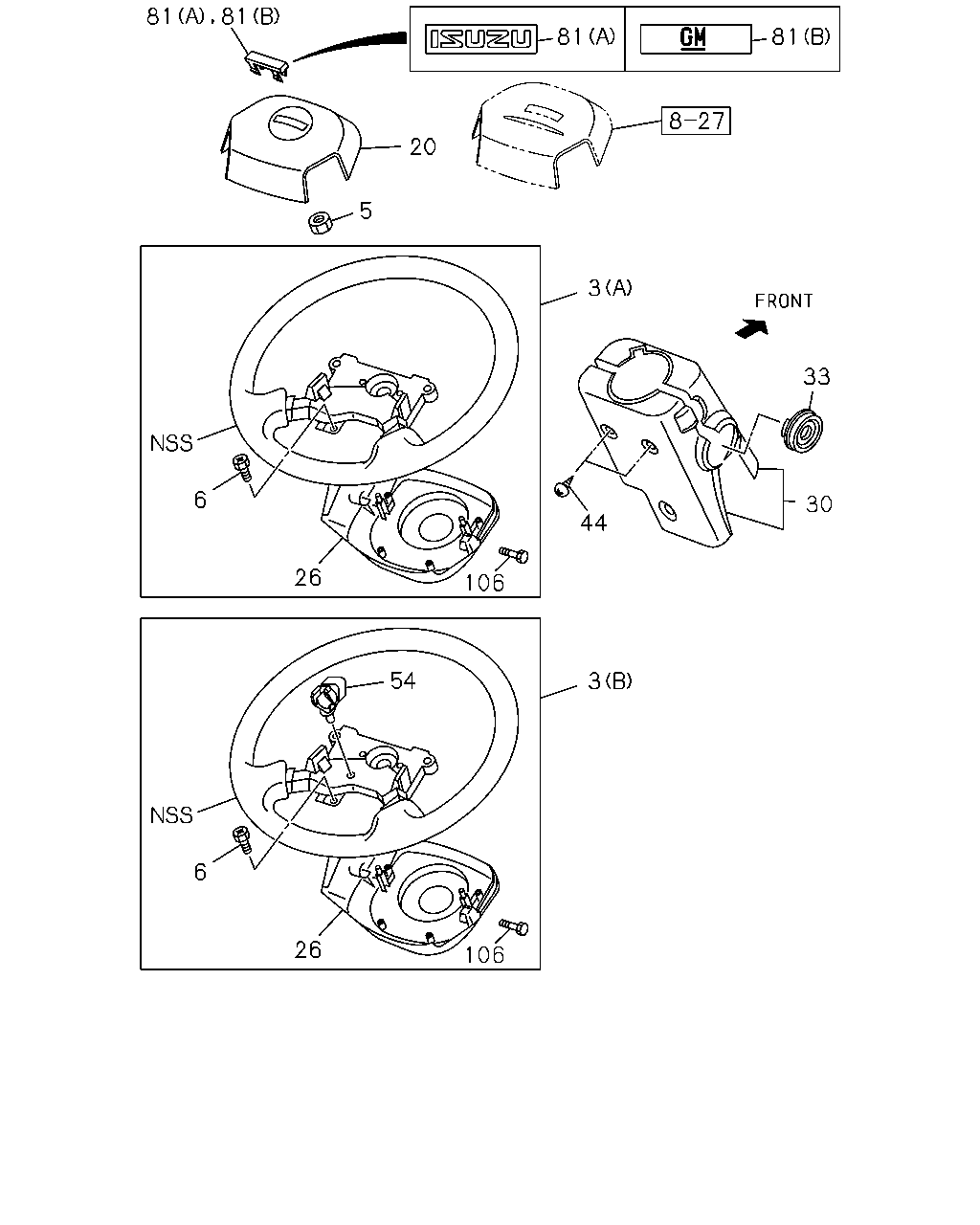

4-30 — STEERING WHEEL AND COWL (#54612) — 84 parça

106 26 6 54 3 106 26 6 44 30 33 3 5 20 81 81 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0803-0808	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0809-1005	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	1006-1006	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97405-726-1	01	1	1006-1006			●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210			●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3> (B) DARK GRAY	8-97423-997-0	01	1	1211-			●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0803-0803	●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	0803-0803			●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0804-0808	●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	0804-0808			●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0809-1005	●	●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	0809-1005			●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	1006-	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97412-556-1	01	1	1006-			●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	1006-				●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0803-0803	●		●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0804-0808	●		●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0809-	●	●	●	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0803-0803	●		●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0804-0808	●		●	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0809-	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0803-0803	●
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0803-0803			●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0804-0808	●
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0804-0808			●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0809-1005	●	●
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0809-1005			●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1006-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3> DARK GRAY	8-97405-985-1	01	1	1006-			●
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1006-				●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0803-0808	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0809-1005	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	1006-1006	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> DARK GRAY	8-97405-841-0	01	1	1006-1006			●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> DARK GRAY	8-97421-978-0	01	1	1007-			●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0803-0803	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	0803-0803			●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0804-0808	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	0804-0808			●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0809-1005	●	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	0809-1005			●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	1006-	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3> DARK GRAY	8-97409-275-2	01	1	1006-			●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1006-				●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0803-0803	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0804-0808	●		●	●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0809-1110	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-	●	●	●	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0803-0803	●		●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0804-0808	●		●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	0809-	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0809-			●	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0803-0803	●		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0804-0808	●		●	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0809-	●	●	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>	8-98165-703-0	01	1	1211-			●
81	02.820 EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) DARK GRAY	8-97405-987-0	01	1	0803-0803	●
81	02.820 EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> (B) DARK GRAY	8-97405-987-0	01	1	0803-0803			●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	0804-1005	●
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	0804-1005			●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1006-	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1006-			●
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1006-				●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97405-986-0	01	1	0803-0803	●
81	02.820 EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97405-986-0	01	1	0803-0803			●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97405-986-0	01	1	0804-0804	●
81	02.820 EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97405-986-0	01	1	0804-0804			●
81	02.820 EMBLEM; STRG WHEEL (A) DARK GRAY	8-97405-986-0	01	1	0804-0804				●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	0804-0808	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	0804-0808			●	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	0809-1005	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	0809-1005			●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	0809-1005		●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	1006-	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97405-986-0	01	1	1006-			●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	1006-				●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	1006-		●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	0803-0803	●		●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	0804-0808	●		●	●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	0809-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
