8-74 — EVAPORATOR (#5461) — 22 parça

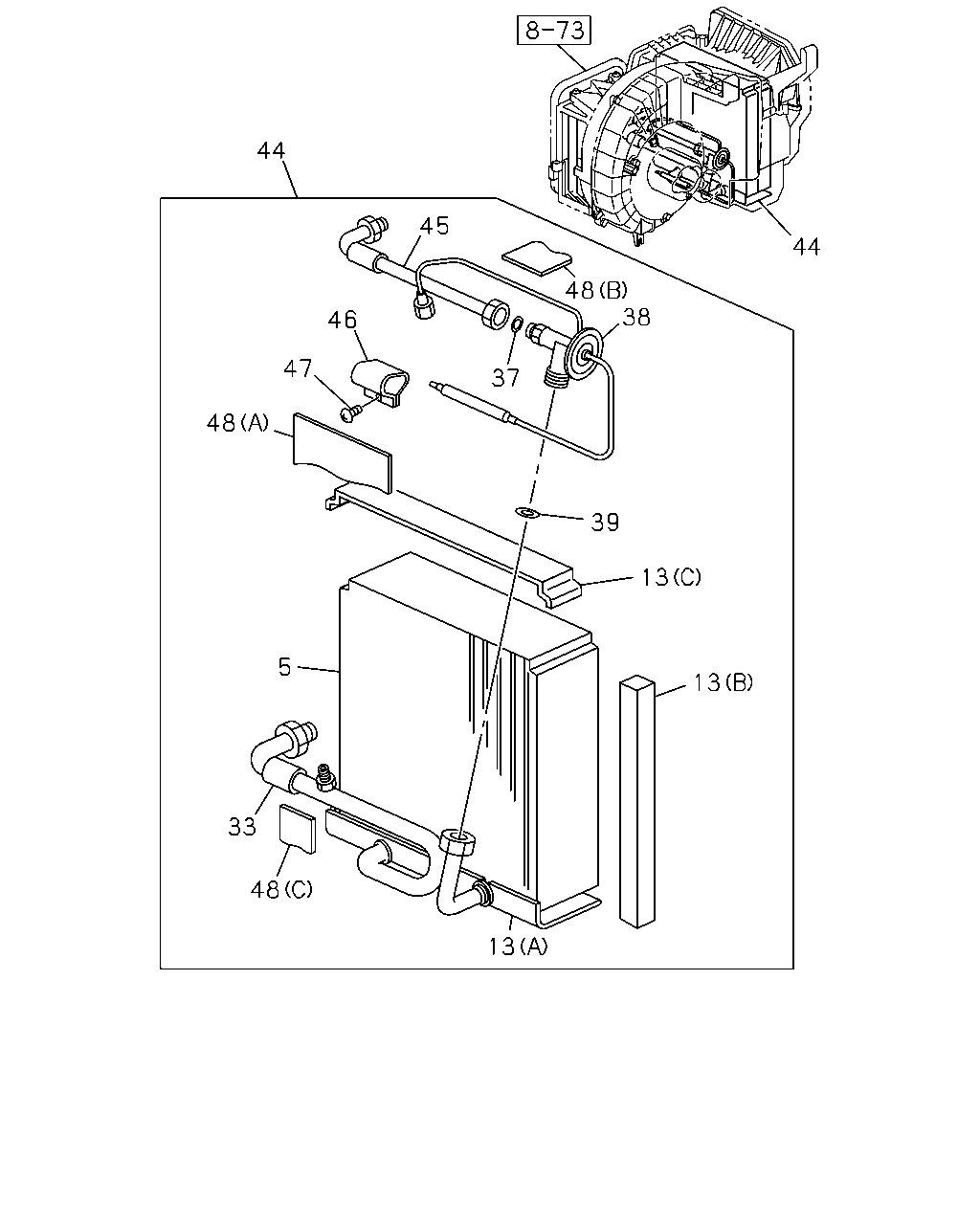

çizim 42327
44 45 44 48 38 46 47 37 48 39 13 5 13 33 48 13
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-085-0 01 1 9611-9904
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-095-0 01 1 9905-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-669-0 01 1 9611-9702
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-937-0 01 1 9703-9901
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-669-1 01 1 9902-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-770-2 01 1 9611-9702
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-938-0 01 1 9703-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-939-0 01 1 9703-
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-653-0 01 1 9611-
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9611-9702
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 9703-
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 9611-
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 9611-
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-080-6 01 1 9611-9904
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-094-1 01 1 9905-
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-567-0 01 1 9611-9904
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-681-1 01 1 9905-
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-214-0 01 1 9611-
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9611-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-784-0 01 1 9611-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-969-0 01 1 9902-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-970-0 01 1 9902-
