Sayfa 4-10 - Isuzu EPC

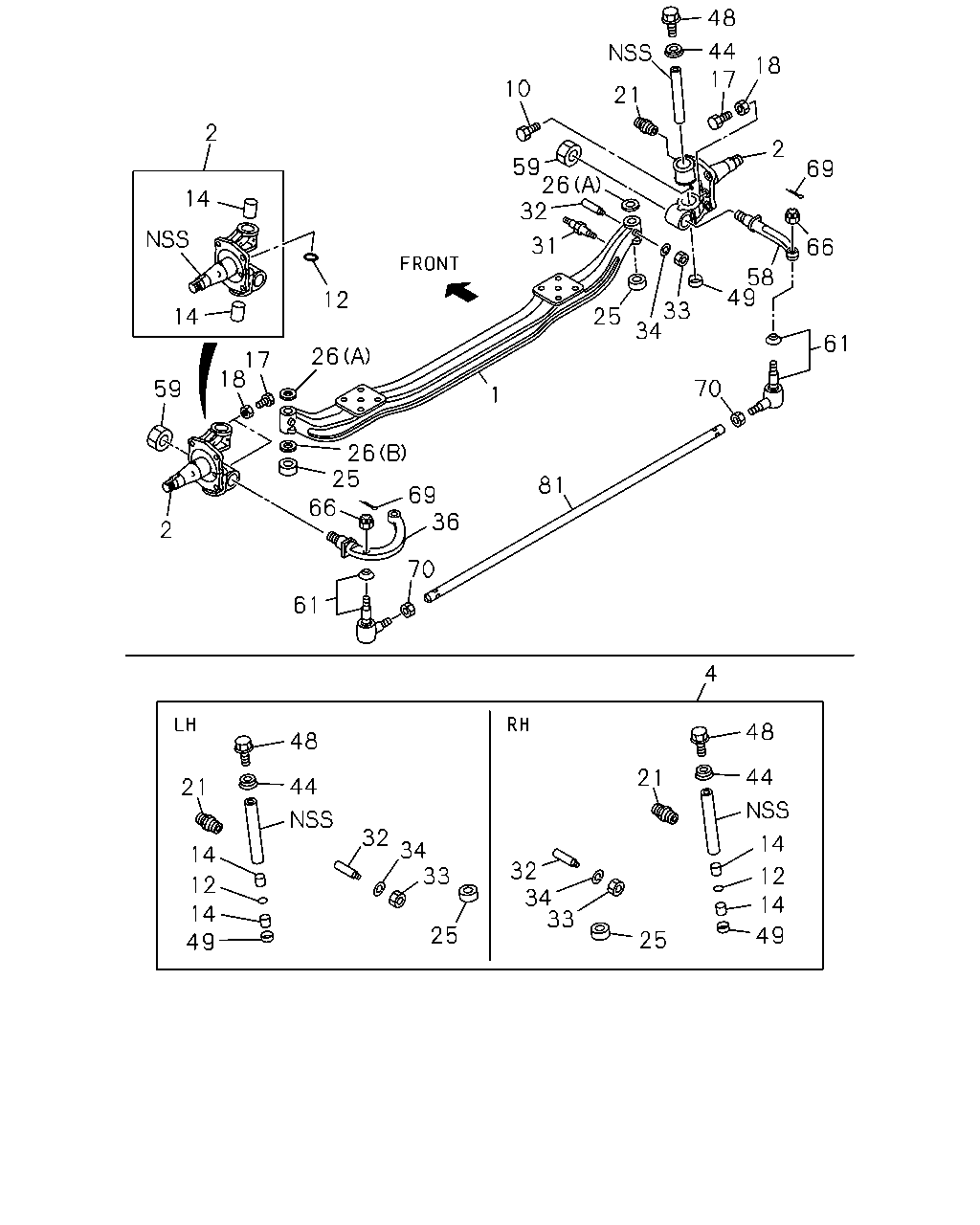

4-10 — FRONT AXLE (#54608) — 209 parça

48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 44 21 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.008 AXLE; FRT FRONT WIDE TREAD<7GV>	8-98141-521-1	01	1	0904-	●	●
1	06.008 AXLE; FRT	8-98038-384-0	01	1	0803-0803	●	●
1	06.008 AXLE; FRT	8-98038-384-0	01	1	0804-0808	●	●	●
1	06.008 AXLE; FRT	8-98038-384-0	01	1	0809-0903	●	●	●	●
1	06.008 AXLE; FRT EXC. FRONT WIDE TREAD<7GV>	8-98038-384-3	01	1	0904-	●	●
1	06.008 AXLE; FRT	8-98038-384-3	01	1	0904-			●	●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-941-1	01	1	0803-	●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-942-1	01	1	0803-	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-550-1	01	1	0803-0803	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0803-0803		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-550-1	01	1	0804-0808	●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0804-0808		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-550-2	01	1	0809-	●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	0809-		●		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-549-1	01	1	0803-0803	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0803-0803		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-549-1	01	1	0804-0808	●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0804-0808		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-549-2	01	1	0809-	●		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	0809-		●		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-546-2	01	1	0804-	●		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-545-2	01	1	0804-	●		●
4	06.203 KING PIN KIT FRAME STRAIGHT TYPE<7KJ>	5-87832-220-2	01	1	1403-	●	●
4	06.203 KING PIN KIT	5-87832-219-0	01	1	0803-0803	●	●
4	06.203 KING PIN KIT	5-87832-219-1	01	1	0804-0808	●	●	●
4	06.203 KING PIN KIT	5-87832-219-2	01	1	0809-1402	●	●	●	●
4	06.203 KING PIN KIT EXC. FRAME STRAIGHT TYPE<7KJ>	5-87832-219-2	01	1	1403-	●
4	06.203 KING PIN KIT	5-87832-219-2	01	1	1403-			●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0803-0803	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0804-0808	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0809-	●	●	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0803-0803	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0804-0808	●	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0809-	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0803-0803	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0804-0808	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0809-0809	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	0803-0803	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	0804-0808	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0809-	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) M12X27.5	8-98016-968-0	03	1	0803-0803		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) M12X27.5	8-98016-968-0	03	1	0804-0809		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) M12X27.5	8-98016-968-0	03	1	0810-0903		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) EXC. FRONT WIDE TREAD<7GV> M12X27.5	8-98016-968-0	03	1	0904-		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0803-0803	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1 0 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/ NUT DYNAMIC(97V) M12X24 EYE-BOLT	8-97360-059-0	03	1	0803-0803		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0804-0808	●		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6 GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7. 5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) M12X24 EYE-BOLT	8-97360-059-0	03	1	0804-0808		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0809-0809	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6 GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7. 5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) M12X24 EYE-BOLT	8-97360-059-0	03	1	0809-0809		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0810-0903	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M12X24 EYE-BOLT	8-97360-059-0	03	1	0810-0903		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0904-1007	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M12X24 EYE-BOLT	8-97360-059-0	03	1	0904-1007		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) FRONT WIDE TREAD<7GV> M12X24 EYE-BOLT	8-97360-059-0	03	1	0904-1007		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1008-	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR7.5R-16-14 6GSX16-127(CWD),FRT&RR 7.5R -16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M12X24 EYE-BOLT	8-97360-059-0	03	1	1008-		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) FRONT WIDE TREAD<7GV> M12X24 EYE-BOLT	8-97360-059-0	03	1	1008-		●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0803-0803	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0804-0808	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0809-	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0803-0803	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0804-0808	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0809-	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	0803-0803	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	0804-0808	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	0809-1402	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	1403-	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	1403-			●	●
25	06.210 BEARING; THRUST,KING PIN FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	01	1	1403-	●	●
25	06.210 BEARING; THRUST,KING PIN FRAME STRAIGHT TYPE<7KJ> OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	1403-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0809-1402	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1403-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRAME STRAIGHT TYPE<7KJ> 05.460 (B) T=1.95	8-94168-490-0	01	1	1403-	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1403-			●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0809-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0803-0803	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0804-0808	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0809-	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0803-0803	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0804-0808	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0809-1007	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRONT WIDE TREAD<7GV>	8-97145-460-0	02	1	1008-	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	1008-			●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0803-0803	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0804-0808	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	0809-	●	●	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0803-0803	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0804-0808	●	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0809-	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0803-0803	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0804-0808	●	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0809-	●	●	●	●
36	06.103 ARM; KNUCKLE FRONT WIDE TREAD<7GV>	8-98135-280-2	01	1	0904-	●	●
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0803-0803	●	●
36	06.103 ARM; KNUCKLE FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV)	8-97210-771-3	01	1	0804-0808	●		●
36	06.103 ARM; KNUCKLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97210-771-3	01	1	0804-0808	●		●
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0804-0808		●
36	06.103 ARM; KNUCKLE FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV)	8-97210-771-3	01	1	0809-0809	●		●
36	06.103 ARM; KNUCKLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97210-771-3	01	1	0809-0809	●		●
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0809-0809		●		●
36	06.103 ARM; KNUCKLE FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV)	8-97210-771-3	01	1	0810-0903	●		●
36	06.103 ARM; KNUCKLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97210-771-3	01	1	0810-0903	●		●
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0810-0903		●		●
36	06.103 ARM; KNUCKLE FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV)	8-97210-771-5	01	1	0904-	●		●
36	06.103 ARM; KNUCKLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT WIDE TREAD<7GV>	8-97210-771-5	01	1	0904-	●		●
36	06.103 ARM; KNUCKLE EXC. FRONT WIDE TREAD<7GV>	8-97210-771-5	01	1	0904-		●
36	06.103 ARM; KNUCKLE	8-97210-771-5	01	1	0904-				●
36	06.103 ARM; KNUCKLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) G.V.W. 6.0-6.5TON(RPV)	8-97210-770-3	01	1	0804-0809	●		●
36	06.103 ARM; KNUCKLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7.00R-16-10 R/L DI SC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) G.V.W. 6.0-6.5TON(RPV)	8-97210-770-5	01	1	0810-	●		●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0803-0803	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0804-0808	●	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0809-	●	●	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0803-0803	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0804-0808	●	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0809-	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0803-0803	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0804-0808	●	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0809-	●	●	●	●
58	06.103 ARM; TIE ROD	8-97147-636-0	01	1	0803-0803	●	●
58	06.103 ARM; TIE ROD	8-97147-636-0	01	1	0804-0808	●	●	●
58	06.103 ARM; TIE ROD	8-97147-636-2	01	1	0809-	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0803-0803	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0804-0808	●	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0809-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0803-0803	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0804-0808	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0809-1310	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1311-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0803-0803	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0804-0808	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0809-1310	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1311-	●	●	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0803-0803	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0804-0808	●	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0809-1204	●	●	●	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0803-0803	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0804-0808	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0809-	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0803-0803	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0804-0808	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0809-1310	●	●	●	●
70	06.234 NUT; TIE ROD END FRONT WIDE TREAD<7GV> M20 LH THREAD	8-94254-726-0	01	1	1311-1311	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1312-	●	●	●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0803-0803	●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0804-0808	●	●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0809-	●	●	●	●
81	06.230 ROD; TIE FRONT WIDE TREAD<7GV>	8-98137-615-0	01	1	0904-	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0803-0803	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0804-0808	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0809-0903	●	●	●	●
81	06.230 ROD; TIE EXC. FRONT WIDE TREAD<7GV>	8-97061-869-0	01	1	0904-	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0904-			●	●

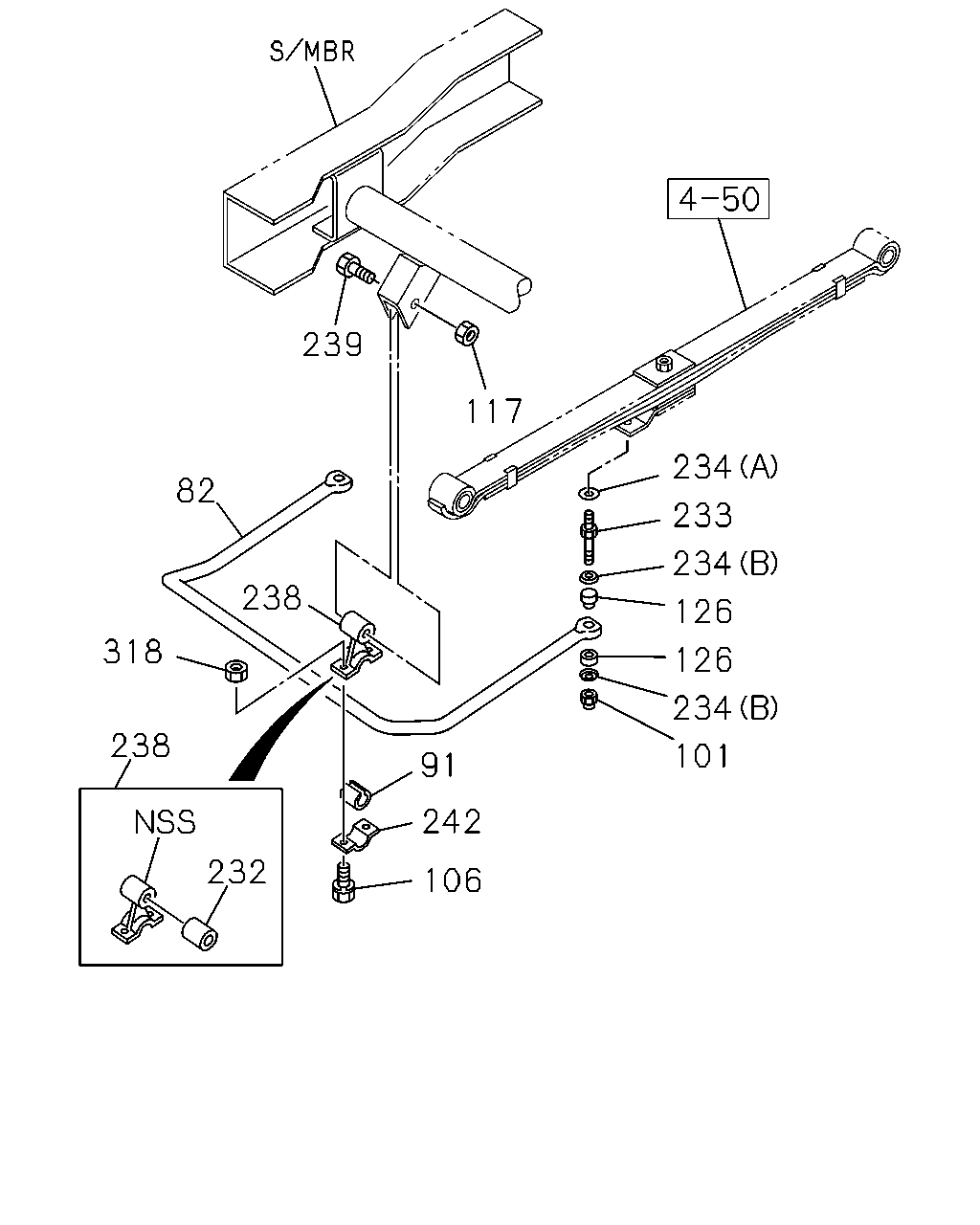

239 117 234 82 233 234 238 126 318 126 234 238 101 91 242 232 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98006-957-0	01	1	0803-0803	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98006-957-0	01	1	0804-0907	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>	8-98006-957-0	01	1	0908-	●	●
82	07.241 BAR; STAB,FRT SUSP COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-98150-711-0	01	1	0909-	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-98150-721-0	01	1	0908-0908	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. COLOMBIA EQUIPMENT(CB7)	8-98150-721-0	01	1	0909-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-97046-159-0	02	1	0909-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-94440-790-0	02	1	0908-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0803-0803	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0804-0907	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>	8-94342-187-0	02	1	0908-	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	0803-0803	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	0804-	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0803-0803	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0804-	●	●
117	06.174 NUT; STAB BAR BUSHING FRONT STABILIZER SHAFT<F59> M14 FLANGE	8-97360-124-0	02	1	0803-0803	●
117	06.174 NUT; STAB BAR BUSHING FRONT STABILIZER SHAFT<F59> M14 FLANGE	8-97360-124-0	02	1	0804-	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-083-0	04	1	0803-0803	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-083-0	04	1	0804-	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0803-0803	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0804-	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	0803-0803	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	0804-	●	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2	0-91510-514-0	02	1	0803-0803	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2	0-91510-514-0	02	1	0804-	●	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> (B) ID=12.5	8-97360-055-0	04	1	0803-0803	●
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> (B) ID=12.5	8-97360-055-0	04	1	0804-	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0803-0803	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0804-	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	0803-0803	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	0804-	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0803-0803	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0804-	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0803	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-1006	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE	0-91180-110-0	04	1	1007-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
