3-55 — BRAKE PIPING; OIL,REAR (#54604) — 157 parça
çizim 120301
3 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0803-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0804-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0804-0808 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0804-0808 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0809-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0809-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0803-0803 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0803-0803 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0803-0803 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0809- ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0809- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0809- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0809- ●

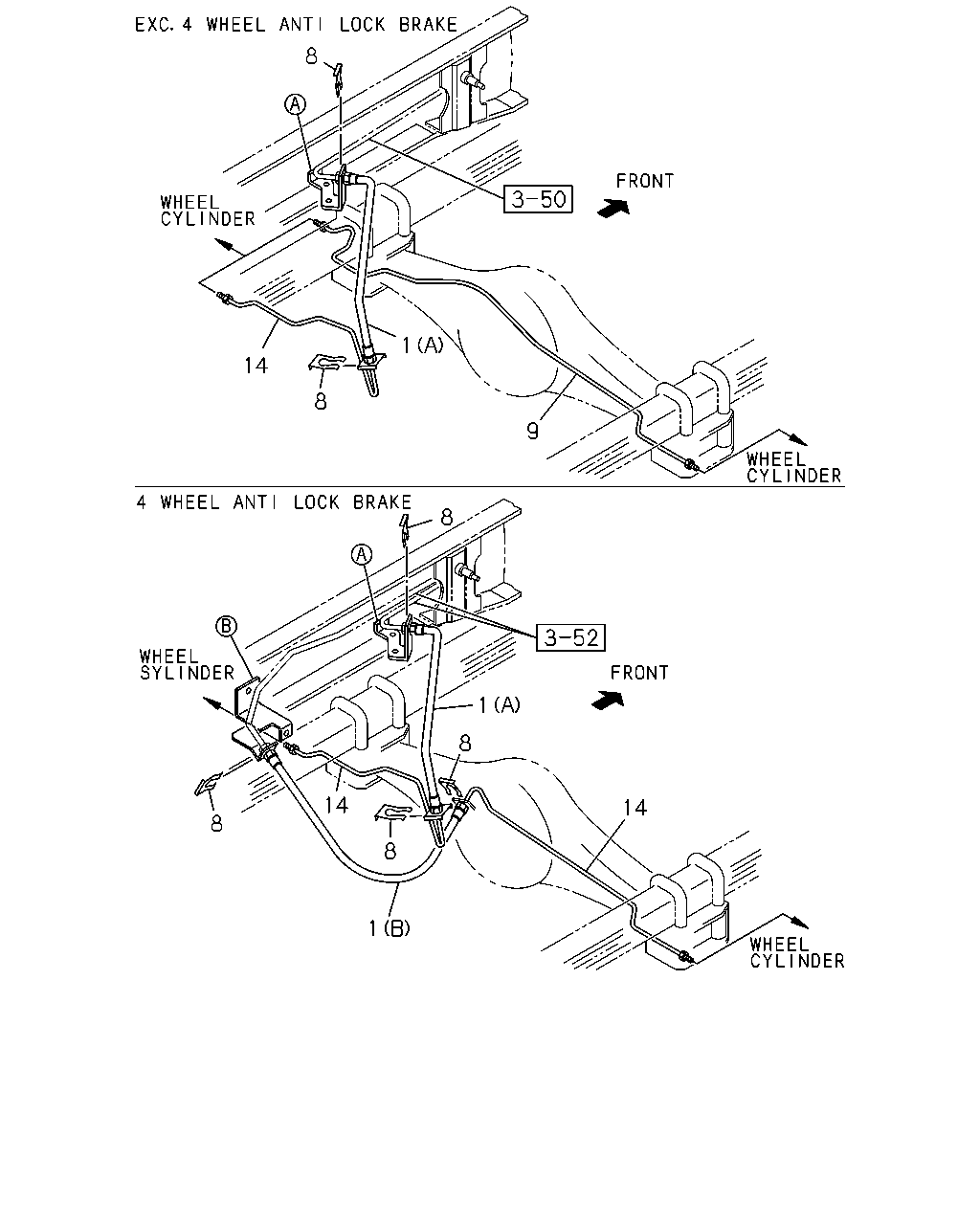

çizim 120307
8 1 14 8 9 8 1 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0804-0808 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0804-0808 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0809- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0809- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 0804- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0803- ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0803-0803 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0803-0803 ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0804-0808 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0804-0808 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0809- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0809- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-052-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0803-0803 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 0803-0803 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0804-0804 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 0804-0804 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0804-1509 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98026-057-0 01 1 0804-1509 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) ECUADOR EQUIPMENT(E46) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1510- ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. ECUADOR EQUIPMENT(E46),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1510- ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98026-057-0 01 1 1510- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98039-603-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-056-0 01 1 0804-0808 ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-056-0 01 1 0804-0808 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-056-0 01 1 0809- ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-056-0 01 1 0809- ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB) 		8-98026-056-0 01 1 0809- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 0804-0808 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-041-0 01 1 0804-0808 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 0809- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-041-0 01 1 0809- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCS ENG(LFB) 		8-98026-041-0 01 1 0809- ●

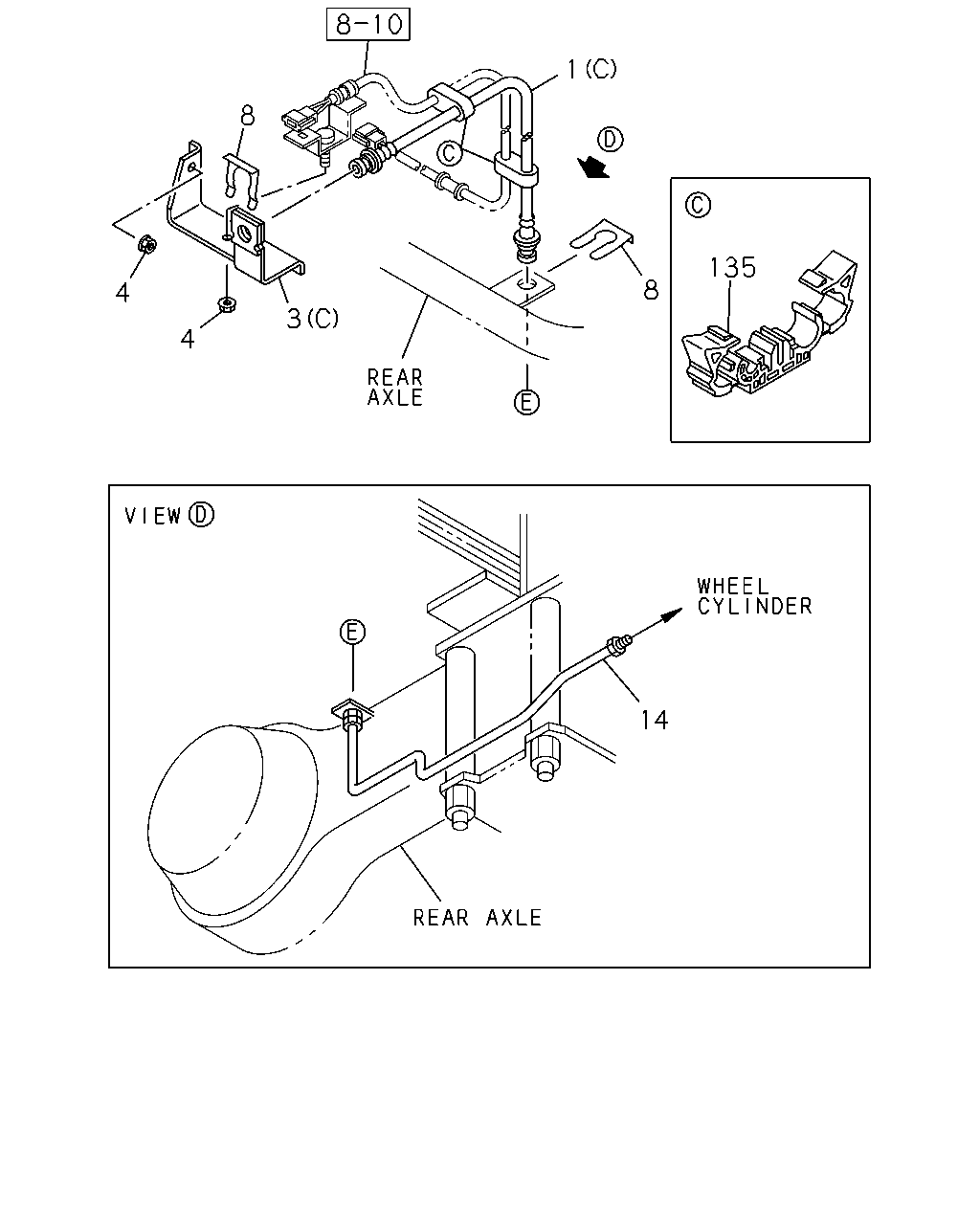

çizim 120313
1 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0803- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0804-0808 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0804-0808 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0809- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0809- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 0804- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0803-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97205-714-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0804-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0804-0808 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0804-0808 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0809-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0809-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0803- ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0803-0803 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0803-0803 ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0804-0808 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0804-0808 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0809- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0809- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0804-1509 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 1510- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 0804-0808 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-041-0 01 1 0804-0808 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 0809- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) 		8-98026-041-0 01 1 0809- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCS ENG(LFB) 		8-98026-041-0 01 1 0809- ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0803- ●

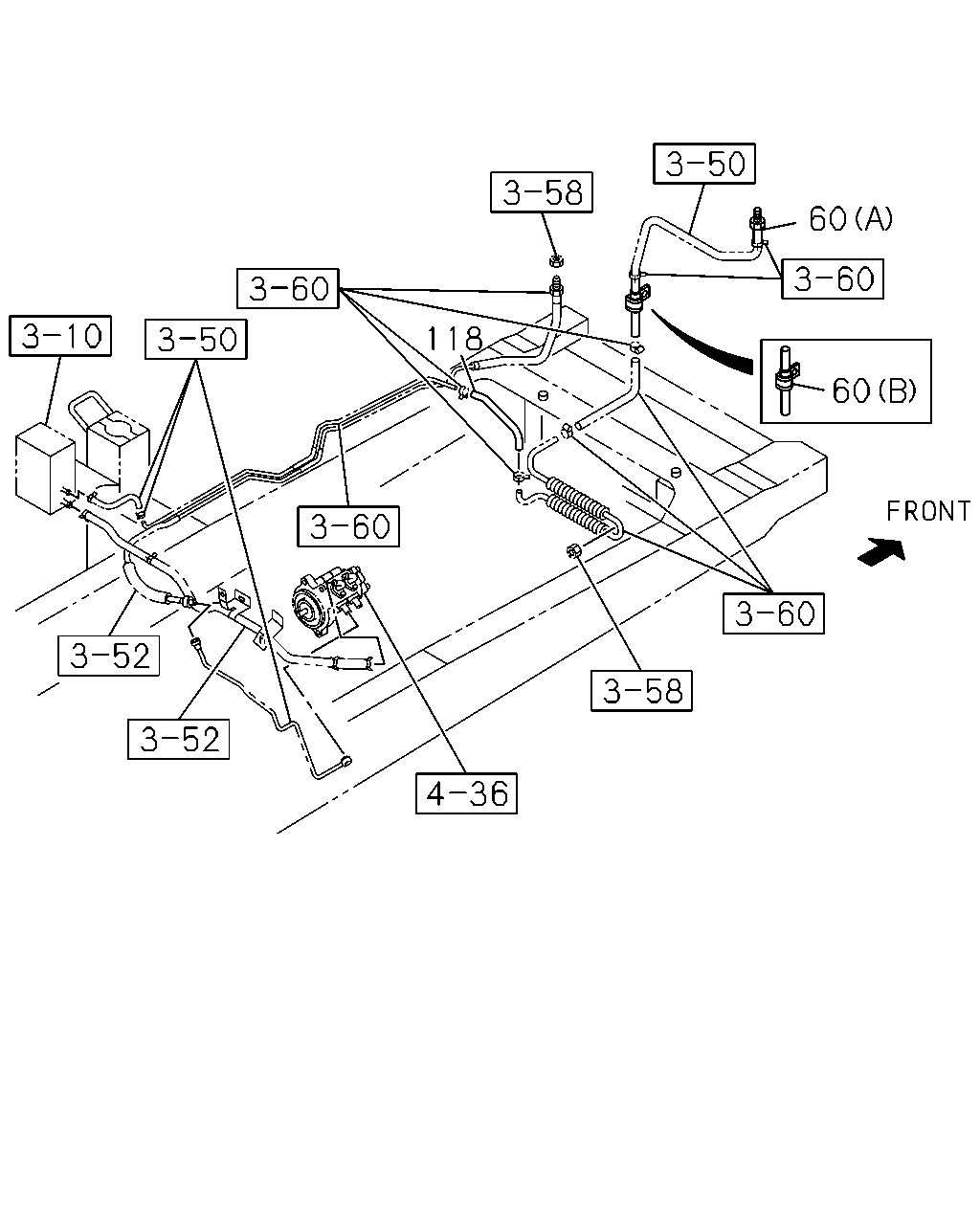

çizim 120315
60 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0803-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-319-0 01 1 0803-0809 ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 0810-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 0907- ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0803-0906 ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0907-1001 ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
