3-52 — BRAKE PIPING; OIL,FRONT (#54603) — 610 parça

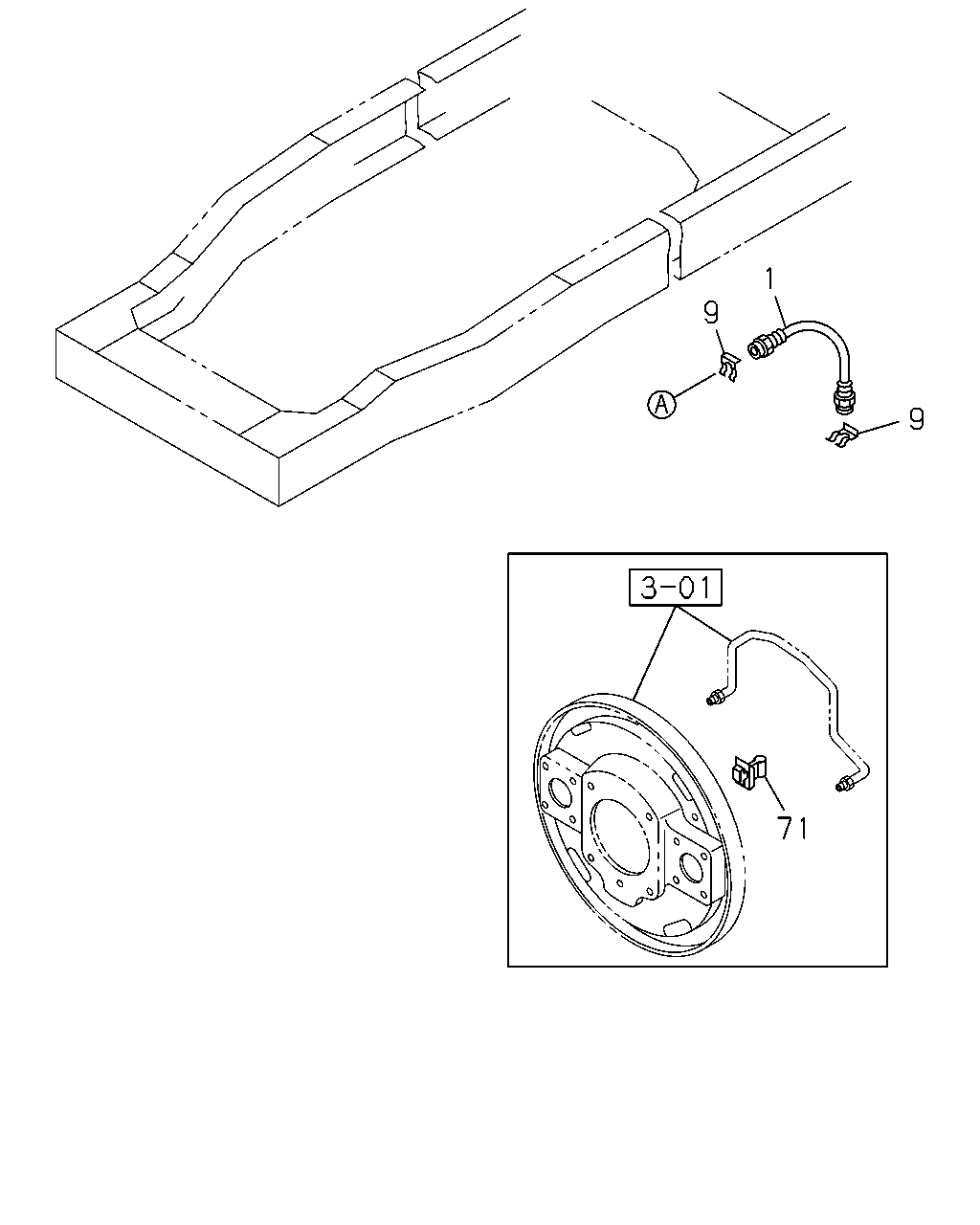

çizim 120290
1 9 9 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0904- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0804-0808 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0809-0903 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0904- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0904- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0803 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0803 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804-0808 ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804-0808 ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0809- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0809- ● ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),4 WHEEL ANTILOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),4 WHEEL ANTILOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0804- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0804- ●
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0804- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW) 05.002 		8-97044-742-1 02 1 0804- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.0-6.5TON(RPV) 05.002 		9-09756-034-0 02 1 0804- ● ●

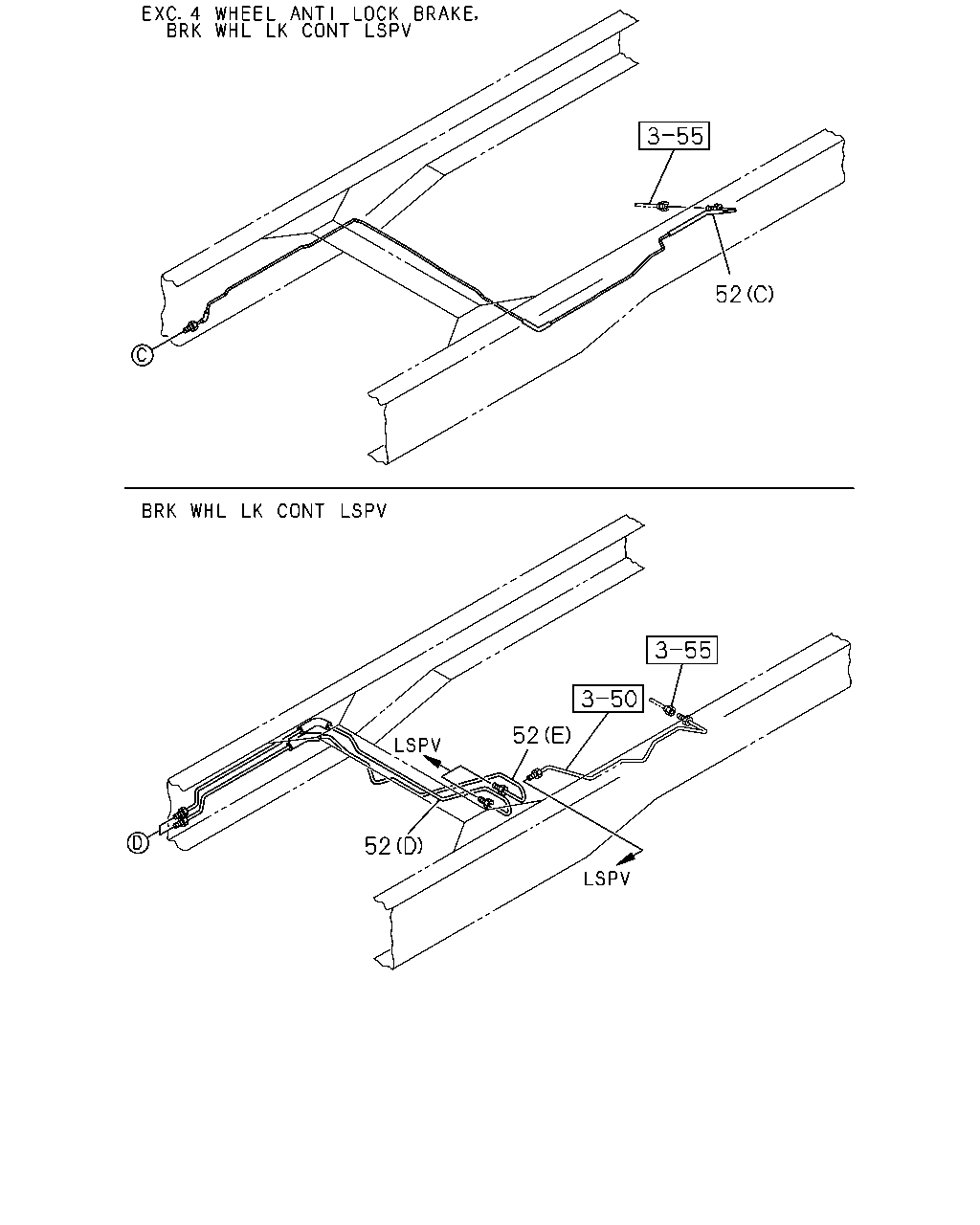

çizim 120291
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0803- ● ●

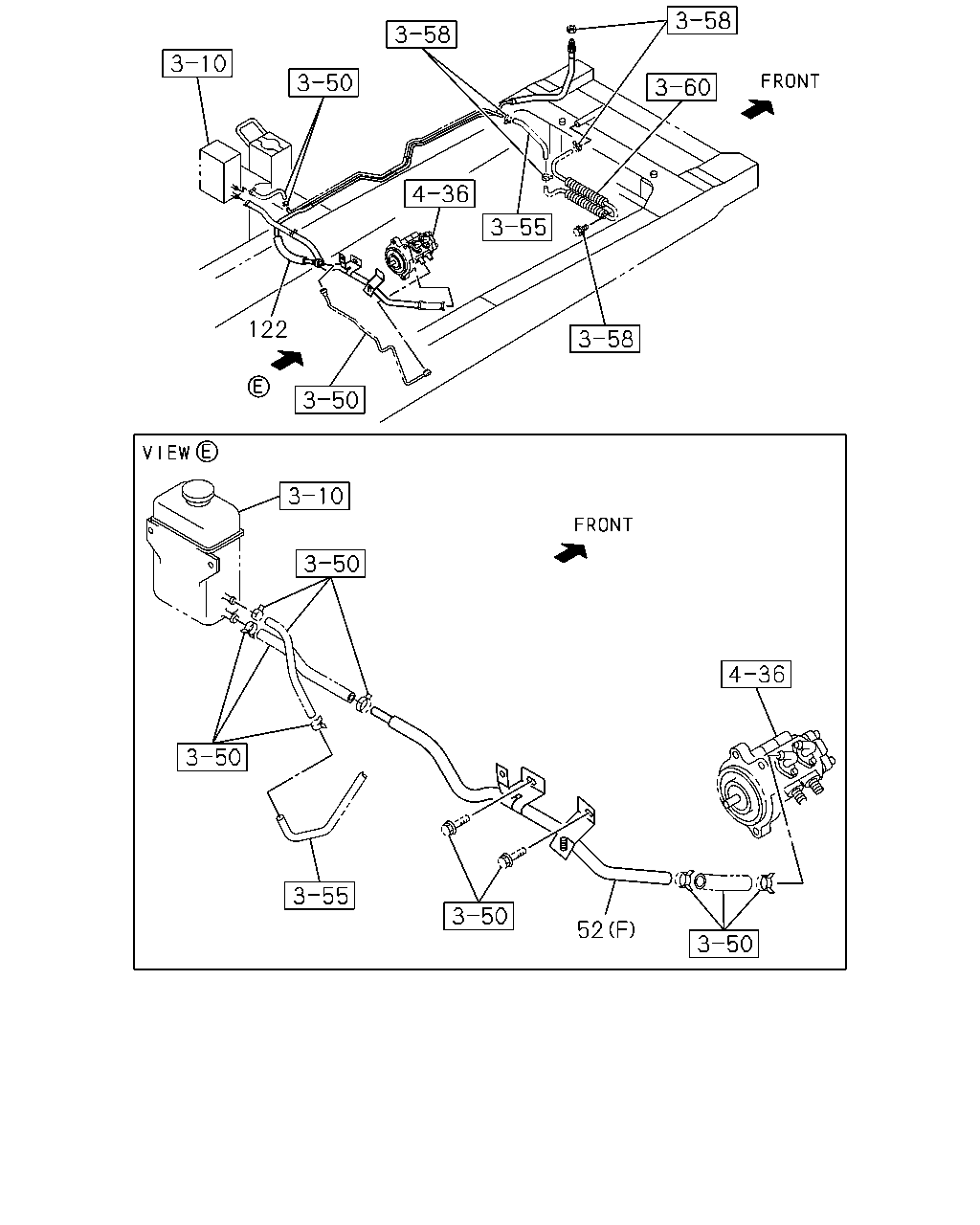

çizim 120293
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0803- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0803 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0803 ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98097-790-0 01 1 0803-0803 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0804-0906 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0907-0909 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0910- ● ●

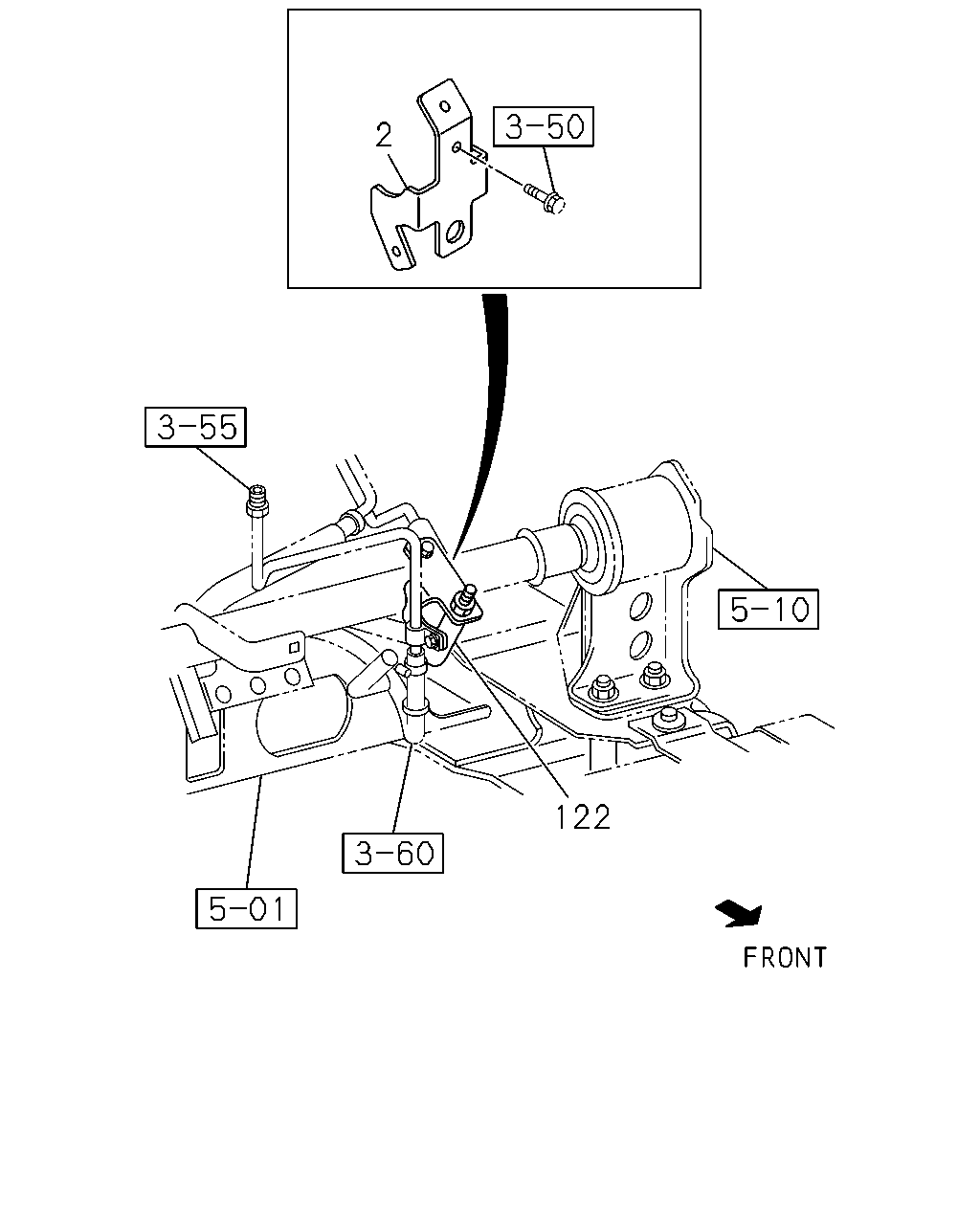

çizim 120294
2 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0803-0803 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98082-323-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0804-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0907-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 0910- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0803 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0803 ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98097-790-0 01 1 0803-0803 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0804-0906 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0907-0909 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0910- ● ●

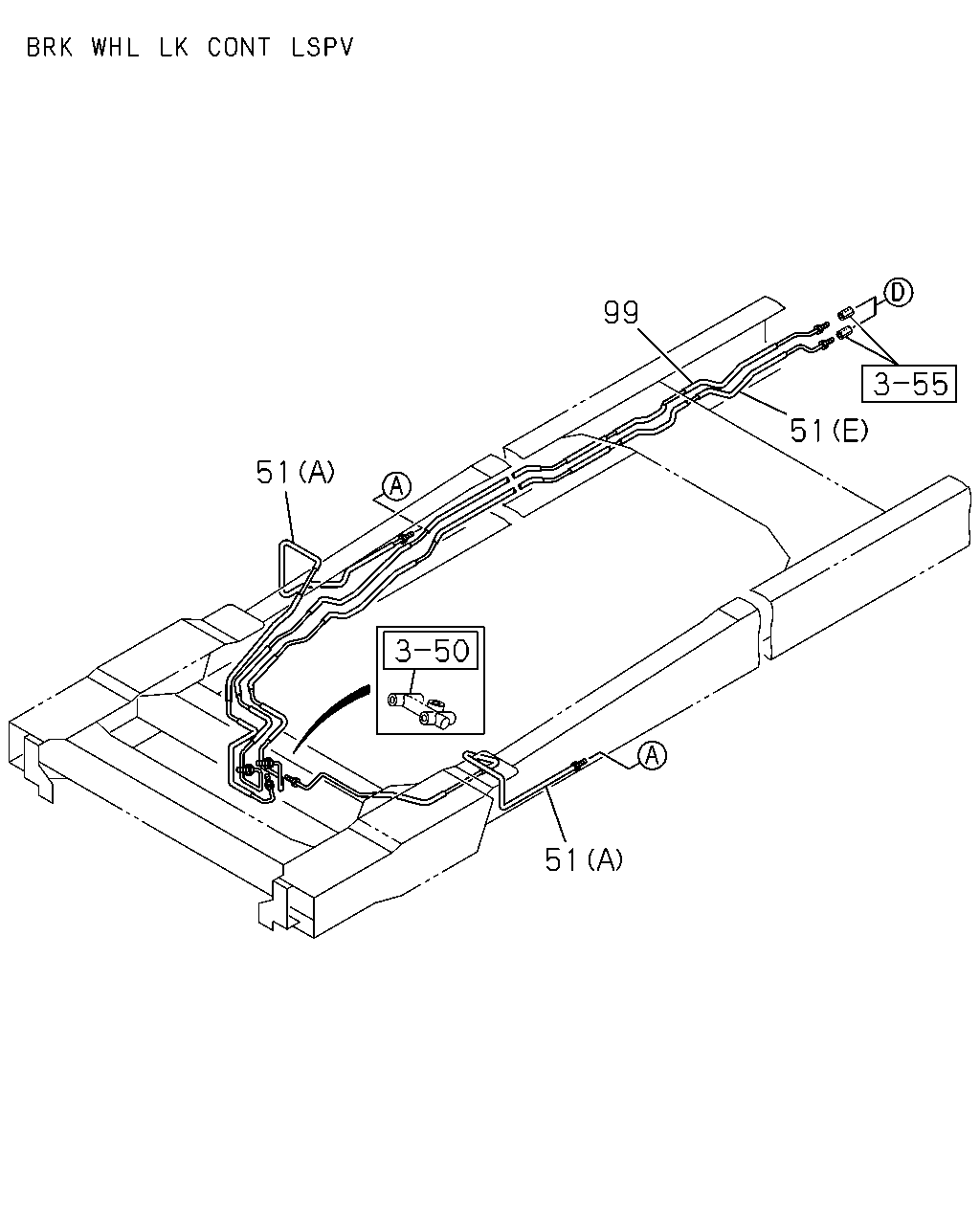

çizim 120297
99 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D

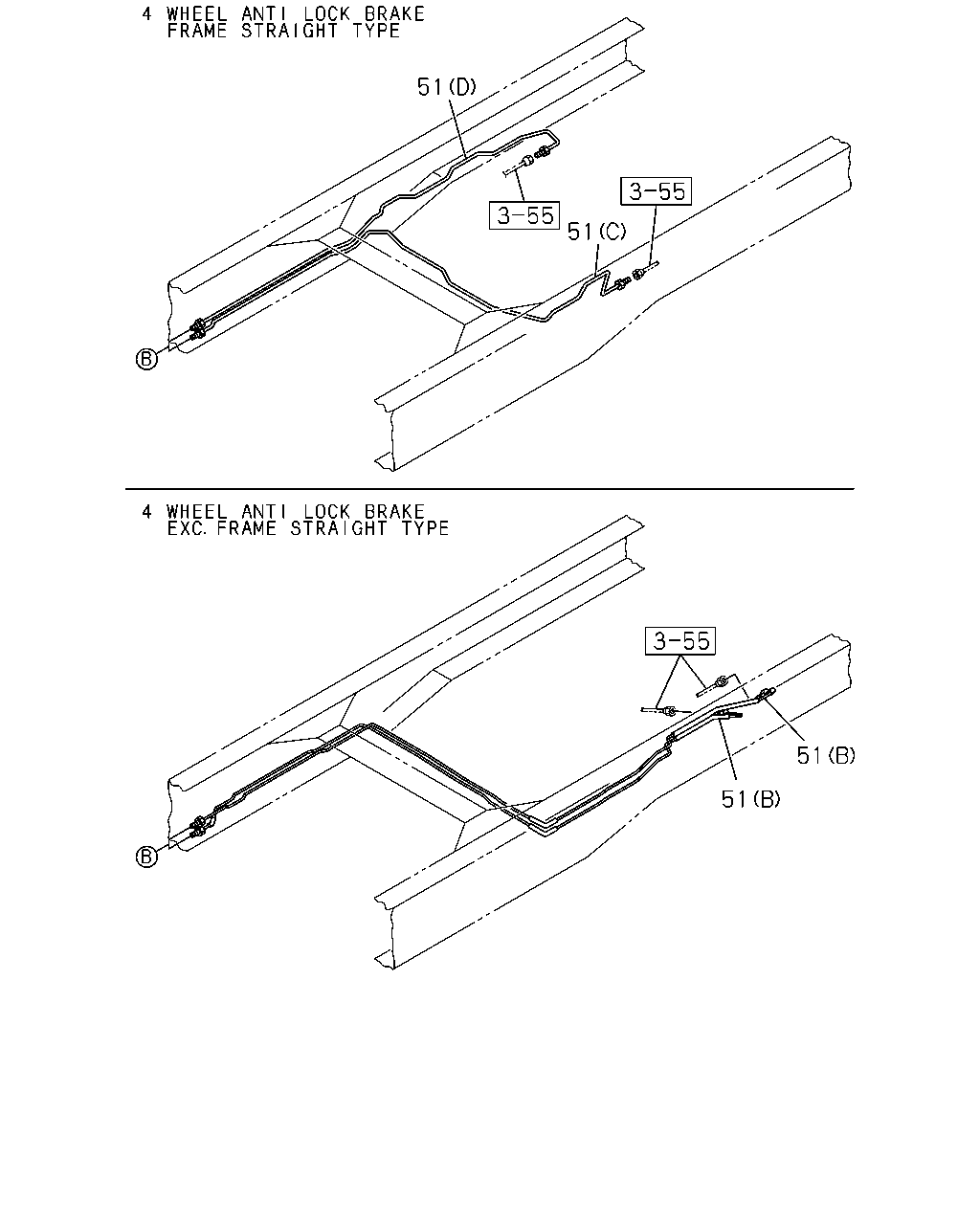

51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0803-0808 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCS ENG(LFB) 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
çizim 120298
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0803-0808 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●

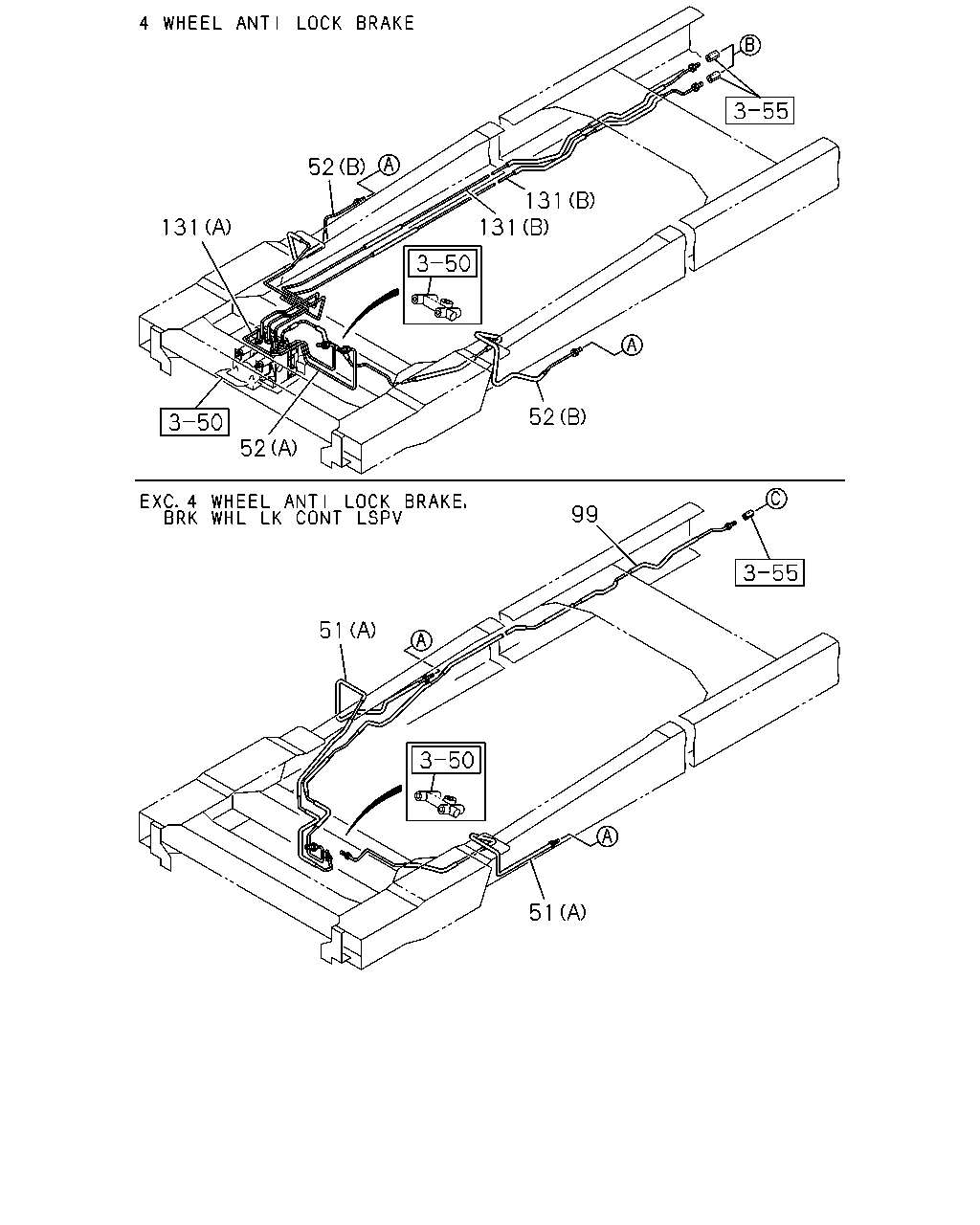

çizim 120299
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0808 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0809-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0803-0808 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
(E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0809-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) (E) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0905 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-453-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-317-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907-0909 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP E<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98056-415-0 01 1 0910- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0803-0808 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0809-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98036-162-0 01 1 0803- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0808 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0809-0906 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCS ENG(LFB) 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
