Sayfa 8-73 - Isuzu EPC

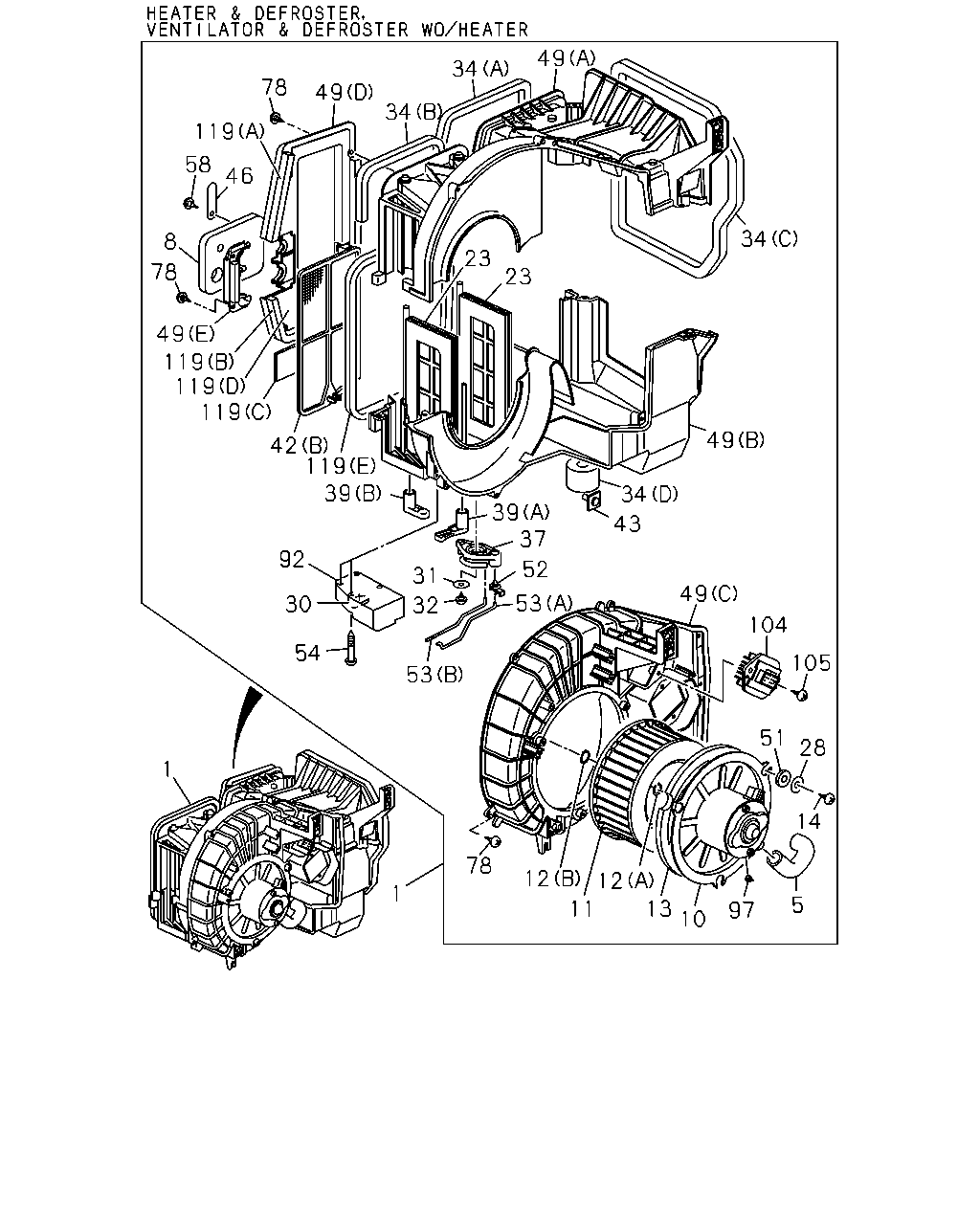

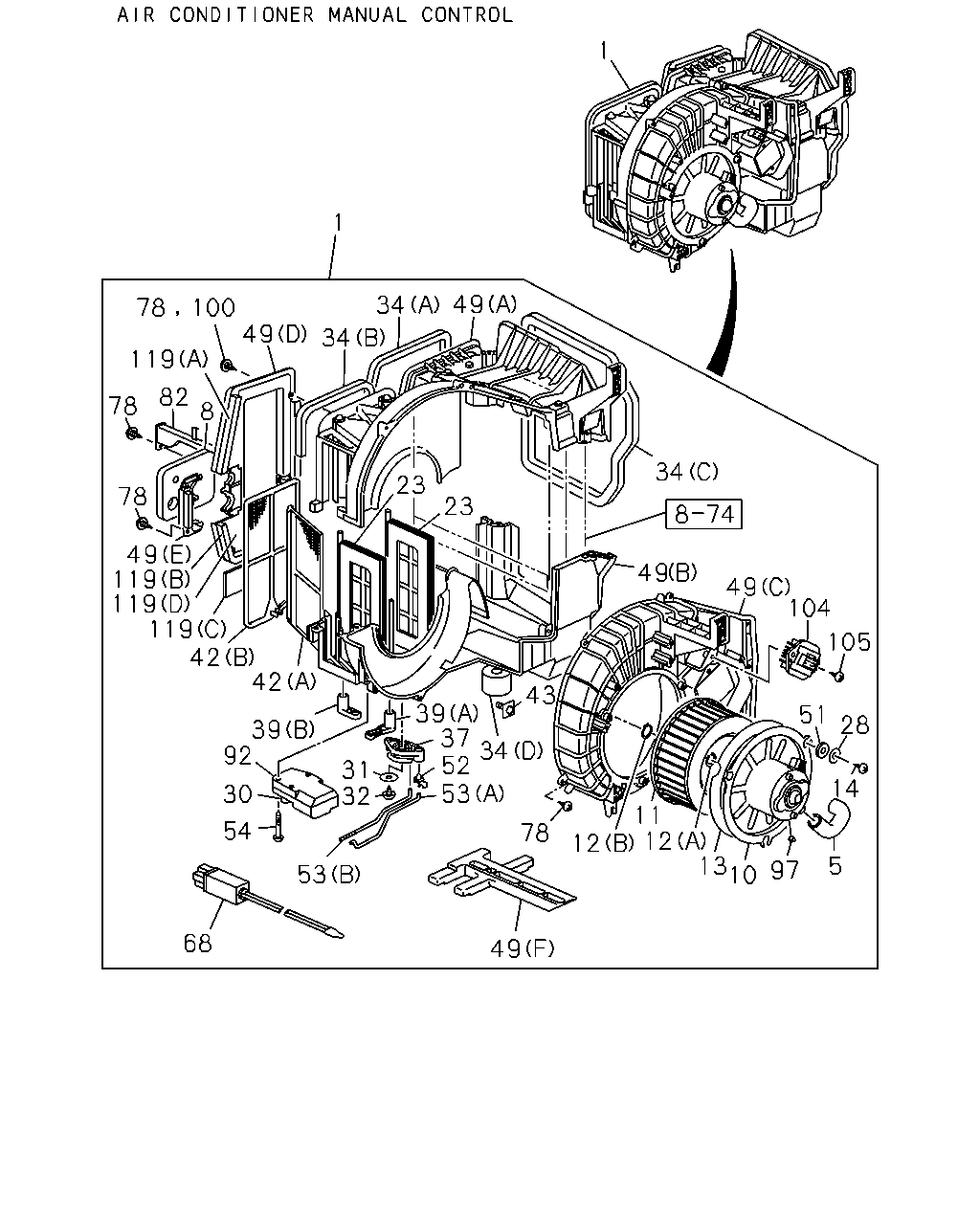

8-73 — BLOWER UNIT (#5460) — 211 parça

1 1 49 34 78 100 49 34 119 82 78 8 34 23 78 23 49 119 119 119 42 42 49 49 104 43 105 39 37 34 52 53 11 12 12 51 28 39 92 31 32 14 30 54 78 13 10 5 97 53 68 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-131-4	01	1	9611-9904
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	9905-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-105-8	01	1	9601-
5	HOSE; AIR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9601-9610
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9611-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9611-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9601-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9601-9610
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9611-9901
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	9902-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9601-9610
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9611-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9601-9610
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9611-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9601-9610
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9611-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9601-9610
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9611-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9905-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9601-9610
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9611-9901
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9902-9904
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9905-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9601-9610
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9611-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9601-9610
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9611-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9601-9610
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9611-
31	WASHER; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9601-9610
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9611-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9905-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9601-9610
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9611-9901
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9902-9904
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-1	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9611-9702
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9703-9901
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9601-9610
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9611-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9601-9610
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9611-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9601-9610
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9611-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-642-3	02	1	9611-9702
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-933-0	02	1	9703-9901
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9902-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9601-9610
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9611-
43	BOLT; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	04	1	9601-9610
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9611-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9611-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-0	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	9601-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-0	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	9611-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9601-9610
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9611-
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9703-9901
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	9902-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9601-9610
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9611-9702
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9703-9901
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9601-9610
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9611-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9601-9610
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9611-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9601-9610
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9611-
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	9611-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9601-9610
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9611-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	9611-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-0	01	1	9601-9610
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	9611-
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9601-9610
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9611-9702
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	9611-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-0	01	1	9601-9610
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9611-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9601-9610
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9611-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0007
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9611-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9902-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83579-839-0	02	1	9601-

49 34 78 49 34 119 58 46 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 92 52 31 49 53 30 32 104 54 105 53 51 28 1 14 78 12 12 1 5 13 11 97 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-131-4	01	1	9611-9904
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	9905-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-105-8	01	1	9601-
5	HOSE; AIR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9601-9610
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9611-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9611-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9601-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9601-9610
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9611-9901
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	9902-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9601-9610
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9611-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9601-9610
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9611-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9601-9610
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9611-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9601-9610
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9611-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9905-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9601-9610
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9611-9901
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9902-9904
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9905-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9601-9610
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9611-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9601-9610
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9611-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9601-9610
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9611-
31	WASHER; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9601-9610
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9611-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9905-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9601-9610
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9611-9901
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9902-9904
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-1	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9611-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9601-9610
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9611-9702
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9703-9901
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9601-9610
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9611-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9601-9610
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9611-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9601-9610
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9611-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-642-3	02	1	9611-9702
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-933-0	02	1	9703-9901
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9902-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9601-9610
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9611-
43	BOLT; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	04	1	9601-9610
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9611-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	9601-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9611-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-0	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	9611-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	9601-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-0	01	1	9601-9610
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	9611-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9601-9610
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9611-
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9703-9901
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	9902-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9601-9610
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9611-9702
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9703-9901
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9601-9610
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9611-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9601-9610
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9611-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9601-9610
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9611-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	9601-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9601-9610
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9611-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-0	01	1	9601-9610
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	9611-
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9601-9610
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9611-9702
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-0	01	1	9601-9610
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9611-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9601-9610
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9611-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9611-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0007
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9601-9610
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9611-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9902-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83579-839-0	02	1	9601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
