◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#546) — 84 parça

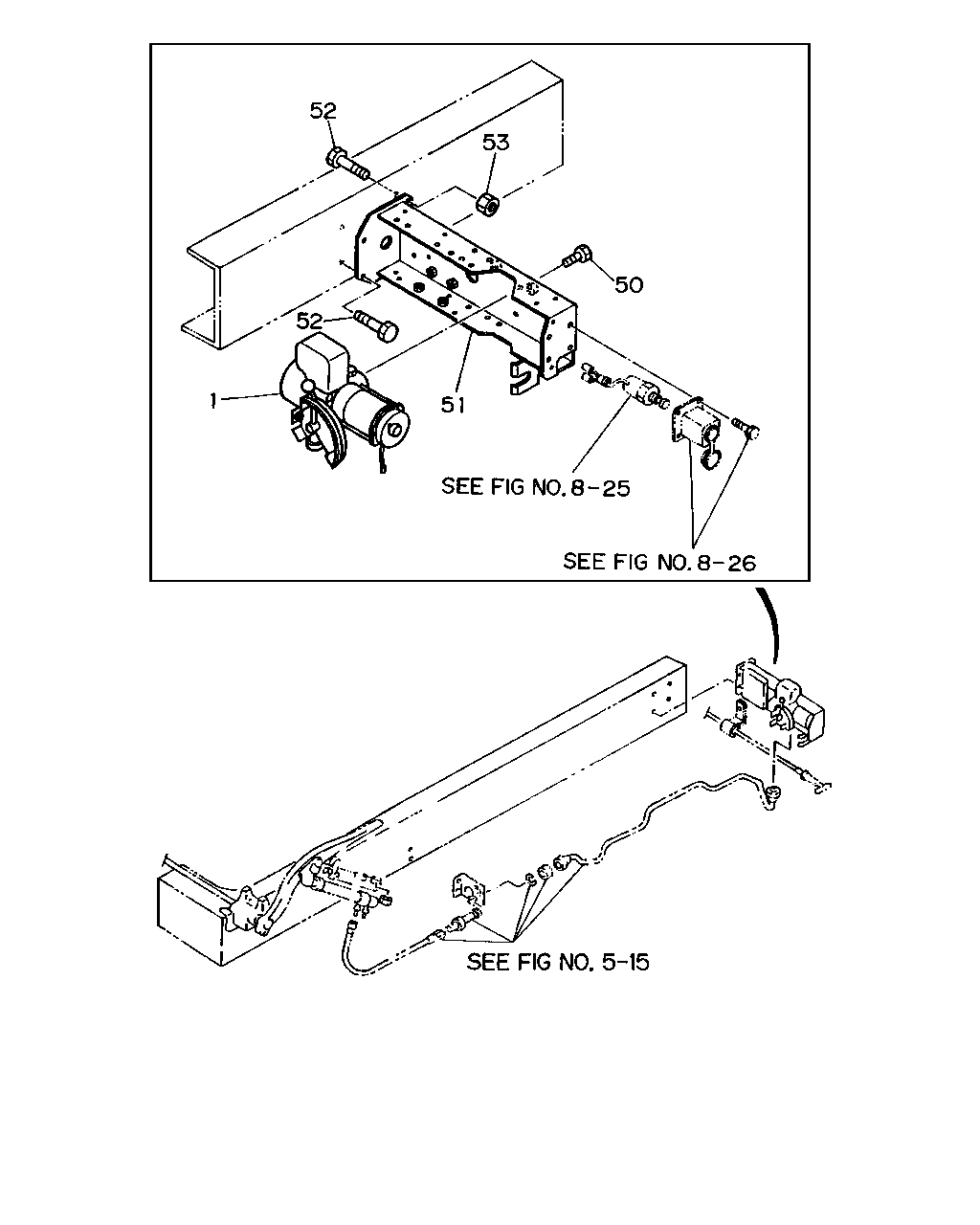

çizim 27104
52 53 50 51 52 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-411-9 01 1 8712-8802
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-784-1 01 1 8803-8904
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 8905-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		9-01911-020-0 03 1 8712-9002
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9307
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 FLANGE 		0-28081-020-0 03 1 9308-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-541-1 01 1 8712-9001
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-873-7 01 1 9002-
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK&PL WASHER 		9-01971-035-0 04 1 8712-9002
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK&PL WASHER 		0-50141-035-0 04 1 9003-9307
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 FLANGE 		0-28081-035-0 04 1 9308-
53 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 8712-

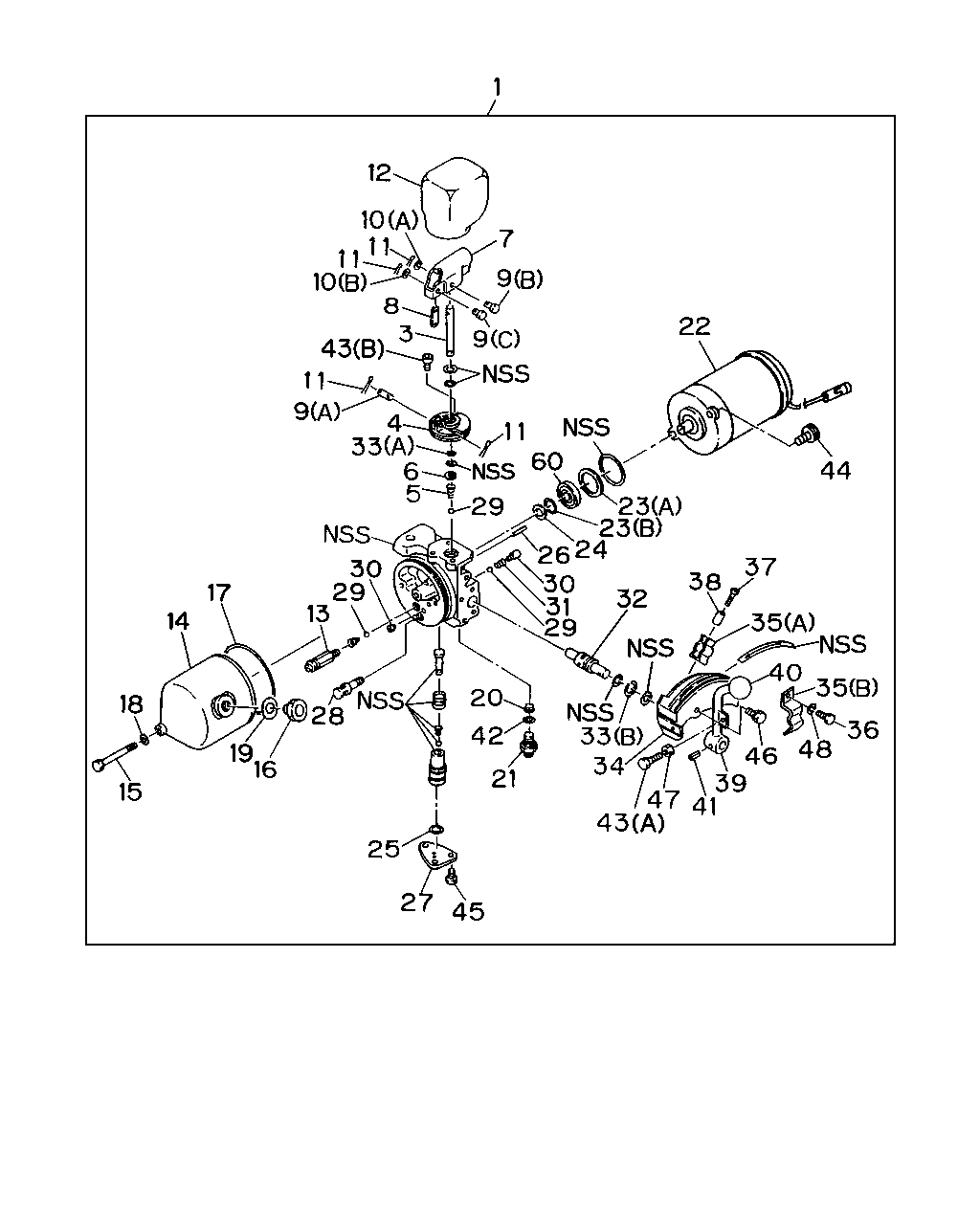

çizim 28364
1 12 10 7 11 11 10 9 8 9 3 43 11 9 4 11 33 60 29 5 6 22 44 23 23 24 26 30 31 32 29 38 37 33 34 47 43 41 39 46 48 36 35 40 35 21 42 20 25 27 45 28 16 19 15 18 14 17 13 29 30
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-411-9 01 1 8712-8802
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-784-1 01 1 8803-8904
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 8905-
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-068-0 01 1 8905-
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-067-0 01 1 8905-
5 SPRING; SUCTION
AUTO CAB TILT<WV2> 		1-53458-066-0 01 1 8905-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-065-0 01 1 8905-
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-063-0 01 1 8905-
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-062-0 01 1 8905-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-057-0 01 1 8905-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 8905-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-061-0 01 1 8905-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 8905-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-059-0 01 1 8905-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 8905-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 8905-
13 VALVE; RELIEF,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-055-0 01 1 8905-
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-053-0 01 1 8905-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-052-0 01 1 8905-
16 CAP
AUTO CAB TILT<WV2> 		1-53458-049-0 01 1 8905-
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 8905-
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 8905-
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 8905-
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 8905-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M14 		1-53458-047-0 02 1 8905-
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-046-0 01 1 8905-9010
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-233-0 01 1 9011-9512
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 9601-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 8905-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 01 1 8905-
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 8905-
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 8905-
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 02 1 8905-
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-037-0 01 1 8905-
28 PIPE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-036-0 01 1 8905-
29 BALL; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-035-0 03 1 8905-
30 PLUG; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-033-0 02 1 8905-
31 SPRING; DELIVERY
AUTO CAB TILT<WV2> 		1-53458-032-0 01 1 8905-
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-031-0 01 1 8905-
33 RING; BACK UP
AUTO CAB TILT<WV2> (A) 		1-53458-014-0 01 1 8905-
33 RING; BACK UP
AUTO CAB TILT<WV2> (B) 		1-53458-028-0 01 1 8905-
34 HOLDER; LEVER
AUTO CAB TILT<WV2> 		1-53458-027-0 01 1 8905-
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-023-0 02 1 8905-
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-026-0 01 1 8905-
36 BOLT; STOPPER
AUTO CAB TILT<WV2> 		1-53458-025-0 01 1 8905-
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X8 M5X8 		1-53458-005-0 01 1 8905-
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X14 		1-53458-011-0 01 1 8905-9312
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X20 		1-53458-523-0 01 1 9401-
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-022-0 01 1 8905-9312
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-524-0 02 1 9401-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-021-0 01 1 8905-
40 BALL; OIL PUMP LEVER
AUTO CAB TILT<WV2> 		1-53458-020-0 01 1 8905-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 8905-
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 8905-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-008-0 01 1 8905-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-012-0 03 1 8905-
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 8905-
45 BOLT; COVER
AUTO CAB TILT<WV2> 		1-53458-006-0 03 1 8905-
46 BOLT; LEVER HOLDER
AUTO CAB TILT<WV2> M6X8 		1-53458-004-0 02 1 8905-
47 NUT; LEVER
AUTO CAB TILT<WV2> 		1-53458-003-0 01 1 8905-
48 WASHER; STOPPER
AUTO CAB TILT<WV2> 		1-53458-002-0 01 1 8905-
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-043-0 01 1 9307-

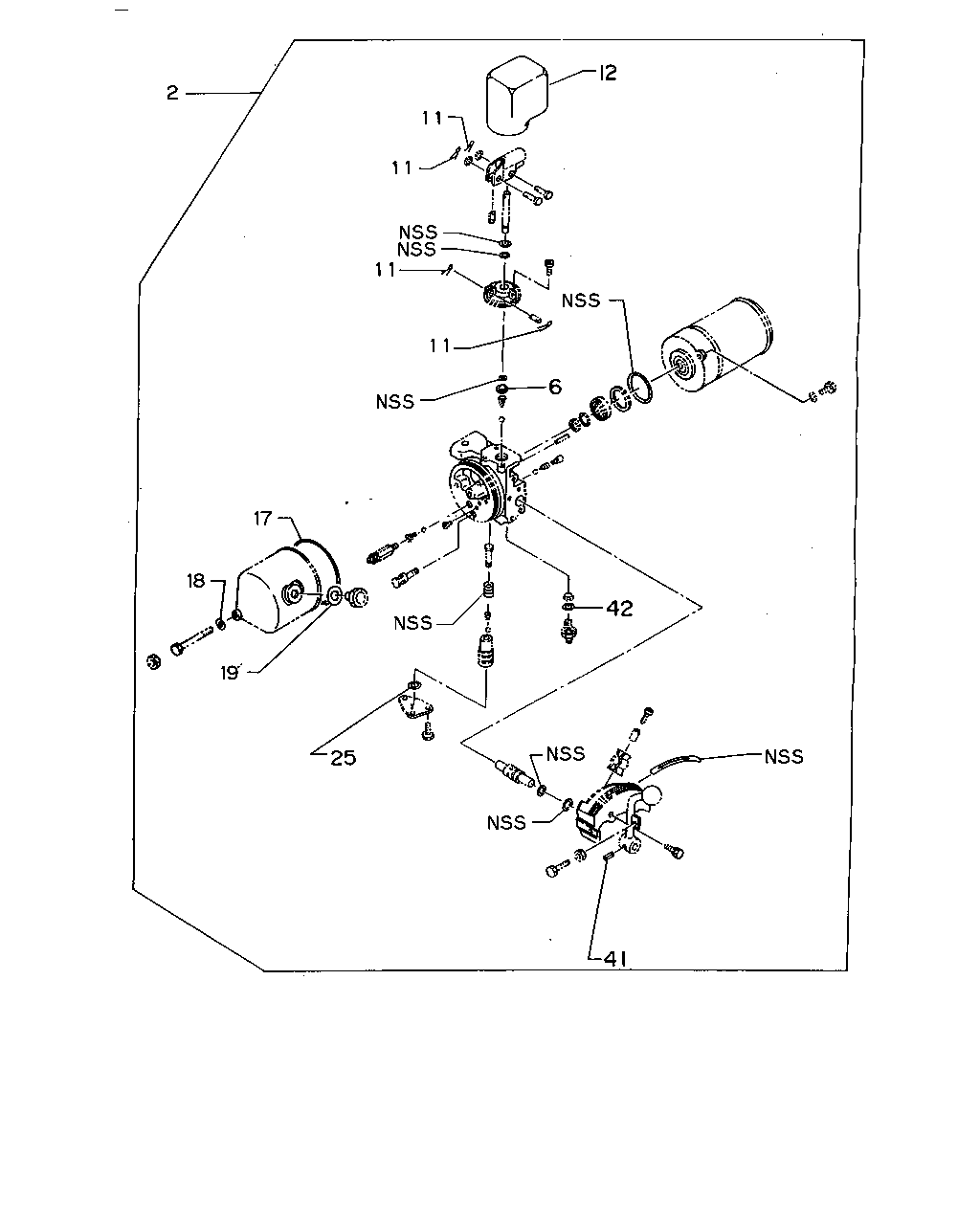

çizim 94830
41 42 25 19 18 17 11 6 11 11 11 12 2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-018-0 01 1 8905-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-065-0 01 1 8905-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 8905-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 8905-
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 8905-
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 8905-
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 8905-
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 8905-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 8905-
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 8905-
