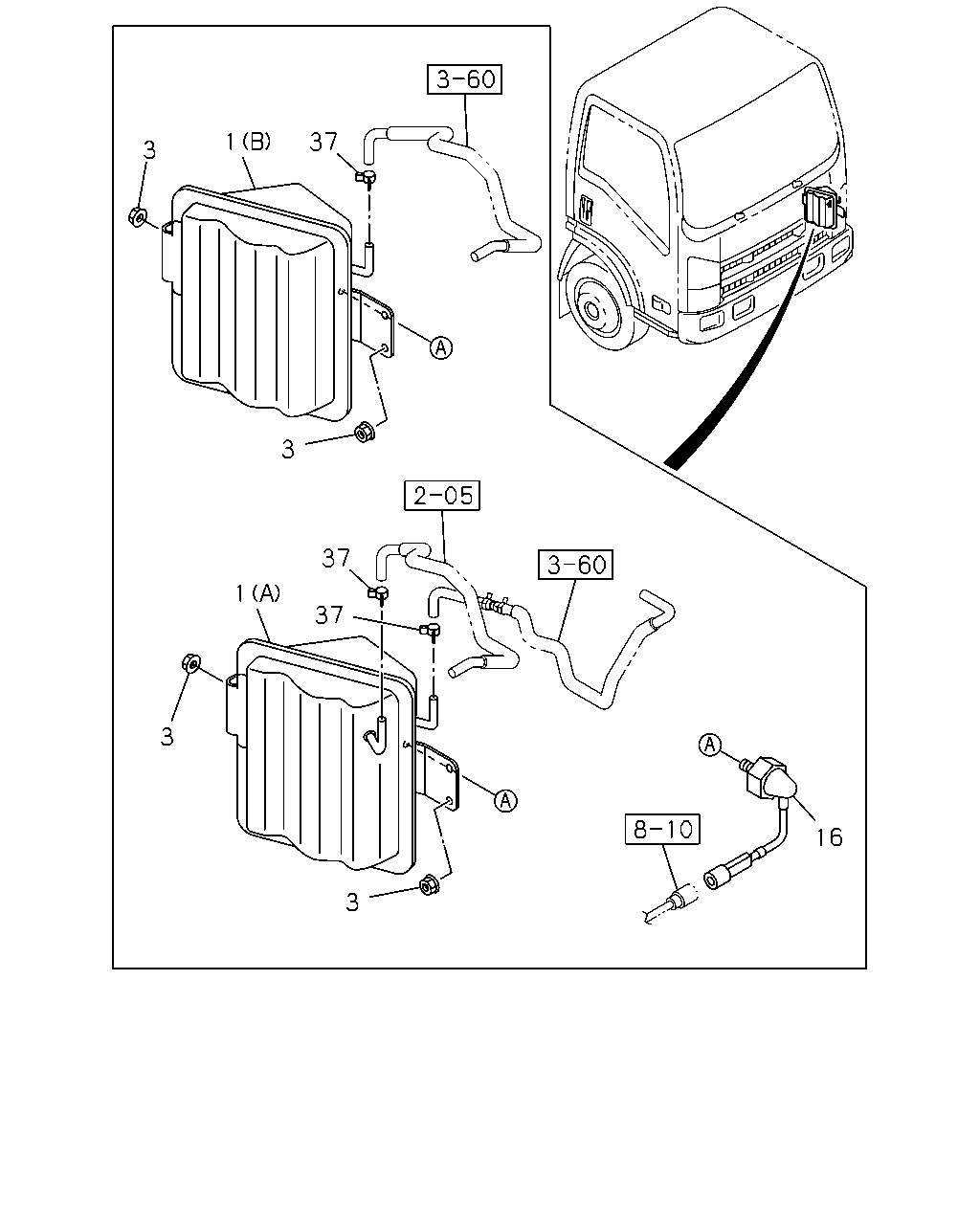

3-21 — VACUUM TANK (#54598) — 51 parça

1 37 3 3 37 1 37 3 16 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0804-0808	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0809-	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0804-0808	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0809-	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-292-0	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-292-0	01	1	0804-	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0803-0803	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0804-0808	●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0804-0808			●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0809-0809	●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0809-0809			●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0810-	●	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	0803-0803	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	0804-0808	●	●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	0804-0808			●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	0809-	●	●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	0809-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0804-0808	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0809-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0804-0808	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0804-0808	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0809-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0809-	●	●

37 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0804-0808	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-123-0	01	1	0809-	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0804-0808	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-124-1	01	1	0809-	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-292-0	01	1	0803-0803	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-292-0	01	1	0804-	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0803-0803	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0804-0808	●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0804-0808			●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	0809-0809	●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0809-0809			●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	0810-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0804-0808	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	0809-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0803-0803	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0804-0808	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0804-0808	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0809-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	0809-	●	●
