◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#54583) — 1129 parça

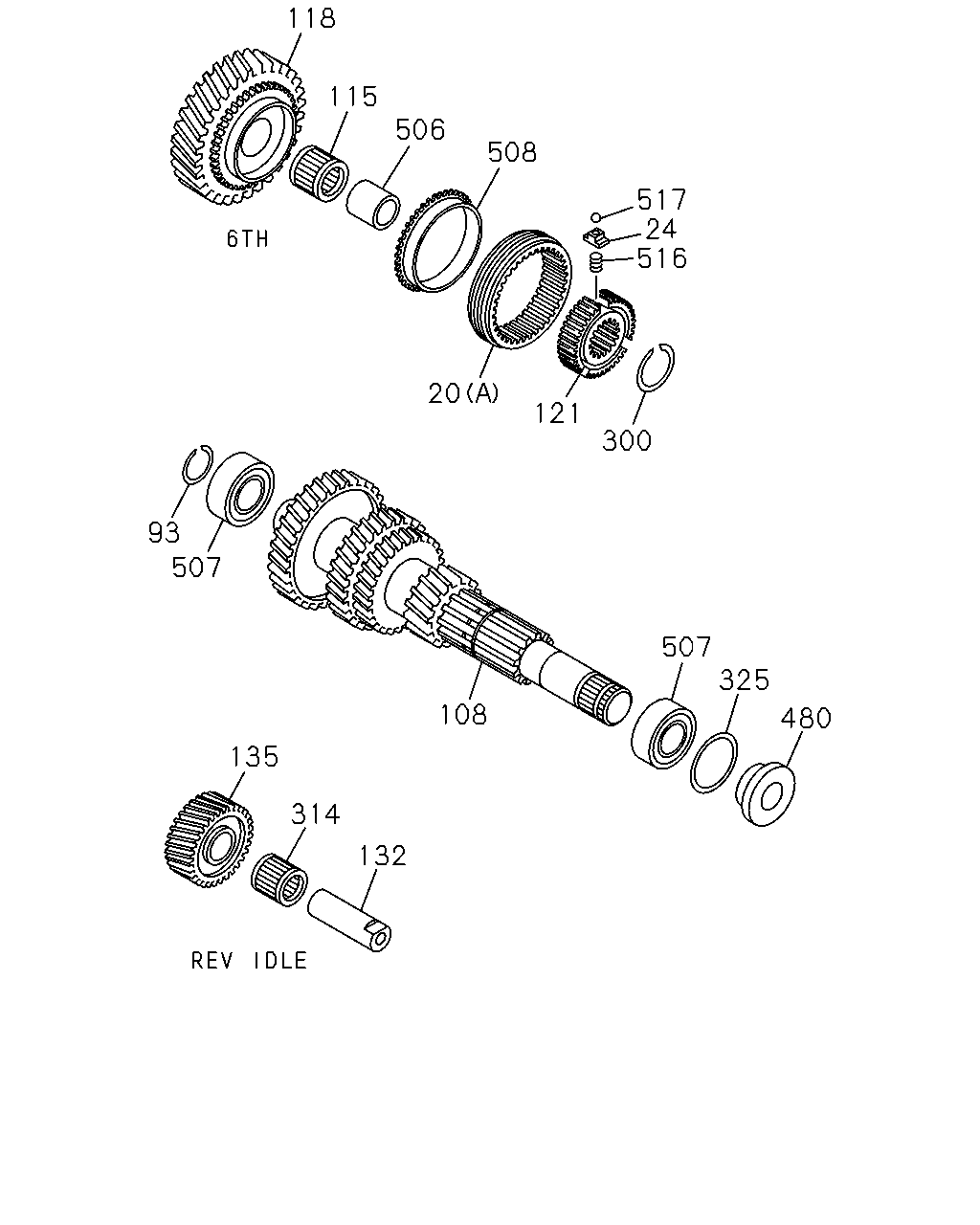

çizim 120235
118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=54 		8-97241-295-2 02 1 0803-0803 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0804-0808 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0804-0808 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0809- ● ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0809- ● ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=45 		8-97241-296-1 02 1 0803-0803 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0804-0808 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0809-1311 ● ●
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0804-0808 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0809- ● ●
24 04.383 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0804-0808 ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0804-0808 ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0809- ● ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0804- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-37-28-21 		8-97252-636-0 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-97252-636-0 01 1 0804-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98113-220-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98249-484-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-97349-881-0 01 1 0809-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 0803- ●
108 04.428 SHAFT; COUNTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20 		8-97380-630-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20 		8-97326-590-1 01 1 0804- ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411- ● ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0803-0808 ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0809- ● ● ●
118 04.421 GEAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47 		8-97241-246-0 01 1 0803-0803 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 0804-0808 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 0809- ● ●
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0803- ●
121 04.384 HUB; CLU,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-301-2 01 1 0803-0803 ●
121 04.384 HUB; CLU,6TH 8-97241-301-2 01 1 0804-0808 ●
121 04.384 HUB; CLU,6TH 8-97241-301-2 01 1 0809- ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0803-0803 ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0804-0808 ● ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0809- ● ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-1 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-1 01 1 0804-0808 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 0809- ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-0 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0804- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.7 		8-97288-618-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.8 		8-97288-619-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.9 		8-97288-620-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.6 		8-97365-616-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0803- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0803-0803 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0804-0808 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0809- ● ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0804- ● ●
480 04.419 WASHER; THRUST,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-122-0 01 1 0803-0803 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-0 01 1 0804-0808 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 0809- ● ●
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 0803- ●
506 04.419 COLLAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-120-1 01 1 0803-0803 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 0804-0808 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 0809- ● ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0803- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0804-0808 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0809- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0804- ● ●
508 04.383 RING; BLOCK,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 0804-0808 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 0809- ● ●
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 0803- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0809- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0804-0808 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0804-0808 ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0804-0808 ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0809- ● ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0809- ● ●

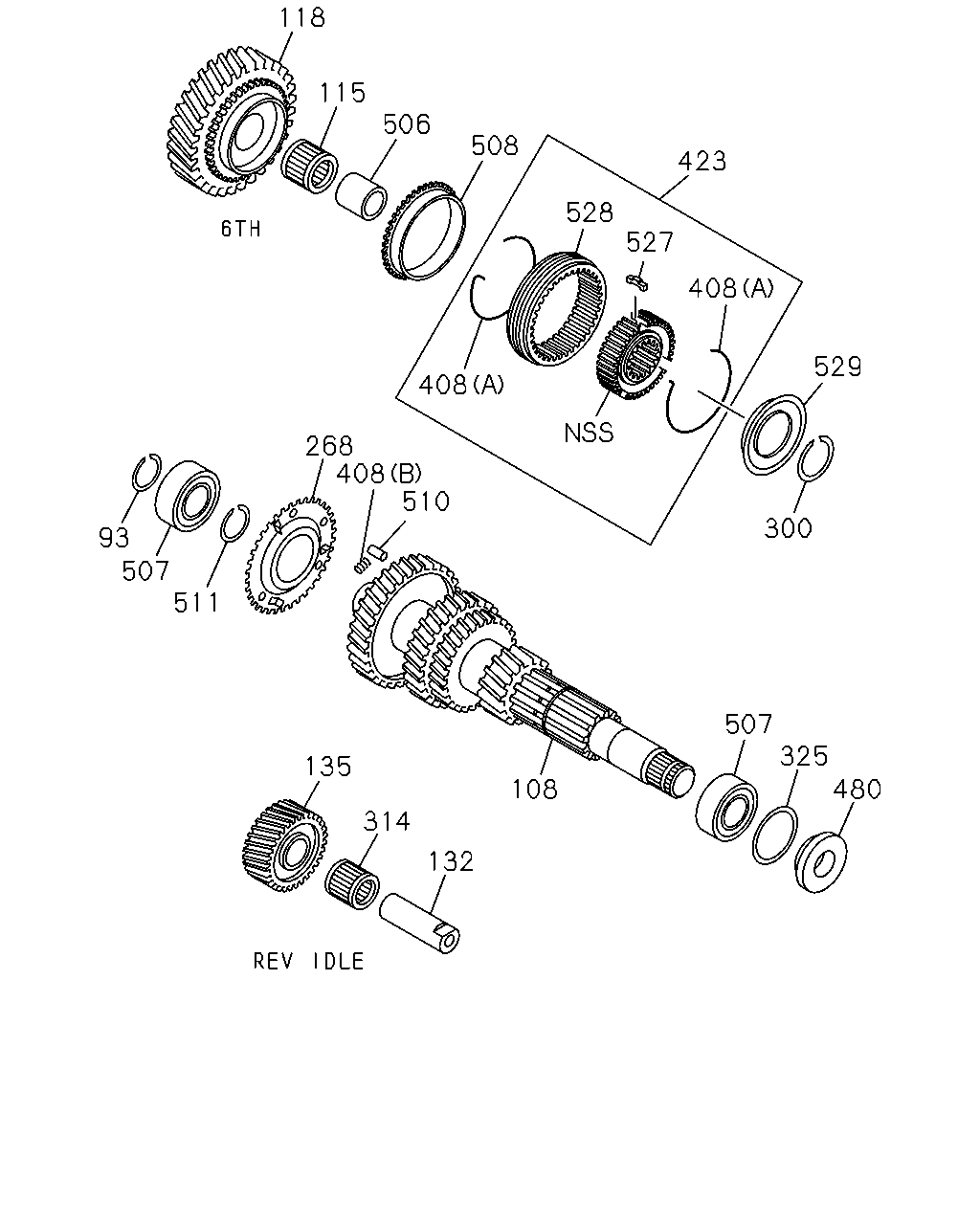

çizim 120240
118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0804- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-37-28-21 		8-97252-636-0 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-97252-636-0 01 1 0804-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98113-220-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98249-484-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-97349-881-0 01 1 0809-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 0803- ●
108 04.428 SHAFT; COUNTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20 		8-97380-630-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20 		8-97326-590-1 01 1 0804- ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411- ● ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0803-0808 ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0809- ● ● ●
118 04.421 GEAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47 		8-97241-246-0 01 1 0803-0803 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 0804-0808 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 0809- ● ●
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0803- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0803-0803 ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0804-0808 ● ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0809- ● ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-1 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-1 01 1 0804-0808 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 0809- ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-0 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0804- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-684-1 01 1 0803- ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97257-300-1 01 1 0804- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.7 		8-97288-618-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.8 		8-97288-619-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.9 		8-97288-620-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.6 		8-97365-616-0 01 1 0803-0803 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 0804-0808 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 0809- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0803- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0803-0803 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0804-0808 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0809- ● ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0803-0803 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0803-0803 ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0804- ● ●
423 04.384 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 0803- ●
480 04.419 WASHER; THRUST,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-122-0 01 1 0803-0803 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-0 01 1 0804-0808 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 0809- ● ●
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 0803- ●
506 04.419 COLLAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-120-1 01 1 0803-0803 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 0804-0808 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 0809- ● ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0803- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0804-0808 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0809- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0804- ● ●
508 04.383 RING; BLOCK,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 0804-0808 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 0809- ● ●
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 0803- ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 0803-0803 ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 0804- ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 0803-0803 ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 0804- ● ●
527 04.384 INSERT; 6TH 8-94448-202-2 03 1 0803- ●
528 04.384 SLEEVE; 6TH
04.535 Z=45 		8-94421-871-1 01 1 0803- ●
529 04.384 PLATE; STOPPER,6TH 8-97248-952-0 01 1 0803- ●

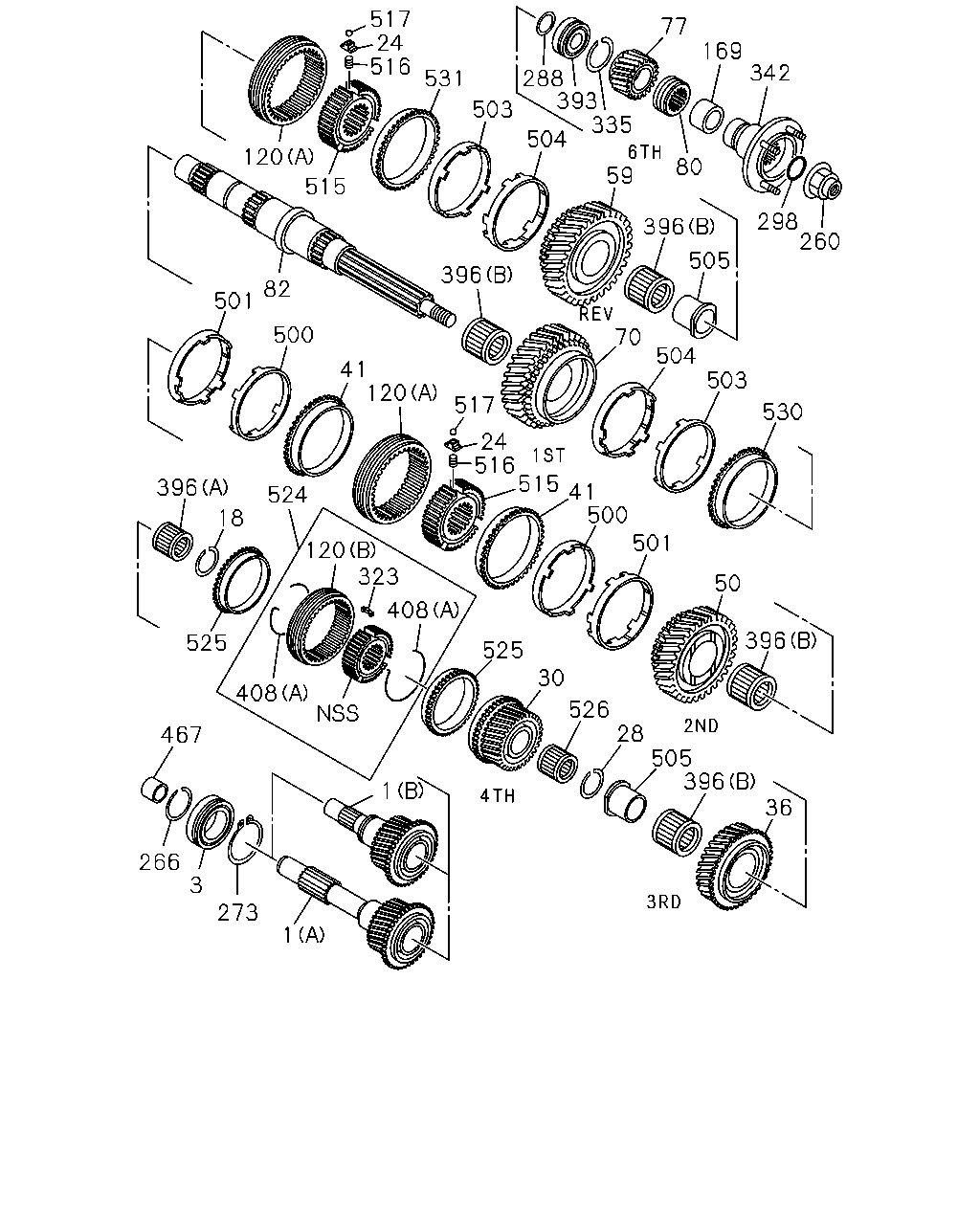

çizim 120248
517 24 516 77 169 342 288 393 335 531 503 504 59 120 80 515 298 260 396 505 396 82 501 70 500 504 41 120 503 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0803-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 0803- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0803-0803 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0804-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28 		8-98031-848-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28 		8-98031-849-0 01 1 0804- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0804-0808 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0809- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0804- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0804-0808 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0809- ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0804-0808 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0809- ● ●
24 04.383 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0804-0808 ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0804-0808 ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0809- ● ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0809- ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0803-0803 ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0804-0808 ● ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0809- ● ● ● ●
30 04.415 GEAR; 4TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=29 		8-97241-228-0 01 1 0803-0803 ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 0804- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 0809- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0803- ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=34 		8-97241-233-1 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 0804- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 0809- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0804- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0804-0808 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0809- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0804- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0804-0808 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0809- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0804- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0809- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0804-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCC ENG(RDU) Z=41 		8-97241-244-0 01 1 0804-0808 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0804-0808 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0809- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0804- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0804- ● ●
77 04.421 GEAR; 6TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=20 		8-97252-634-0 01 1 0803-0803 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 0804-0808 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 0809- ● ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0803- ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4 		8-97253-555-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 0804-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 21 5/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7 .50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX 16-127 6-WHL/NUT(83V) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEA R RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0809-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0810-1005 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0804- ● ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 0803-0803 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0804-0808 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0809- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0803- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0804- ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0803-0803 ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0804- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0803-0803 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0803-0803 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
169 04.419 COLLAR; MAINSHAFT 8-97252-937-1 01 1 0803- ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0803-0803 ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0804-0808 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0809- ● ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0804-0808 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0809- ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0804- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0804-0808 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0809- ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0804- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0804-0808 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0809- ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0804- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0804-0808 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0809- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0804- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 0803-0803 ●
323 04.384 INSERT 8-94448-202-2 03 1 0804- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0804-0808 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0809- ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0804- ● ●
342 05.545 FLANGE; OUTPUT 8-98031-862-0 01 1 0803-0803 ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) 		8-98031-862-0 01 1 0804-0904 ● ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) 		8-98031-862-0 01 1 0905- ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98031-862-0 01 1 0905- ●
342 05.545 FLANGE; OUTPUT
4JJ1-TCC ENG(RDU) 		8-98031-640-0 01 1 0804-0808 ● ●
342 05.545 FLANGE; OUTPUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98031-640-0 01 1 0809- ● ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0804-0808 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0809- ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0804-0808 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0809- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0803-0803 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0804-0808 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0809- ● ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0803-0803 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0803-0803 ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0804- ● ●
467 04.317 COLLAR; SHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0803-0803 ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0804-0808 ● ● ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0809- ● ● ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0804-0808 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0809- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0804- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0804-0808 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0809- ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0804- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0808 ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0809- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0803-0803 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0804-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0804-0808 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0809-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1007- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0808 ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0809- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0803-0803 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0804-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0804-0808 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0809-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1007- ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0803-0803 ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0804-0808 ● ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0809- ● ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0809- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0804-0808 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0804-0808 ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0804-0808 ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0809- ● ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0809- ● ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0803-0803 ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0804- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0803-0803 ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0804- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0803-0803 ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0804- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804-1006 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0804-0808 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0809-1006 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1007- ● ●
çizim 120263
517 24 516 519 342 531 288 393 335 503 504 120 515 80 59 298 260 396 505 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 323 501 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0803-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 0803- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0803-0803 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0804-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28 		8-98031-848-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28 		8-98031-849-0 01 1 0804- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0804-0808 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0809- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0804- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0804-0808 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0809- ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0804-0808 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0809- ● ●
24 04.383 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0804-0808 ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0804-0808 ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0809- ● ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0809- ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0803-0803 ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0804-0808 ● ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0809- ● ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=34 		8-97241-233-1 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 0804- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 0809- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0804- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0804-0808 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0809- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0804- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0804-0808 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0809- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0804- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0809- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0804-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCC ENG(RDU) Z=41 		8-97241-244-0 01 1 0804-0808 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0804-0808 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0809- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0804- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0804- ● ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4 		8-97253-555-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 0804-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 21 5/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7 .50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX 16-127 6-WHL/NUT(83V) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEA R RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0809-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0810-1005 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0804- ● ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 0803-0803 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0804-0808 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0809- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0803- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0804- ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0803-0803 ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0804- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0803-0803 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0803-0803 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 0804-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0803-0803 ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0804-0808 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0809- ● ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0804-0808 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0809- ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0804- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0804-0808 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0809- ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0804- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0804-0808 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0809- ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0804- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0804-0808 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0809- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0804- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 0803-0803 ●
323 04.384 INSERT 8-94448-202-2 03 1 0804- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0804-0808 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0809- ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0804- ● ●
342 05.545 FLANGE; OUTPUT 8-98031-862-0 01 1 0803-0803 ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) 		8-98031-862-0 01 1 0804-0904 ● ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) 		8-98031-862-0 01 1 0905- ●
342 05.545 FLANGE; OUTPUT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98031-862-0 01 1 0905- ●
342 05.545 FLANGE; OUTPUT
4JJ1-TCC ENG(RDU) 		8-98031-640-0 01 1 0804-0808 ● ●
342 05.545 FLANGE; OUTPUT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98031-640-0 01 1 0809- ● ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0804-0808 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0809- ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0804-0808 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0809- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0803-0803 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0804-0808 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0809- ● ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0803-0803 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0803-0803 ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0804- ● ●
467 04.317 COLLAR; SHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0803-0803 ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0804-0808 ● ● ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0809- ● ● ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0804-0808 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0809- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0804- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0804-0808 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0809- ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0804- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0808 ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0809- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0803-0803 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0804-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0804-0808 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0809-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1007- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0808 ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0809- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0803-0803 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0804-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0804-0808 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0809-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1007- ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0803-0803 ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0804-0808 ● ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0809- ● ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0809- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0804-0808 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0804-0808 ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0804-0808 ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0809- ● ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0809- ● ●
519 04.419 COLLAR; MAINSHAFT END,5TH
04.415 		8-97252-940-0 01 1 0804- ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0804- ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0803-0803 ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0804- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0803-0803 ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0804- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0803-0803 ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0804- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804-1006 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0804-0808 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0809-1006 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1007- ● ●
çizim 120277
517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 467 432 28 505 396 36 20 21 1 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0803-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 0803- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0803-0803 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0804-0808 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 0809- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28 		8-98031-848-0 01 1 0804- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28 		8-98031-849-0 01 1 0804- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0804-0808 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 0809- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0803-0803 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0804- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0804-0808 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0809- ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0803-0803 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0804- ● ●
19 04.383 RING; BLOCK,4TH & 5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 02 1 0803-0803 ●
19 04.383 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 0804-0808 ●
19 04.383 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 0809- ● ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=54 		8-97241-295-2 02 1 0803-0803 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0804-0808 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0804-0808 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0809- ● ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 0809- ● ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=45 		8-97241-296-1 02 1 0803-0803 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0804-0808 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0809-1311 ● ●
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312- ● ●
21 04.384 HUB; CLU,4TH & 5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-299-2 01 1 0803-0803 ●
21 04.384 HUB; CLU,4TH & 5TH 8-97241-299-2 01 1 0804-0808 ●
21 04.384 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 0809- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0804-0808 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 0809- ● ●
24 04.383 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0803-0803 ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0804-0808 ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0804-0808 ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 0809- ● ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 0809- ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0803-0803 ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0804-0808 ● ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0809- ● ● ● ●
30 04.415 GEAR; 4TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=29 		8-97241-228-0 01 1 0803-0803 ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 0804- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 0809- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0803- ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=34 		8-97241-233-1 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 0804- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 0809- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0803-0803 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0804- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0804-0808 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0809- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0803-0803 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0804- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0804-0808 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0809- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0803-0803 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0804- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0809- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97350-011-0 01 1 0804-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0803-0803 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCC ENG(RDU) Z=41 		8-97241-244-0 01 1 0804-0808 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0804-0808 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41 		8-97241-244-0 01 1 0809-1006 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0804-0808 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0809- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 0804- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0803-0803 ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0804- ● ●
77 04.421 GEAR; 6TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=20 		8-97252-634-0 01 1 0803-0803 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 0804-0808 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 0809- ● ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0803- ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4 		8-97253-555-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 0804-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 21 5/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7 .50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX 16-127 6-WHL/NUT(83V) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEA R RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. KD PREPARATORY PACK<6HF> Z=4 		8-97253-555-0 01 1 0810-1005 ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0809-0809 ●
80 04.343 GEAR; SPD DRIVE
FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=6 		8-97327-118-0 01 1 0810-1005 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1006- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0803-0803 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0804- ● ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 0803-0803 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0804-0808 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0809- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0803- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0804- ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0803-0803 ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0804-0808 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0809- ● ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0804-0808 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0809- ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0803-0803 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0804- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0804-0808 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0809- ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0803-0803 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0804- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0804-0808 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0809- ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0803-0803 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0804- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0804-0808 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 0809- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0803-0803 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0804- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0804-0808 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 0809- ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0803-0803 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0804- ● ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0804-0808 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0809- ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0803-0803 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0804-0808 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0809- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0803-0803 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0804- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0803-0803 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0804-0808 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0809- ● ● ● ●
432 04.419 BEARING; NEEDLE,4TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-111-0 01 1 0803-0803 ●
432 04.419 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 0804-0808 ●
432 04.419 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 0809- ● ●
467 04.317 COLLAR; SHAFT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0803-0803 ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0804-0808 ● ● ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0809- ● ● ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0804-0808 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0809- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0803-0803 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0804- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0804-0808 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0809- ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0803-0803 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0804- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0803-0808 ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 0809- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0803-0803 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 02 1 0804-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0804-0808 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 0809-1006 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1007- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0803-0808 ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 0809- ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0803-0803 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 02 1 0804-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0804-0808 ● ●
504 04.383 RING; INSIDE,LOW & REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 0809-1006 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1007- ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0803-0803 ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0804-0808 ● ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0809- ● ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0804-0808 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 0809- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 01 1 0803-0803 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 0809- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0803-0803 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 0804- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0804-0808 ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0804-0808 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 0809- ● ●
517 04.384 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0803-0803 ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0804-0808 ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0804-0808 ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 0809- ● ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 0809- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0803-0808 ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 0809- ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0803-0803 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 0804-1006 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0804-0808 ● ●
531 04.383 RING; BLOCK,REV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 0809-1006 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1007- ● ●
çizim 120288
268 408 510 93 108 507 511 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0804-0808 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0809- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0804- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0803-0803 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0804- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-37-28-21 		8-97252-636-0 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-97252-636-0 01 1 0804-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98113-220-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98249-484-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-97349-881-0 01 1 0809-0910 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 0911-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 0803- ●
108 04.428 SHAFT; COUNTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0803-0803 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20 		8-97380-630-1 01 1 0804- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20 		8-97326-590-1 01 1 0804- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0803-0803 ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0804-0808 ● ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0809- ● ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-1 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-1 01 1 0804-0808 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 0809- ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-0 01 1 0803-0803 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0804- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-684-1 01 1 0803- ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97257-300-1 01 1 0804- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0803-0803 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0804-0808 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0809- ● ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0804-0808 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0809- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0804- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0803-0803 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0803-0803 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0804- ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0803-0803 ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 0804- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0804-0808 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0809- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0803-0803 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0804- ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 0803-0803 ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 0804- ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 0803-0803 ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
