◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#54580) — 32 parça

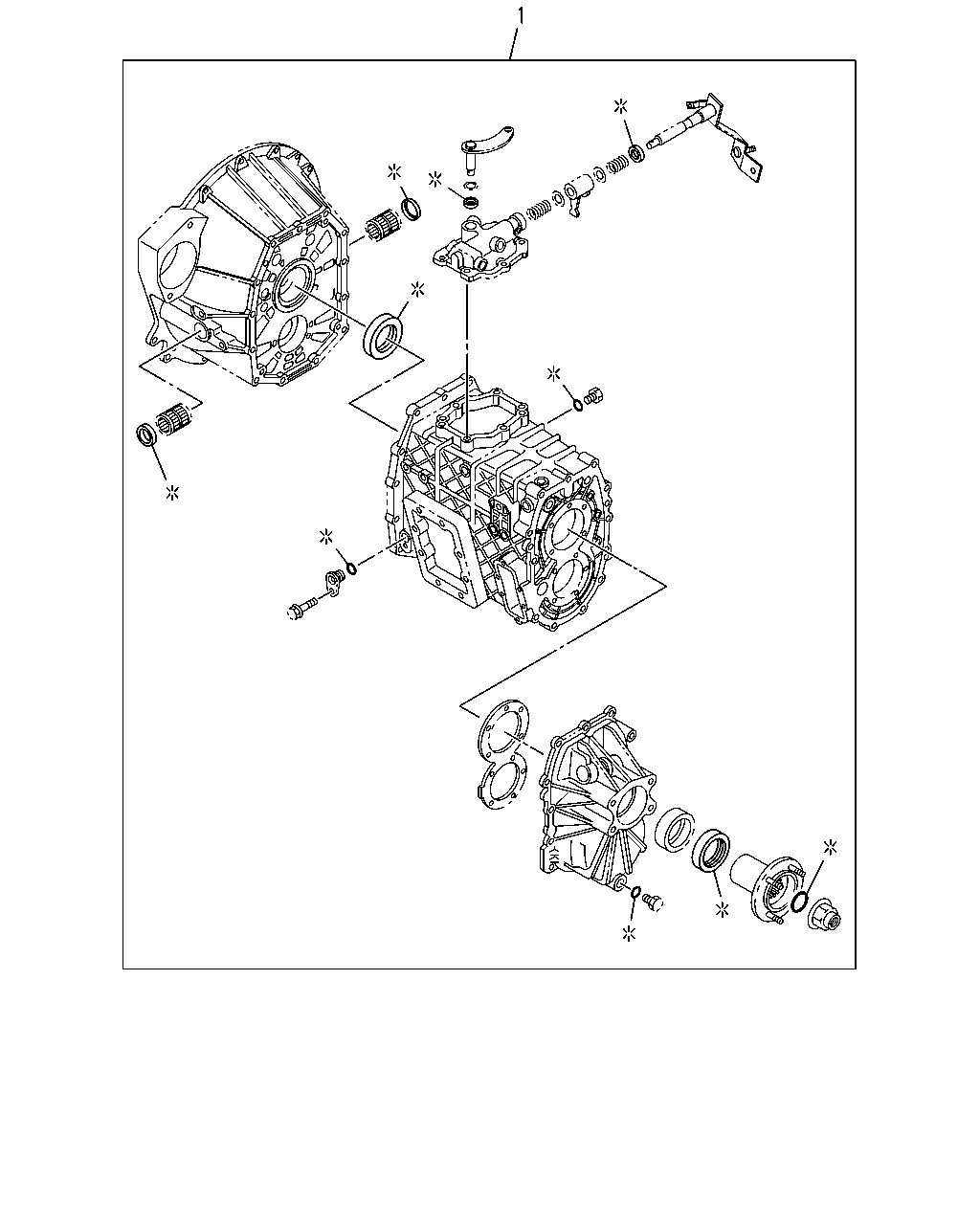

çizim 120231
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0803-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0809- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0804-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0809- ● ●

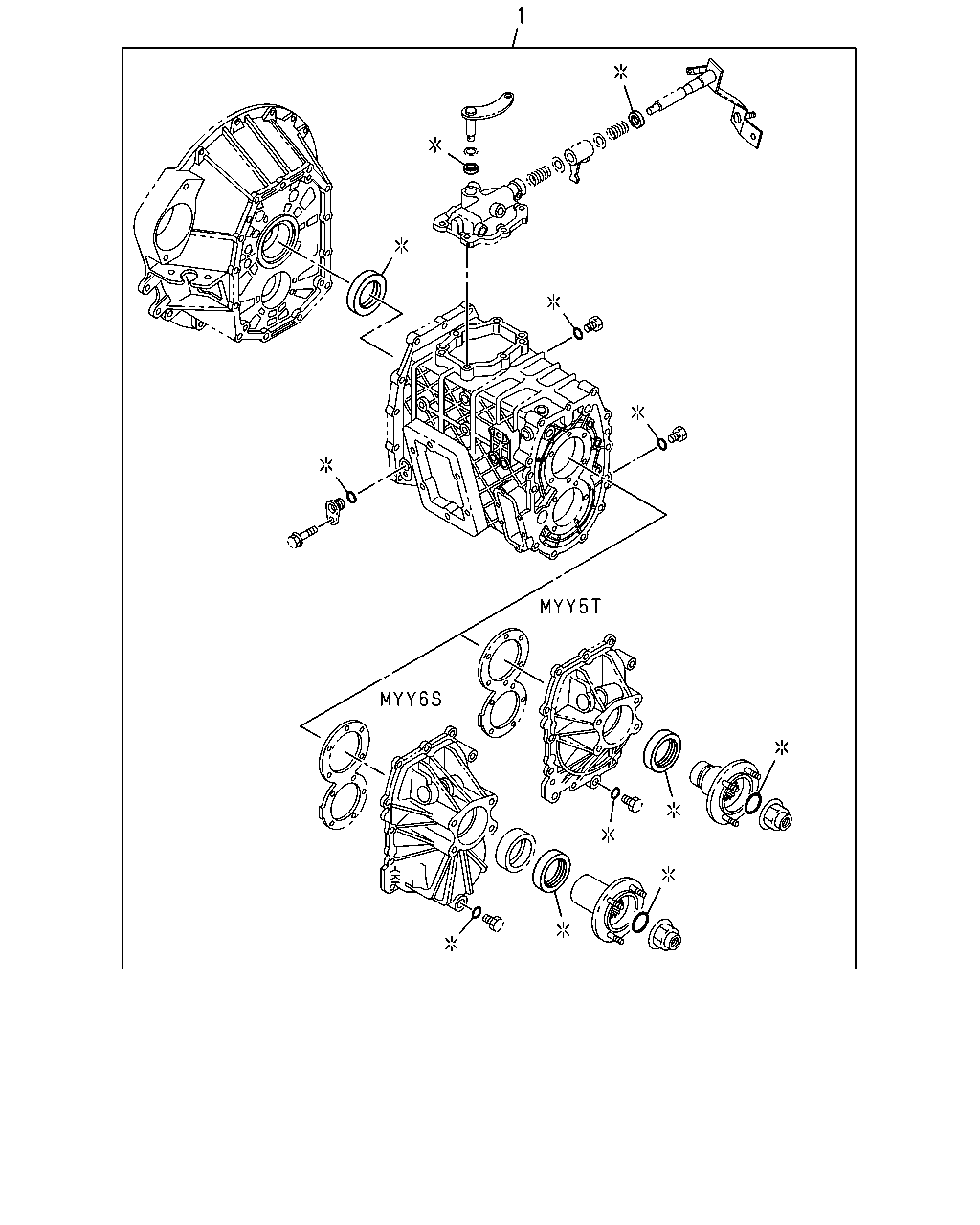

çizim 120233
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0803-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0809- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0804-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0809- ● ●

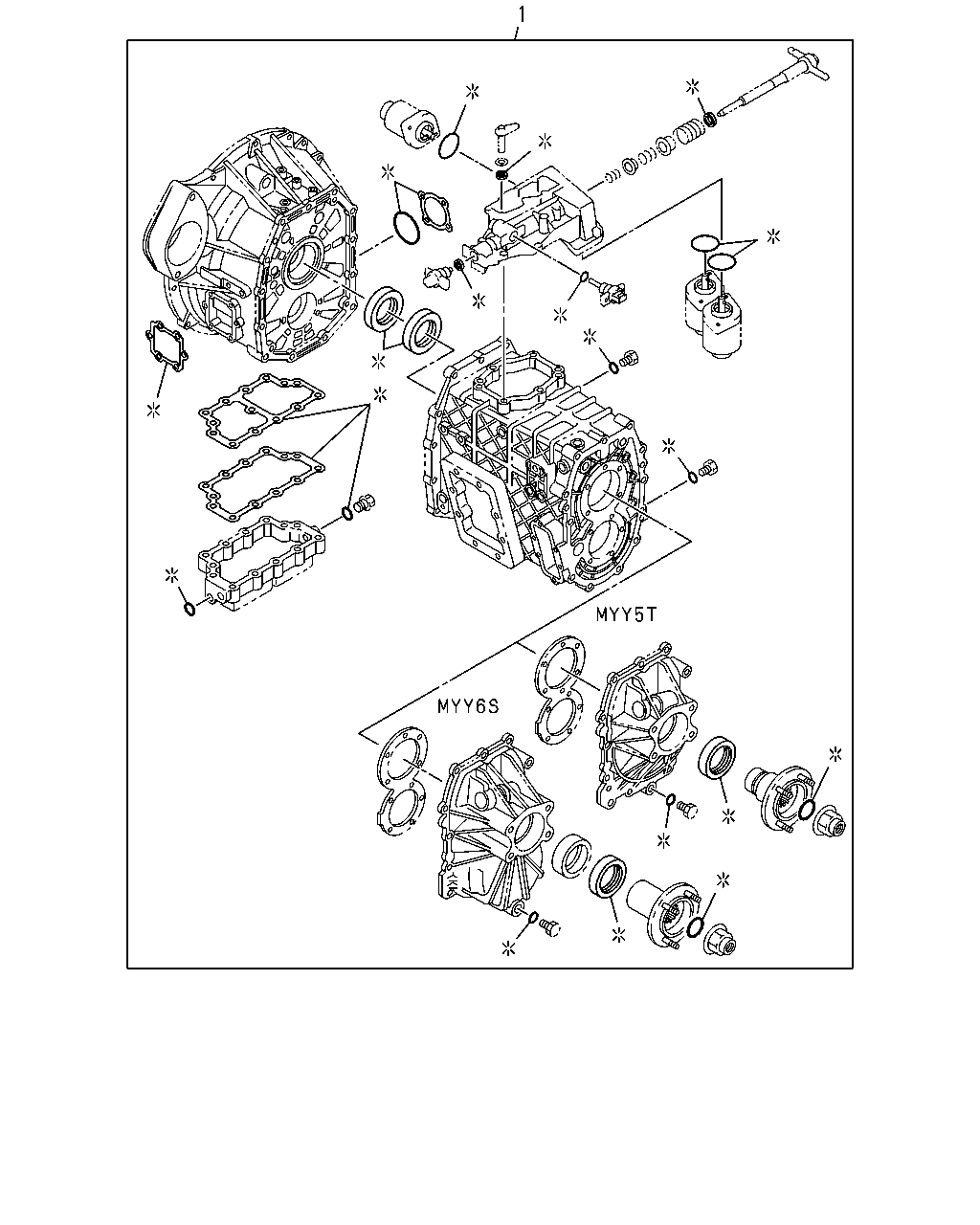

çizim 120237
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0803-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0809- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0804-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0809- ● ●

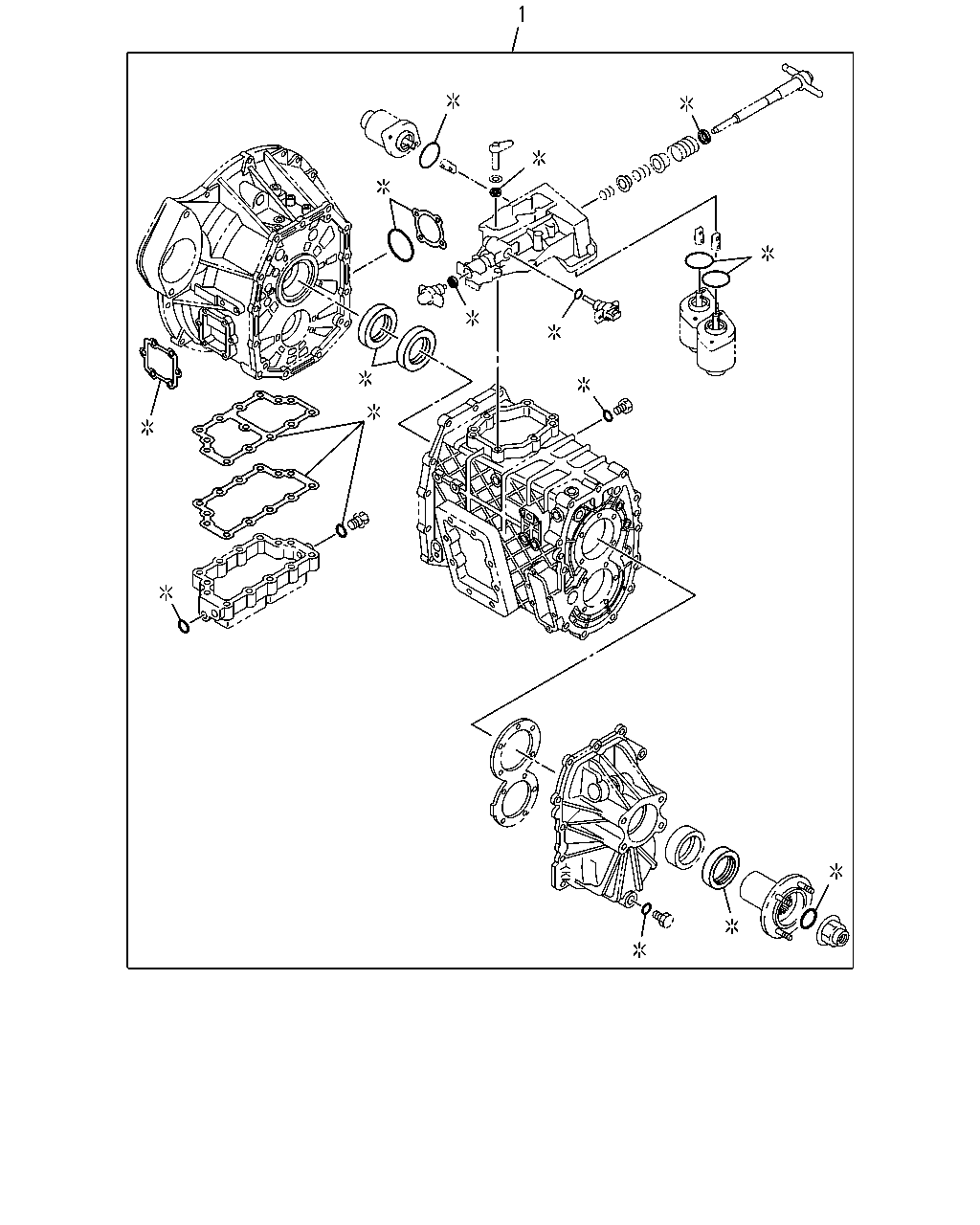

çizim 120241
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0803-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-126-1 01 1 0809- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0803-0803 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0804- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0804-0808 ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
