Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#5457) — 191 parça

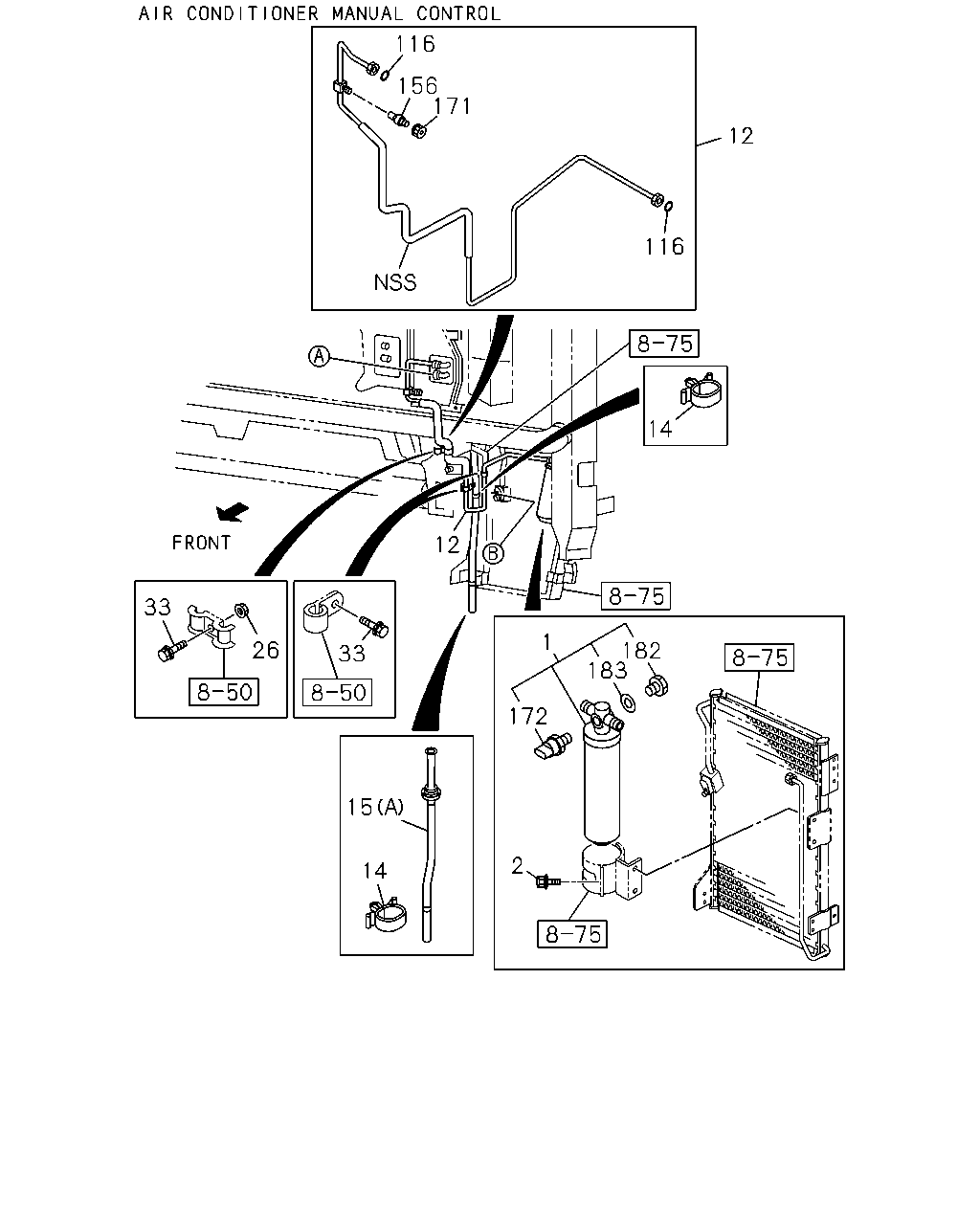

189 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-903-3	01	1	9611-9702
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-411-0	01	1	9703-9904
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	9905-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83566-904-2	01	1	9601-9702
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	9703-
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	9-09575-397-0	01	1	9602-9610
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9611-

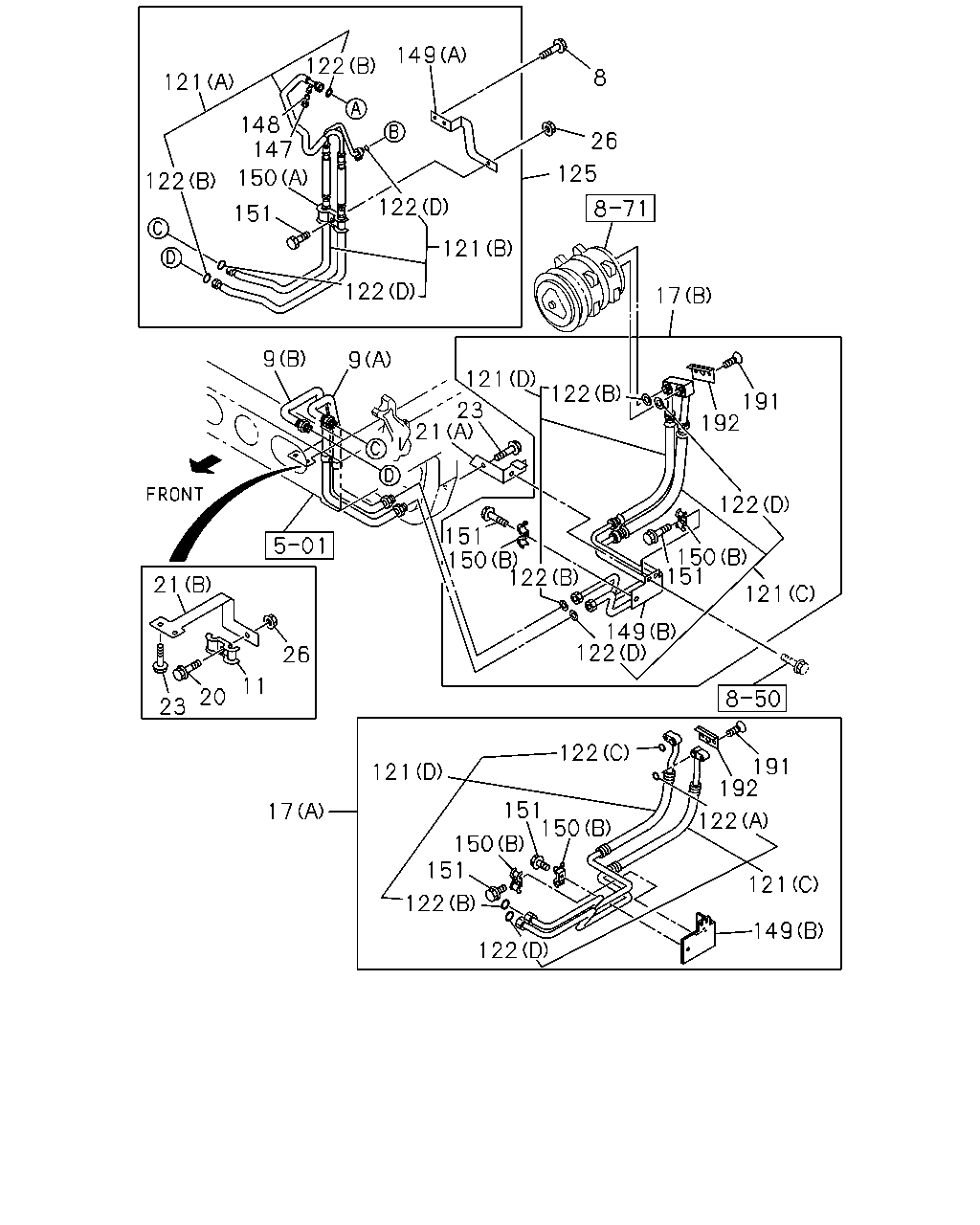

149 122 8 121 148 147 26 125 150 122 122 151 121 122 17 9 9 121 23 21 122 191 192 122 151 150 122 150 151 21 121 149 122 26 11 20 23 122 191 192 121 151 150 17 122 150 151 121 122 149 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9611-9801
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9904
8	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9904
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0104-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83567-589-0	01	1	9611-9701
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83567-455-1	01	1	9702-9711
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-486-0	01	1	9712-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-552-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83567-590-0	01	1	9611-9701
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83567-456-1	01	1	9702-9711
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-487-0	01	1	9712-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-556-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A)	1-83572-493-0	01	1	9802-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A)	1-83572-553-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B)	1-83572-494-0	01	1	9802-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B)	1-83572-557-0	01	1	9905-
11	CLIP; COOLER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9611-9801
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9802-9904
11	CLIP; COOLER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9802-9904
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-280-0	01	1	9611-9611
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-198-1	01	1	9612-9904
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-546-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-249-0	01	1	9802-9904
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (C)	1-83572-549-0	01	1	9905-9907
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (C)	1-83572-646-1	01	1	9908-
20	BOLT; COOLER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9611-9904
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M10X45 FLANGE	0-28081-045-0	01	1	9905-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83571-777-1	01	1	9611-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83573-018-0	01	1	9611-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9611-9705
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9706-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9611-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9802-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9802-9908
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-414-0	01	1	9611-9611
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-010-2	01	1	9612-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-415-0	01	1	9611-9611
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-011-2	01	1	9612-9904
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-120-0	01	1	9802-9904
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-302-0	01	1	9802-9904
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-384-0	01	1	9611-9611
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-122-0	01	1	9612-9904
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-385-0	01	1	9611-9611
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-199-0	01	1	9612-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	02	1	9611-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-94481-717-0	02	1	9611-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-
122	GASKET 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	01	1	9802-9904
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-514-0	01	1	9611-9611
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-515-0	01	1	9611-9611
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9612-9801
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9802-9904
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-94481-717-0	01	1	9612-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-240-0	01	1	9611-9611
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-163-1	01	1	9612-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-543-1	01	1	9905-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9611-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-043-0	01	1	9611-9611
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82699-593-1	01	1	9612-9904
149	BRACKET; COOLER HOSE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-901-1	01	1	9802-9904
149	BRACKET; COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-030-0	01	1	9611-9611
149	BRACKET; COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-902-0	01	1	9612-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-251-0	01	1	9611-9611
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9612-9904
150	CLIP; HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-251-0	02	1	9611-9611
150	CLIP; HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-157-0	02	1	9612-9801
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-157-0	02	1	9802-9904
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	01	1	9611-9611
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9612-9904
151	BOLT; CLIP FIX,COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9611-9801
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9802-9904
191	SCREW; CONNECTOR,COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING	9-07076-410-0	02	1	9611-9904
192	PLATE; COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-027-0	01	1	9611-9904

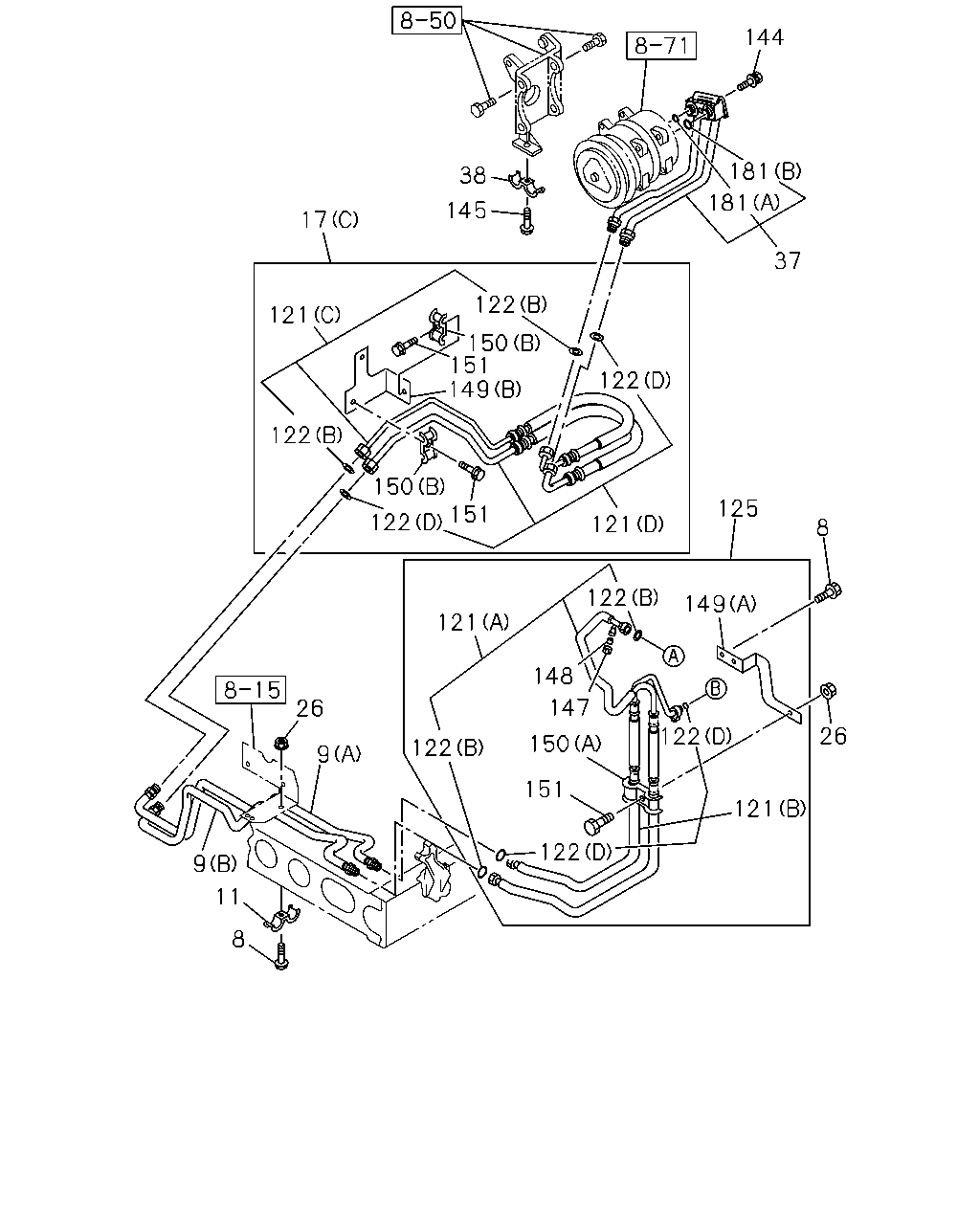

144 181 38 181 145 17 37 122 121 150 151 149 122 122 150 151 122 125 121 8 122 149 121 148 147 26 122 26 150 122 9 151 121 122 9 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9611-9801
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9904
8	BOLT; CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9904
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0104-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83567-589-0	01	1	9611-9701
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83567-455-1	01	1	9702-9711
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-486-0	01	1	9712-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-552-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83567-590-0	01	1	9611-9701
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83567-456-1	01	1	9702-9711
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-487-0	01	1	9712-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-556-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A)	1-83572-493-0	01	1	9802-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A)	1-83572-553-0	01	1	9905-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B)	1-83572-494-0	01	1	9802-9904
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B)	1-83572-557-0	01	1	9905-
11	CLIP; COOLER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9611-9801
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9802-9904
11	CLIP; COOLER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9802-9904
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A)	1-83572-280-0	01	1	9611-9611
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-198-1	01	1	9612-9904
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B)	1-83572-546-1	01	1	9905-
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-249-0	01	1	9802-9904
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (C)	1-83572-549-0	01	1	9905-9907
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (C)	1-83572-646-1	01	1	9908-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9802-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9802-9908
37	CONNECTOR; CMPR TO FLEX HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-077-0	01	1	9611-9904
37	CONNECTOR; CMPR TO FLEX HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-173-0	01	1	9905-
38	CLIP; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	9611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-414-0	01	1	9611-9611
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-010-2	01	1	9612-9904
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-415-0	01	1	9611-9611
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-011-2	01	1	9612-9904
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-120-0	01	1	9802-9904
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-302-0	01	1	9802-9904
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-384-0	01	1	9611-9611
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-122-0	01	1	9612-9904
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-385-0	01	1	9611-9611
121	HOSE; COOLER 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-199-0	01	1	9612-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	02	1	9611-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-94481-717-0	02	1	9611-9904
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3	8-97161-778-0	02	1	9905-
122	GASKET 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	01	1	9802-9904
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-514-0	01	1	9611-9611
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-515-0	01	1	9611-9611
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9612-9801
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9802-9904
122	GASKET 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-94481-717-0	01	1	9612-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-240-0	01	1	9611-9611
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-163-1	01	1	9612-9904
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-543-1	01	1	9905-
144	BOLT; CONN TO CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9611-
145	BOLT; CLIP,CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9611-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-043-0	01	1	9611-9611
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82699-593-1	01	1	9612-9904
149	BRACKET; COOLER HOSE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-901-1	01	1	9802-9904
149	BRACKET; COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-030-0	01	1	9611-9611
149	BRACKET; COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-902-0	01	1	9612-9904
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-251-0	01	1	9611-9611
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9612-9904
150	CLIP; HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-251-0	02	1	9611-9611
150	CLIP; HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-157-0	02	1	9612-9801
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-157-0	02	1	9802-9904
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	01	1	9611-9611
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9612-9904
151	BOLT; CLIP FIX,COOLER HOSE 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9611-9801
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9802-9904
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-514-0	01	1	9611-9904
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9905-
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-515-0	01	1	9611-9904
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	01	1	9905-

116 156 171 12 116 14 12 33 1 26 182 183 33 172 15 2 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-073-0	01	1	9611-9904
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-085-0	01	1	9905-
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9611-9904
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-579-0	01	1	9611-9904
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-668-0	01	1	9905-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9611-9904
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-903-3	01	1	9611-9702
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-411-0	01	1	9703-9904
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	9905-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83566-904-2	01	1	9601-9702
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	9703-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP 6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9611-9801
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9802-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9802-9908
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9611-9904
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9611-9904
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9905-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9611-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9611-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-218-0	01	1	9611-
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9611-9904
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9611-9904

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
