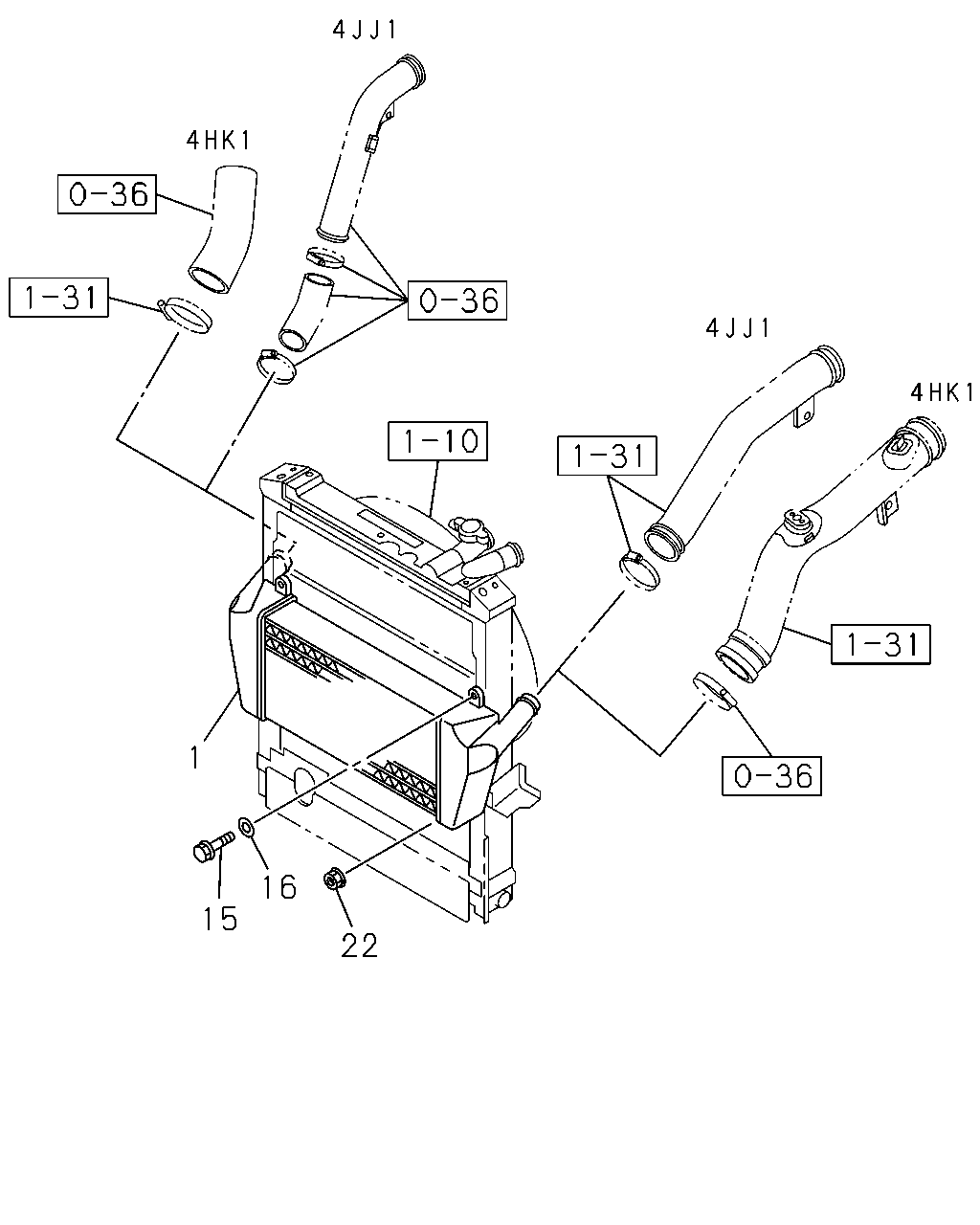

1-35 — CHARGE AIR COOLER (#54568) — 18 parça

1 16 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ)	8-98006-479-1	01	1	0803-0803	●
1	03.374 COOLER; CHARGE AIR 4HK1-TCS ENG(RJS)	8-98006-479-1	01	1	0803-0803		●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-479-1	01	1	0804-	●	●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU)	8-97387-033-0	01	1	0804-0808	●		●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU)	8-97387-033-0	01	1	0809-	●		●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCS ENG(LFB)	8-97387-033-0	01	1	0809-				●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0803-0803	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCS ENG(RJS) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0803-0803		●
15	03.374 BOLT; CHARGE AIR COOLER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0804-0808	●	●	●
15	03.374 BOLT; CHARGE AIR COOLER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0809-	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0803-0803	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0803-0803		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0804-0808	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0809-	●	●	●	●
22	03.374 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
22	03.374 NUT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
22	03.374 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0808	●	●	●
22	03.374 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0809-	●	●	●	●
