◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#5456) — 83 parça

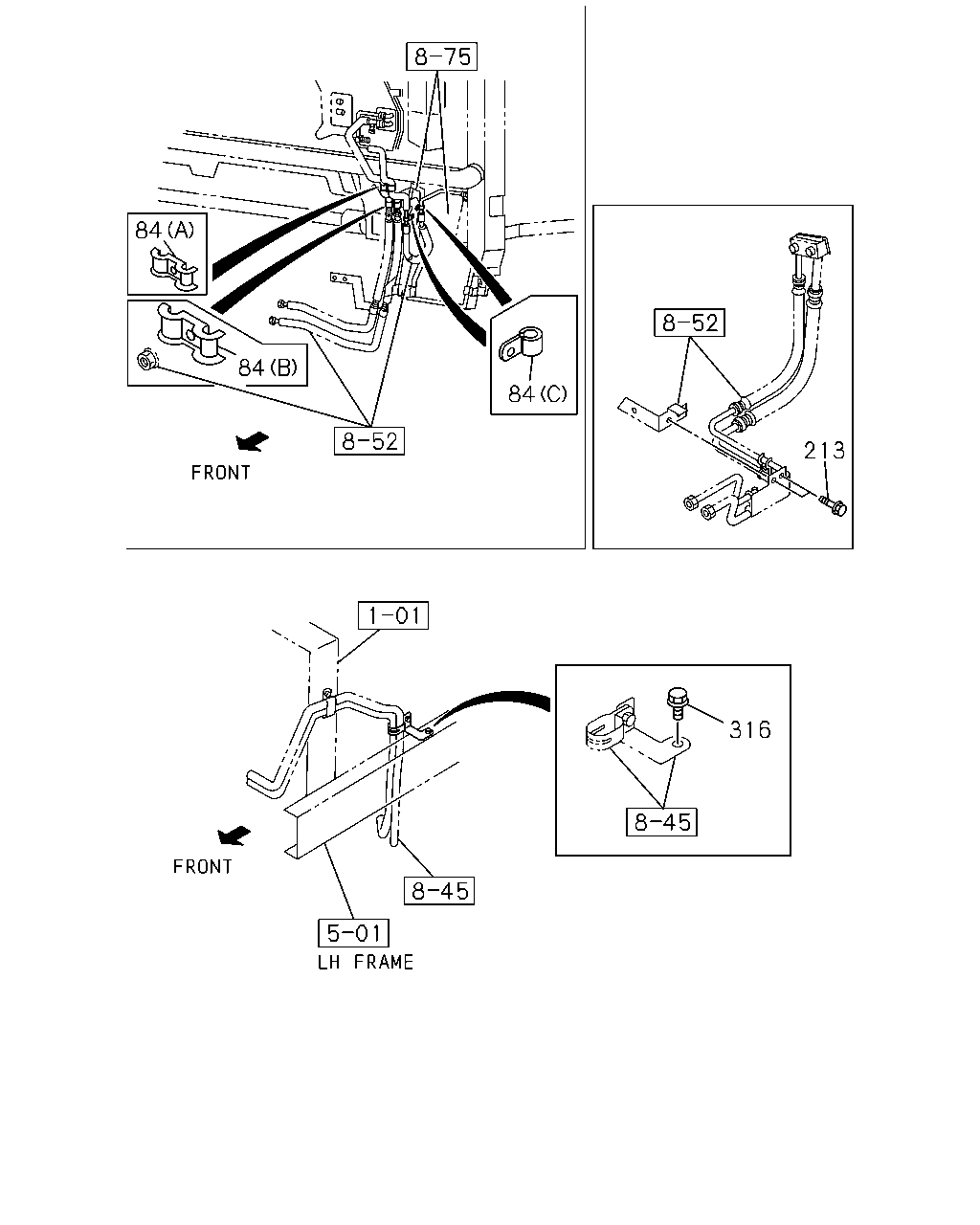

çizim 6791
84 84 84 213 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9611-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 9611-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 9611-
213 BOLT; FLEX HOSE TO CMPR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 01 1 9802-9904
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> M8X16 FLANGE 		0-28080-816-0 01 1 9905-
213 BOLT; FLEX HOSE TO CMPR
6WA1 TC-C(55L),6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9611-9904
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9905-
316 BOLT; BRKT FIX
6WA1 TC-S(56L) HEATER & DEFROSTER(C41) M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606
316 BOLT; BRKT FIX
6WA1 TC-S(56L) HEATER & DEFROSTER(C41) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9610
316 BOLT; BRKT FIX
L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 01 1 9611-

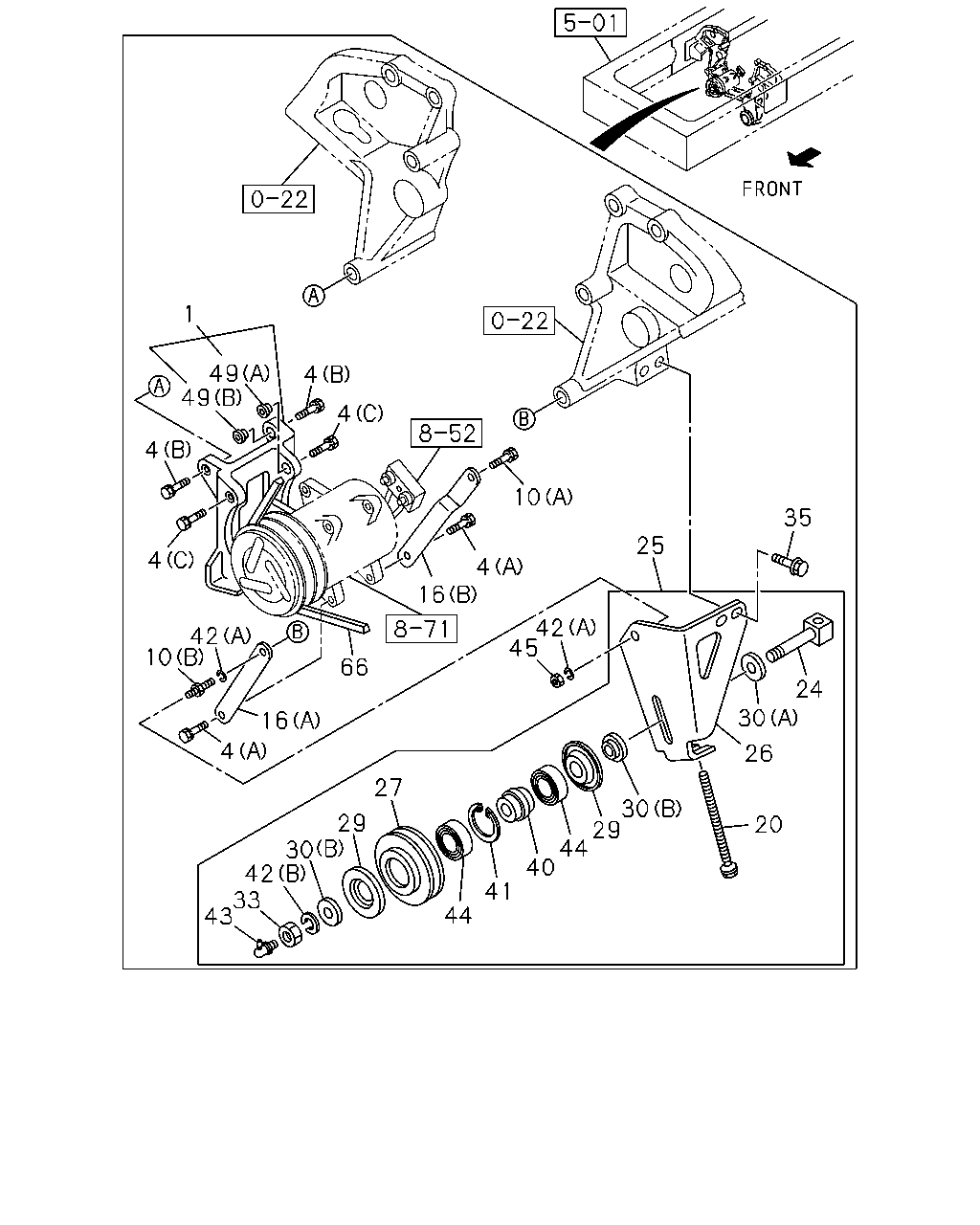

çizim 6792
1 49 49 4 4 4 10 35 25 4 4 16 42 45 42 10 66 24 30 16 4 26 27 30 29 44 40 29 42 33 43 20 41 44 30
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 9611-
1 BRACKET; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-842-0 01 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE 		0-28081-020-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE 		0-28081-240-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER 		9-01911-030-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER 		9-01911-040-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130 		9-09804-177-2 01 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130 		9-09804-194-1 02 1 9611-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 W/LK WASHER 		0-50041-225-0 01 1 9611-9702
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28681-225-0 01 1 9703-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60 		1-09029-055-3 01 1 9611-
10 BOLT; ADJ PLATE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 9611-
10 BOLT; ADJ PLATE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 9611-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 9611-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 9611-
16 PLATE; ADJ,CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-13674-210-1 01 1 9611-
20 BOLT; ADJ PLATE TO CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M10X135 		1-09009-113-1 01 1 9611-
24 PIECE; SLIDING
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-2 01 1 9611-
24 PIECE; SLIDING
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 9611-
25 PULLEY ASM; IDLER,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13660-298-0 01 1 9701-
25 PULLEY ASM; IDLER,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13660-284-0 01 1 9611-9612
26 BRACKET; IDLE PULLEY,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13668-028-0 01 1 9611-
27 PULLEY; IDLE,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13663-057-0 01 1 9611-
29 COVER; DUST,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-175-0 02 1 9701-
29 COVER; DUST,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-126-0 02 1 9611-9612
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-040-0 02 1 9701-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13666-021-1 01 1 9611-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-022-0 02 1 9611-9612
33 NUT; IDLER PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M18 		9-99111-518-0 01 1 9611-
35 BOLT; IDLER PULLEY TO C/BL
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE 		0-28091-235-0 02 1 9611-
40 BUSHING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-128-0 01 1 9611-
41 RING; SNAP,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2 		9-09180-152-0 01 1 9611-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 		9-09150-512-0 02 1 9611-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 		9-09150-818-0 01 1 9611-
43 NIPPLE; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW 		9-09031-210-0 01 1 9611-
44 BEARING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-09800-217-0 02 1 9611-
45 NUT; BOLT,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12 		9-99110-412-0 01 1 9611-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-601-0 02 1 9611-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-602-0 01 1 9611-
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) L=1335 		1-13671-404-0 01 1 9611-
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1130 		1-13671-208-0 01 1 9611-9611
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 9612-

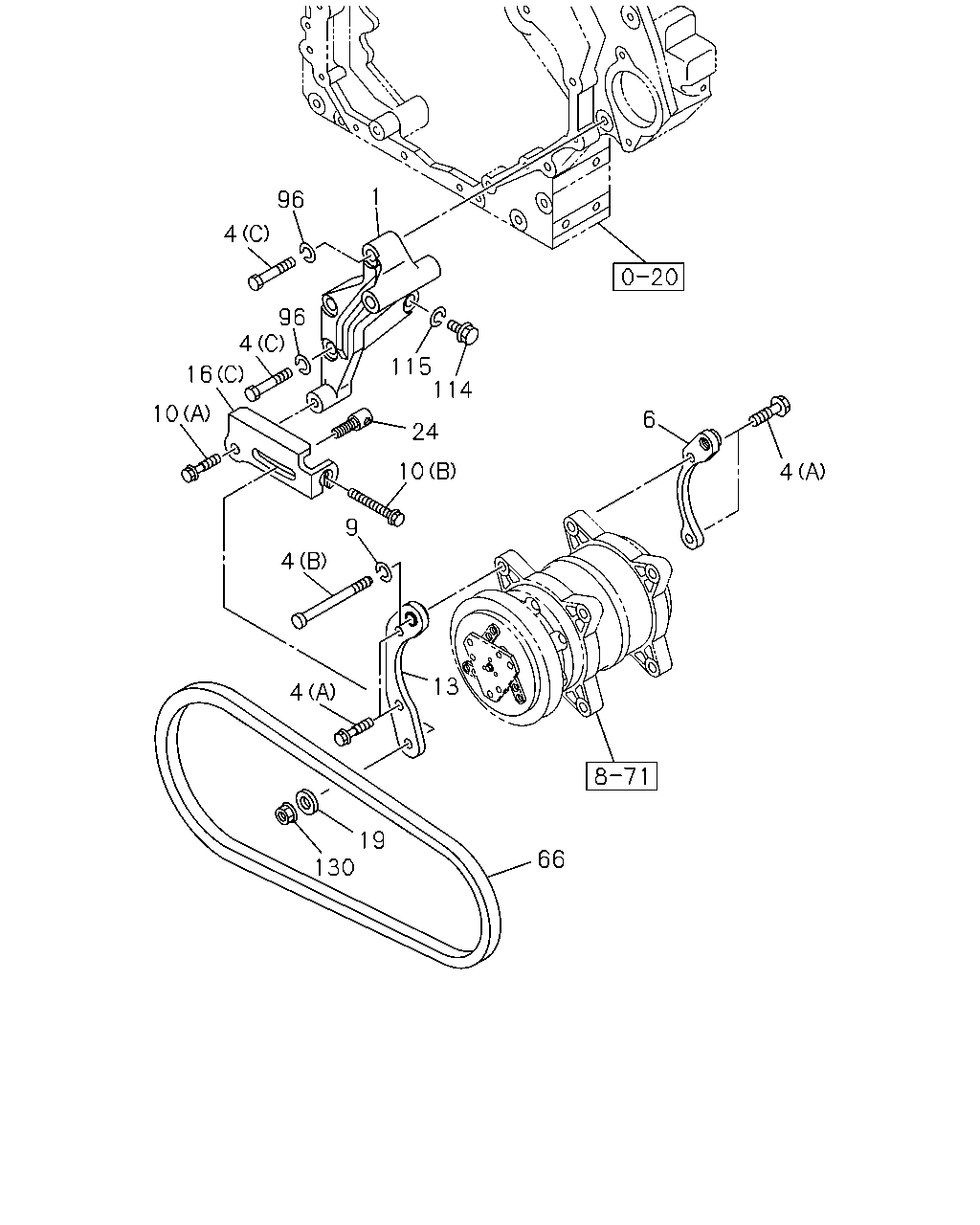

çizim 42196
1 96 4 96 4 115 114 16 10 6 24 10 4 9 4 13 4 19 130 66
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 9611-
1 BRACKET; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-842-0 01 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE 		0-28081-020-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE 		0-28081-240-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER 		9-01911-030-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER 		9-01911-040-0 02 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130 		9-09804-177-2 01 1 9611-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130 		9-09804-194-1 02 1 9611-
6 BRACKET; CMPR,RR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-707-0 01 1 9611-
9 WASHER; LK,A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 		9-09150-512-0 01 1 9611-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 W/LK WASHER 		0-50041-225-0 01 1 9611-9702
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28681-225-0 01 1 9703-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60 		1-09029-055-3 01 1 9611-
10 BOLT; ADJ PLATE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 9611-
10 BOLT; ADJ PLATE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 9611-
13 BRACKET; CMPR,FRT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-843-1 01 1 9611-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 9611-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 9611-
16 PLATE; ADJ,CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-13674-210-1 01 1 9611-
19 WASHER; PL,ADJ PLATE TO CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 9611-
24 PIECE; SLIDING
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-2 01 1 9611-
24 PIECE; SLIDING
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 9611-
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) L=1335 		1-13671-404-0 01 1 9611-
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1130 		1-13671-208-0 01 1 9611-9611
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 9612-
96 WASHER; LK
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 02 1 9611-
114 BOLT; BRKT TO GEAR CASE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M14X35 		0-23801-435-0 01 1 9611-
115 WASHER; LK,BRKT TO GEAR CASE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 01 1 9611-
130 NUT; ADJ BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 9611-
