0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#54558) — 364 parça

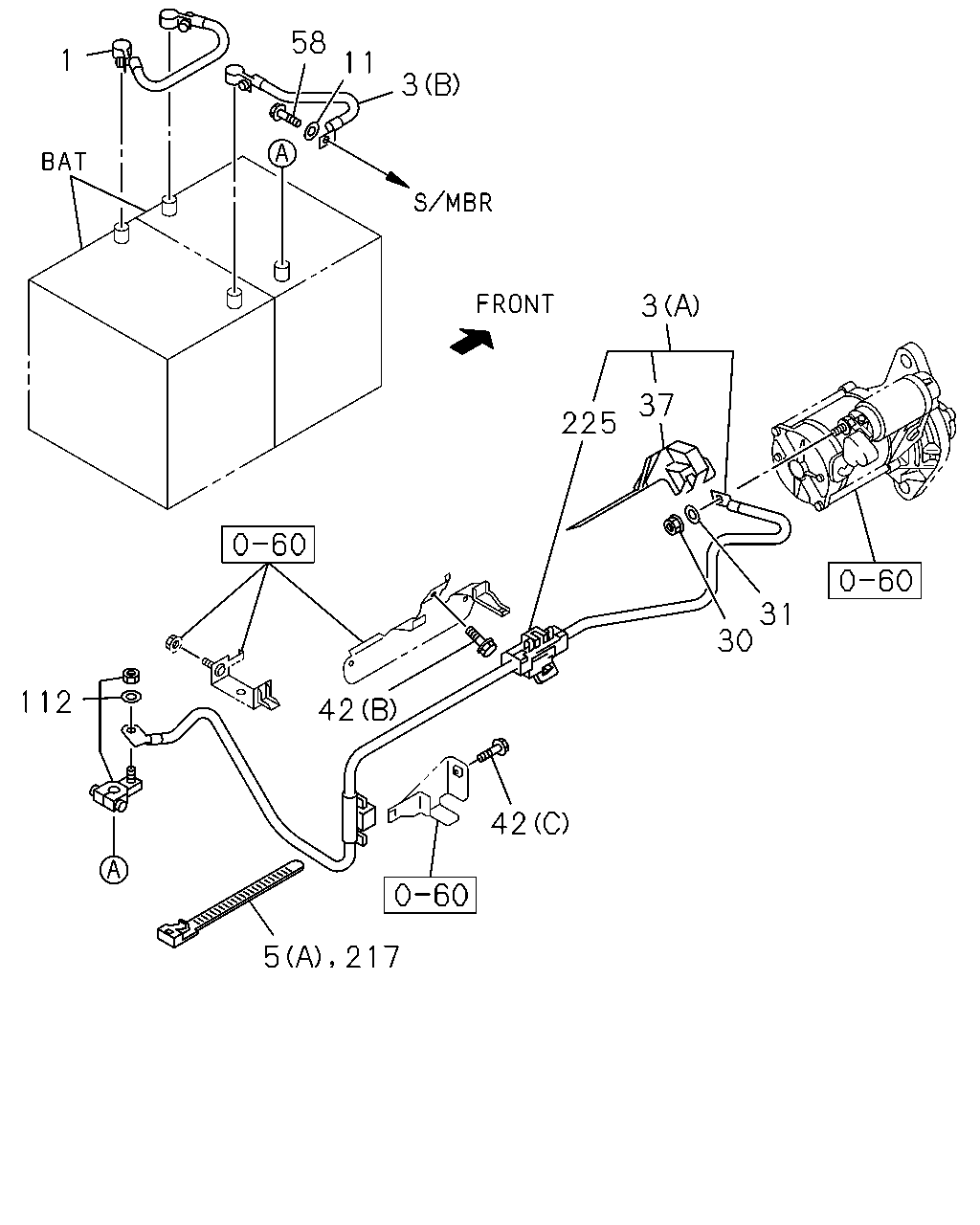

çizim 120159
58 1 11 3 3 37 225 31 30 112 42 42 5 217
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0803-0803 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0804-0808 ● ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0809- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (C) 		8-98137-187-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (C) 		8-98294-738-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-1 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98077-140-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-872-1 01 1 0805-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-743-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 0805-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-742-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98119-234-2 01 1 0805- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 0805- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-0 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 0805-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 0809-1106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) (B) L=200 		8-98056-337-1 01 1 0809-1106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 1107- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) (B) L=200 		8-98056-337-1 01 1 1107- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98070-230-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98070-230-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0804-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0809-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0804-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0809-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-0 01 1 0803-0804 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 0805-1106 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0805-1106 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 1107-1203 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98201-105-0 01 1 1204- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0809-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 2700MM(27W) (A) 		8-98046-378-4 01 1 0809-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98293-917-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 2700MM(27W) (A) 		8-98293-917-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-729-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) (A) 		8-98070-228-2 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140 		5-09707-031-1 06 1 0805-0904 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS VAR.2(6GQ) (A) L=250 		5-09707-030-1 07 1 0905- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) ID=19 L=58 		1-09700-733-1 01 1 0805- ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS VAR.2(6GQ) 		8-98099-007-0 01 1 0905- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0803-0803 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804-0808 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0809- ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0803-0803 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804-0808 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0809- ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0803-0803 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804-0808 ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0809-0909 ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NQR(NP***S) M/T MZZ6U(RSF),M/T MYY6S(RST) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-98042-507-0 01 1 0910- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NNR(NP***E) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 0910- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0804 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0805- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0804-0808 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0809- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0808 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0809-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0809-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1106 ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1107- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803-0803 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-0808 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0809-0811 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR(NP***N) EXC. MINI BUS CHASSIS VAR.2(6GQ) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
NQR(NP***S) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803-0803 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0804-0808 ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0809- ● ● ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1101- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0803-0803 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-0808 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0809-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ●

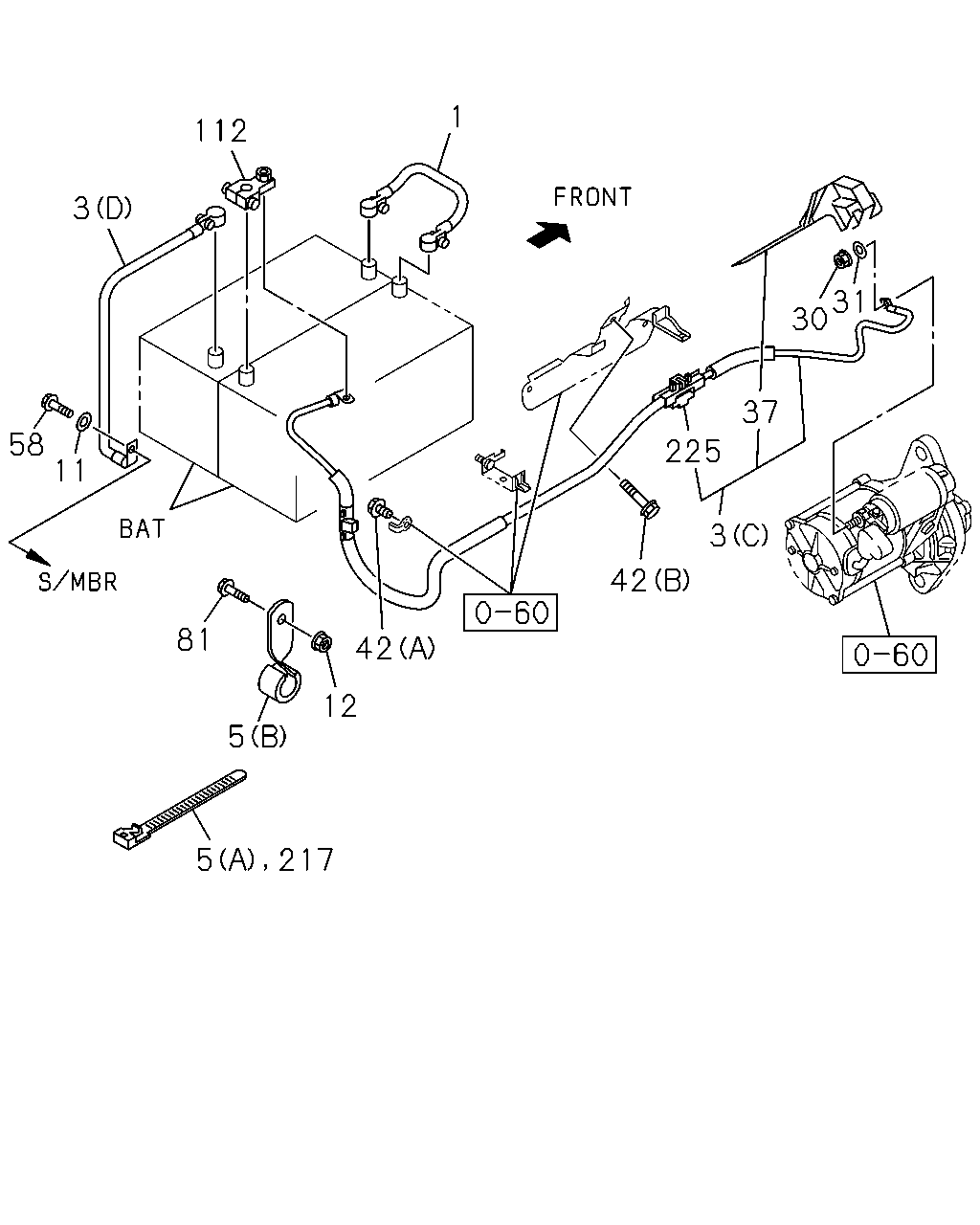

çizim 120161
1 112 3 31 30 37 58 11 225 3 42 81 42 12 5 5 217
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0803-0803 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0804-0808 ● ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0809- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (C) 		8-98137-187-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (C) 		8-98294-738-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-1 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98077-140-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MZZ6U(RSF) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-872-1 01 1 0805-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-743-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 0805-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-742-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98119-234-2 01 1 0805- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 0805- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-0 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0805-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 0805-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0809-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 0809-1106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) (B) L=200 		8-98056-337-1 01 1 0809-1106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1107- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR(NP***N) (B) L=200 		8-98056-337-1 01 1 1107- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) (B) L=200 		8-98056-337-1 01 1 1107- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ),POWER TAKE OFF CONTROL ELEC TRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0804-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98070-230-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1106 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98070-230-2 01 1 1107-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0803-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0804-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0809-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0804-0808 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0809-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-0 01 1 0803-0804 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 0805-1106 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR(NP***S) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0805-1106 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 1107-1203 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98201-105-0 01 1 1204- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0809-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 2700MM(27W) (A) 		8-98046-378-4 01 1 0809-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98293-917-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 2700MM(27W) (A) 		8-98293-917-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-729-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) (A) 		8-98070-228-2 01 1 0804-0808 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98070-228-2 01 1 0809-0909 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98070-228-2 01 1 0910-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR(NP***E) WHEEL BASE 3300MM(33W) (A) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140 		5-09707-031-1 06 1 0805-0904 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS VAR.2(6GQ) (A) L=250 		5-09707-030-1 07 1 0905- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) ID=19 L=58 		1-09700-733-1 01 1 0805- ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS VAR.2(6GQ) 		8-98099-007-0 01 1 0905- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0805-0811 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0812- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0803-0803 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804-0808 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0809- ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0803-0803 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804-0808 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0809- ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0803-0803 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804-0808 ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0809-0909 ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NQR(NP***S) M/T MZZ6U(RSF),M/T MYY6S(RST) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> 		8-98042-507-0 01 1 0910- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-98042-507-0 01 1 0910- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
NNR(NP***E) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 0910- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0804 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0805- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0804-0808 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0809- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0808 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0809-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0809-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1106 ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1107- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803-0803 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-0808 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0809-0811 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
NPR(NP***N) EXC. MINI BUS CHASSIS VAR.2(6GQ) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
NQR(NP***S) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
81 02.559 BOLT; BATTERY CABLE
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0805- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803-0803 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0804-0808 ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0809- ● ● ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1101- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0803-0803 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-0808 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0809-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
