Isuzu WW
▶
TRUCKS
▶
ELF
▶
51287 - ELF200/300(MEXICO)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

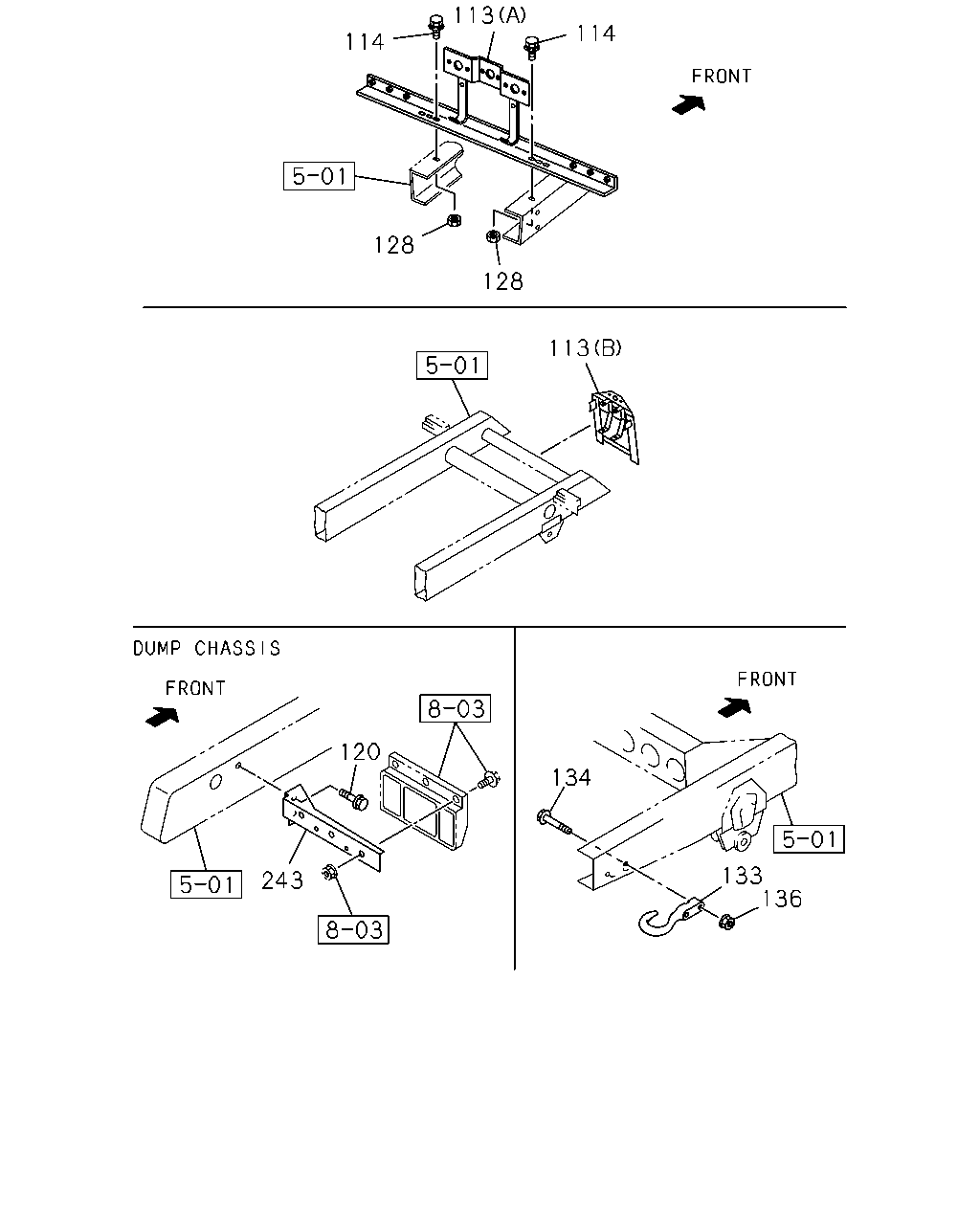

6-90 — REAR BUMPER
(#54550) — 27 parça
Tümü
A - NMR6SN
B - NMR6SE
128
128
114
113
114
134
133
136
243
120
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)
8-97033-248-2
01
1
1407-1407
●
113
BRACKET; LICENSE PLATE
(A)
8-98029-390-3
01
1
1012-1406
●
●
113
BRACKET; LICENSE PLATE
(A)
8-98029-390-3
01
1
1407-1407
●
113
BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) (A)
8-98029-390-3
01
1
1407-1407
●
113
BRACKET; LICENSE PLATE
(A)
8-98029-390-3
01
1
1408-
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X40 FLANGE
0-28650-840-0
02
1
1012-1406
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X40 FLANGE
0-28650-840-0
02
1
1407-1407
●
114
BOLT; BRKT,LICENSE PLATE
EXC. DUMP CHASSIS(V4D) M8X40 FLANGE
0-28650-840-0
02
1
1407-1407
●
114
BOLT; BRKT,LICENSE PLATE
M8X40 FLANGE
0-28650-840-0
02
1
1408-
●
●
120
BOLT
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> M8X25 FLANGE
0-28650-825-0
04
1
1407-1407
●
128
NUT; CROSS PLATE
M8 FLANGE
0-91180-108-0
02
1
1012-1406
●
●
128
NUT; CROSS PLATE
M8 FLANGE
0-91180-108-0
02
1
1407-1407
●
128
NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) M8 FLANGE
0-91180-108-0
02
1
1407-1407
●
128
NUT; CROSS PLATE
M8 FLANGE
0-91180-108-0
02
1
1408-
●
●
133
HOOK
8-94183-262-0
01
1
1012-1301
●
133
HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T)
8-94183-262-0
01
1
1012-1301
●
133
HOOK
REAR WIDE TREAD(V4T)
8-97387-665-0
01
1
1012-1301
●
134
BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60
0-10861-460-0
02
1
1012-1301
●
134
BOLT; HOOK
M10X45 FLANGE
0-28051-045-0
02
1
1012-1301
●
134
BOLT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10X45 FLANGE
0-28051-045-0
02
1
1012-1301
●
134
BOLT; HOOK
REAR WIDE TREAD(V4T) M14X50
0-10856-450-0
02
1
1012-1012
●
134
BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> M14X50
0-10856-450-0
02
1
1012-1301
●
136
NUT; HOOK
M10
0-91110-510-0
02
1
1012-1301
●
136
NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10
0-91110-510-0
02
1
1012-1301
●
136
NUT; HOOK
REAR WIDE TREAD(V4T) M14 FLANGE
0-91180-214-0
02
1
1012-1301
●
243
BRACKET
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>
8-98030-084-0
01
1
1407-1407
●
243
BRACKET
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>
8-98030-085-0
01
1
1407-1407
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
