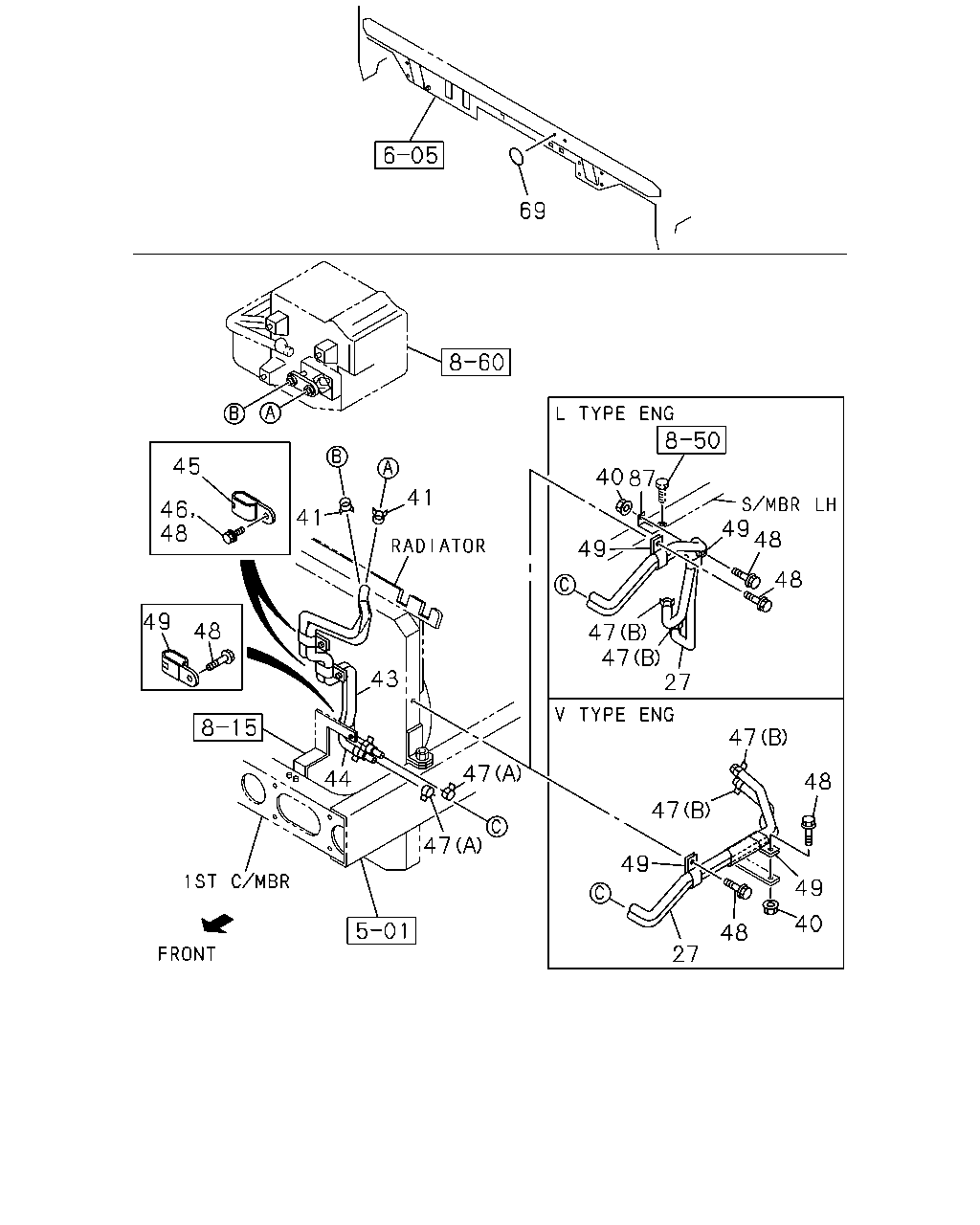

27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
10PE1S(60L)
HEATER & DEFROSTER(C41)
|
1-83565-598-1 |
01 |
1 |
9601-9610 |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
V TYPE ENG<91L>
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-598-1 |
01 |
1 |
9611- |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6WA1 TC-S(56L)
HEATER & DEFROSTER(C41)
|
1-83565-614-0 |
01 |
1 |
9601-9610 |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
L TYPE ENG<90L>
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-614-0 |
01 |
1 |
9611- |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9610 |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9611- |
| |
41 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=22
|
8-94382-401-0 |
02 |
1 |
9601-9610 |
| |
41 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
02 |
1 |
9611- |
| |
43 |
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41)
|
1-83565-570-2 |
01 |
1 |
9601-9610 |
| |
43 |
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-570-2 |
01 |
1 |
9611-9904 |
| |
43 |
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-570-3 |
01 |
1 |
9905- |
| |
44 |
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41)
|
1-83565-569-3 |
01 |
1 |
9601-9610 |
| |
44 |
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-569-3 |
01 |
1 |
9611-9904 |
| |
44 |
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-569-4 |
01 |
1 |
9905- |
| |
45 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41)
|
1-09701-238-0 |
02 |
1 |
9601-9610 |
| |
45 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-09701-238-0 |
02 |
1 |
9611- |
| |
46 |
SCREW; CLIP
HEATER & DEFROSTER(C41)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9601-9601 |
| |
46 |
SCREW; CLIP
HEATER & DEFROSTER(C41)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
9602-9610 |
| |
46 |
SCREW; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
9611-9901 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
(A)
|
1-09707-181-0 |
02 |
1 |
9601-9610 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
|
1-09707-181-0 |
02 |
1 |
9611- |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
(B)
ID=22
|
8-94382-401-0 |
02 |
1 |
9601-9610 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
ID=22
|
8-94382-401-0 |
02 |
1 |
9611- |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9601-9606 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9607-9610 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9611-9904 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9905- |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
02 |
1 |
9902-9904 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
02 |
1 |
9905- |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9601-9610 |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9611-9904 |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9905- |
| |
69 |
SEAL; RUBBER,HTR PIPE
HEATER VENTILATION AIR CONDITIONING DELETE(TFA)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
9601- |
| |
87 |
BRACKET; HTR HOSE CLIP
6WA1 TC-S(56L)
HEATER & DEFROSTER(C41)
|
1-83571-857-0 |
01 |
1 |
9601-9610 |
| |
87 |
BRACKET; HTR HOSE CLIP
L TYPE ENG<90L>
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-857-0 |
01 |
1 |
9611- |
