6-80 — BACK PANEL (#54547) — 17 parça

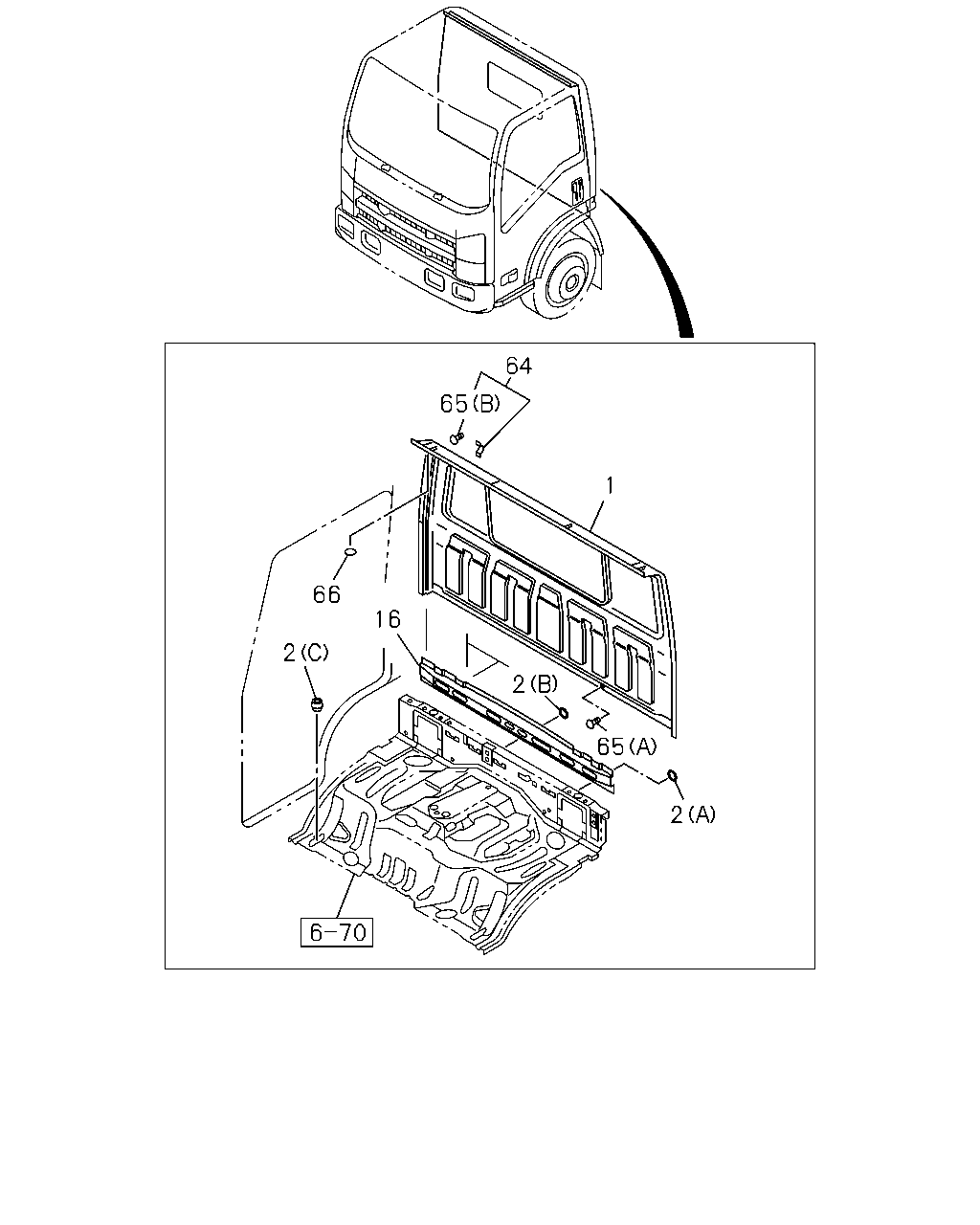

çizim 174781
64 65 1 65 2 2 16 2 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-303-4 01 1 1012- ● ●
1 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-300-3 01 1 1012- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK 		8-98031-126-0 09 1 1012- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 		8-97898-423-0 04 1 1012- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
16 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> 		8-98313-204-0 01 1 1505- ● ●
16 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 1012-1504 ● ●
16 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1505- ● ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1012- ● ●
65 STUD; BACK PANEL
DUMP CHASSIS(V4D) (A) M6X12 		8-98013-112-0 04 1 1407-1407 ●
65 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ●
66 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE (999) COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1012- ● ●
66 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE (999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012- ● ●
66 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1012- ● ●
66 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ● ●
