◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#54545) — 40 parça

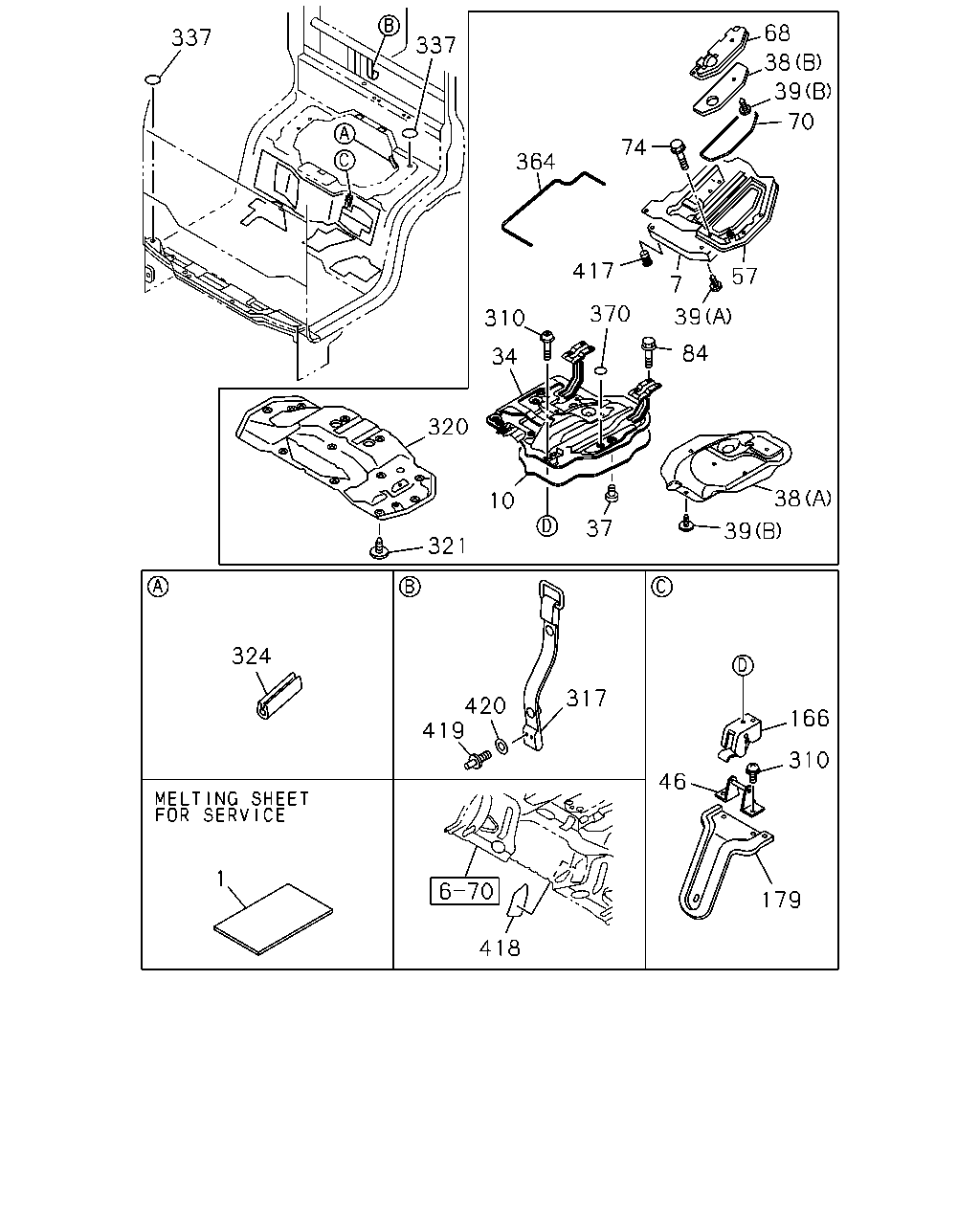

çizim 174782
68 337 337 38 39 70 74 364 417 57 7 370 39 310 84 34 320 38 10 37 39 321 324 317 420 419 166 310 46 1 179 418
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1012- ● ●
7 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-177-2 01 1 1012-1408 ● ●
7 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98250-675-0 01 1 1409- ● ●
10 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98029-377-0 01 1 1012- ● ●
34 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-745-1 01 1 1012- ● ●
37 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> OD=30 T=10 		5-74917-001-2 02 1 1012- ● ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 1012-1408 ● ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-234-0 01 1 1409- ● ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-187-3 01 1 1012-1408 ● ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98250-672-0 01 1 1409- ● ●
39 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1012- ● ●
39 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1012- ● ●
46 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1012- ● ●
57 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-746-2 01 1 1012- ● ●
68 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1012- ● ●
70 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1012- ● ●
74 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> M8X20 FLANGE 		0-28650-820-0 09 1 1012- ● ●
84 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> M8X20 FLANGE 		0-28650-820-0 04 1 1012- ● ●
166 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1012- ● ●
179 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1012- ● ●
310 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> M6X16 FLANGE 		0-28650-616-0 04 1 1012- ● ●
310 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> M6X16 		0-38050-616-0 05 1 1012- ● ●
317 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1012- ● ●
320 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98034-605-2 01 1 1012-1408 ● ●
320 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98250-678-0 01 1 1409-1503 ● ●
320 INSULATOR; FLOOR,FRT 8-98250-678-0 01 1 1504- ● ●
321 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> ID=6.2 L=11.4 		8-97808-623-0 14 1 1012- ● ●
324 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> L=140 		8-97892-742-0 01 1 1012- ● ●
337 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1012- ● ●
337 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1012- ● ●
337 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 07 1 1012- ● ●
337 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 1012- ● ●
364 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1012- ● ●
370 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> OD=25 BLACK 		1-76798-019-0 01 1 1012- ● ●
417 NUT; POP
INSPECTION ENGINE COVER<8GA> M6 POP NUT 		8-98013-752-0 01 1 1012- ● ●
417 NUT; POP
INSPECTION ENGINE COVER<8GA> M8 POP NUT 		8-98021-404-0 01 1 1012- ● ●
418 SEAL; PROTECTOR 8-98090-191-1 01 1 1012- ● ●
418 SEAL; PROTECTOR 8-98090-192-1 01 1 1012- ● ●
419 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1012- ● ●
420 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16 		0-91614-705-0 01 1 1012- ● ●
