◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#54543) — 37 parça

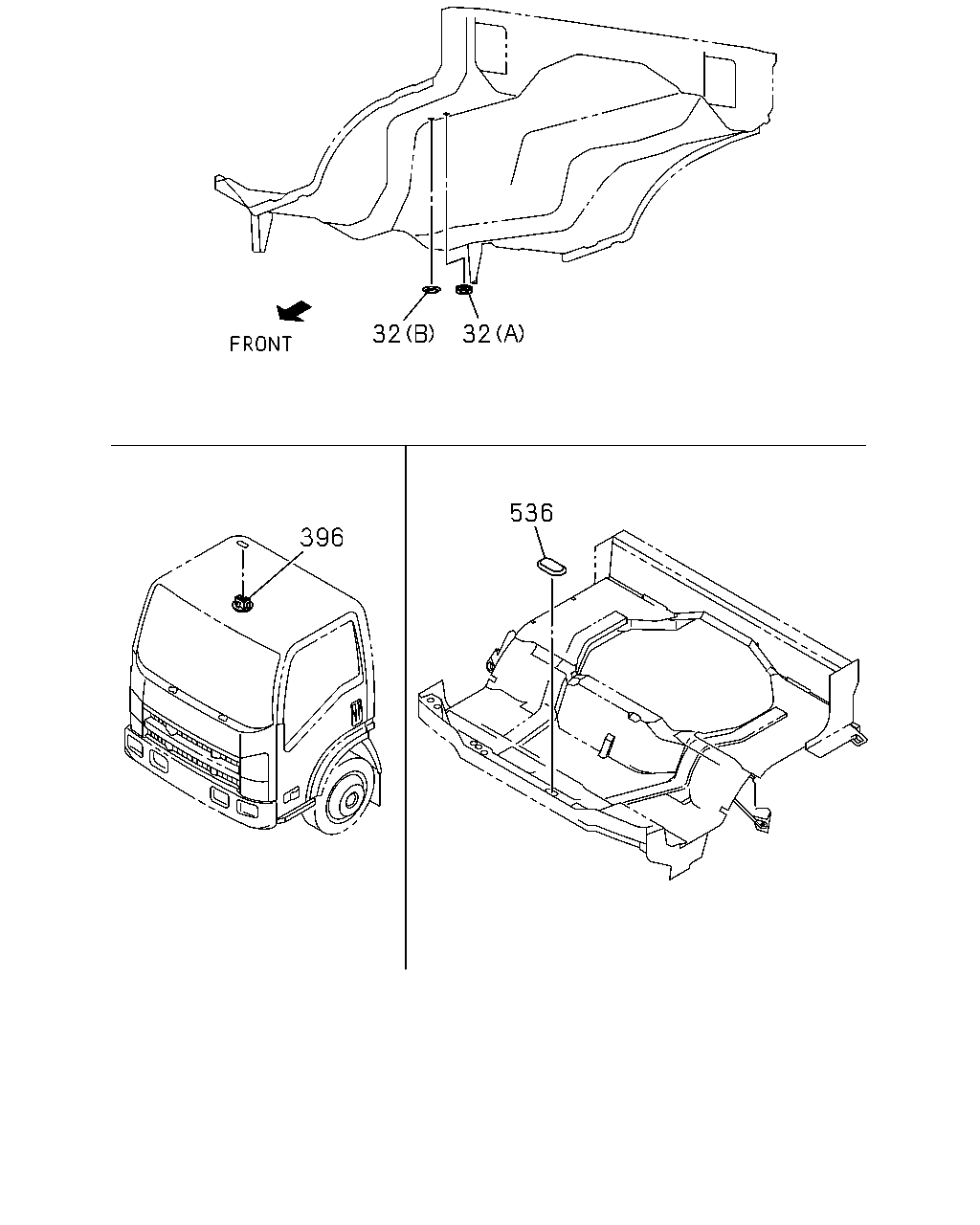

çizim 174764
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 1012- ● ●
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1012- ● ●
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 1012- ● ●

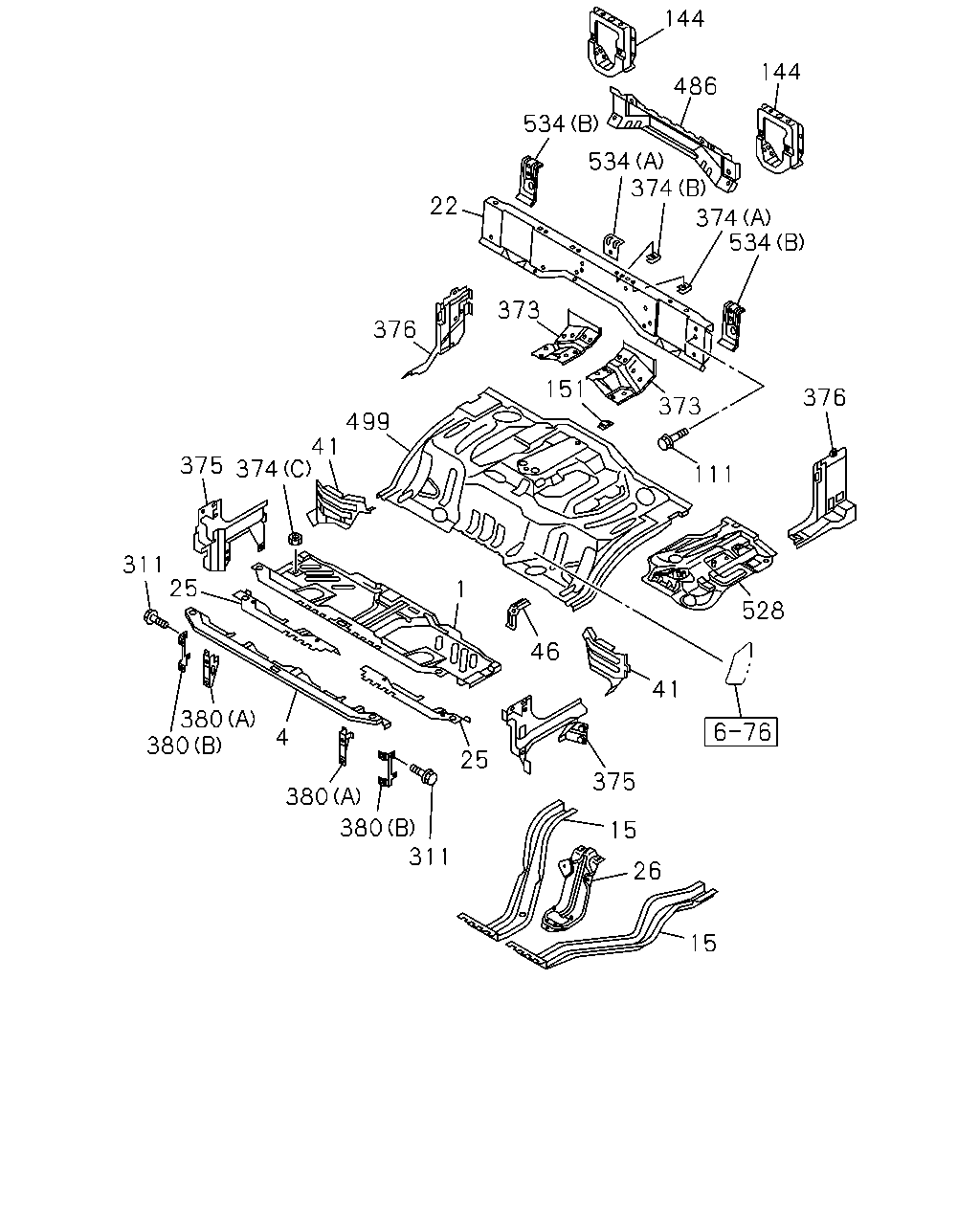

çizim 174783
144 144 486 534 534 374 22 374 534 373 376 151 376 373 499 41 374 375 111 311 25 1 528 46 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-434-1 01 1 1012- ● ●
4 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-108-0 01 1 1012- ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98061-277-1 01 1 1012- ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98061-278-1 01 1 1012- ● ●
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-446-2 01 1 1012- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97588-030-1 01 1 1012- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97588-031-1 01 1 1012- ● ●
26 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 1012- ● ●
41 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-935-2 01 1 1012- ● ●
41 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-936-2 01 1 1012- ● ●
46 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1012- ● ●
111 BOLT; PANEL
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
144 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1012- ● ●
151 BRACKET; SEAT CUSHION STOPPER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-833-0 01 1 1012- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1012- ● ●
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-447-0 01 1 1012- ● ●
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-448-0 01 1 1012- ● ●
374 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 1012- ● ●
374 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1012- ● ●
374 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1012- ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 1012- ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 1012- ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 1012- ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 1012- ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 1012- ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 1012- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1012- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1012- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-610-2 01 1 1012- ● ●
499 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-436-0 01 1 1012- ● ●
528 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-437-2 01 1 1012- ● ●
534 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98007-678-2 02 1 1012- ● ●
534 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
