6-30 — FRONT DOOR AND HINGE (#54535) — 21 parça

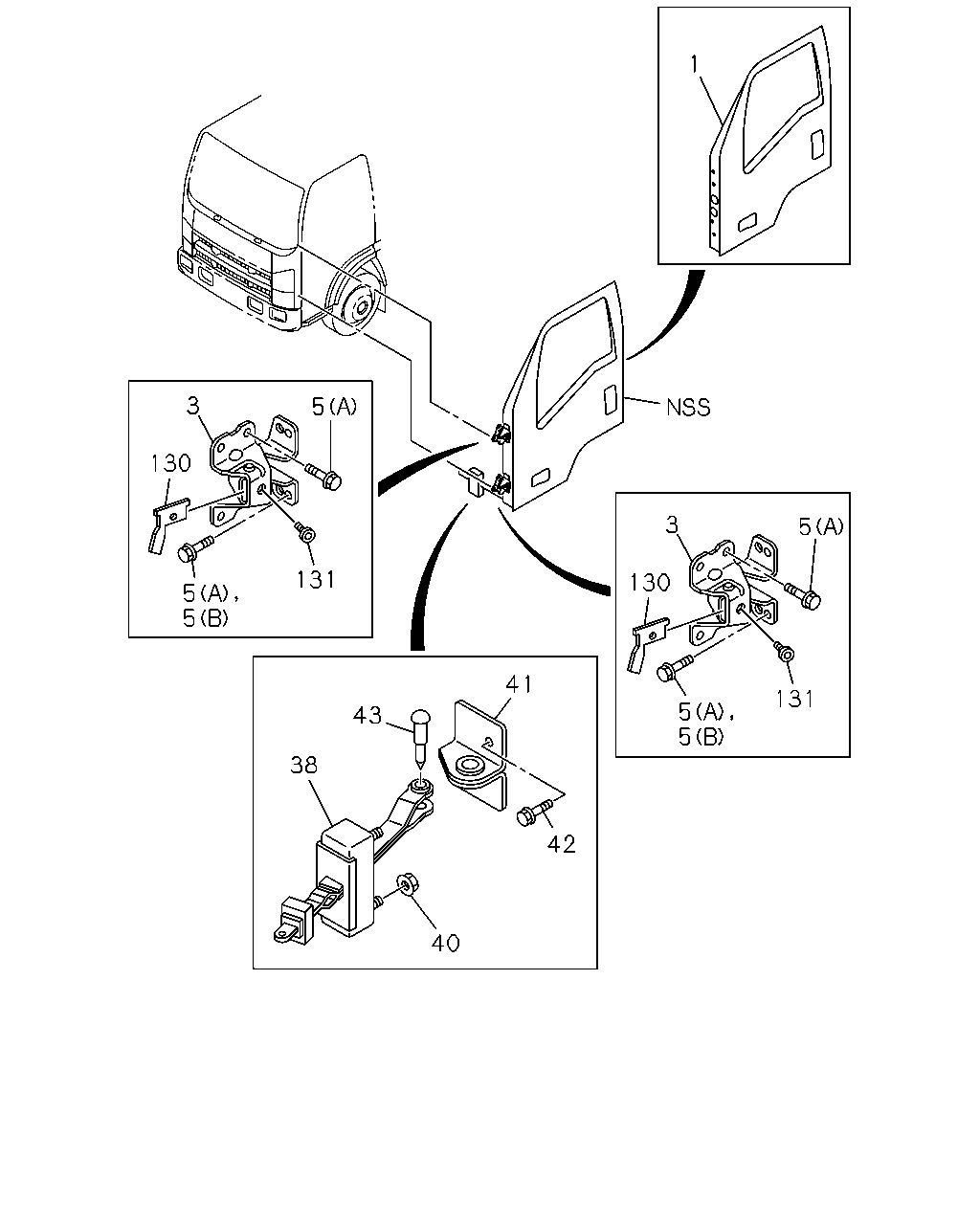

çizim 174746
1 3 5 130 3 5 131 130 5 5 41 131 5 5 43 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 8-98025-690-4 01 1 1012-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-220-0 01 1 1101-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-593-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98025-691-4 01 1 1012-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-228-0 01 1 1101-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-594-0 01 1 1412- ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 1012-1104 ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ●
5 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 1012- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1012- ● ●
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1012- ● ●
38 CHECKER ASM; DOOR 8-98029-417-5 02 1 1012-1203 ● ●
38 CHECKER ASM; DOOR 8-98208-189-1 02 1 1204-1508 ● ●
38 CHECKER ASM; DOOR 8-98296-601-0 02 1 1509- ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 1012-1012 ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1012- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1012- ● ●
43 PIN 8-98037-152-2 02 1 1012- ● ●
130 STOPPER; HINGE 8-98038-299-1 04 1 1012- ● ●
131 BOLT; DOOR STOPPER
M10X11 		8-98039-593-1 04 1 1012- ● ●
