6-20 — SIDE PANEL AND STEP (#54534) — 51 parça

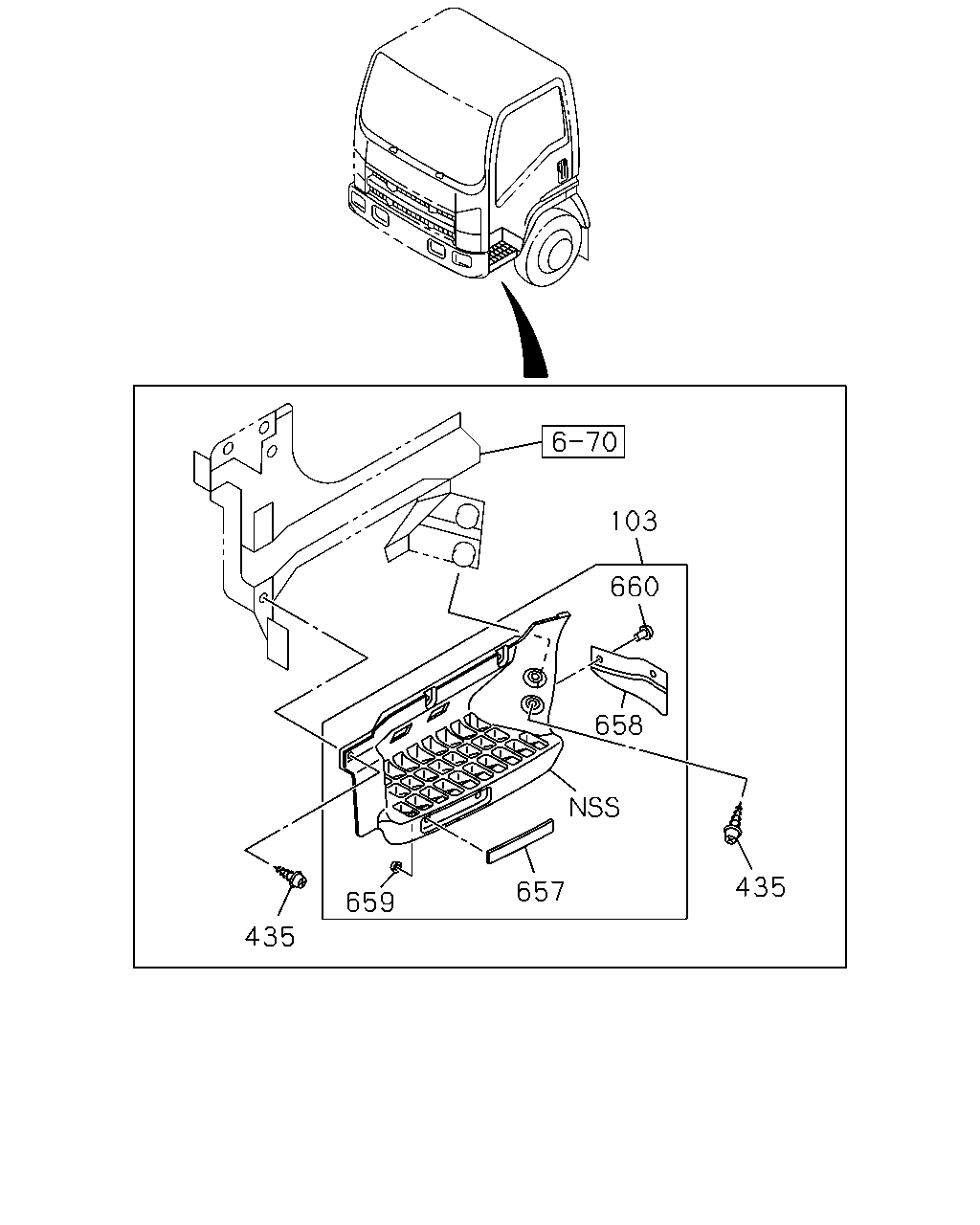

103 660 658 435 657 659 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP	8-98022-774-3	01	1	1012-	●	●
103	PLATE; STEP	8-98022-775-3	01	1	1012-	●	●
435	BOLT; RR STEP M8X18	8-98004-345-0	12	1	1012-	●	●
657	REFLECTOR; REFLEX AMBER	8-97378-910-0	02	1	1012-	●	●
658	FLAP; STEP	8-98037-560-1	02	1	1012-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1012-	●	●
660	CLIP; FLAP	8-98111-558-0	04	1	1012-	●	●

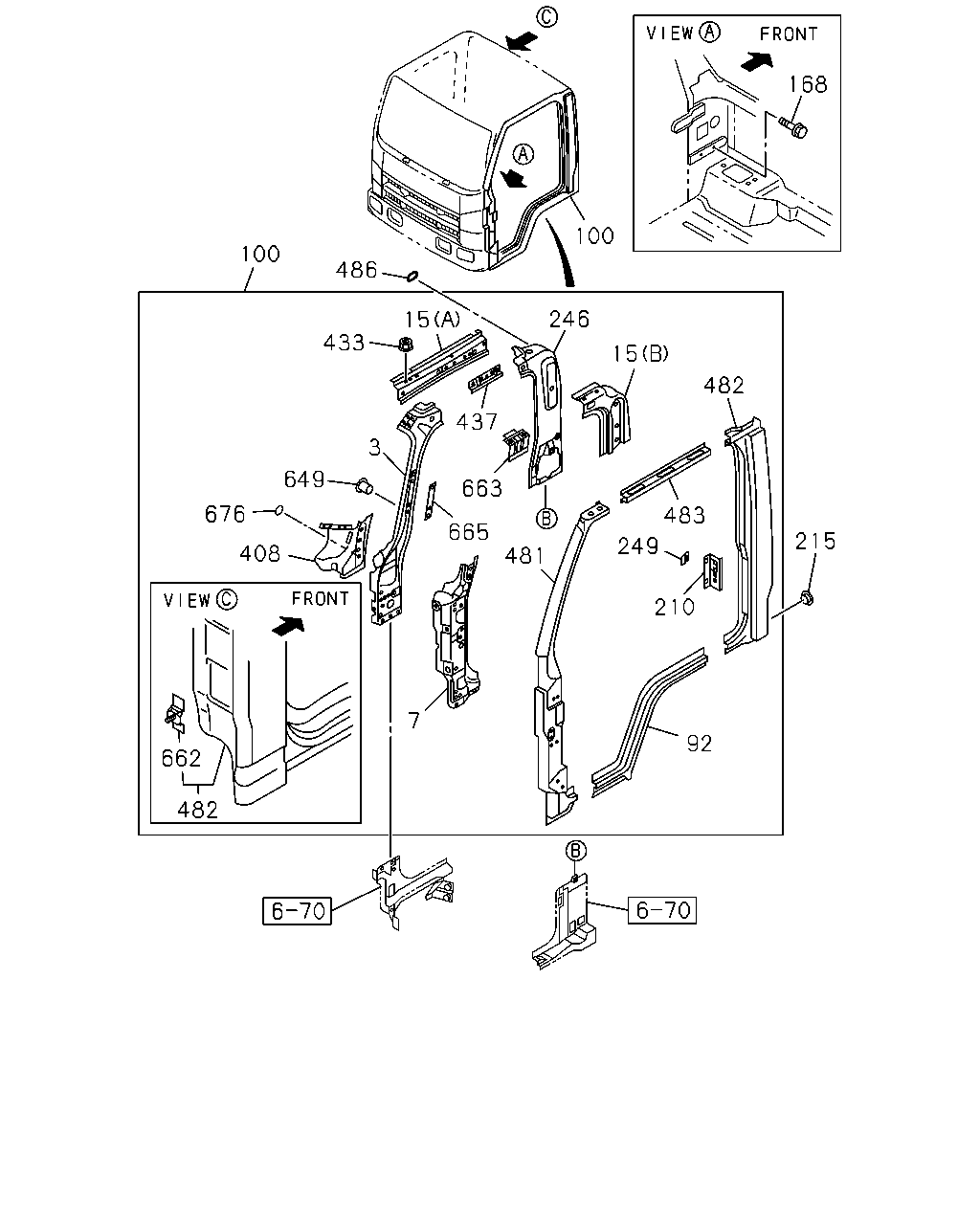

168 100 100 486 246 15 433 15 482 437 3 649 663 676 483 665 215 249 408 481 210 7 92 662 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1012-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1012-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1012-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1012-	●	●
15	PANEL; CANT RAIL SIDE (A)	8-97585-294-2	01	1	1012-	●	●
15	PANEL; CANT RAIL SIDE (A)	8-97585-295-2	01	1	1012-	●	●
15	PANEL; CANT RAIL SIDE (B)	8-97585-302-1	01	1	1012-	●	●
15	PANEL; CANT RAIL SIDE (B)	8-97585-303-2	01	1	1012-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1012-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1012-	●	●
100	PANEL ASM; BODY SIDE	8-97586-030-6	01	1	1012-	●	●
100	PANEL ASM; BODY SIDE	8-97586-047-8	01	1	1012-	●	●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1012-	●	●
210	PANEL; DOOR STRIKER REINF	8-97585-260-4	01	1	1012-	●	●
210	PANEL; DOOR STRIKER REINF	8-97585-261-4	01	1	1012-	●	●
215	GROMMET; RR PILLAR OD=35	8-94122-971-0	01	1	1012-	●	●
246	PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	1012-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	1012-	●	●
249	REINFORCEMENT; RR PILLAR	8-98012-287-1	01	1	1012-	●	●
249	REINFORCEMENT; RR PILLAR	8-98012-287-1	01	1	1012-	●	●
408	GUSSET; PILLAR	8-97585-316-3	01	1	1012-	●	●
408	GUSSET; PILLAR	8-97585-317-4	01	1	1012-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1012-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1012-	●	●
437	BRACKET; ROOF RAIL	8-98039-019-0	01	1	1012-	●	●
437	BRACKET; ROOF RAIL	8-98039-020-0	01	1	1012-	●	●
481	PANEL; SIDE FRT PILLAR	8-98072-787-0	01	1	1012-	●	●
481	PANEL; SIDE FRT PILLAR	8-98072-802-0	01	1	1012-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-463-0	01	1	1012-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-464-0	01	1	1012-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1012-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1012-	●	●
486	SEAL; BODY SIDE BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE (999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1012-	●	●
486	SEAL; BODY SIDE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1012-	●	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1012-	●	●
662	BRACKET; DUCT	8-97584-611-1	01	1	1012-	●	●
663	BRACKET; AIR	8-97585-207-2	01	1	1012-	●	●
663	BRACKET; AIR	8-97585-208-2	01	1	1012-	●	●
665	REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1012-	●	●
665	REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1012-	●	●
676	SEAL EXC. PTO MANUAL CONTROL(6WC) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1012-1406	●	●
676	SEAL EXC. PTO MANUAL CONTROL(6WC) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1407-1407	●
676	SEAL EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1407-1407		●
676	SEAL EXC. PTO MANUAL CONTROL(6WC) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1408-	●	●
