◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#54530) — 22 parça

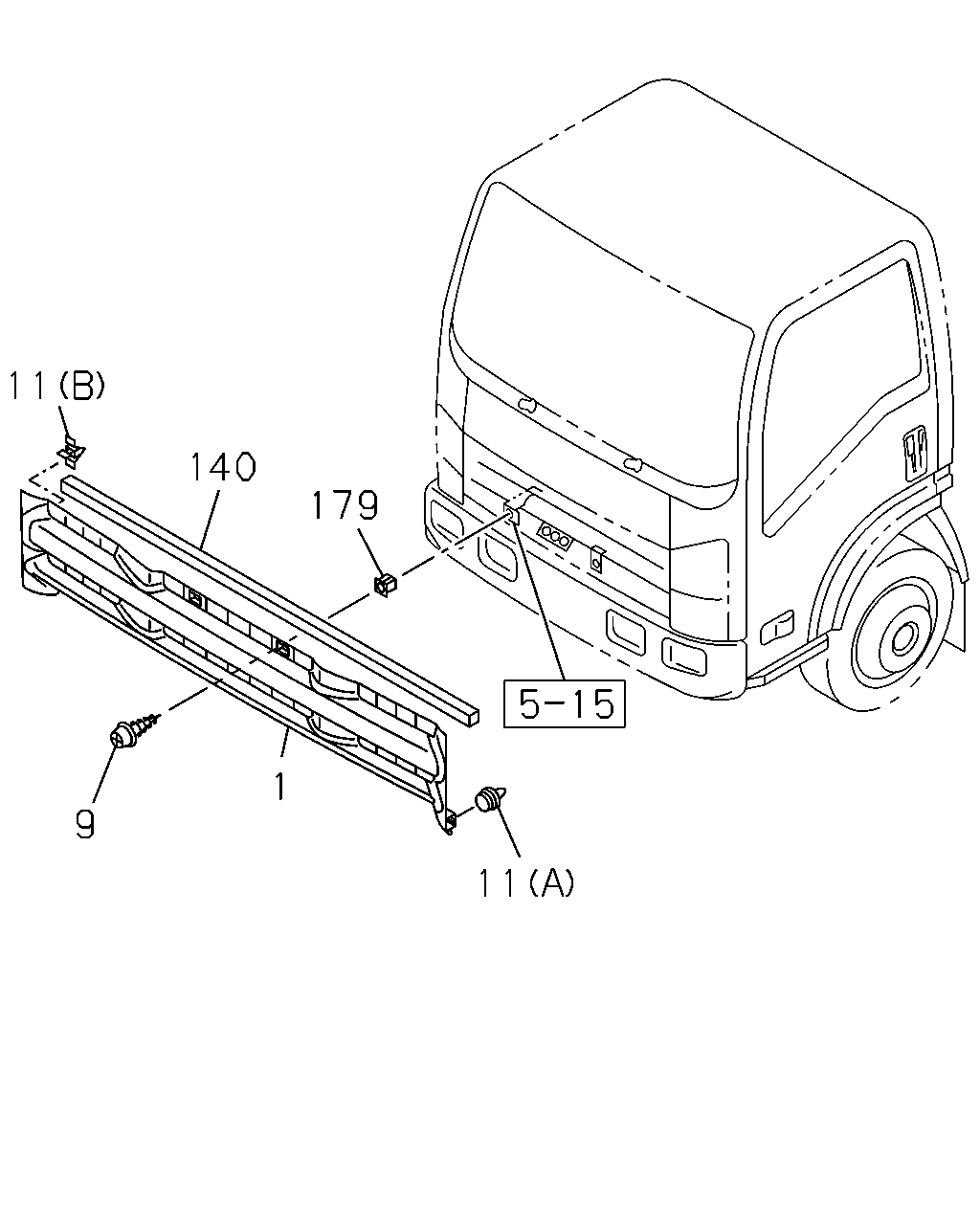

çizim 174737
11 140 179 1 11 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 1012- ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR FRENCH VANILLA(812) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1012- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1012- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1012- ● ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1012- ● ●
11 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1012- ● ●
140 SEAL; RAD GRILLE 8-98054-279-0 01 1 1012- ● ●
179 RETAINER; GRILLE,RAD
D=7X7 L=7.5 		8-94291-927-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
