Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#5453) — 373 parça

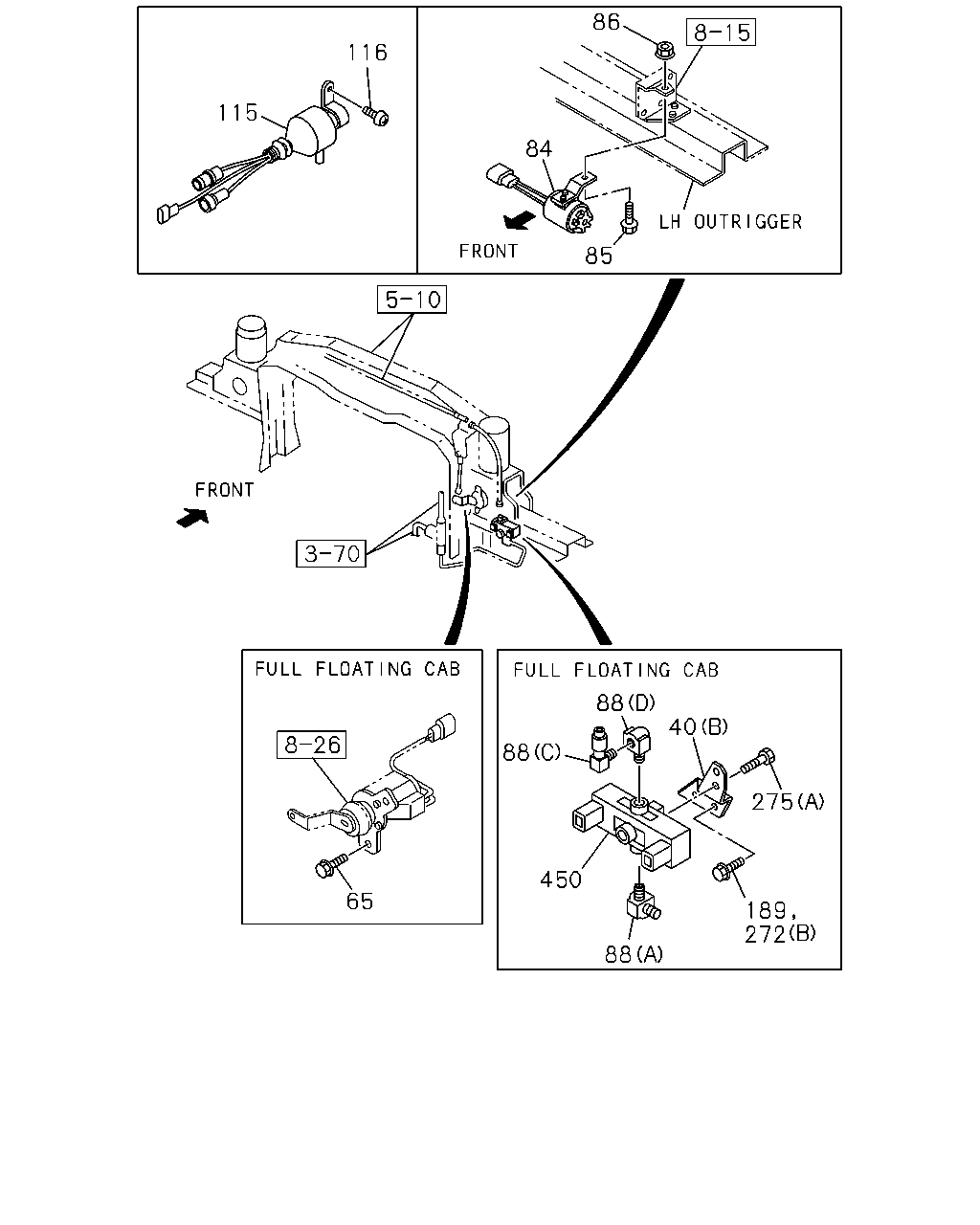

86 116 115 84 85 88 40 88 275 450 65 189 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9601-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-719-0	01	1	9601-9601
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-741-2	01	1	9602-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9601-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> M6X16 FLANGE	0-28080-616-0	02	1	9601-
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-
86	NUT; BUZZER M8	9-09110-408-0	01	1	9601-9609
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9610-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9601
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9602-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9601-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (H) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0001-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9601-9606
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-
189	BOLT; HORN FULL FLOATING CAB<W16> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9608
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9601-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9601-

283 282 284 282 275 261 292 88 88 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9601
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9602-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9601-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (H) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0001-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0001-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9601-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9611-9904
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-719-0	01	1	9601-9601
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-741-2	01	1	9602-
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9611-9904
283	NUT; BRKT 6WA1 TC-C(55L) (B) M8 FLANGE	0-91150-108-0	01	1	9905-
283	NUT; BRKT V TYPE ENG<91L> (A) M10	9-09110-510-0	01	1	9601-9606
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	9611-9904
284	BOLT; MAG VLV 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	02	1	9905-
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5)	1-82563-600-3	01	1	9611-9904
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5)	1-82563-871-1	01	1	9905-9912
292	VALVE; MAG SPR BRK BRAKE REGULATION ECE<TDV>	1-82563-871-2	01	1	0001-

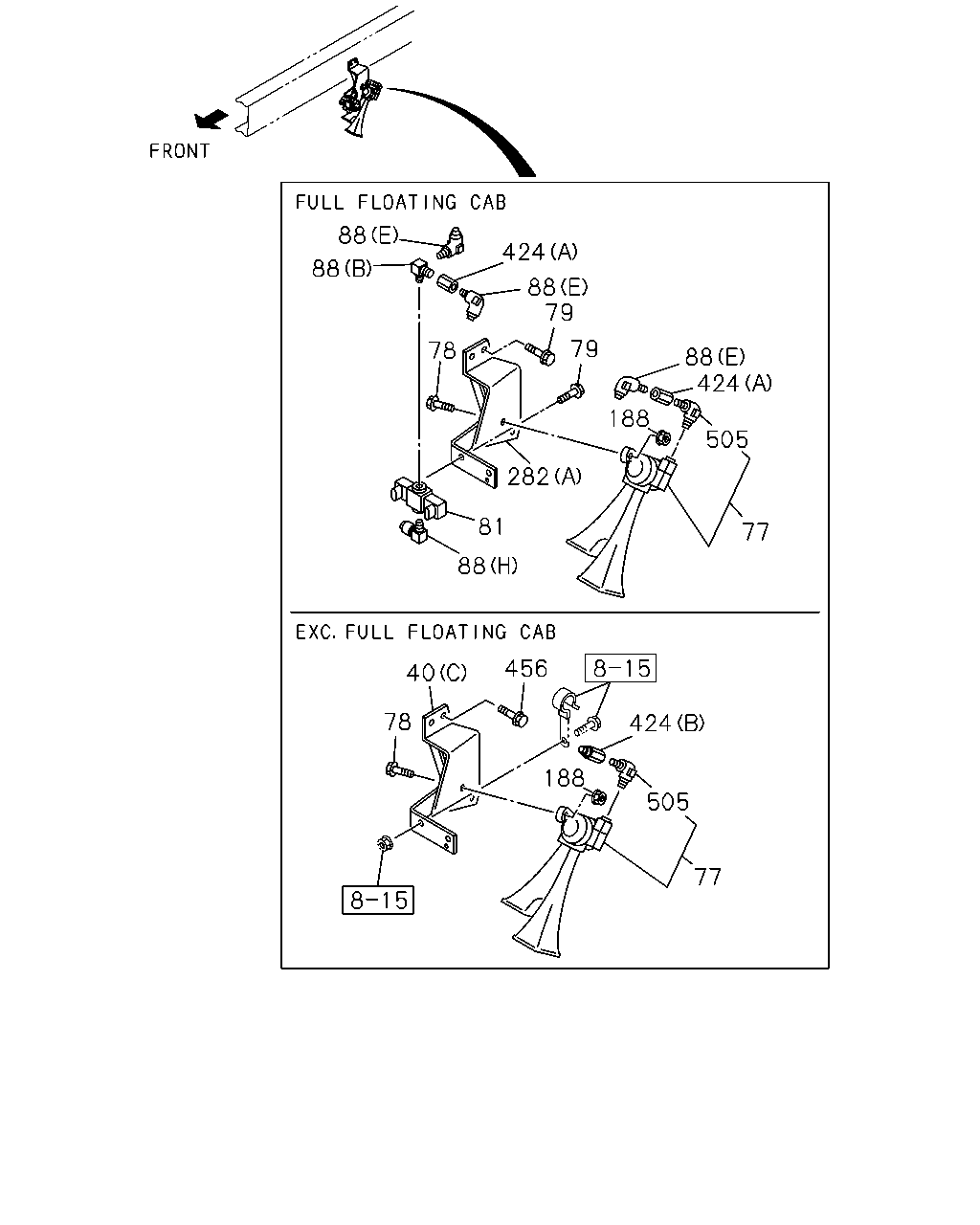

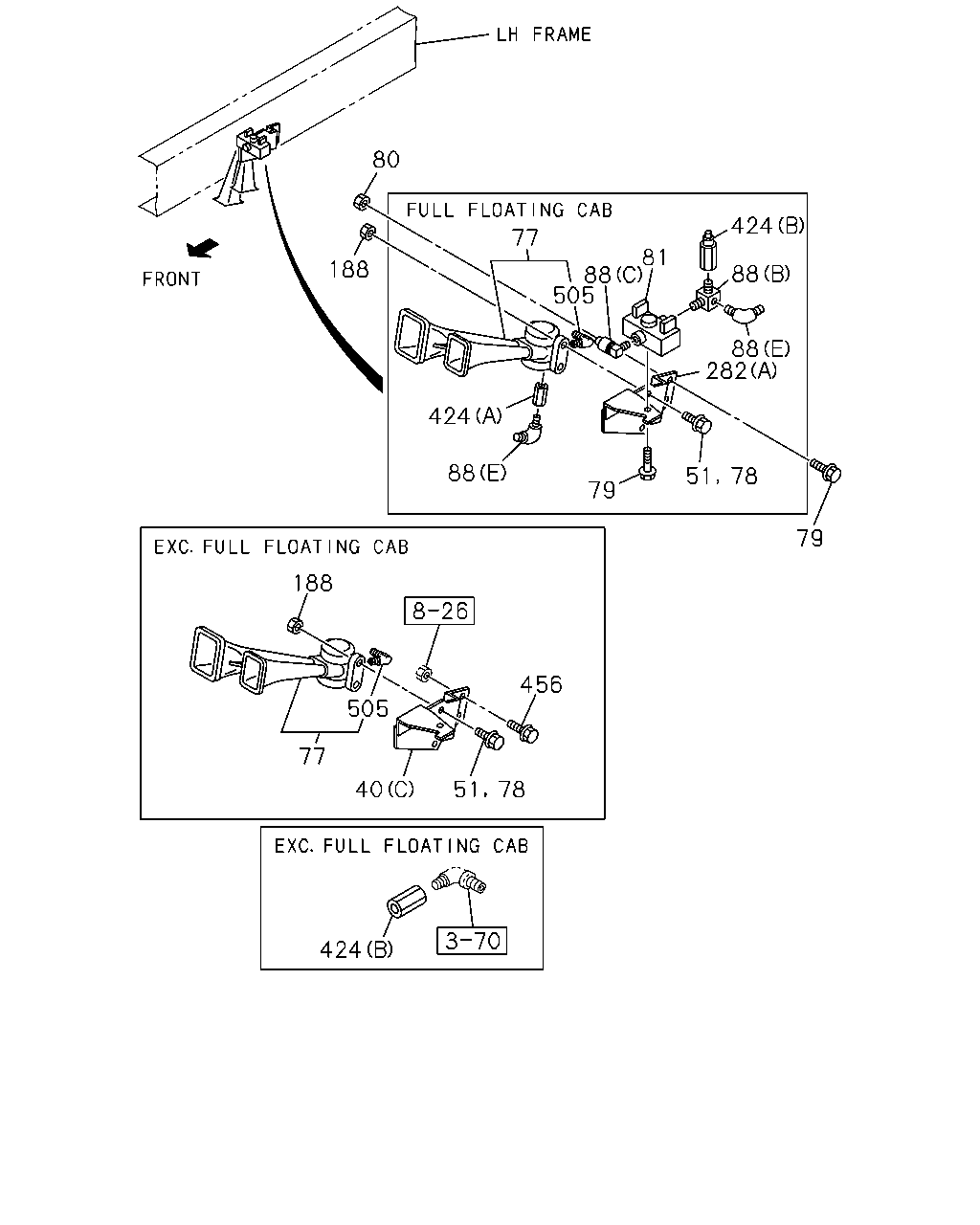

80 424 77 81 88 505 188 88 88 282 424 88 51 78 79 79 188 456 505 77 40 51 78 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9601-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-719-0	01	1	9601-9601
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-741-2	01	1	9602-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9601-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
51	BOLT; HORN TO BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-9604
77	HORN ASM	1-83430-038-1	01	1	9601-9904
77	HORN ASM	1-83430-041-1	01	1	9905-
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M8X14 FLANGE	0-28080-814-0	01	1	9601-0103
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X30 FLANGE	0-28081-030-0	02	1	9601-9606
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9607-
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9611-9912
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0001-
80	NUT; MAG VLV FULL FLOATING CAB<W16> M10	9-09110-510-0	02	1	9601-9601
80	NUT; MAG VLV M10	9-09110-510-0	02	1	9601-9601
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9601
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9602-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9601-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (H) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0001-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-
188	NUT; AIR HORN M8	9-09110-408-0	02	1	9601-9605
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9611-9904
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-719-0	01	1	9601-9601
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-741-2	01	1	9602-
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
424	ADAPTER FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	03	1	9601-9601
424	ADAPTER FULL FLOATING CAB<W16> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9601-9601
424	ADAPTER FULL FLOATING CAB<W16> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9602-
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	9601-9601
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9602-9904
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X35 FLANGE	0-28680-835-0	02	1	9607-9709
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9710-
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9904
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-

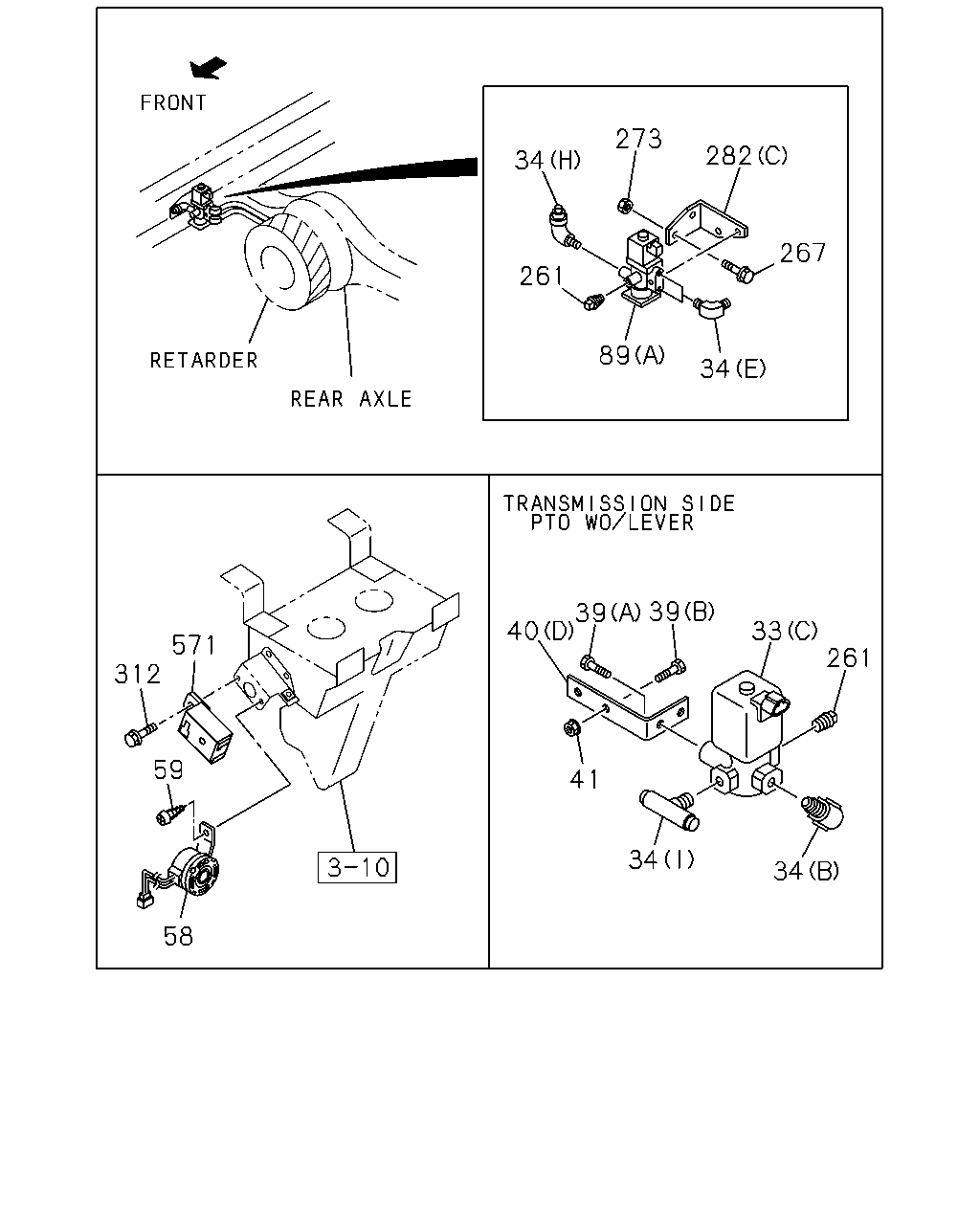

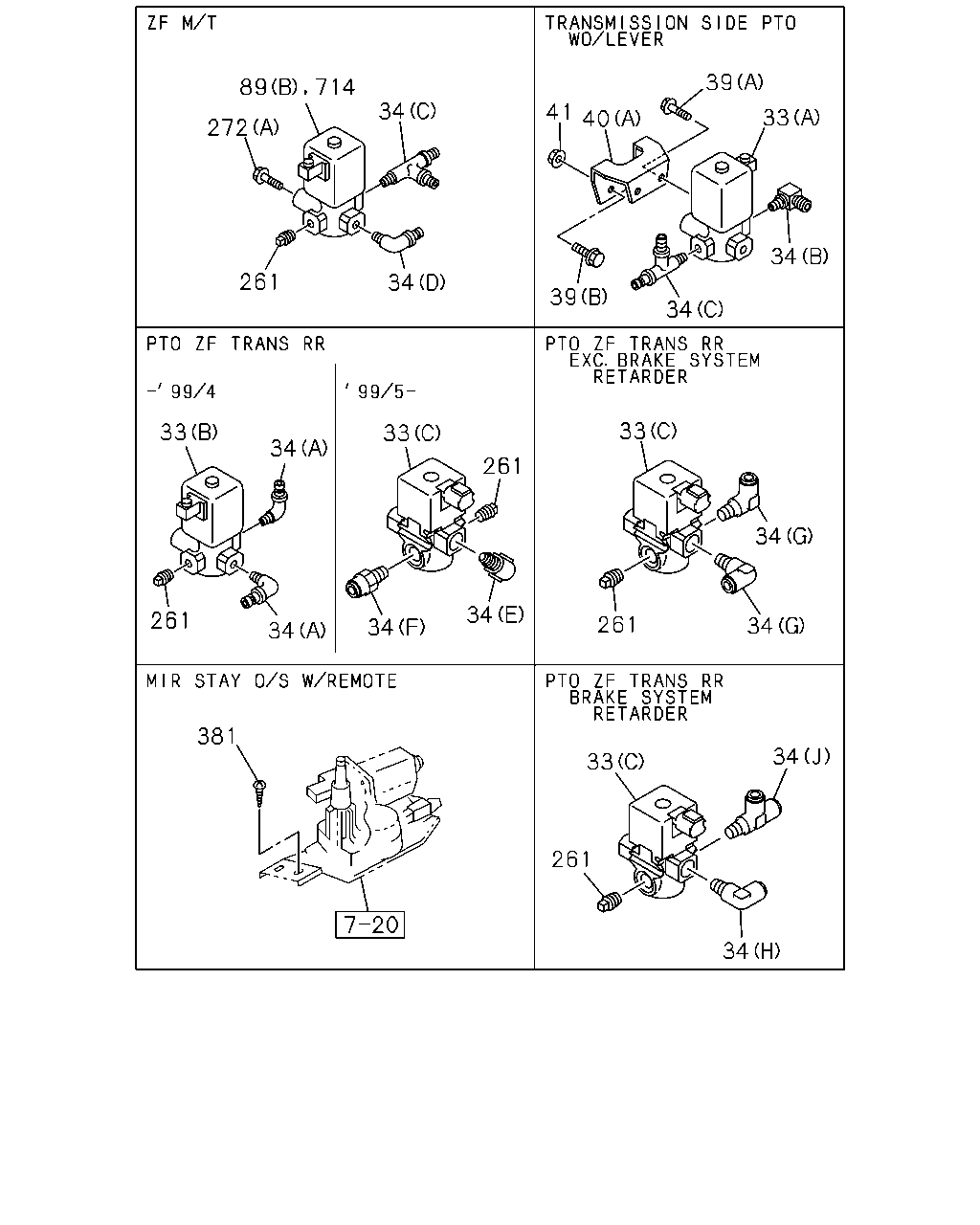

273 282 34 267 261 89 34 39 40 33 261 571 312 59 41 34 34 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-3	01	1	9601-9904
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-2	01	1	9905-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9908-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9601-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-719-0	01	1	9601-9601
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-741-2	01	1	9602-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9601-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9601-9606
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9601-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9601-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-4	01	1	9905-9907
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (B)	1-82563-600-3	01	1	9601-9904
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0001-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	9905-9907
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9905-9907
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9611-9904
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-719-0	01	1	9601-9601
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-741-2	01	1	9602-
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
312	BOLT; BUZZER NEW ZEALAND EQUIPMENT(PK5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-
571	ALARM; EMERGENCY NEW ZEALAND EQUIPMENT(PK5)	1-83460-040-0	01	1	9706-

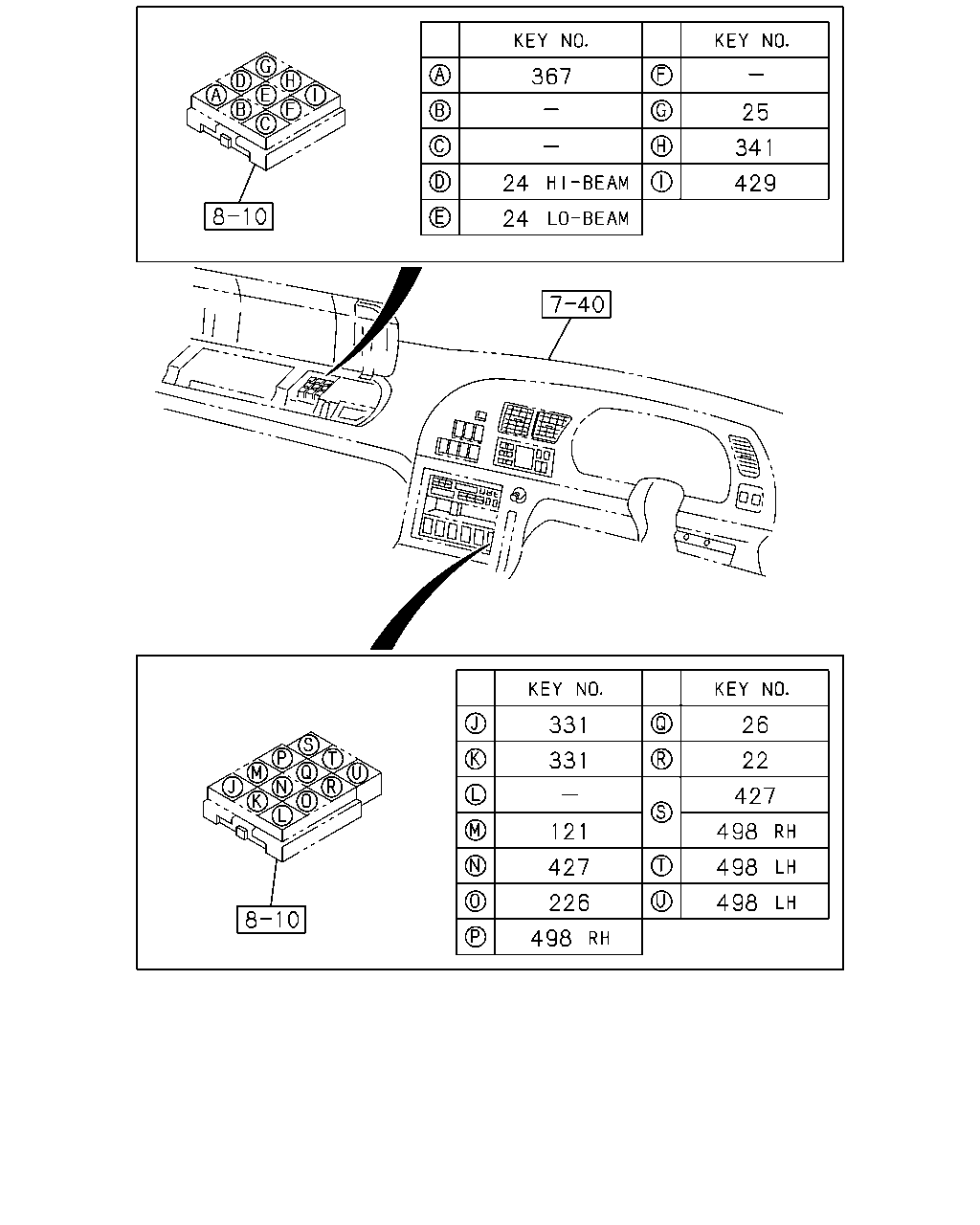

367 25 341 24 429 24 331 26 331 22 427 121 498 427 498 226 498 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9611-
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-9907
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9611-9904
429	RELAY; POWER CUT 6WA1 TC-C(55L) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9601-

39 34 41 33 40 272 34 261 34 39 34 33 33 33 34 261 34 34 261 261 34 34 34 381 34 33 261 34 89 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-3	01	1	9601-9904
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-2	01	1	9905-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9908-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9601-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-719-0	01	1	9601-9601
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-741-2	01	1	9602-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9601-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9601-9606
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-4	01	1	9905-9907
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (B)	1-82563-600-3	01	1	9601-9904
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9601-9610
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9611-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9908-9912
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	0001-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0001-
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9608
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9601-
714	VALVE; MAG,TRANS,LOW TO HIGH ZF M/T<X9E>	1-82563-871-2	01	1	9905-

88 424 88 88 79 79 78 88 424 188 505 282 81 77 88 456 40 78 424 188 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9601-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-719-0	01	1	9601-9601
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (C)	1-53458-741-2	01	1	9602-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9601-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
77	HORN ASM	1-83430-038-1	01	1	9601-9904
77	HORN ASM	1-83430-041-1	01	1	9905-
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M8X14 FLANGE	0-28080-814-0	01	1	9601-0103
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X30 FLANGE	0-28081-030-0	02	1	9601-9606
79	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9607-
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9611-9912
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0001-
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9601
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9602-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9601-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9601-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (H) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0001-
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9611-9904
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9912
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-
188	NUT; AIR HORN M8	9-09110-408-0	02	1	9601-9605
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9611-9904
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-719-0	01	1	9601-9601
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-741-2	01	1	9602-
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
424	ADAPTER FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	03	1	9601-9601
424	ADAPTER FULL FLOATING CAB<W16> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9601-9601
424	ADAPTER FULL FLOATING CAB<W16> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9602-
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	9601-9601
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9602-9904
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
424	ADAPTER EXC. FULL FLOATING CAB<W16> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X35 FLANGE	0-28680-835-0	02	1	9607-9709
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9710-
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9904
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-

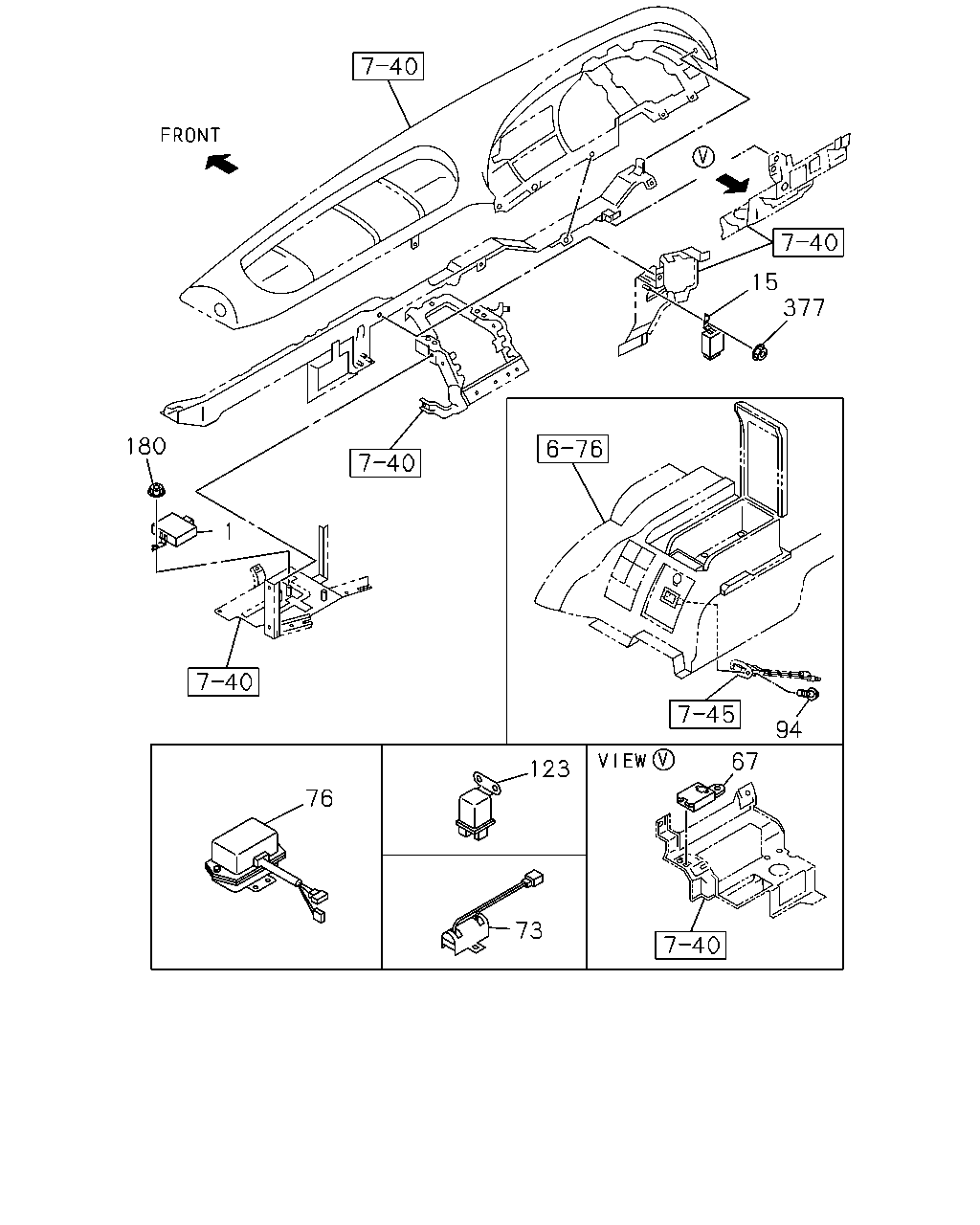

15 377 180 1 94 67 123 76 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	9601-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9601-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9601-0101
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
67	BUZZER; ENG OVERRUN L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-0	01	1	9601-9603
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9601-9603
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9801-
123	RELAY; HTR INTAKE HEATER<SL2>	8-94128-857-0	02	1	9601-9603
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9601-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9601-

275 507 386 174 275 283 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9601-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO DENSO	1-83460-088-1	01	1	9908-
174	COVER FULL FLOATING CAB<W16> L=620	1-83129-031-1	01	1	9601-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9601-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9601-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9611-9904
283	NUT; BRKT 6WA1 TC-C(55L) (B) M8 FLANGE	0-91150-108-0	01	1	9905-
283	NUT; BRKT V TYPE ENG<91L> (A) M10	9-09110-510-0	01	1	9601-9606
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-
386	CLIP; HARNESS FULL FLOATING CAB<W16> ID=9.5	5-09709-020-0	01	1	9601-
507	TUBE; NYLON FULL FLOATING CAB<W16> L=800	1-09368-930-0	01	1	9601-9904
507	TUBE; NYLON FULL FLOATING CAB<W16> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-0103
507	TUBE; NYLON FULL FLOATING CAB<W16> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
