5-20 — BATTERY CARRIER (#54527) — 43 parça

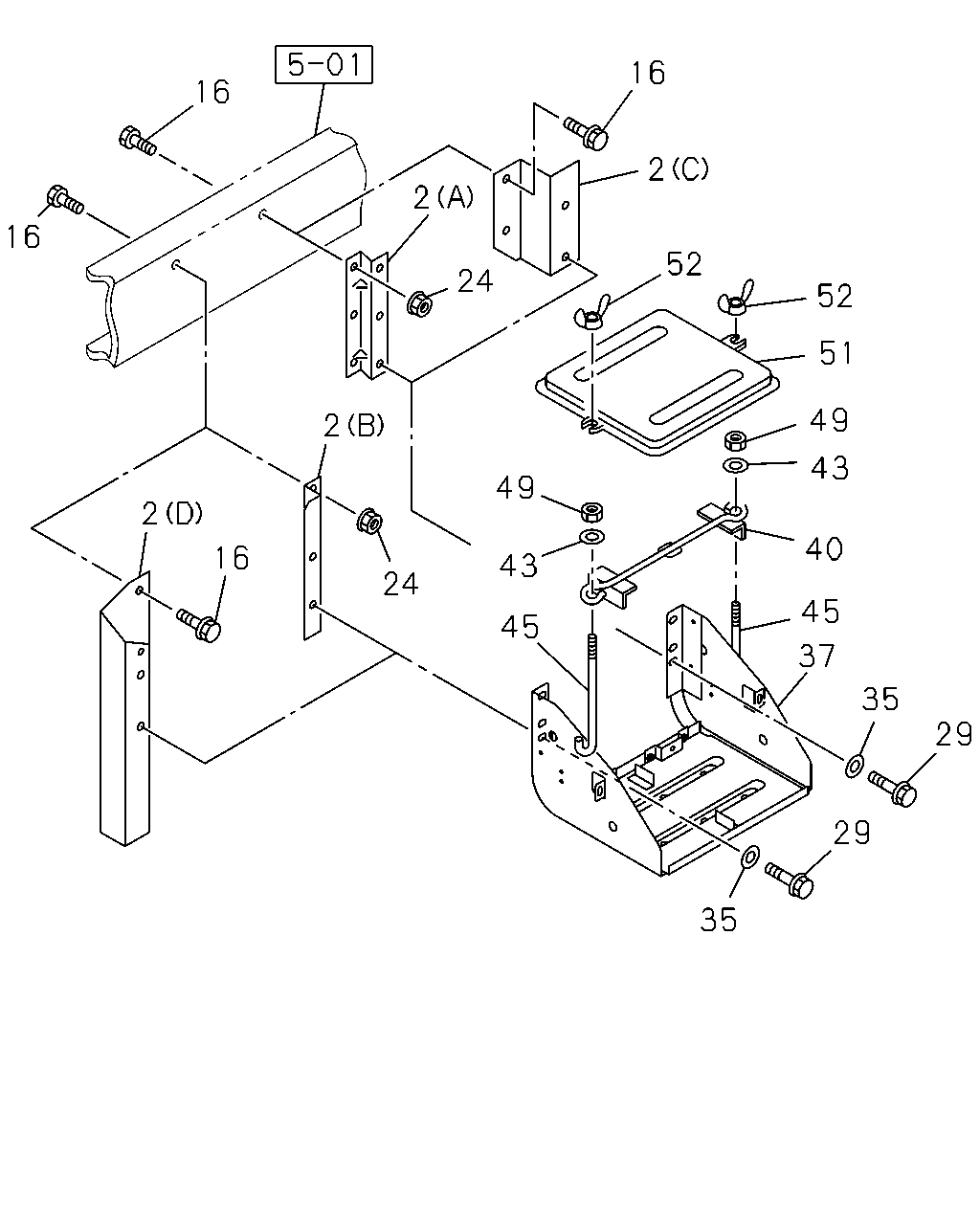

16 16 2 24 16 2 52 52 51 49 40 43 45 37 35 29 29 35 45 49 43 24 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (C)	8-97384-072-0	01	1	1407-1407	●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (D)	8-97384-073-0	01	1	1407-1407	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	1012-1406		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	1012-1406	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	1407-1407		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (A)	8-97384-069-1	01	1	1407-1407	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	1408-		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	1408-	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	1012-1406		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	1012-1406	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	1407-1407		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> (B)	8-97384-070-1	01	1	1407-1407	●
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	1408-		●
2	BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	1408-	●
16	BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10X35 FLANGE	0-28651-035-0	04	1	1012-		●
16	BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10X35 FLANGE	0-28651-035-0	04	1	1012-	●
24	NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-110-0	01	1	1012-1406		●
24	NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-110-0	01	1	1012-1406	●
24	NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
24	NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
24	NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-110-0	01	1	1408-		●
24	NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-110-0	01	1	1408-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1012-	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	1012-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	1012-	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●	●
45	ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	1012-	●	●
49	NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	1012-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-	●	●

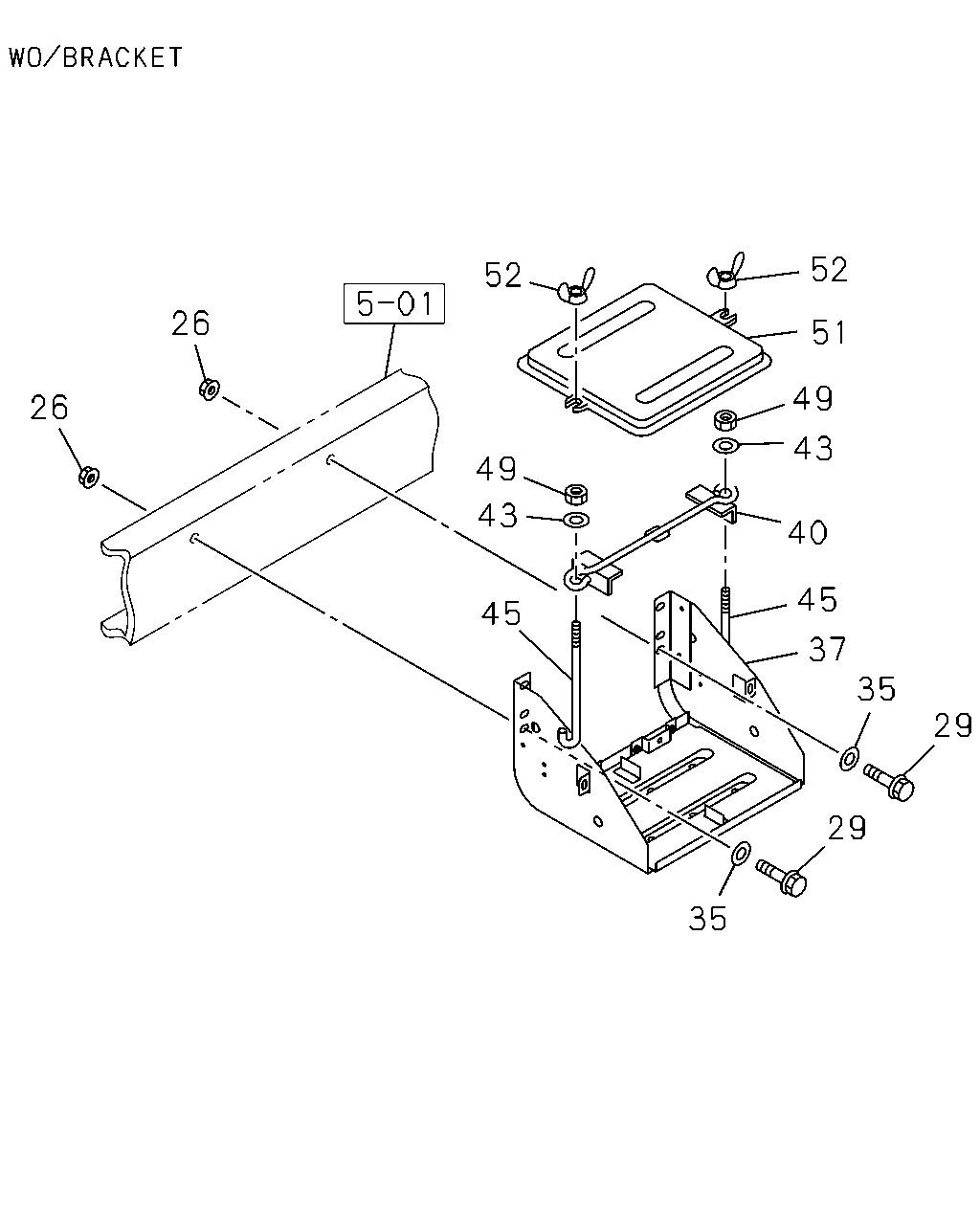

52 52 26 51 49 26 43 49 43 40 45 45 37 35 29 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M10 FLANGE	0-91180-210-0	04	1	1012-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1012-	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	1012-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	1012-	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●	●
45	ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	1012-	●	●
49	NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	1012-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
