5-10 — CAB MOUNTING; FRAME SIDE (#54525) — 45 parça

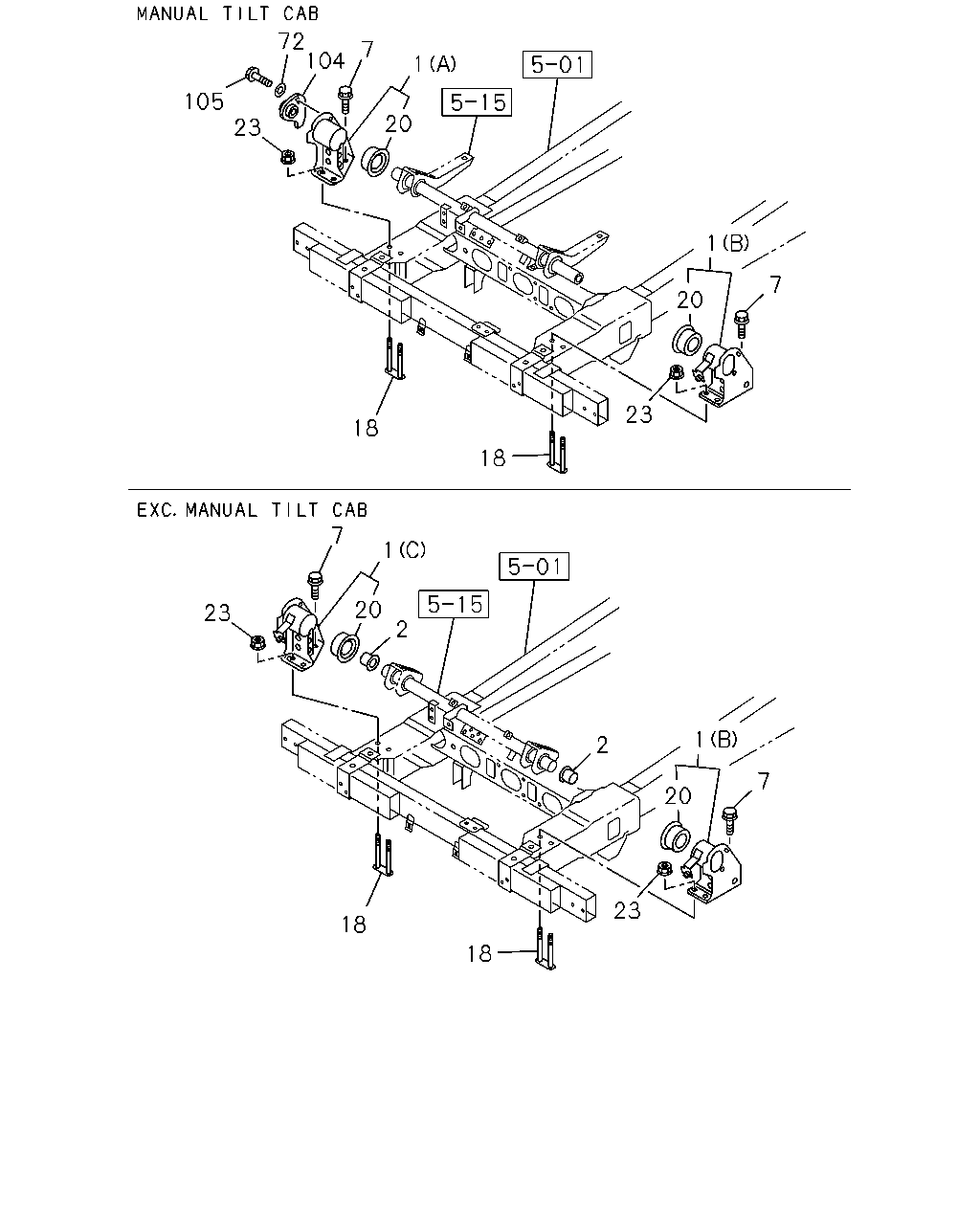

72 104 7 1 105 20 23 1 7 20 23 18 18 7 1 20 23 2 1 2 7 20 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (A)	8-98021-409-3	01	1	1012-	●	●
1	BRACKET; CAB MTG (B)	8-98021-408-3	01	1	1012-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98021-407-4	01	1	1012-	●	●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1012-	●	●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1012-	●	●
18	PLATE; MTG BRKT FIX	8-98029-285-1	02	1	1012-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1012-	●	●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	1012-	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1012-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	1012-	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1012-	●	●

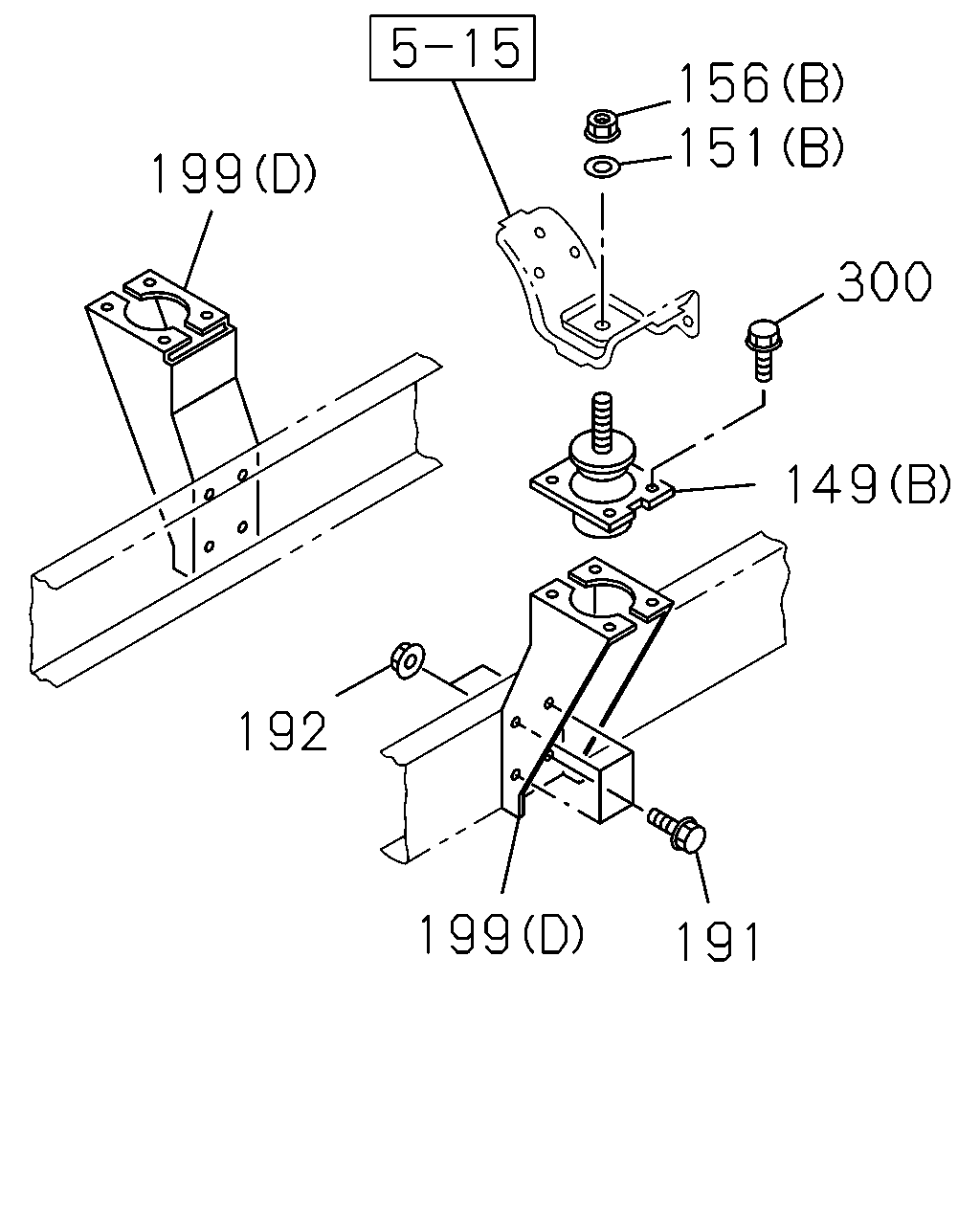

156 151 199 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	1012-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1012-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1012-1406	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1407-1407	●
192	NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> M12 FLANGE	0-91180-112-0	04	1	1407-1407		●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1408-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	1012-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1012-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1012-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1012-	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	1012-	●	●

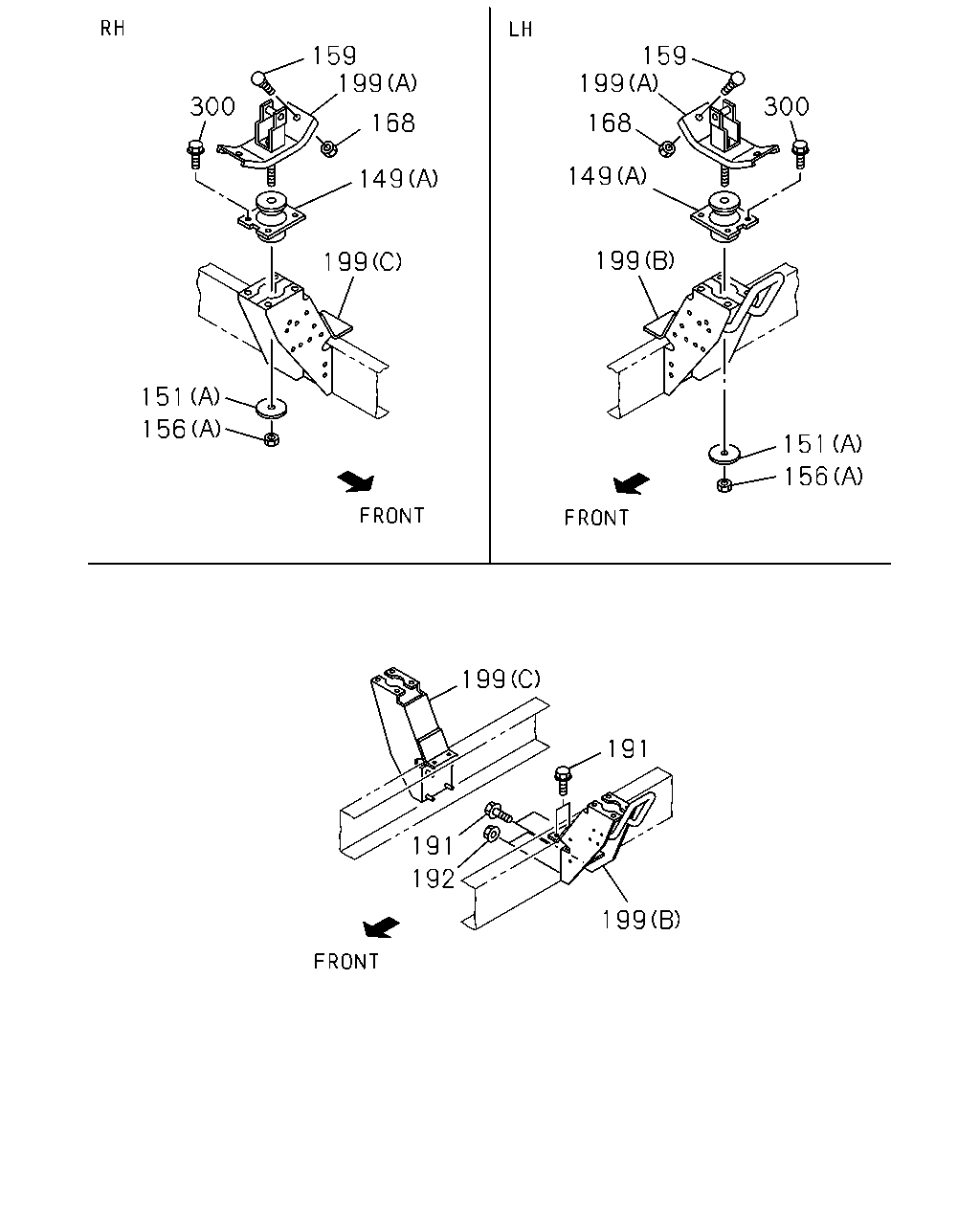

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	1012-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-	●	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1012-	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1012-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1012-1406	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1407-1407	●
192	NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> M12 FLANGE	0-91180-112-0	04	1	1407-1407		●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	1408-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	1012-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1012-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1012-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	1012-	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	1012-	●	●
