Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#54524) — 214 parça

345 345 75 345 75 75 75 198 198 139 198 198 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	GUSSET; 5TH C/MBR (B)	8-98006-124-1	01	1	1012-	●
75	GUSSET; 5TH C/MBR (B)	8-98011-312-1	01	1	1012-	●
75	GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1012-1406		●
75	GUSSET; 5TH C/MBR HEAVY DUTY FRAME<6WB> (A)	8-98011-863-0	04	1	1407-1407		●
75	GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1408-		●
139	MEMBER; CROSS,6TH (B)	8-98006-168-1	01	1	1012-	●
139	MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1012-1406		●
139	MEMBER; CROSS,6TH HEAVY DUTY FRAME<6WB> (A)	8-97384-745-0	01	1	1407-1407		●
139	MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1408-		●
198	GUSSET; 6TH C/MBR (B)	8-98011-865-0	02	1	1012-	●
198	GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1012-1406		●
198	GUSSET; 6TH C/MBR HEAVY DUTY FRAME<6WB> (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1407-1407		●
198	GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1408-		●
198	GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1012-1406		●
198	GUSSET; 6TH C/MBR HEAVY DUTY FRAME<6WB> (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1407-1407		●
198	GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1408-		●
345	MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97033-229-1	01	1	1407-1407		●
345	MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	1012-1406	●	●
345	MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	1407-1407	●
345	MEMBER; CROSS,5TH HEAVY DUTY FRAME<6WB> (A)	8-98011-861-2	01	1	1407-1407		●
345	MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	1408-	●	●

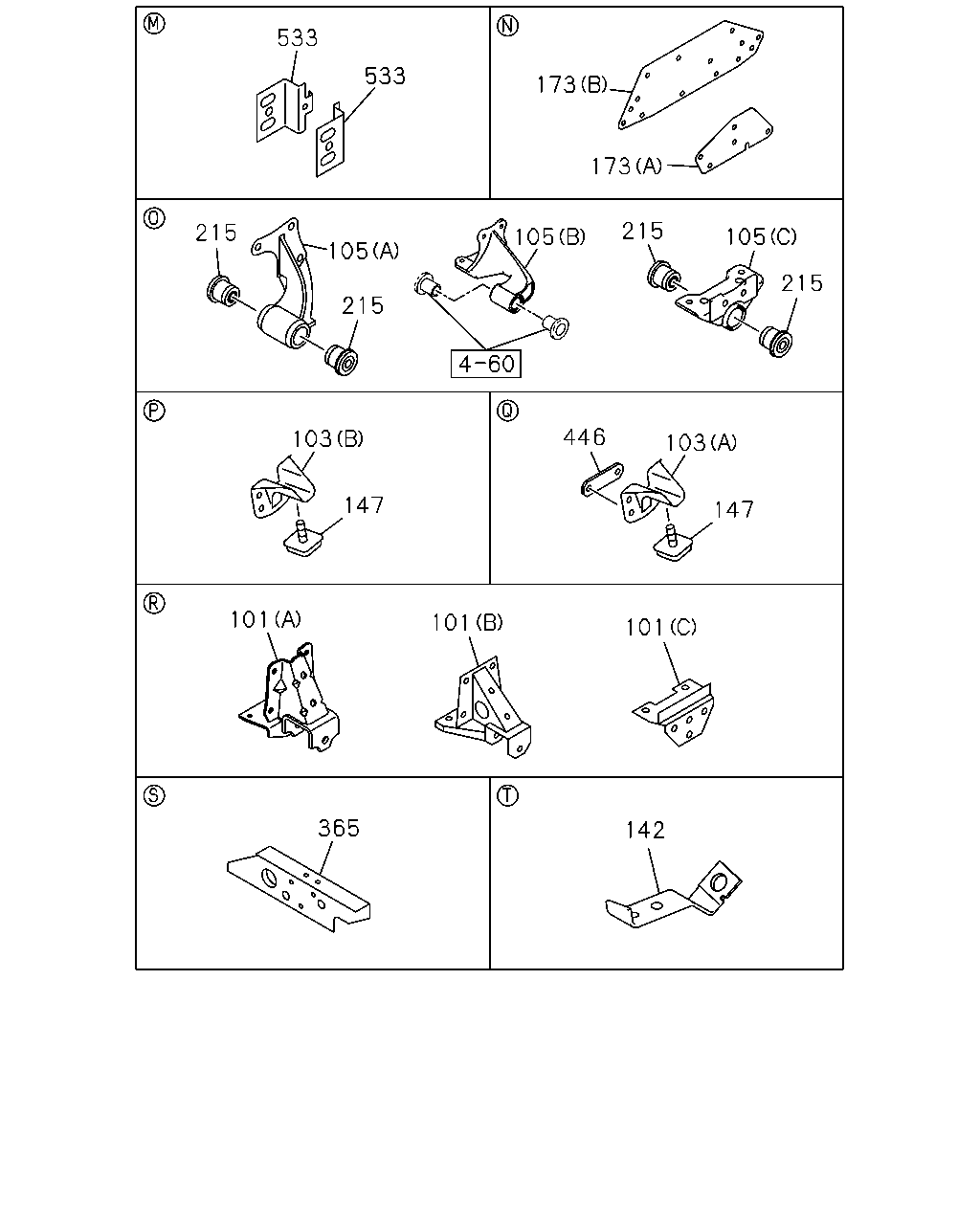

533 533 105 215 215 103 147 101 365 101 101 142 147 103 446 215 105 215 105 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-97034-223-1	02	1	1407-1407		●
101	BRACKET; RR SPR,FRT (B)	8-98034-042-0	02	1	1012-	●
101	BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1012-1309		●
101	BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1310-1406		●
101	BRACKET; RR SPR,FRT HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1407-1407		●
101	BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1408-		●
103	STOPPER; SUB SPR (B)	8-97223-748-0	02	1	1012-1406		●
103	STOPPER; SUB SPR HEAVY DUTY FRAME<6WB> (B)	8-97223-748-0	02	1	1407-1407		●
103	STOPPER; SUB SPR (B)	8-97223-748-0	02	1	1408-		●
103	STOPPER; SUB SPR (A)	8-97223-750-0	02	1	1012-1406		●
103	STOPPER; SUB SPR HEAVY DUTY FRAME<6WB> (A)	8-97223-750-0	02	1	1407-1407		●
103	STOPPER; SUB SPR (A)	8-97223-750-0	02	1	1408-		●
105	BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-97184-907-0	02	1	1407-1407		●
105	BRACKET; RR SPR,RR (B)	8-98031-058-0	01	1	1012-	●
105	BRACKET; RR SPR,RR (B)	8-98031-059-0	01	1	1012-	●
105	BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1012-1406		●
105	BRACKET; RR SPR,RR HEAVY DUTY FRAME<6WB> (A)	8-98032-488-0	01	1	1407-1407		●
105	BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1408-		●
105	BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1012-1406		●
105	BRACKET; RR SPR,RR HEAVY DUTY FRAME<6WB> (A)	8-98032-489-0	01	1	1407-1407		●
105	BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1408-		●
142	BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97259-035-0	01	1	1407-1407		●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	1012-1406		●
147	RUBBER; SUB SPRING HEAVY DUTY FRAME<6WB>	8-97254-387-0	04	1	1407-1407		●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	1408-		●
173	STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1012-1406		●
173	STIFFENER; RR SPRING HEAVY DUTY FRAME<6WB> (B)	8-98012-947-3	02	1	1407-1407		●
173	STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1408-		●
173	STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	1012-1406		●
173	STIFFENER; RR SPRING HEAVY DUTY FRAME<6WB> (A)	8-98012-948-2	02	1	1407-1407		●
173	STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	1408-		●
215	BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1012-		●
365	REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-251-2	01	1	1407-1407		●
365	REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97185-188-1	01	1	1407-1407		●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1012-1309		●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1012-1309	●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1310-1406	●
533	STIFFENER; REINFORCEMENT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1310-1406	●
533	STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1310-1406		●
533	STIFFENER; REINFORCEMENT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1407-1407	●	●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1407-1407	●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1408-	●
533	STIFFENER; REINFORCEMENT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1408-	●
533	STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1408-		●

130 130 51 39 24 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1012-1407	●
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1012-1407		●
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1408-	●
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1408-		●
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1012-1407	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1012-1407		●
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1408-	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1408-		●
39	BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1012-	●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1012-		●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1012-	●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1012-		●
130	MEMBER; CROSS,END WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-94388-995-3	01	1	1407-1407		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM(33W) (A)	8-98041-239-1	01	1	1012-1406		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98041-239-1	01	1	1407-1407		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM(33W) (A)	8-98041-239-1	01	1	1408-		●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	1012-	●	●

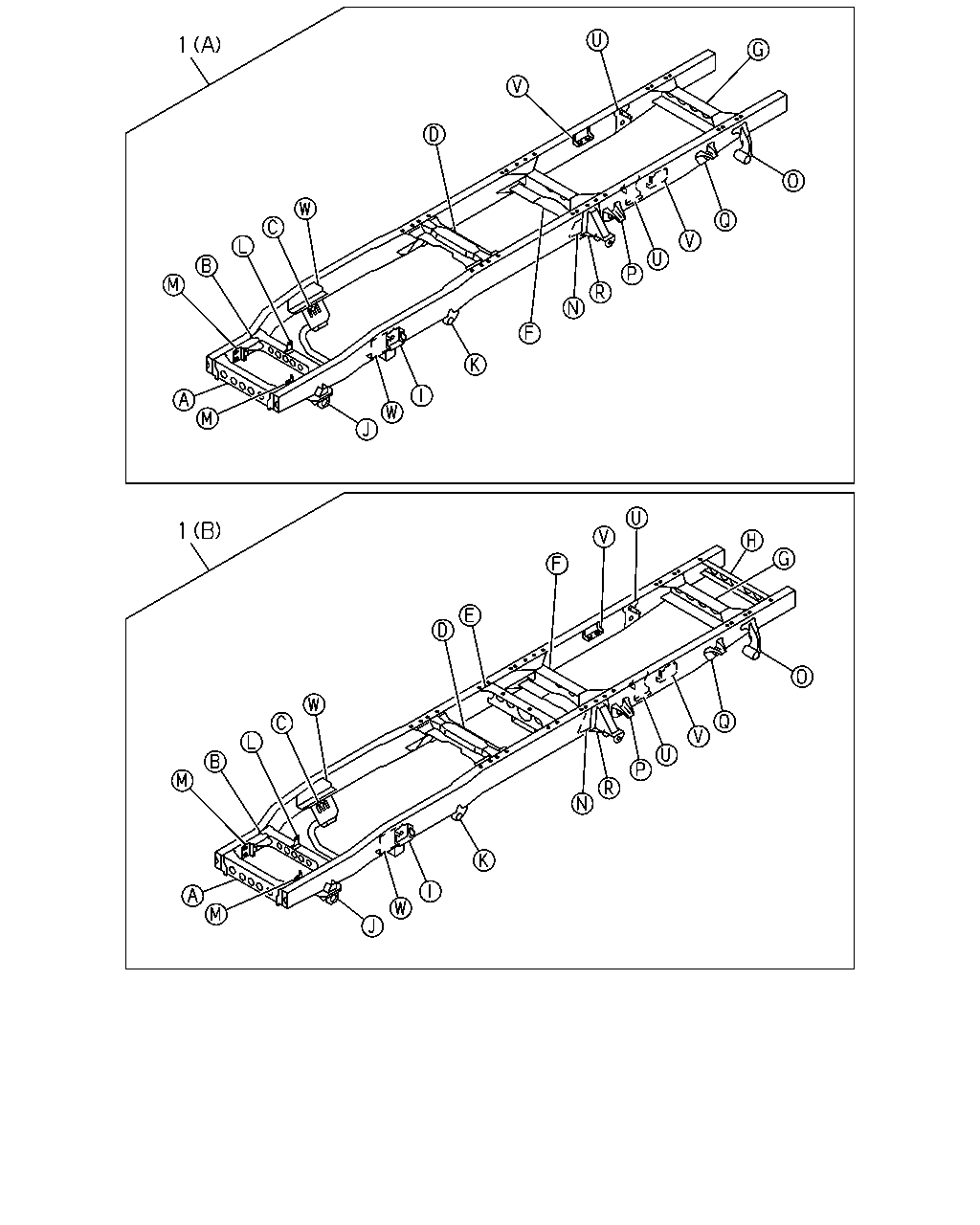

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98023-315-4	01	1	1407-1407		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98254-651-1	01	1	1310-	●
1	FRAME ASM HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98254-649-1	01	1	1310-	●
1	FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98140-572-1	01	1	1012-	●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-303-3	01	1	1012-1309	●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98023-303-3	01	1	1310-	●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98023-302-3	01	1	1012-1309	●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (A)	8-98023-302-3	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98137-599-0	01	1	1012-1301		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98226-469-0	01	1	1302-1309		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1310-1406		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98255-008-1	01	1	1407-1407		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1408-		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98137-600-0	01	1	1012-1301		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98226-470-0	01	1	1302-1309		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98255-009-1	01	1	1310-1406		●
1	FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98255-009-1	01	1	1407-1407		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98255-009-1	01	1	1408-		●

140 140 140 217 217 356 356 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	BRACKET; S/ABS,RR (C)	8-98006-174-0	02	1	1012-	●
140	BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1012-1406		●
140	BRACKET; S/ABS,RR HEAVY DUTY FRAME<6WB> (B)	8-98006-176-0	01	1	1407-1407		●
140	BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1408-		●
140	BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1012-1406		●
140	BRACKET; S/ABS,RR HEAVY DUTY FRAME<6WB> (A)	8-98006-180-0	01	1	1407-1407		●
140	BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1408-		●
217	BRACKET; HELPER RUBBER,RR SPRING (B)	8-97163-899-1	02	1	1012-	●
217	BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1012-1406		●
217	BRACKET; HELPER RUBBER,RR SPRING HEAVY DUTY FRAME<6WB> (A)	8-97202-417-0	02	1	1407-1407		●
217	BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1408-		●
234	COVER; END,S/MBR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-249-0	02	1	1407-1407		●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1012-1301	●
356	BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1012-1301		●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1302-1309	●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1012-1301	●
356	BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1012-1301		●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1302-1309	●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●

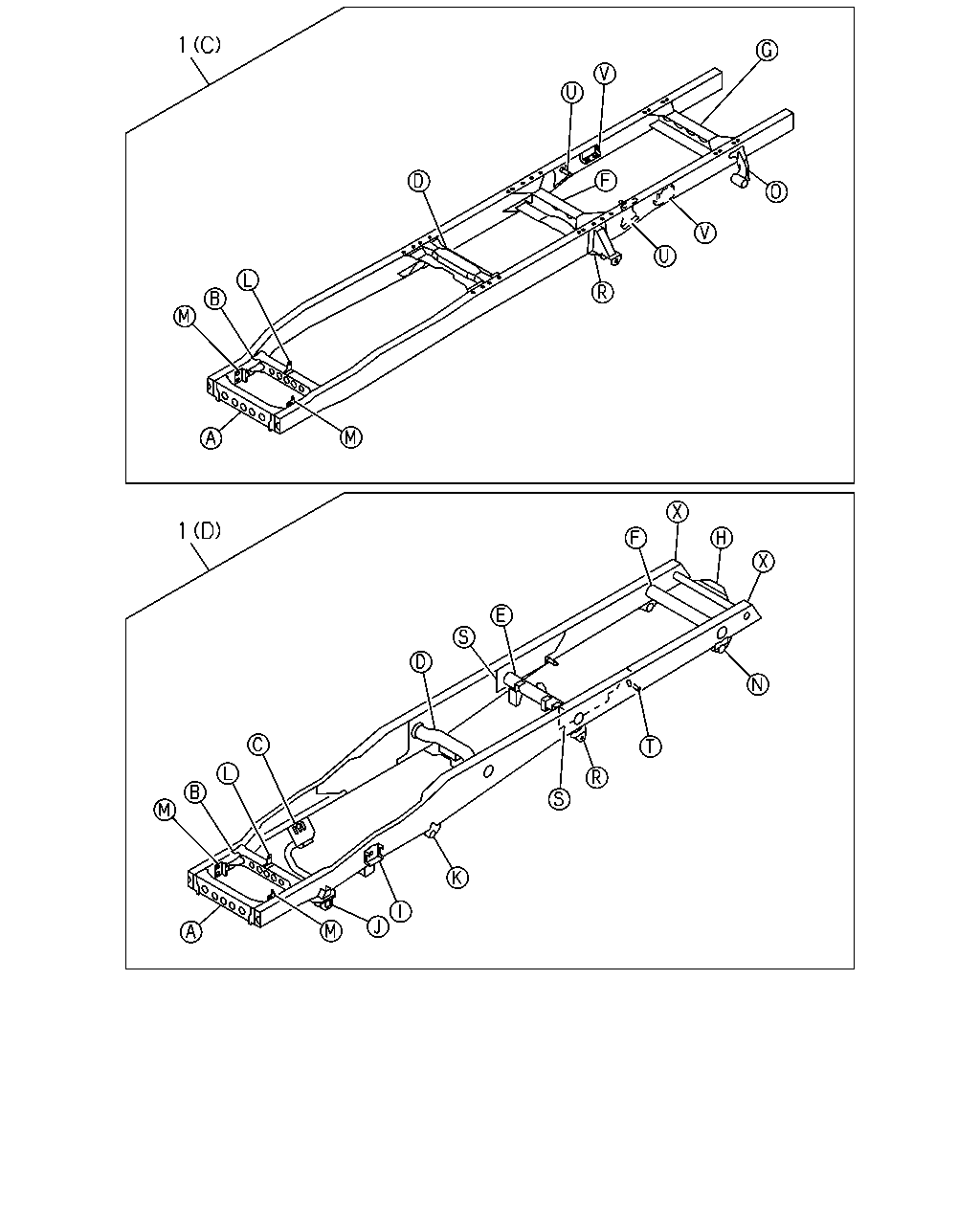

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98023-315-4	01	1	1407-1407		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98254-651-1	01	1	1310-	●
1	FRAME ASM HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98254-649-1	01	1	1310-	●
1	FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98140-572-1	01	1	1012-	●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-303-3	01	1	1012-1309	●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98023-303-3	01	1	1310-	●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98023-302-3	01	1	1012-1309	●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (A)	8-98023-302-3	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98137-599-0	01	1	1012-1301		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98226-469-0	01	1	1302-1309		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1310-1406		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98255-008-1	01	1	1407-1407		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1408-		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98137-600-0	01	1	1012-1301		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98226-470-0	01	1	1302-1309		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98255-009-1	01	1	1310-1406		●
1	FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98255-009-1	01	1	1407-1407		●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98255-009-1	01	1	1408-		●

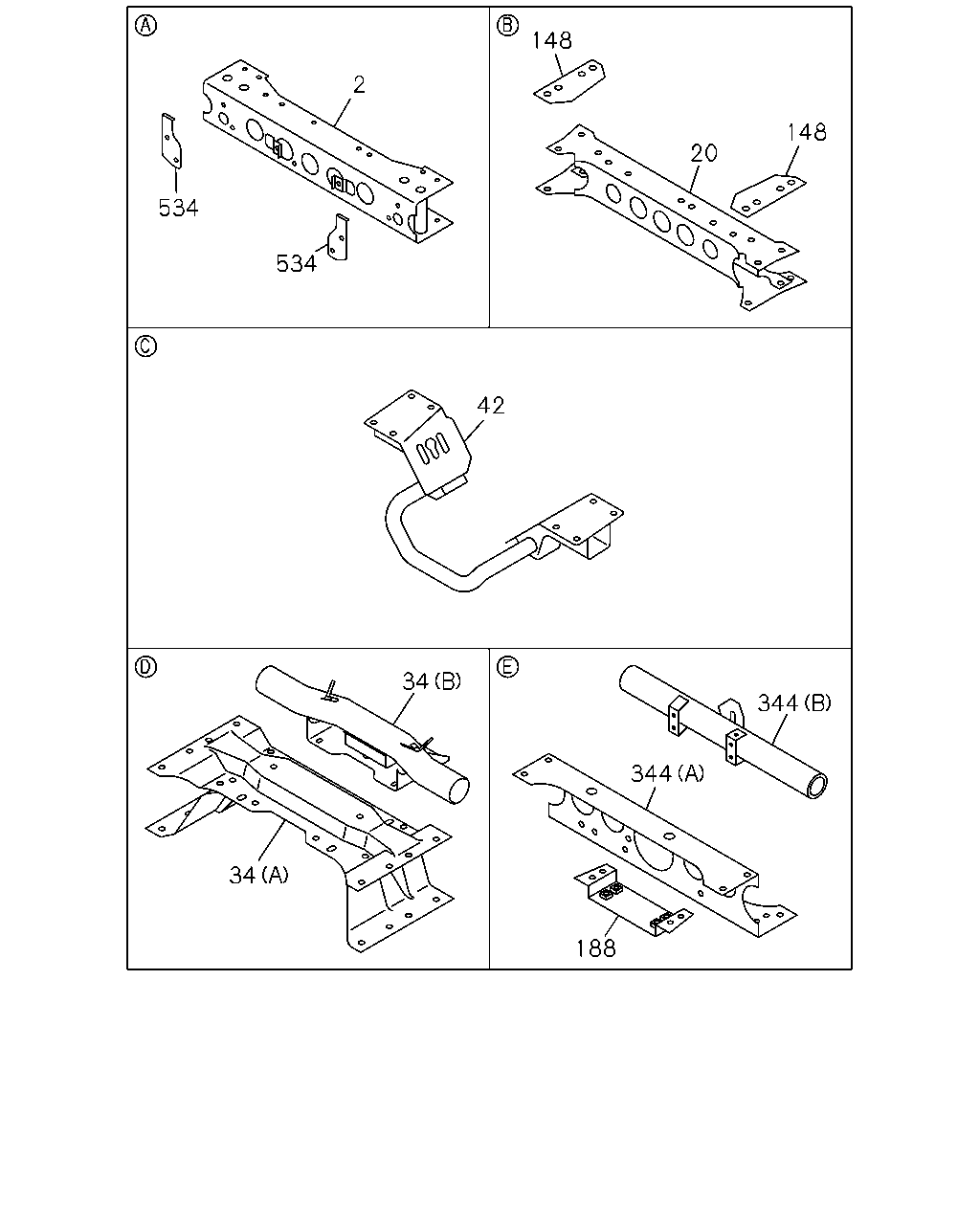

534 2 534 42 34 34 344 344 188 148 20 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97384-741-5	01	1	1012-	●	●
20	MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1012-	●
20	MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1012-	●
20	MEMBER; CROSS,2ND	8-98088-281-1	01	1	1012-		●
34	MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97256-169-0	01	1	1407-1407		●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1012-1301	●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1302-1309	●
34	MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1302-1309		●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1310-1406	●
34	MEMBER; CROSS,3RD HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1310-1406	●
34	MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1310-1406		●
34	MEMBER; CROSS,3RD HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1407-1407	●	●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1407-1407	●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1408-	●
34	MEMBER; CROSS,3RD HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-743-1	01	1	1408-	●
34	MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1408-		●
34	MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98081-959-0	01	1	1012-1301	●
34	MEMBER; CROSS,3RD (A)	8-98081-959-0	01	1	1012-1301		●
34	MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98081-959-0	01	1	1302-1309	●
34	MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1310-	●
42	MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1012-	●
42	MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1012-		●
148	SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1012-1301	●
148	SPACER; C/MBR	8-98081-958-0	04	1	1012-1301		●
148	SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1302-1309	●
148	SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1012-1406		●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-97083-157-1	01	1	1407-1407		●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1408-		●
344	MEMBER; CROSS,4TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98039-740-0	01	1	1407-1407		●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) (A)	8-98005-959-1	01	1	1012-1406		●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98005-959-1	01	1	1407-1407		●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) (A)	8-98005-959-1	01	1	1408-		●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	1012-	●	●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	1012-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 62 67 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28050-820-0	02	1	1302-1309		●
40	BOLT; BRKT TO FRAME HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28050-820-0	02	1	1310-		●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	1012-1406	●	●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	1407-1407	●
60	BOLT; MBR HEAVY DUTY FRAME<6WB> M10X30	0-20851-030-0	04	1	1407-1407		●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	1408-	●	●
62	NUT; MBR M10 FLANGE	0-91180-210-0	04	1	1012-1406	●	●
62	NUT; MBR M10 FLANGE	0-91180-210-0	04	1	1407-1407	●
62	NUT; MBR HEAVY DUTY FRAME<6WB> M10 FLANGE	0-91180-210-0	04	1	1407-1407		●
62	NUT; MBR M10 FLANGE	0-91180-210-0	04	1	1408-	●	●
67	NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-210-0	04	1	1012-	●
67	NUT; C/MBR M10 FLANGE	0-91180-210-0	04	1	1012-		●
118	NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1012-1406		●
118	NUT; STOPPER HEAVY DUTY FRAME<6WB> M8 LOCK NUT	0-91370-008-0	02	1	1407-1407		●
118	NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1408-		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) M10X30 FLANGE	0-28061-030-0	08	1	1302-1406		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> M10X30 FLANGE	0-28061-030-0	08	1	1407-1407		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) M10X30 FLANGE	0-28061-030-0	08	1	1408-		●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	1012-1301	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	1012-1301		●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	1302-1406	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10X30 FLANGE	0-28051-030-0	08	1	1302-1406		●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	1407-1407	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) M10X30 FLANGE	0-28051-030-0	08	1	1407-1407		●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	1408-	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10X30 FLANGE	0-28051-030-0	08	1	1408-		●
376	RIVET; FRAME (A) D8X22 TAPER END	9-06750-822-0	AR	1	1012-	●	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	1012-	●	●
376	RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1012-	●	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1012-	●	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1012-	●	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1012-	●	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1012-	●	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1012-	●	●
376	RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1012-	●	●
376	RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1012-	●	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	1012-	●	●
376	RIVET; FRAME (L) D12X32 TAPER END	9-06751-232-0	AR	1	1012-	●	●
376	RIVET; FRAME (M) D12X34 TAPER END	9-06751-234-0	AR	1	1012-	●	●
376	RIVET; FRAME (N) D12X36 TAPER END	9-06751-236-0	AR	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
