◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#54522) — 14 parça

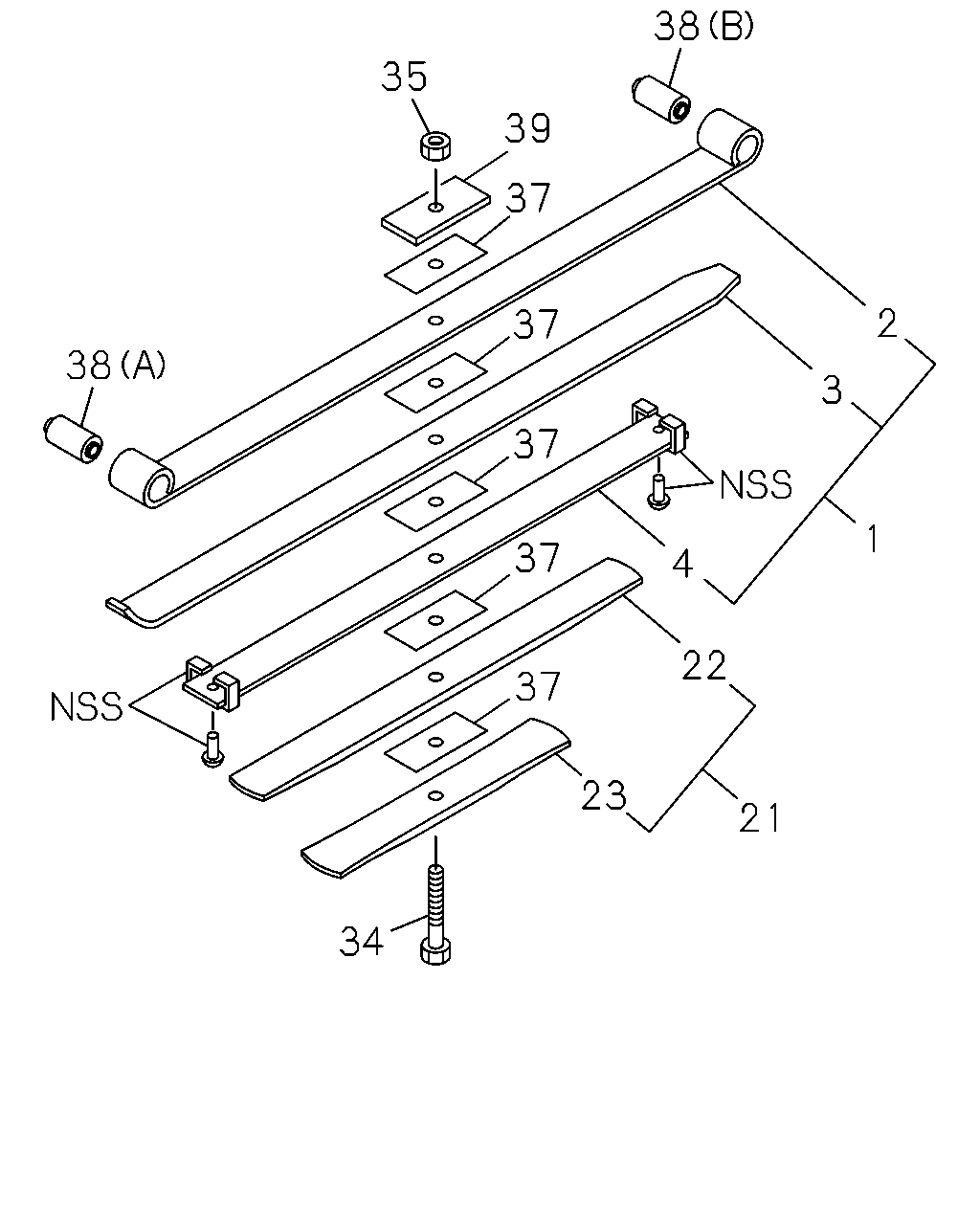

çizim 174988
35 39 38 37 37 37 37 37 23 22 4 21 1 3 2 38 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-551-1 		8-98040-838-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-551-1 		8-98040-839-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-551-1 		8-98040-840-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-551-1 		8-98040-841-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-551-1 		8-98040-842-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-551-1 		8-98040-843-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-551-1 		8-98040-844-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=100 ASM PART: A = 8-98001-551-1 		8-98037-586-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98001-551-1 		9-99110-512-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98001-551-1 		8-94448-734-0 05 1 -
38 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98001-551-1 		5-87610-162-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-551-1 		8-94130-354-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=85.2 ASM PART: A = 8-98001-551-1 		8-97034-380-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-98001-551-1 		8-94407-146-0 01 1 -
