◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#54521) — 14 parça

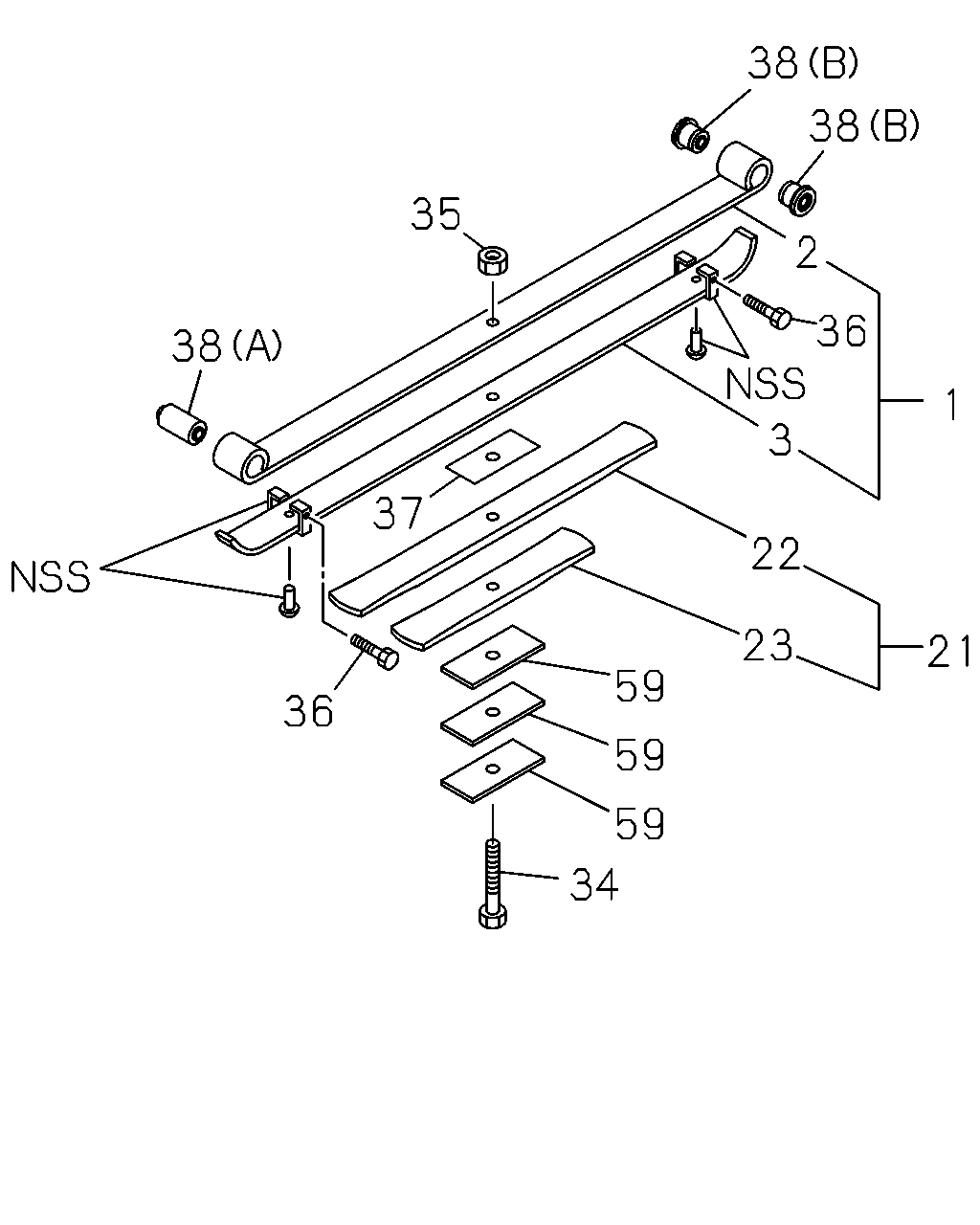

çizim 174994
38 35 38 36 2 3 1 22 23 21 59 59 59 34 36 37 38
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98032-760-0 		8-98042-366-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98032-760-0 		8-98042-367-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98032-760-0 		8-98042-368-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98032-760-0 		8-98042-369-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98032-760-0 		8-98042-370-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98032-760-0 		8-98042-371-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-98032-760-0 		8-98040-307-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98032-760-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98032-760-0 		8-98040-331-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98032-760-0 		8-97084-102-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98032-760-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98032-760-0 		8-97074-826-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98032-760-0 		8-97374-410-0 02 1 -
59 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-98032-760-0 		1-51177-242-0 03 1 -
