◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#54520) — 34 parça

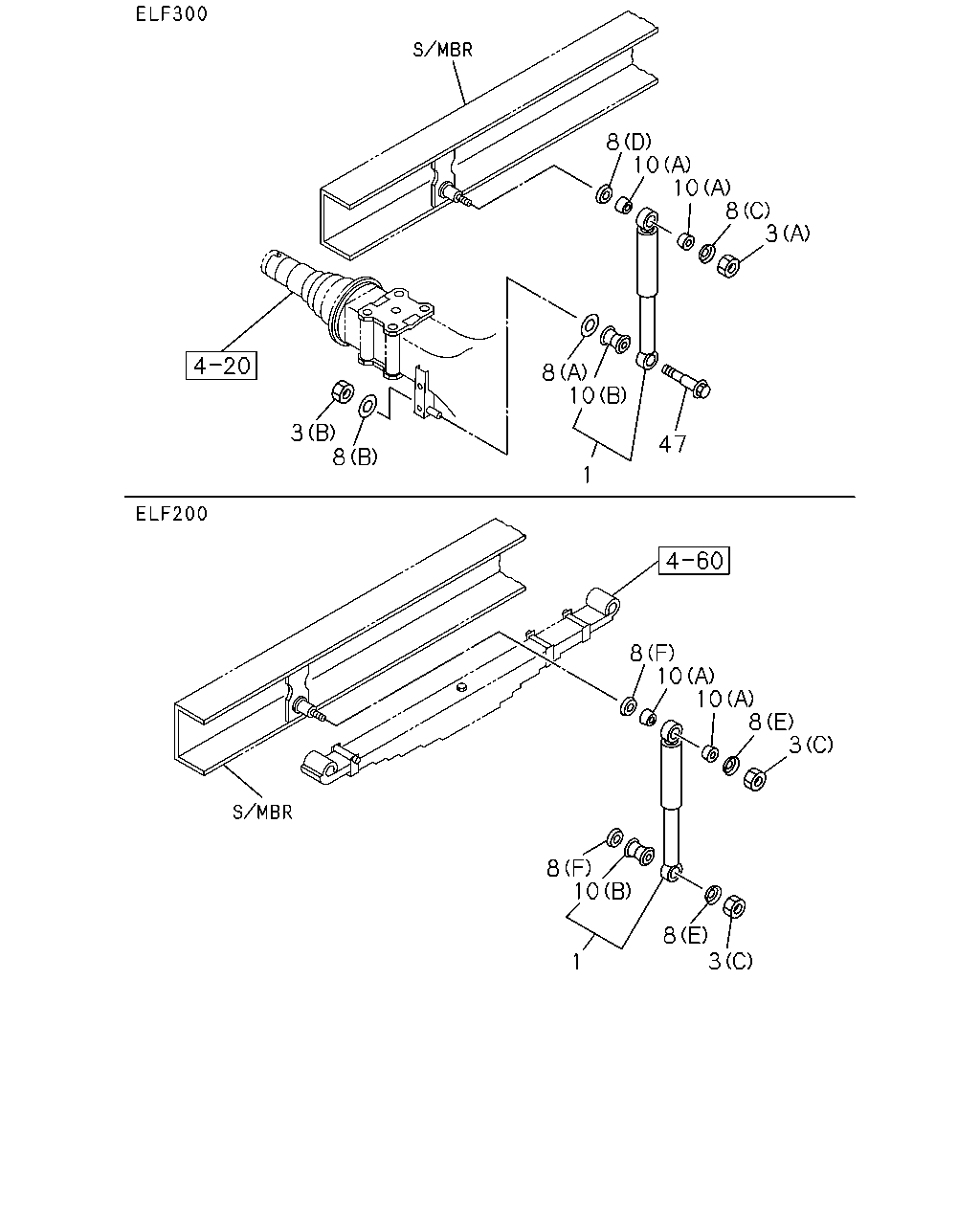

çizim 175004
8 10 10 8 3 8 10 3 8 47 1 8 10 10 8 3 8 10 8 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 		8-97253-645-1 02 1 1408-1408 ●
1 ABSORBER ASM; SHOCK,RR 8-98018-780-1 02 1 1012-1506 ●
1 ABSORBER ASM; SHOCK,RR 8-98316-232-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1012-1506 ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506 ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507- ●
3 NUT; S/ABS
(C) M12 		0-91110-512-0 02 1 1012- ●
3 NUT; S/ABS
(C) M12 		0-91110-512-0 02 1 1012- ●
3 NUT; S/ABS
REAR WIDE TREAD(V4T) (B) M16 		0-91111-516-0 02 1 1012- ●
3 NUT; S/ABS
(A) M14 		0-91110-514-0 02 1 1012-1406 ●
3 NUT; S/ABS
(A) M14 		0-91110-514-0 02 1 1407-1407 ●
3 NUT; S/ABS
FRAME-KICK UP<7EW> (A) M14 		0-91110-514-0 02 1 1407-1407 ●
3 NUT; S/ABS
(A) M14 		0-91110-514-0 02 1 1408- ●
8 WASHER; S/ABS
(F) ID=16.5 		9-51679-021-0 02 1 1012- ●
8 WASHER; S/ABS
(F) ID=16.5 		9-51679-021-0 02 1 1012- ●
8 WASHER; S/ABS
(E) ID=12.5 		9-51679-022-0 02 1 1012- ●
8 WASHER; S/ABS
(E) ID=12.5 		9-51679-022-0 02 1 1012- ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (A) ID=16.4 		8-97360-118-0 02 1 1012- ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (B) ID=16.5 		8-98011-489-0 02 1 1012- ●
8 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1012-1406 ●
8 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1407-1407 ●
8 WASHER; S/ABS
FRAME-KICK UP<7EW> (C) ID=15 		8-97360-056-0 02 1 1407-1407 ●
8 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1408- ●
8 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 1012-1406 ●
8 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 1407-1407 ●
8 WASHER; S/ABS
FRAME-KICK UP<7EW> (D) ID=20.0 		8-97360-057-0 02 1 1407-1407 ●
8 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 1408- ●
10 BUSHING; RUBBER,S/ABS
(A) KYB 		8-94132-727-1 04 1 1012- ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94224-694-0 02 1 1012- ●
10 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1012-1407 ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1408-1408 ●
10 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1408- ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1012- ●
47 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
