4-50 — FRONT SUSPENSION (#54517) — 154 parça

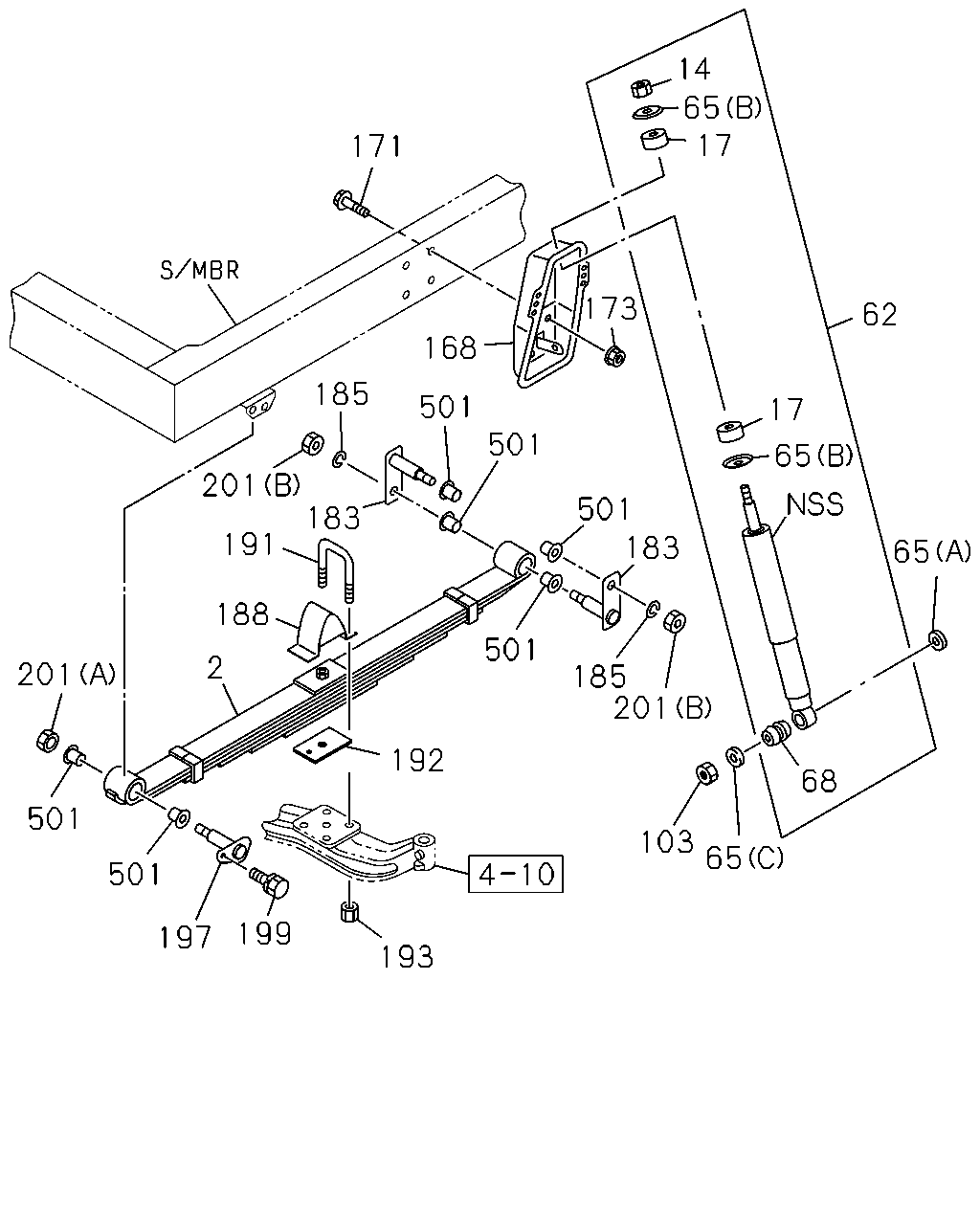

171 14 17 65 62 65 65 17 173 168 501 501 501 185 201 103 65 192 188 191 201 2 201 501 501 197 199 193 183 185 183 501 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME-KICK UP<7EW> 5-LEAF	8-98079-897-0	01	1	1407-1407	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME-KICK UP<7EW> 5-LEAF	8-98079-898-0	01	1	1407-1407	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF	8-98079-885-0	01	1	1012-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF	8-98079-887-0	01	1	1012-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98001-533-0	01	1	1012-1406	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRAME-KICK UP<7EW> 6-LEAF	8-98001-533-0	01	1	1407-1407	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98001-533-0	01	1	1408-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-881-0	01	1	1012-1406	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRAME-KICK UP<7EW> 6-LEAF	8-98079-881-0	01	1	1407-1407	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-881-0	01	1	1408-	●
14	NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10	8-94317-772-0	02	1	1012-		●
14	NUT; S/ABS,UPR M10	8-94317-772-0	02	1	1012-	●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1012-1201		●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-		●
17	BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1012-		●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1012-	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	1012-1201		●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506		●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-709-1	02	1	1012-1506		●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	1012-1506	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506		●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98316-235-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT	8-98316-235-0	02	1	1507-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	1012-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10.5 OD=38	9-51631-062-0	04	1	1012-		●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	1012-	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1012-		●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1012-	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	9-09164-616-0	02	1	1012-1012		●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	1012-1012	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-		●
65	WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1012-	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1012-1201		●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-		●
68	BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	8-94224-694-0	02	1	1012-		●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	1012-	●
103	NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) M14	0-91110-514-0	02	1	1012-		●
103	NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) M12	0-91111-512-0	02	1	1012-		●
103	NUT; S/ABS TO LWR LINK M12	0-91111-512-0	02	1	1012-	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-082-1	01	1	1012-		●
168	BRACKET; S/ABS,FRT SUSP	8-98002-082-1	01	1	1012-	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	1012-		●
168	BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	1012-	●
168	BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98002-080-1	01	1	1012-		●
168	BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98002-081-0	01	1	1012-		●
171	BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28651-030-0	08	1	1012-		●
171	BOLT; S/ABS BRKT M10X30 FLANGE	0-28651-030-0	08	1	1012-	●
173	NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-110-0	08	1	1012-		●
173	NUT; S/ABS M10 FLANGE	0-91180-110-0	08	1	1012-	●
183	SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-341-0	04	1	1012-		●
183	SHACKLE; FRT SUSP	8-98034-341-0	04	1	1012-	●
185	WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5	8-98011-489-0	04	1	1012-		●
185	WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	1012-	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1012-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1012-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1012-	●
191	U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) REAR L=105	8-97304-074-1	02	1	1012-		●
191	U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) FRONT L=115	8-97304-075-1	02	1	1012-		●
191	U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-1	04	1	1012-		●
191	U-BOLT; FRT SPR L=105	8-97304-074-1	04	1	1012-	●
192	PIECE; DIST EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94249-413-1	02	1	1012-		●
193	NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) M14 FLANGE	8-97360-124-0	08	1	1012-		●
193	NUT; U BOLT M14 FLANGE	8-97360-124-0	08	1	1012-	●
197	PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94117-900-1	02	1	1012-		●
197	PIN; FRT SPR,FRT	8-94117-900-1	02	1	1012-	●
199	BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X25 FLANGE	0-28651-025-0	02	1	1012-		●
199	BOLT M10X25 FLANGE	0-28651-025-0	02	1	1012-	●
201	NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M16	0-91110-516-0	04	1	1012-		●
201	NUT; PIN LK (B) M16	0-91110-516-0	04	1	1012-	●
201	NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE	8-97360-125-0	02	1	1012-		●
201	NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	1012-	●
501	BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97081-531-0	04	1	1012-1301		●
501	BUSHING; LEAF SPR,FRT	8-97081-531-0	04	1	1012-1301	●
501	BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97081-531-0	12	1	1302-		●
501	BUSHING; LEAF SPR,FRT	8-97081-531-0	12	1	1302-	●
501	BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97081-531-0	08	1	1012-1301		●
501	BUSHING; LEAF SPR,FRT	8-97081-531-0	08	1	1012-1301	●

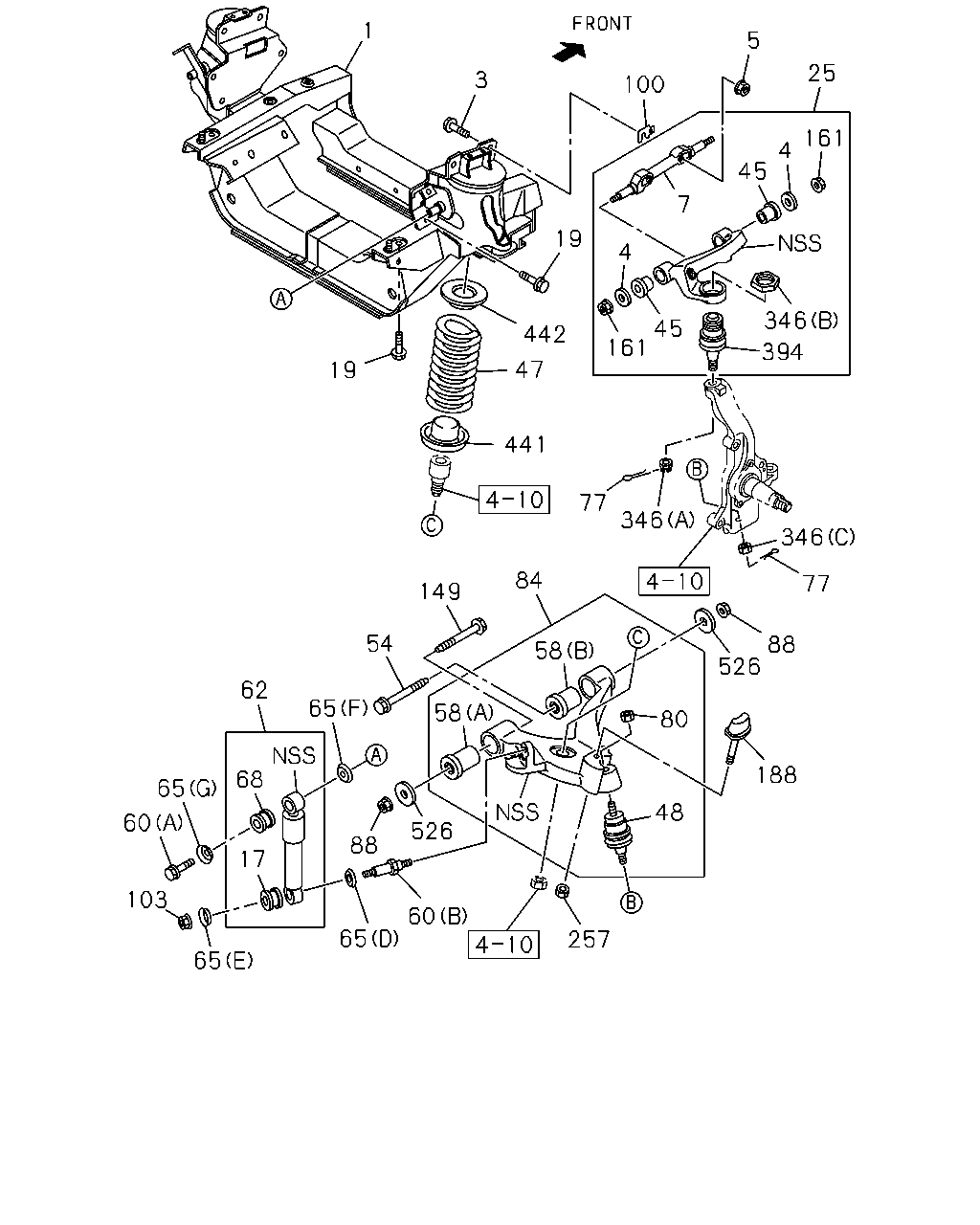

1 3 19 47 442 19 161 45 4 7 100 5 161 4 45 346 346 394 346 77 88 526 188 80 48 58 58 149 54 84 77 441 62 68 17 88 65 526 60 257 103 60 65 65 65 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98021-830-1	01	1	1012-1306		●
1	MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98247-588-0	01	1	1307-		●
3	BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16X70 FLANGE	0-28861-670-0	04	1	1012-		●
4	WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	1012-		●
5	NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1012-		●
7	PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	1012-		●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1012-1201		●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-		●
17	BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1012-		●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1012-	●
19	BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28661-230-0	14	1	1012-		●
25	ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-652-0	01	1	1012-		●
25	ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-653-0	01	1	1012-		●
45	BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	1012-		●
47	SPRING; COIL,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-97357-109-1	02	1	1012-		●
48	JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97142-452-1	02	1	1012-		●
54	PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-825-1	02	1	1012-		●
58	BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94336-509-1	02	1	1012-		●
58	BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-049-1	02	1	1012-		●
60	BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A) M10X20 FLANGE	0-28651-020-0	02	1	1012-		●
60	BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97145-460-0	02	1	1012-		●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	1012-1201		●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506		●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-709-1	02	1	1012-1506		●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	1012-1506	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506		●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98316-235-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT	8-98316-235-0	02	1	1507-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	1012-		●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	1012-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10.5 OD=38	9-51631-062-0	04	1	1012-		●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	1012-	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1012-		●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1012-	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	9-09164-616-0	02	1	1012-1012		●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	1012-1012	●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-		●
65	WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1012-	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1012-1201		●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-		●
68	BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	8-94224-694-0	02	1	1012-		●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	1012-	●
77	PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=30	0-81124-030-0	04	1	1012-		●
80	NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M16	0-91111-516-0	02	1	1012-		●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-259-0	01	1	1012-1508		●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-120-0	01	1	1509-		●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-260-0	01	1	1012-1508		●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-121-0	01	1	1509-		●
88	NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) M22	0-91110-522-0	04	1	1012-		●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	1012-		●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	1012-		●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	1012-		●
103	NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) M14	0-91110-514-0	02	1	1012-		●
103	NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) M12	0-91111-512-0	02	1	1012-		●
103	NUT; S/ABS TO LWR LINK M12	0-91111-512-0	02	1	1012-	●
149	BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-98021-826-1	02	1	1012-		●
161	NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1012-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1012-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1012-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1012-	●
257	NUT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-210-0	02	1	1012-		●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (C) M22	0-91111-522-0	02	1	1012-		●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED	8-97245-632-0	02	1	1012-		●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98158-133-0	02	1	1012-		●
394	END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	1012-		●
441	SEAT; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-580-2	02	1	1012-		●
442	INSULATOR; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-550-1	02	1	1012-		●
526	WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) ID=23	0-91614-522-0	04	1	1012-		●
