◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#54516) — 20 parça

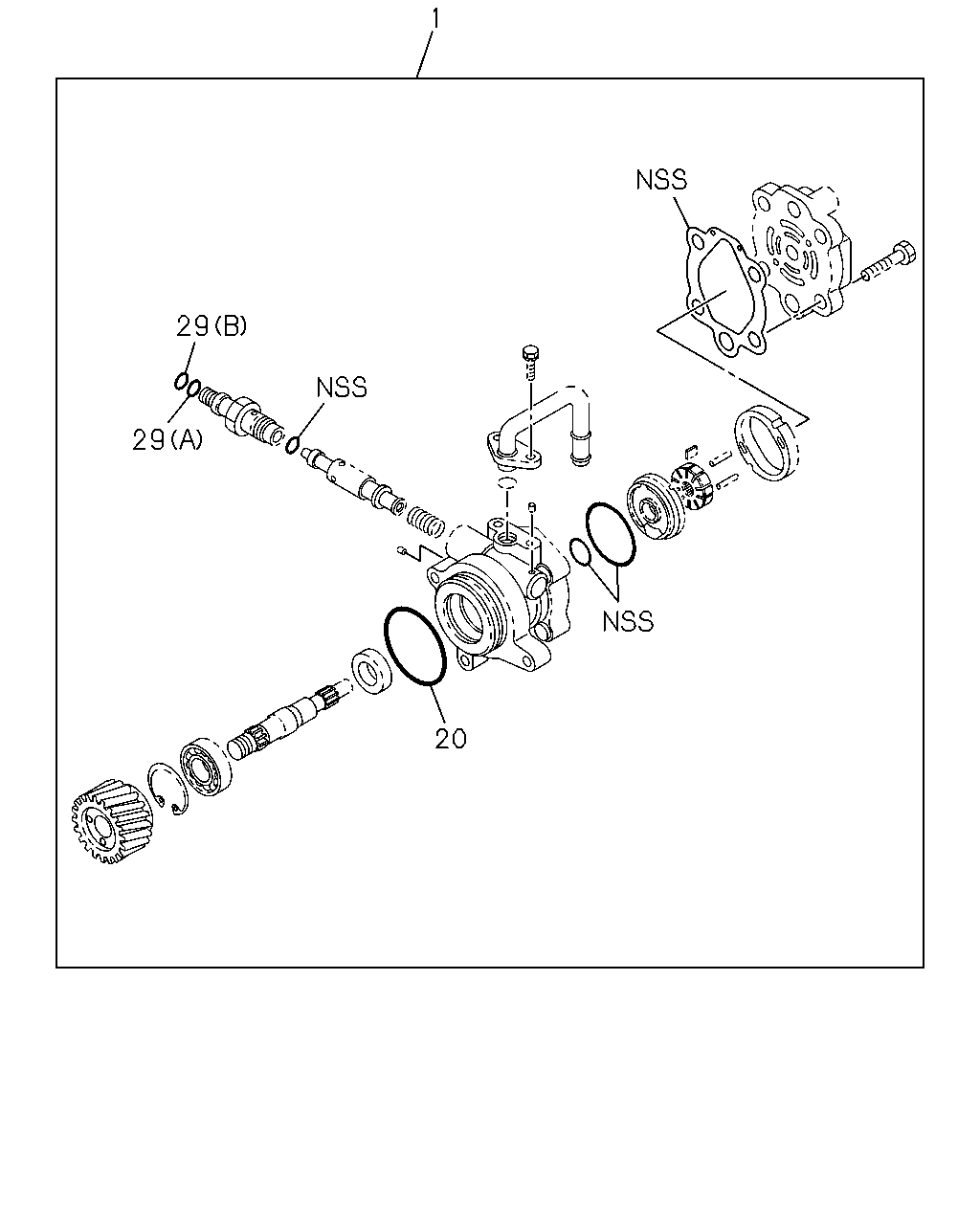

çizim 174986
1 29 29 20
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98159-585-0 01 1 -
20 GASKET; FRT,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-424-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-421-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-422-0 01 1 -

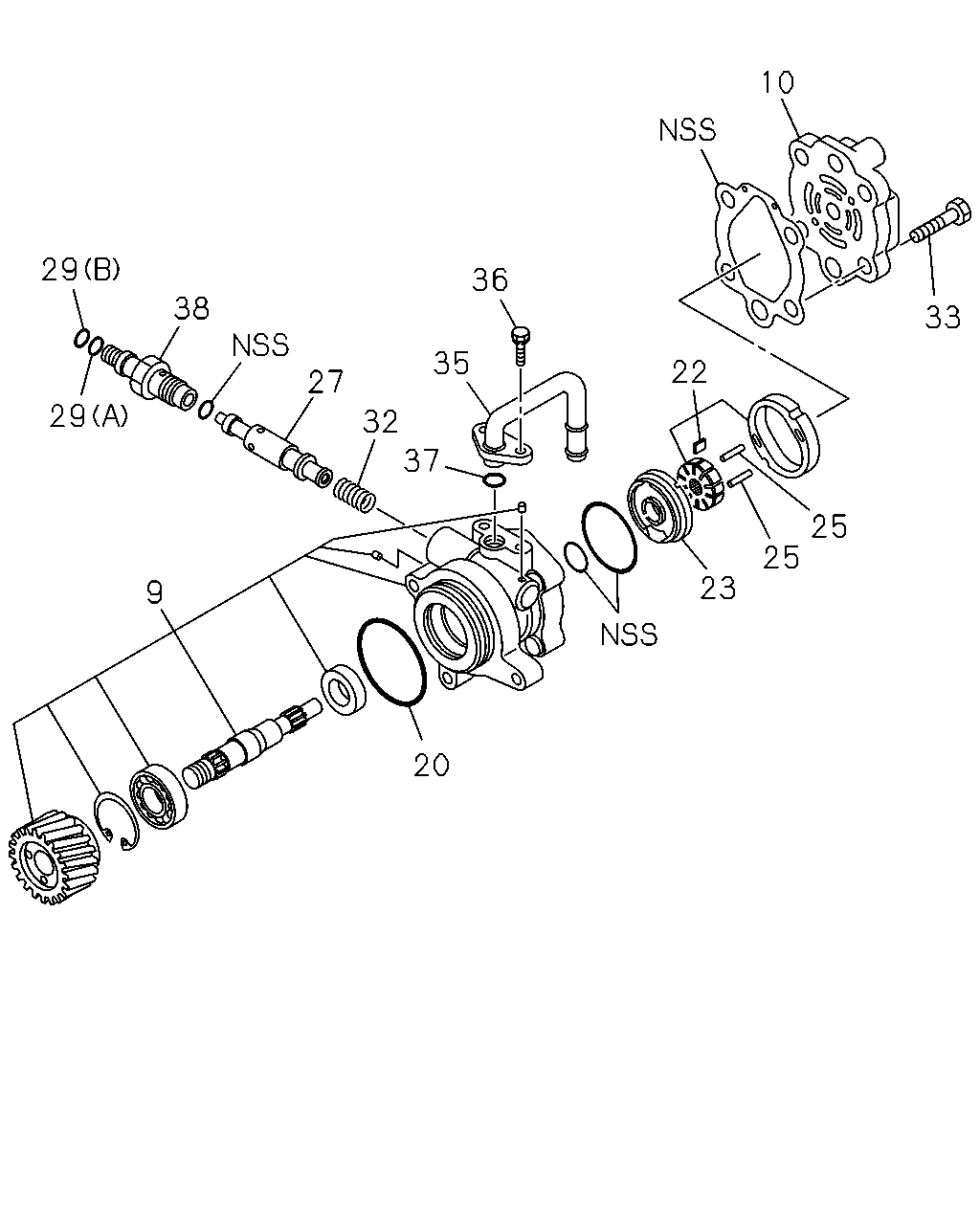

çizim 174997
10 29 36 38 33 35 22 27 29 32 37 25 25 23 9 20
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-428-1 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98159-587-0 01 1 -
20 GASKET; FRT,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-424-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-406-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-404-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-412-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-409-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-421-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-422-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-411-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-385-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98006-823-4 		8-98061-415-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: B = 8-98043-205-4 		8-98061-419-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-418-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-417-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-98006-823-4, B = 8-98043-205-4 		8-98061-407-0 01 1 -
