4-40 — STEERING UNIT (#54514) — 34 parça

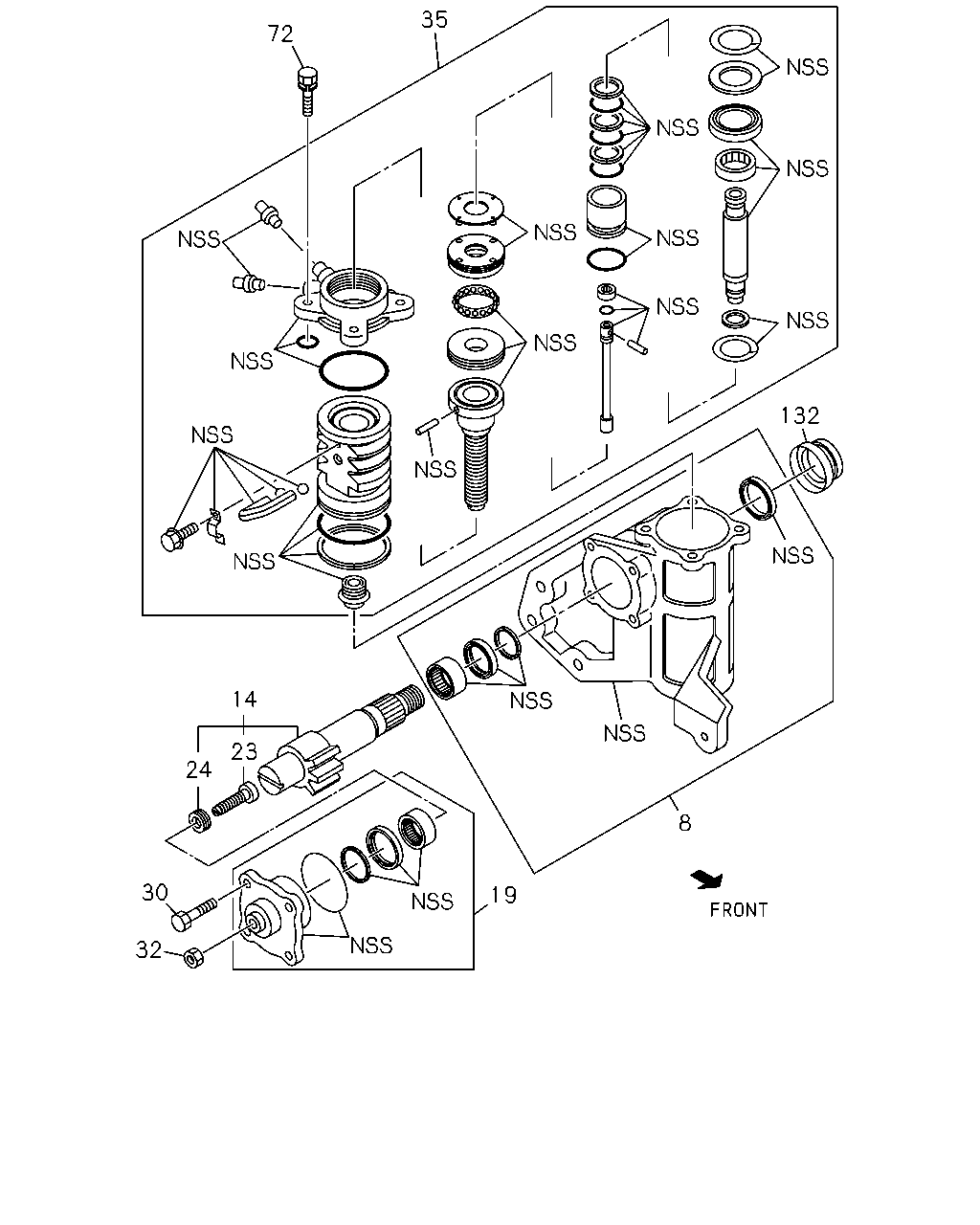

çizim 174993
35 72 132 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98101-308-0 01 1 -1309
8 BOX ASM; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98101-308-0 01 1 1309-
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98061-393-0 01 1 -1309
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98061-393-0 01 1 1309-
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-333-0 01 1 -1309
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-333-0 01 1 1309-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97014-842-0 01 1 1309-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97014-842-0 01 1 -1309
24 RETAINER; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97014-841-0 01 1 -1309
24 RETAINER; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97014-841-0 01 1 1309-
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-336-0 04 1 1309-
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-336-0 04 1 -1309
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-337-0 01 1 -1309
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-337-0 01 1 1309-
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98112-932-3 01 1 1309-
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98112-932-3 01 1 -1309
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-336-0 04 1 -1309
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98101-298-3 		8-98036-336-0 04 1 1309-
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97076-372-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97076-372-0 01 1 1309-

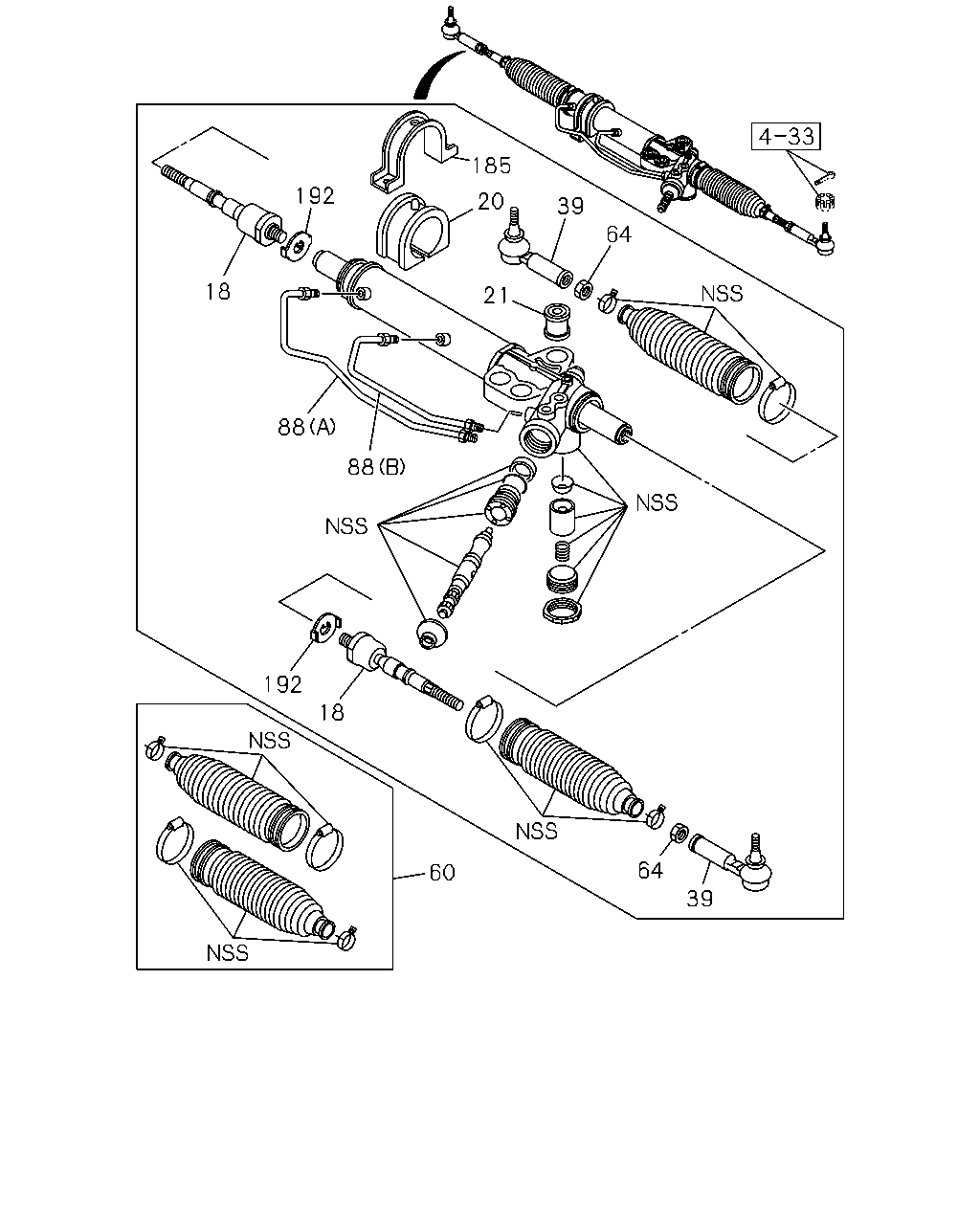

çizim 174998
185 192 20 39 64 18 21 88 88 192 18 64 60 39
BalonParca AdiParca NoAdetTipApplied Date
18 ROD ASM; INNER
ASM PART: A = 8-97388-318-2 		8-98048-487-0 02 1 -
20 RUBBER; MTG
ASM PART: A = 8-97388-318-2 		8-98061-373-0 01 1 -
21 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97388-318-2 		8-98061-372-0 03 1 -
39 ROD END ASM; OUTER
ASM PART: A = 8-97388-318-2 		8-98008-838-0 02 1 -
60 BOOT KIT; STRG HSG
ASM PART: A = 8-97388-318-2 		8-97357-199-0 01 1 -
64 NUT; ROD END OUTER TO INNER
M18 ASM PART: A = 8-97388-318-2 		0-91111-518-0 02 1 -
88 PIPE; HSG TO VLV
(B) ASM PART: A = 8-97388-318-2 		8-98051-924-0 01 1 -
88 PIPE; HSG TO VLV
(A) ASM PART: A = 8-97388-318-2 		8-98051-925-0 01 1 -
185 BRACKET; P/S
ASM PART: A = 8-97388-318-2 		8-97373-370-0 01 1 -
192 WASHER; LK,JOINT
ASM PART: A = 8-97388-318-2 		8-97357-196-0 02 1 -

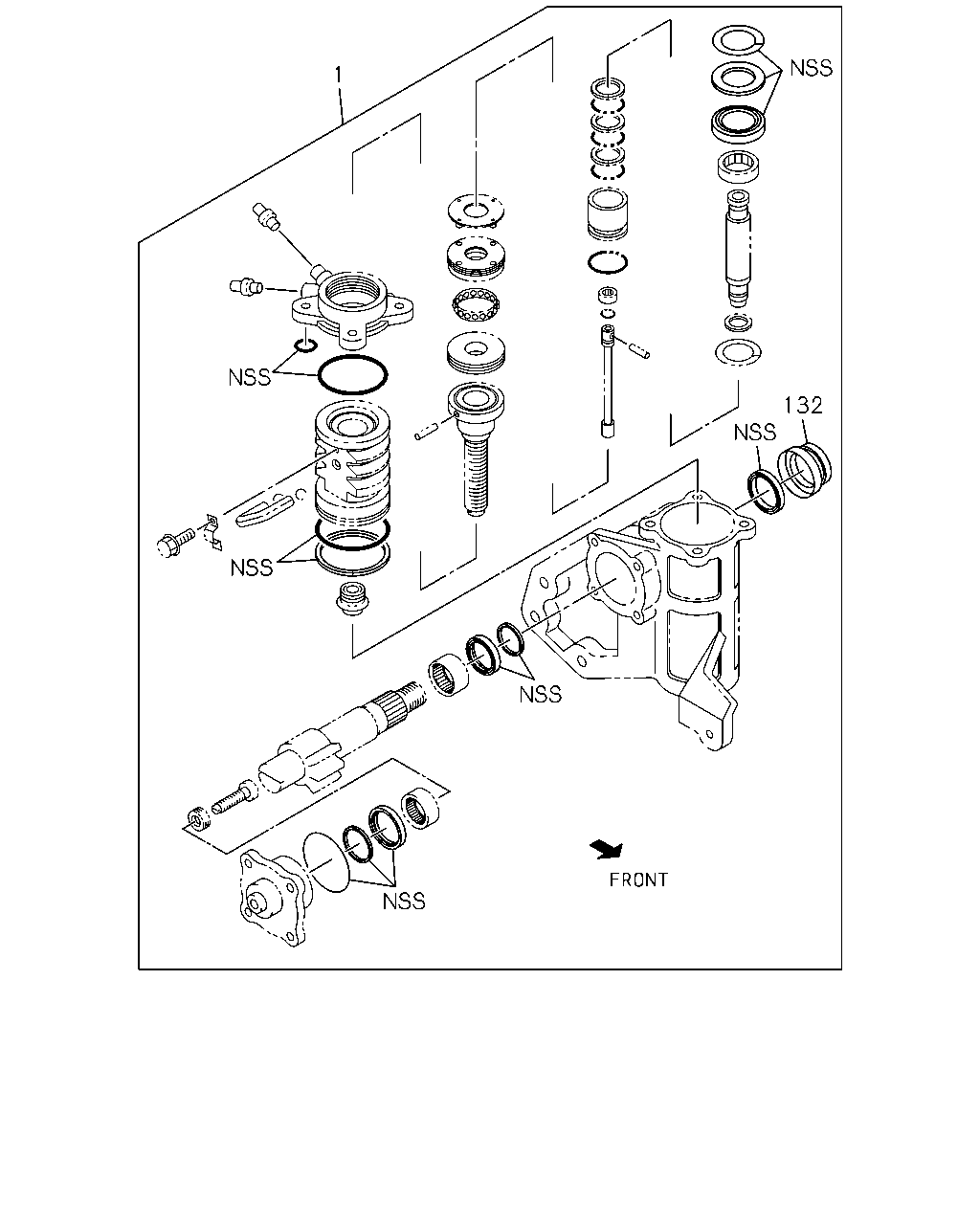

çizim 175003
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98101-298-3 		8-98171-736-0 01 1 1309-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98101-298-3 		8-98171-736-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97076-372-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-298-3 		8-97076-372-0 01 1 1309-
