Sayfa 4-35 - Isuzu EPC

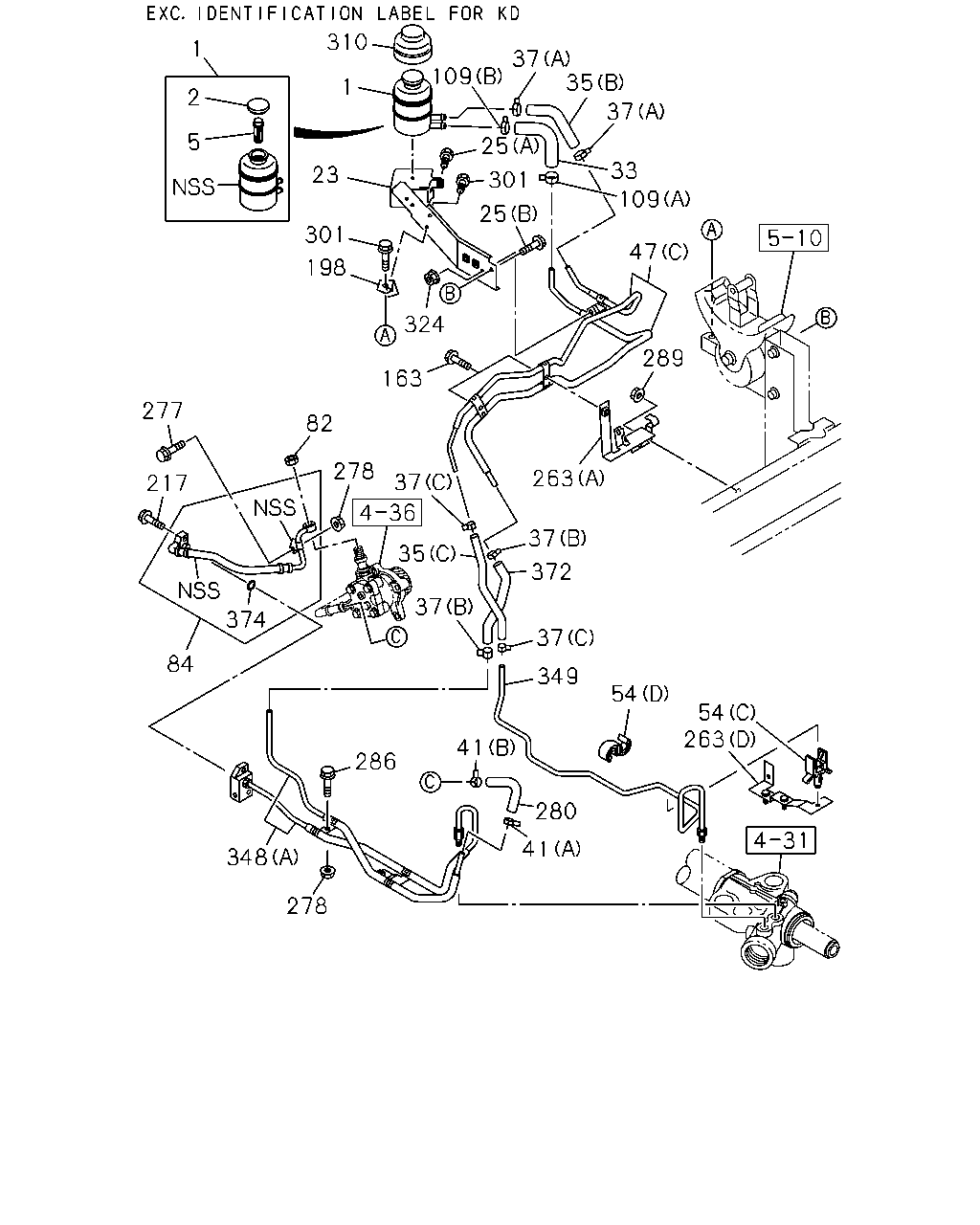

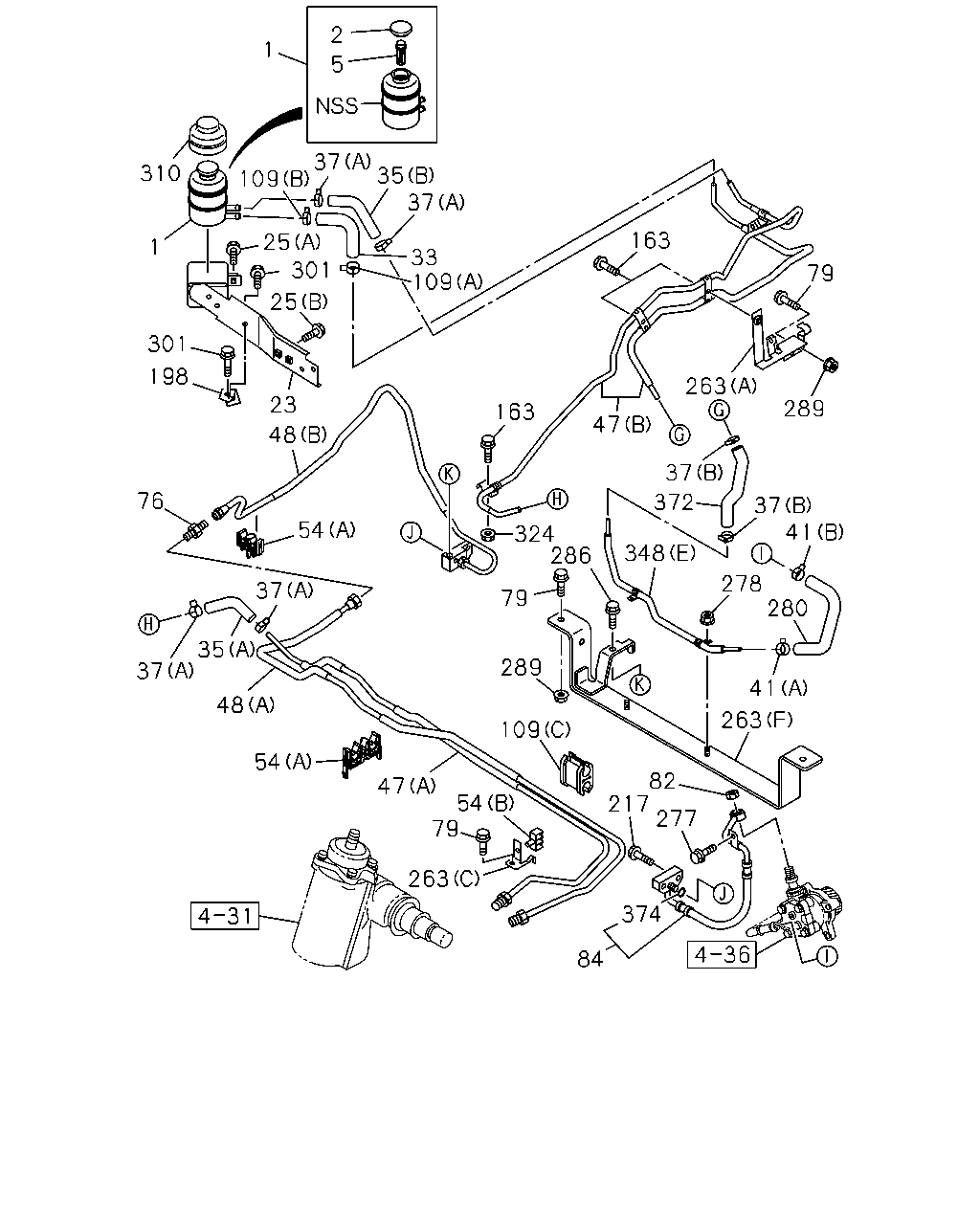

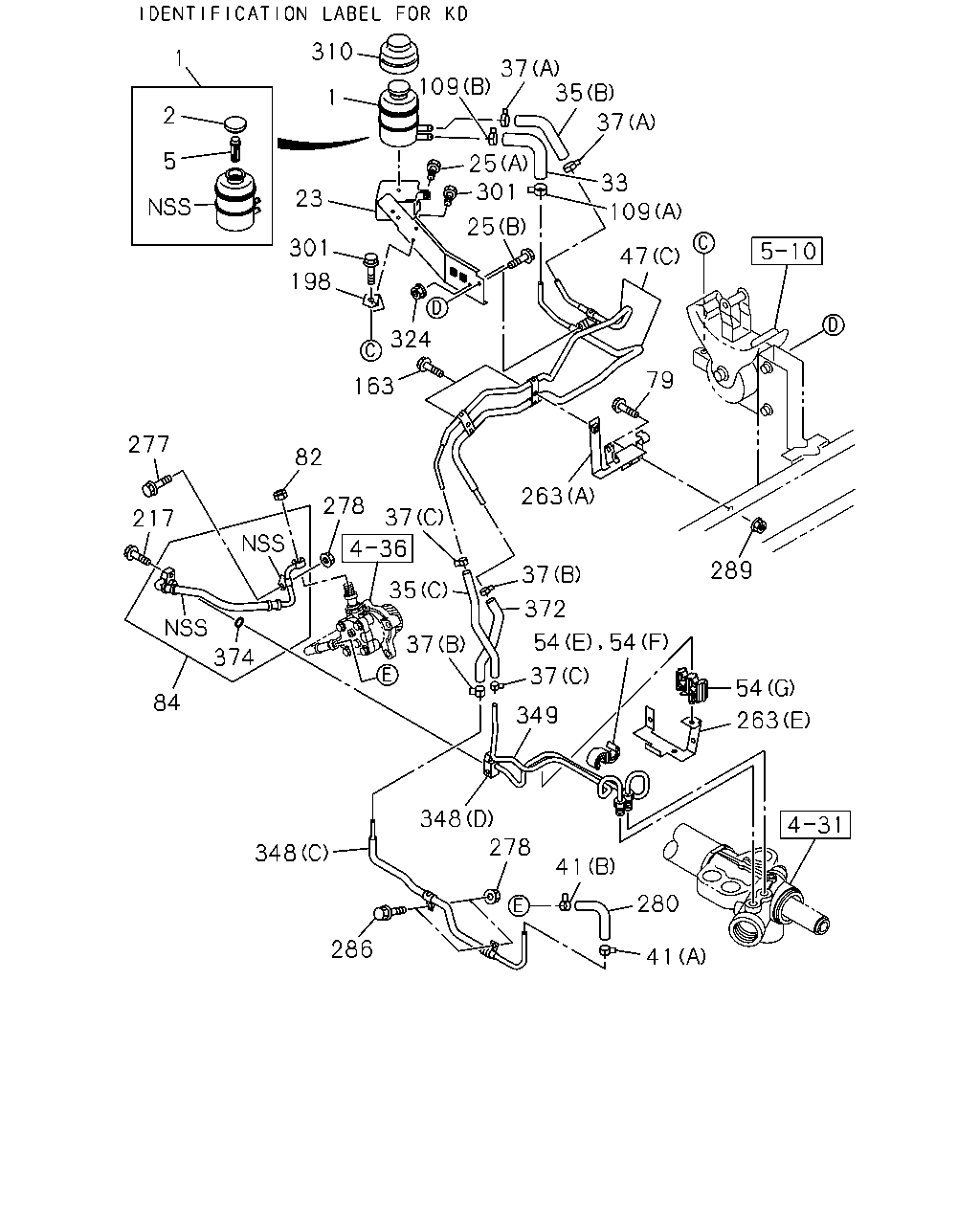

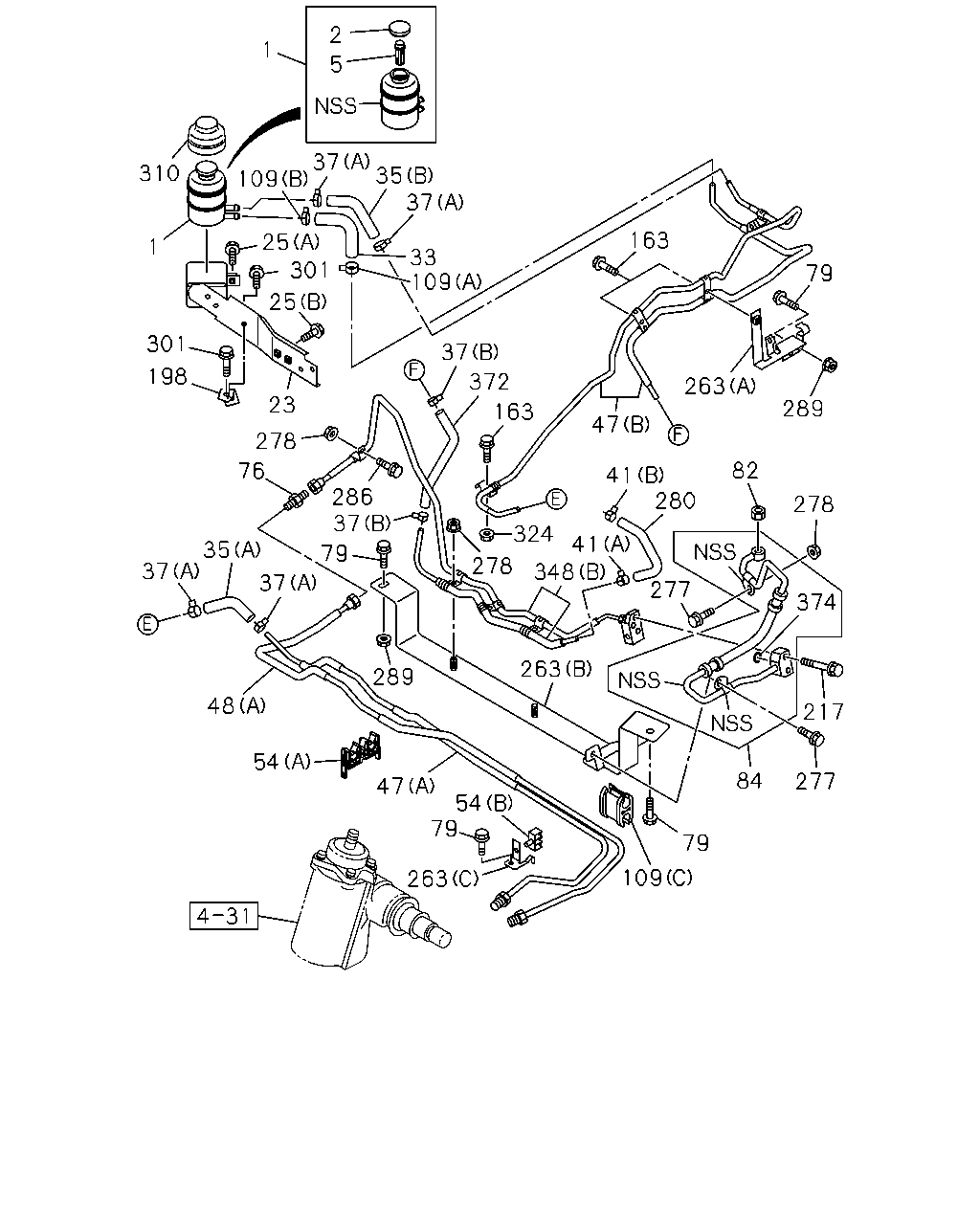

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#54512) — 437 parça

1 37 5 2 35 33 37 109 37 372 163 263 289 79 47 280 41 82 374 278 277 217 277 84 79 263 348 41 324 278 37 286 163 109 310 1 301 25 301 25 198 23 76 278 35 37 48 37 79 289 47 79 263 109 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1012-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1012-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1012-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1012-	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	1012-		●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	1012-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1012-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=10 & 10	1-09709-277-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=12 & 15	1-09709-281-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 & 15	1-09709-279-1	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 H=40	8-94462-219-0	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10 H=40	8-94462-219-0	01	1	1101-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-		●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-		●
76	UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	1101-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	1012-	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1012-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1012-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1012-1312	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	1012-1312		●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1101-	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-		●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1012-1012		●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1101-	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98138-713-1	01	1	1012-1012	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1101-	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1012-	●	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1012-	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1012-		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1012-1312	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1012-1312		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1012-1312		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-1012	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1012-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	1012-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98138-593-1	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98156-813-0	01	1	1101-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-170-3	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS (B)	8-98047-170-3	01	1	1012-1012		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS (B)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1101-	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1101-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	1012-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-	●	●

310 1 37 109 35 1 2 37 5 25 33 23 301 109 25 301 47 198 324 289 163 277 82 278 263 37 217 37 35 372 37 374 37 84 349 54 54 263 41 286 280 41 348 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1012-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1012-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1012-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1012-	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	1012-		●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=10 & 10	1-09709-277-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=12 & 15	1-09709-281-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 & 15	1-09709-279-1	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 H=40	8-94462-219-0	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10 H=40	8-94462-219-0	01	1	1101-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-		●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1012-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1012-1312	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	1012-1312		●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1101-	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-		●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1012-1012		●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1101-	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98138-713-1	01	1	1012-1012	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1101-	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1012-	●	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1012-	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1012-		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1012-1312	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1012-1312		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1012-1312		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-1012	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1012-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	1012-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98138-593-1	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98156-813-0	01	1	1101-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-170-3	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS (B)	8-98047-170-3	01	1	1012-1012		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS (B)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1101-	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1101-	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1101-	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98148-146-0	01	1	1012-1012	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1101-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	1012-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-	●	●

310 1 37 109 35 1 2 37 5 25 301 33 109 23 25 301 47 198 324 79 163 277 82 263 278 37 217 289 37 35 372 37 374 37 54 84 349 263 348 278 348 41 280 286 41 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1012-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1012-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1012-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1012-	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	1012-		●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=10 & 10	1-09709-277-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=12 & 15	1-09709-281-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 & 15	1-09709-279-1	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 H=40	8-94462-219-0	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10 H=40	8-94462-219-0	01	1	1101-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-		●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	1101-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	1012-	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1012-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1012-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1012-1312	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	1012-1312		●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1101-	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-		●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1012-1012		●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1101-	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98138-713-1	01	1	1012-1012	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1101-	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1012-	●	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1012-	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1012-		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1012-1312	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1012-1312		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1012-1312		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-1012	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1012-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	1012-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98138-593-1	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98156-813-0	01	1	1101-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-170-3	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS (B)	8-98047-170-3	01	1	1012-1012		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS (B)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1101-	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1101-	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1101-	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98148-146-0	01	1	1012-1012	●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1101-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	1012-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-	●	●

280 37 289 263 163 47 163 324 37 348 79 289 109 82 263 277 217 374 84 263 54 47 79 54 48 35 37 76 23 198 301 48 54 37 25 301 25 1 310 1 2 109 37 33 37 35 109 278 41 41 79 372 5 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1012-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1012-	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1012-		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	1012-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1012-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1012-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1012-	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	1012-		●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	1012-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1012-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=10 & 10	1-09709-277-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=12 & 15	1-09709-281-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 & 15	1-09709-279-1	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1101-	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 H=40	8-94462-219-0	01	1	1012-1012	●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10 H=40	8-94462-219-0	01	1	1101-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-		●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1012-		●
76	UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1012-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	1101-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	1012-	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1012-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1012-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1012-1312	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	1012-1312		●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1012-	●	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1012-1012	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-	●	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1101-	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1101-		●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	1012-1012	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1012-1012		●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1012-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1101-	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98138-713-1	01	1	1012-1012	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1101-	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1012-	●	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1012-	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1012-		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1012-1312	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1012-1312		●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-1312	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1012-1312		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-1012	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	1101-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	1012-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	1012-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1012-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	1012-	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	1012-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98138-593-1	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98156-813-0	01	1	1101-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-170-3	01	1	1012-1012	●
348	PIPE; OIL,P/S PRESS (B)	8-98047-170-3	01	1	1012-1012		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS (B)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98045-722-1	01	1	1101-	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98156-812-0	01	1	1101-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	1012-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
