4-31 — STEERING COLUMN AND SHAFT (#54510) — 59 parça

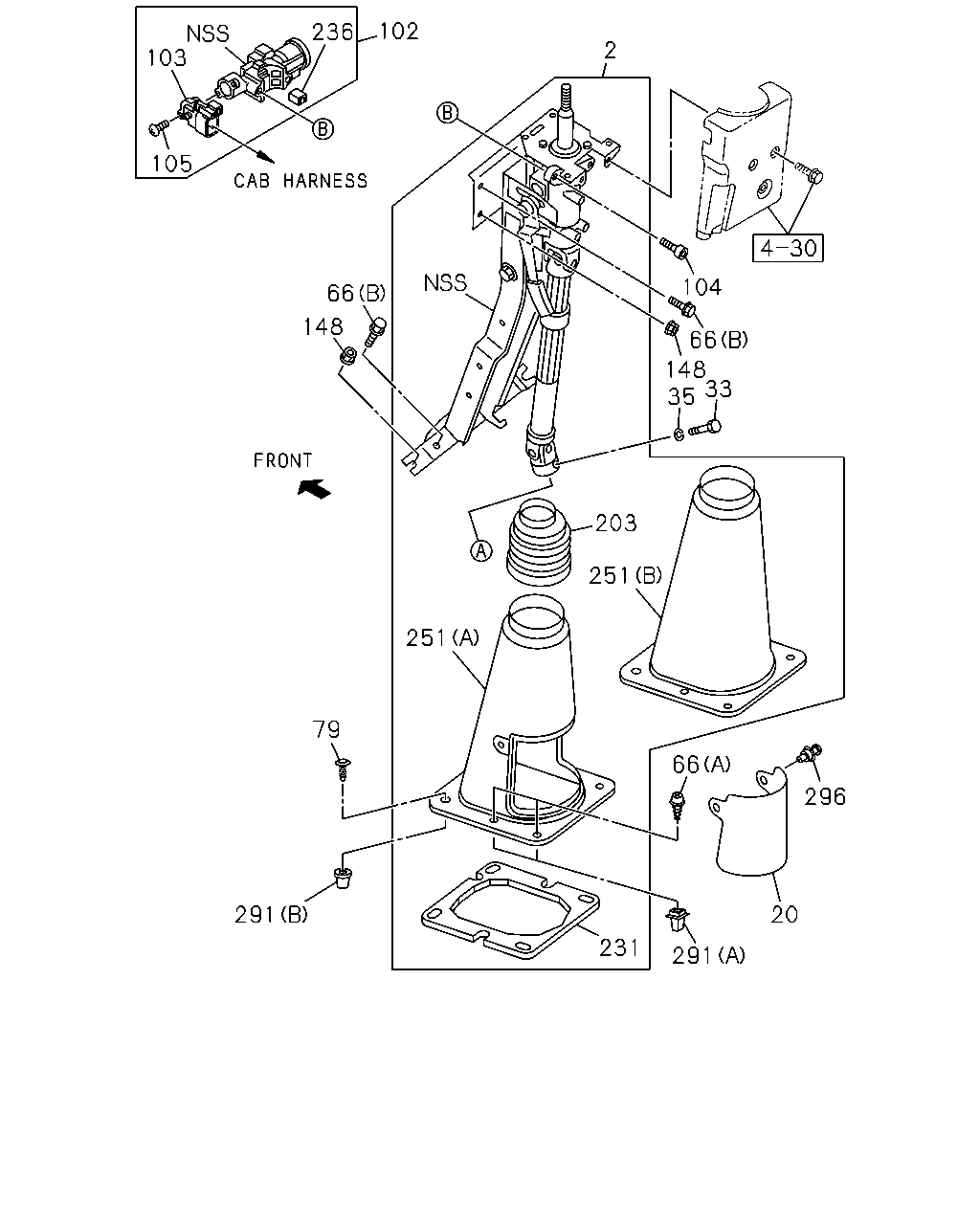

çizim 174976
102 236 103 2 105 104 66 148 66 148 33 35 203 251 251 79 66 296 291 20 231 291
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1012- ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97418-801-2 01 1 1012- ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-801-2 01 1 1012- ●
2 SHAFT ASM; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0),MANUAL TILT CAB<RWZ> BLACK 		8-97405-355-8 01 1 1012- ●
2 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-355-8 01 1 1012- ●
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1012- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1012- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-808-0 01 1 1012- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 1012- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 1012-1112 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK 		8-94363-776-0 02 1 1012- ● ●
102 LOCK ASM; STRG 8-97387-036-0 01 1 1012- ● ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1012- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1012- ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1012- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER 		8-97329-625-0 03 1 1012- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1012- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1012- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1012- ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1012- ● ●
251 COVER; LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0),MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1012- ●
251 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1012- ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 		8-94463-268-1 04 1 1012- ● ●
291 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1012- ● ●
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1012- ● ●

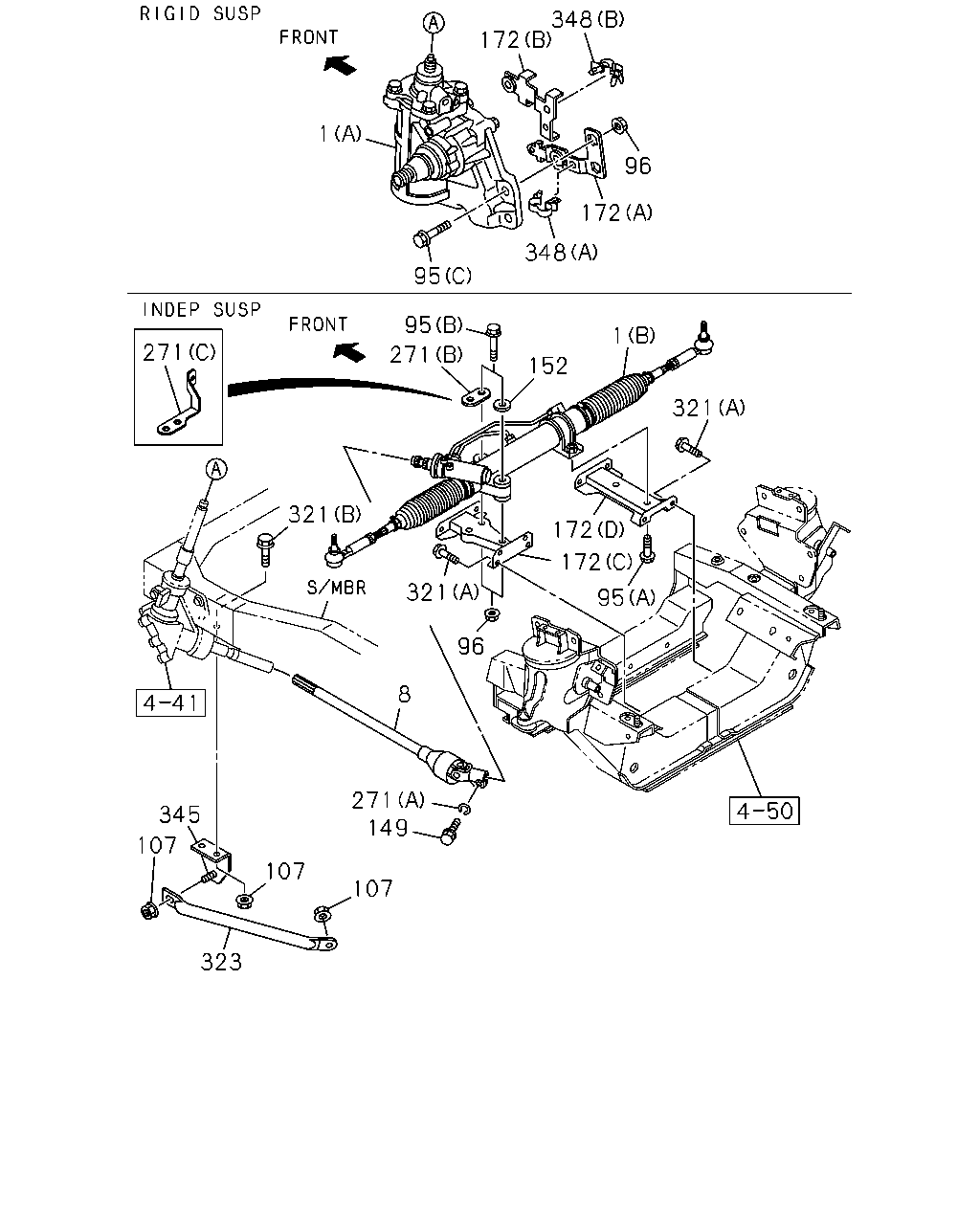

çizim 174989
348 172 1 96 172 348 95 95 1 271 271 152 321 321 172 172 321 95 96 8 271 149 345 107 107 107 323
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97388-318-2 01 1 1012- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98101-298-3 01 1 1012- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		8-98101-298-3 01 1 1012- ●
8 JOINT; UNIVERSAL
FRT INDEPENDENT SUSPENSION(FF0) 		8-98115-712-0 01 1 1012- ●
95 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) (A) M14X30 FLANGE 		0-28651-430-0 02 1 1012- ●
95 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) (B) M14X80 FLANGE 		0-28851-480-0 03 1 1012- ●
95 BOLT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M12X47 FLANGE 		8-98055-055-0 04 1 1012- ●
95 BOLT; STRG UNIT
(C) M12X47 FLANGE 		8-98055-055-0 04 1 1012- ●
96 NUT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) M14 FLANGE 		0-91180-214-0 03 1 1012- ●
96 NUT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		8-97359-618-0 02 1 1012- ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 02 1 1012- ●
107 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		0-91180-212-0 08 1 1012- ●
149 BOLT; GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) M8X30 		8-97359-615-0 02 1 1012- ●
152 WASHER; LK,STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) ID=15 OD=40 		9-09851-995-0 01 1 1012- ●
172 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98034-269-1 01 1 1012- ●
172 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) KD PREPARATORY PACK<6HF> (D) 		8-98034-270-2 01 1 1012- ●
172 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. KD PREPARATORY PACK<6HF> (D) 		8-98141-245-0 01 1 1012- ●
172 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-973-0 01 1 1012- ●
172 BRACKET; STRG
(B) 		8-98060-973-0 01 1 1012- ●
172 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98078-804-0 01 1 1012- ●
172 BRACKET; STRG
(A) 		8-98078-804-0 01 1 1012- ●
271 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) (A) ID=8.2 		0-91510-808-0 02 1 1012- ●
271 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98018-561-0 01 1 1012- ●
271 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98141-257-0 01 1 1012- ●
321 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) (A) M12X30 FLANGE 		0-28651-230-0 10 1 1012- ●
321 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) (B) M12X30 FLANGE 		0-28661-230-0 04 1 1012- ●
323 ROD; GUARD,STRG SHAFT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-649-0 02 1 1012- ●
345 BRACKET; ROD
FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-651-0 02 1 1012- ●
348 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012- ●
348 CLIP; BRKT,STRG
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1012- ●
348 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1012- ●
348 CLIP; BRKT,STRG
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1012- ●
