◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#5451) — 77 parça
çizim 6139
255 258 356 131 131
BalonParca AdiParca NoAdetTipApplied Date
131 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) EXC. BRAKE REGULATION HONG KONG<TCZ> (A) OD=9 H=6 		1-09709-178-0 01 1 9601-9601
131 CLIP; BAND
BRAKE REGULATION HONG KONG<TCZ> (A) OD=9 H=6 		1-09709-178-0 01 1 9601-9601
131 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) EXC. BRAKE REGULATION HONG KONG<TCZ> (B) L=180 		1-09707-162-1 01 1 9602-9610
131 CLIP; BAND
BRAKE REGULATION HONG KONG<TCZ> (B) L=180 		1-09707-162-1 01 1 9602-9610
131 CLIP; BAND
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BRAKE REGULATION HONG KONG<TCZ> (B) L=180 		1-09707-162-1 01 1 9611-
131 CLIP; BAND
BRAKE REGULATION HONG KONG<TCZ> (B) L=180 		1-09707-162-1 01 1 9611-
255 SWITCH; SEARCH LIGHT 1-82340-360-1 01 1 9601-
258 SWITCH; FLASHER UNIT 1-82410-137-0 01 1 9601-
356 SWITCH; TRAILER,LOW PRESS
HONG KONG EQUIPMENT(PQ1) EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-0 01 1 9601-9610
356 SWITCH; TRAILER,LOW PRESS
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-0 01 1 9601-9610
356 SWITCH; TRAILER,LOW PRESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9611-
356 SWITCH; TRAILER,LOW PRESS
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9611-

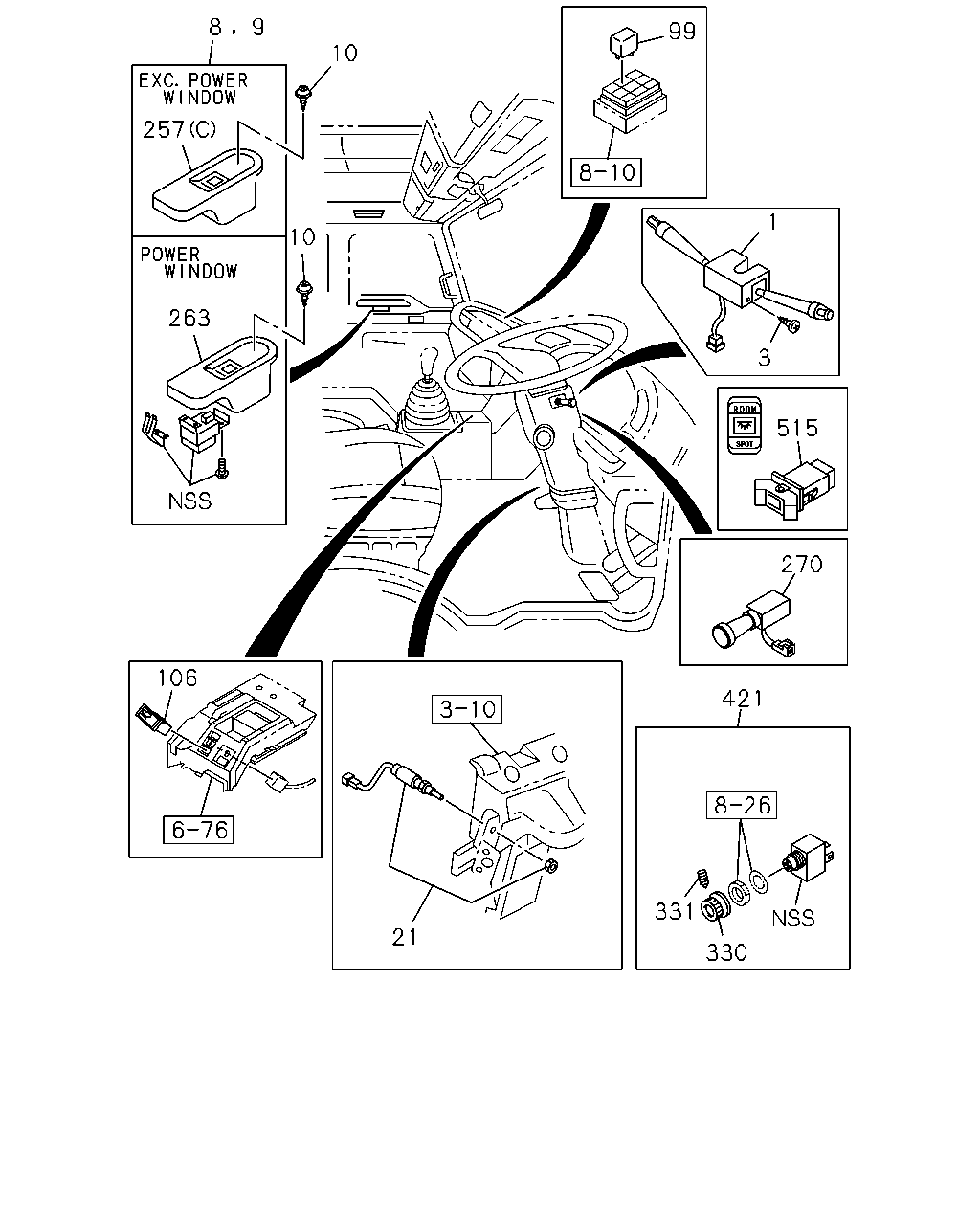

çizim 41415
8 9 99 10 257 1 10 263 3 515 270 106 421 331 21 330
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-412-3 01 1 9601-9610
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 9611-9904
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2> 		1-82360-412-3 01 1 9905-9907
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 9908-0103
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-619-0 01 1 0104-
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-428-2 01 1 9905-9907
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-410-4 01 1 9611-9904
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-410-4 01 1 9905-9907
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-410-4 01 1 9908-0103
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-658-0 01 1 0104-
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER<RE2> 		1-82360-421-1 01 1 9905-9907
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9705-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-148-0 01 1 9601-9709
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-3 01 1 9710-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-138-0 01 1 9601-9709
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 9710-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9809-
21 SWITCH; CLU 1-82380-114-2 01 1 9601-
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9601-
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9904
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9905-
106 SWITCH; REMOTE CONT MIRROR
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82350-223-0 01 1 9905-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9601-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9601-9909
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9601-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9601-
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 9601-
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 9601-
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5) 		1-82340-523-0 01 1 9611-
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9601-9603
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9601-9603
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9601-9603
515 SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-82350-230-0 01 1 9910-

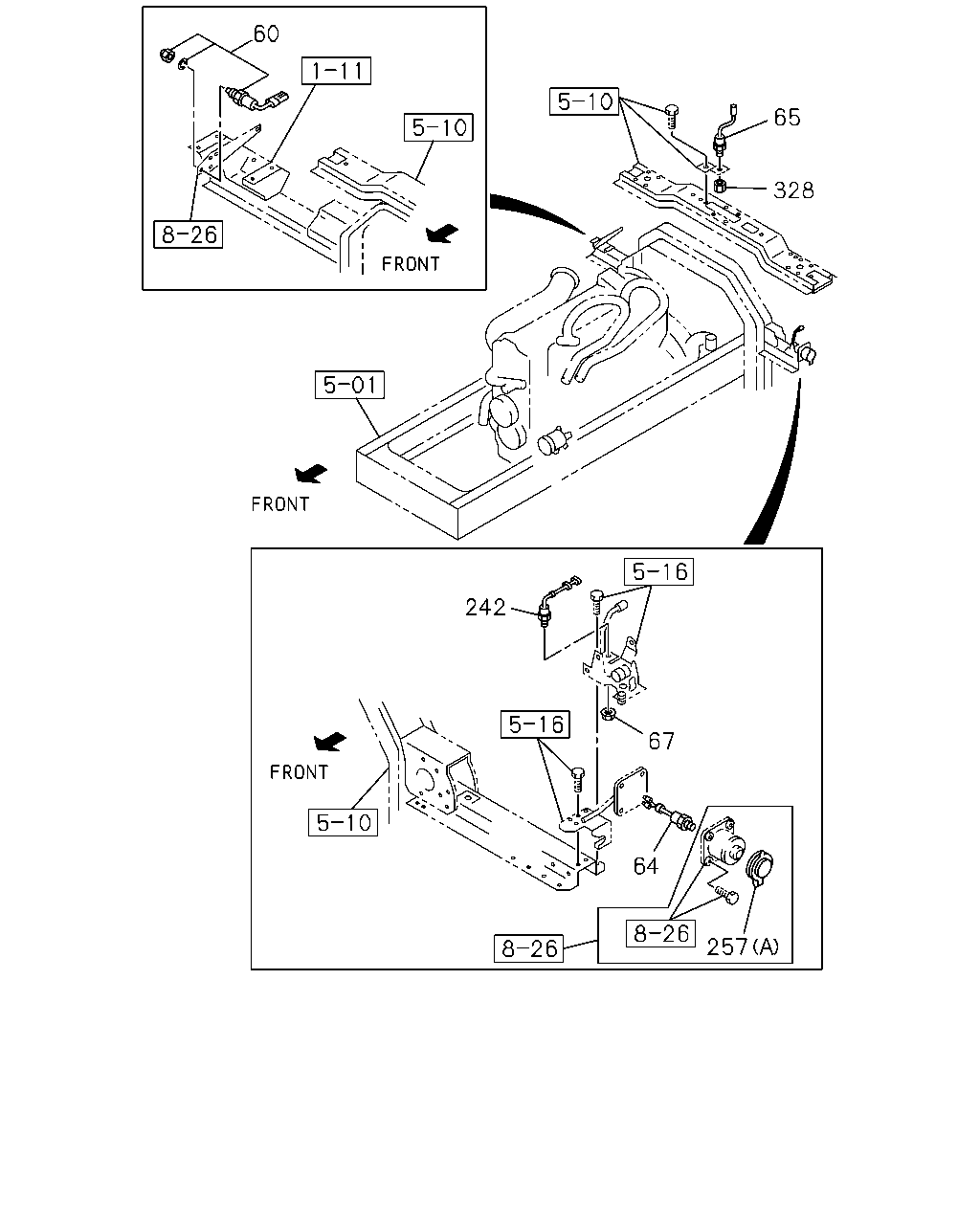

çizim 42531
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9601-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9601-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9601-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9601-
242 SWITCH
CAB TILT(UP-DOWN) STAMP NO 		1-82380-126-0 01 1 9601-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9601-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9601-9909
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9601-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9601-
328 NUT; SW
M16 		9-99110-416-0 01 1 9601-

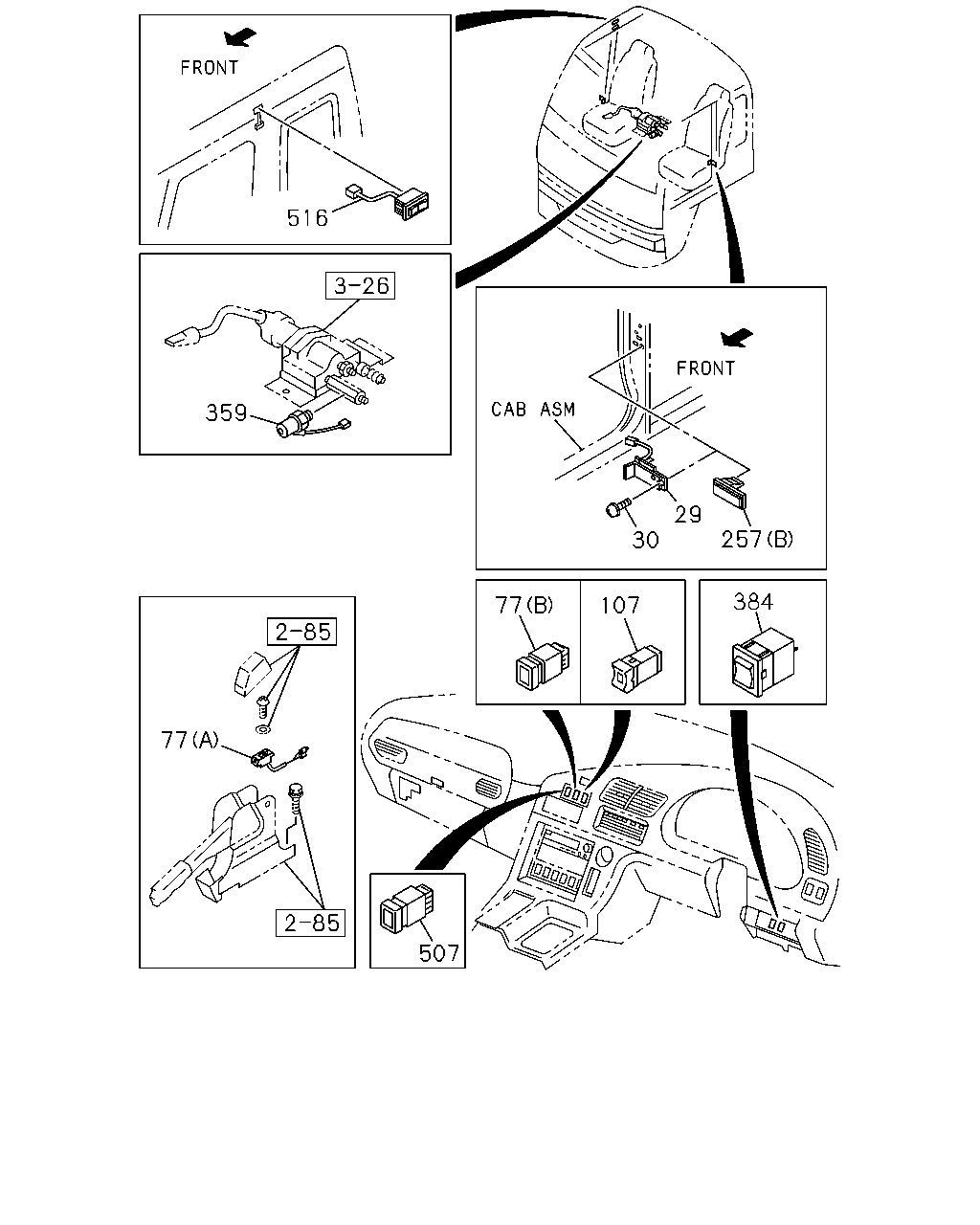

çizim 42650
516 359 29 257 30 384 77 107 77 507
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-2 01 1 9601-9909
29 SWITCH; DOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 02 1 9910-
29 SWITCH; DOOR
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 01 1 9910-
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9601-9906
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-9909
30 SCREW; DOOR SW
LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 02 1 9910-
30 SCREW; DOOR SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 01 1 9910-
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9601-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 9601-
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 9601-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9601-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9601-9909
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9601-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9601-
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-0 01 1 9601-
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9611-
507 SWITCH; MIRROR HEATER
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82340-423-0 01 1 9905-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> 		1-82350-240-2 01 1 9601-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> 		1-82350-239-2 01 1 9601-
