◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#54509) — 12 parça

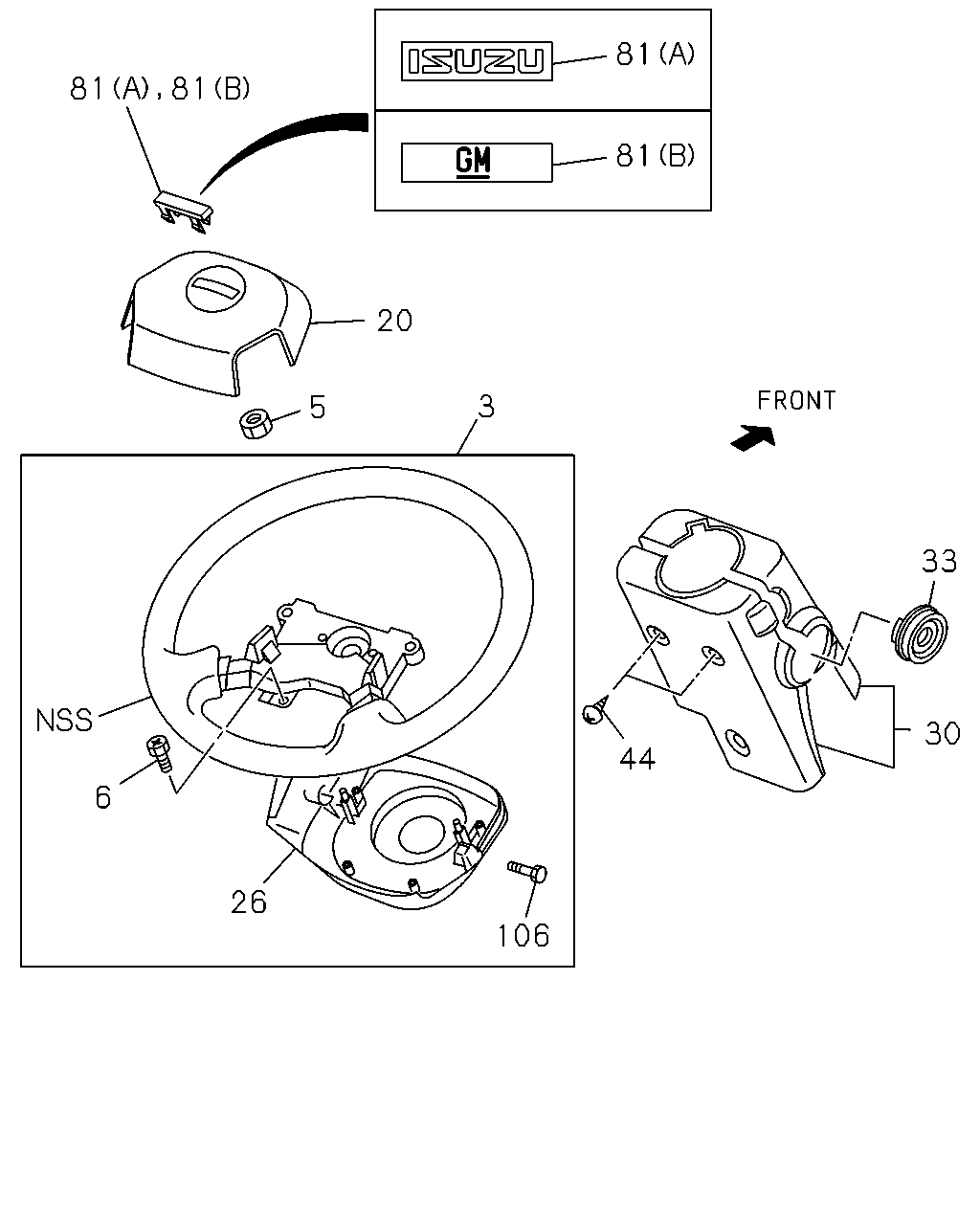

çizim 174979
81 81 81 81 20 5 3 6 26 106 44 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
DARK GRAY 		8-97412-556-1 01 1 1012- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1012- ● ●
6 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1012- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 1012- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 1012- ● ●
30 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 1012-1110 ● ●
30 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ●
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1012- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1012- ● ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97405-986-0 01 1 1012- ● ●
81 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY 		8-97405-987-0 01 1 1012- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1012- ● ●
