◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#54505) — 59 parça
çizim 174969
86 2 132
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> 		8-98001-156-0 01 1 1012- ●
2 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> 		8-98001-157-0 01 1 1012- ●
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1012- ●
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1012- ●
86 BOLT; TORSION BAR,HEIGHT CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98088-329-0 02 1 1012- ●
132 COLLAR; TORSION BAR
FRT INDEPENDENT SUSPENSION(FF0) M24 		0-91111-524-0 02 1 1012- ●

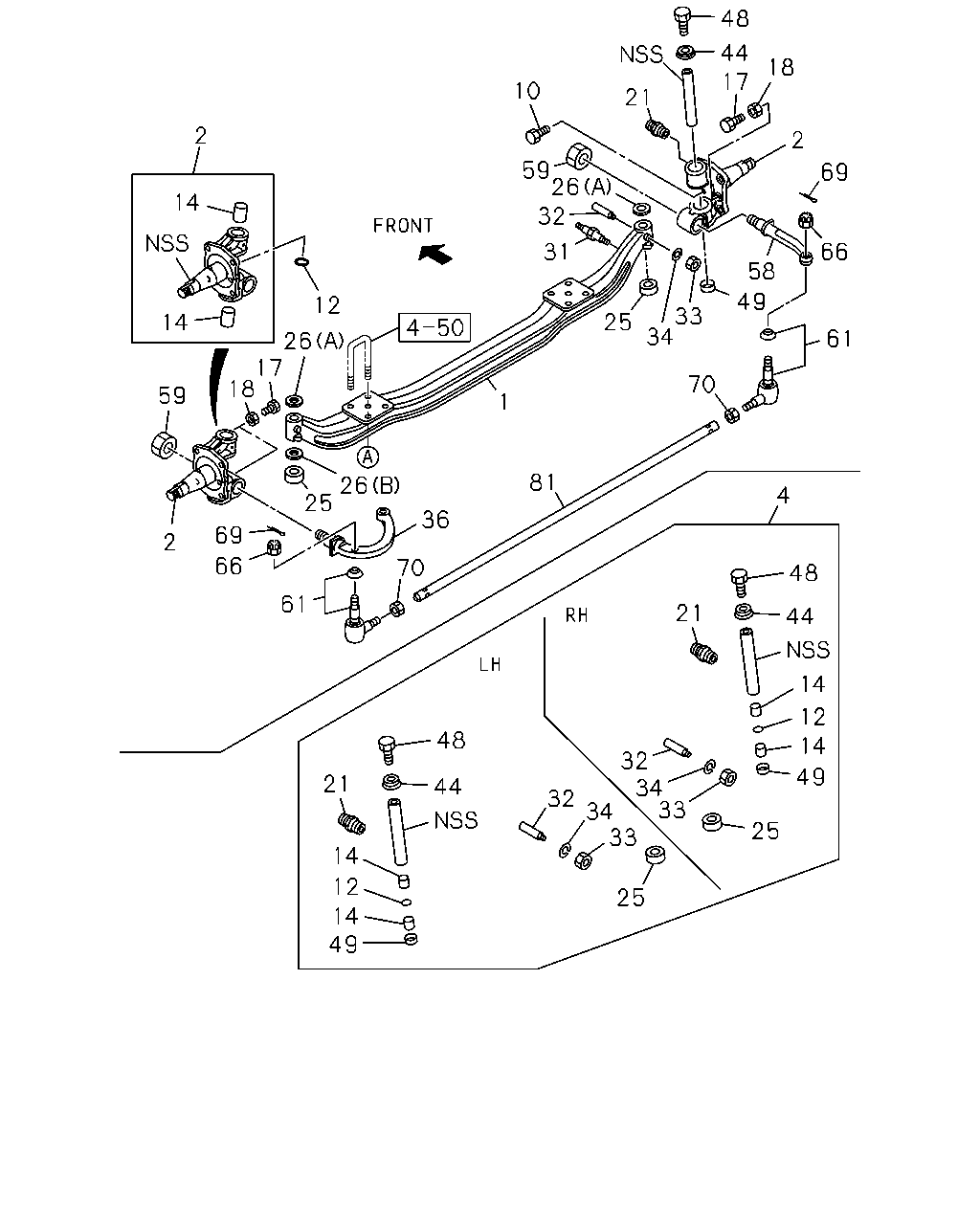

çizim 174971
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 81 26 25 4 36 69 2 66 70 48 61 21 44 14 12 48 14 32 34 33 49 21 44 32 34 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-97262-000-4 01 1 1012- ●
2 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> 		8-98001-156-0 01 1 1012- ●
2 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> 		8-98001-157-0 01 1 1012- ●
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1012- ●
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1012- ●
4 KING PIN KIT 5-87832-220-2 01 1 1012- ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1012- ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1012- ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1012- ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012- ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1012- ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 1012- ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1012- ●
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1012- ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1012- ●
31 PIN; S/ABS,LWR 8-97141-944-0 02 1 1012- ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1012- ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1012- ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1012- ●
36 ARM; KNUCKLE 8-97168-291-5 01 1 1012- ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1012- ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1012- ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 1012- ●
58 ARM; TIE ROD 8-97168-292-1 01 1 1012- ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1012- ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 1012-1309 ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1310- ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 1012-1309 ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1310- ●
66 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 1012-1204 ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1012- ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1012- ●
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1012- ●
81 ROD; TIE 8-97142-024-0 01 1 1012- ●

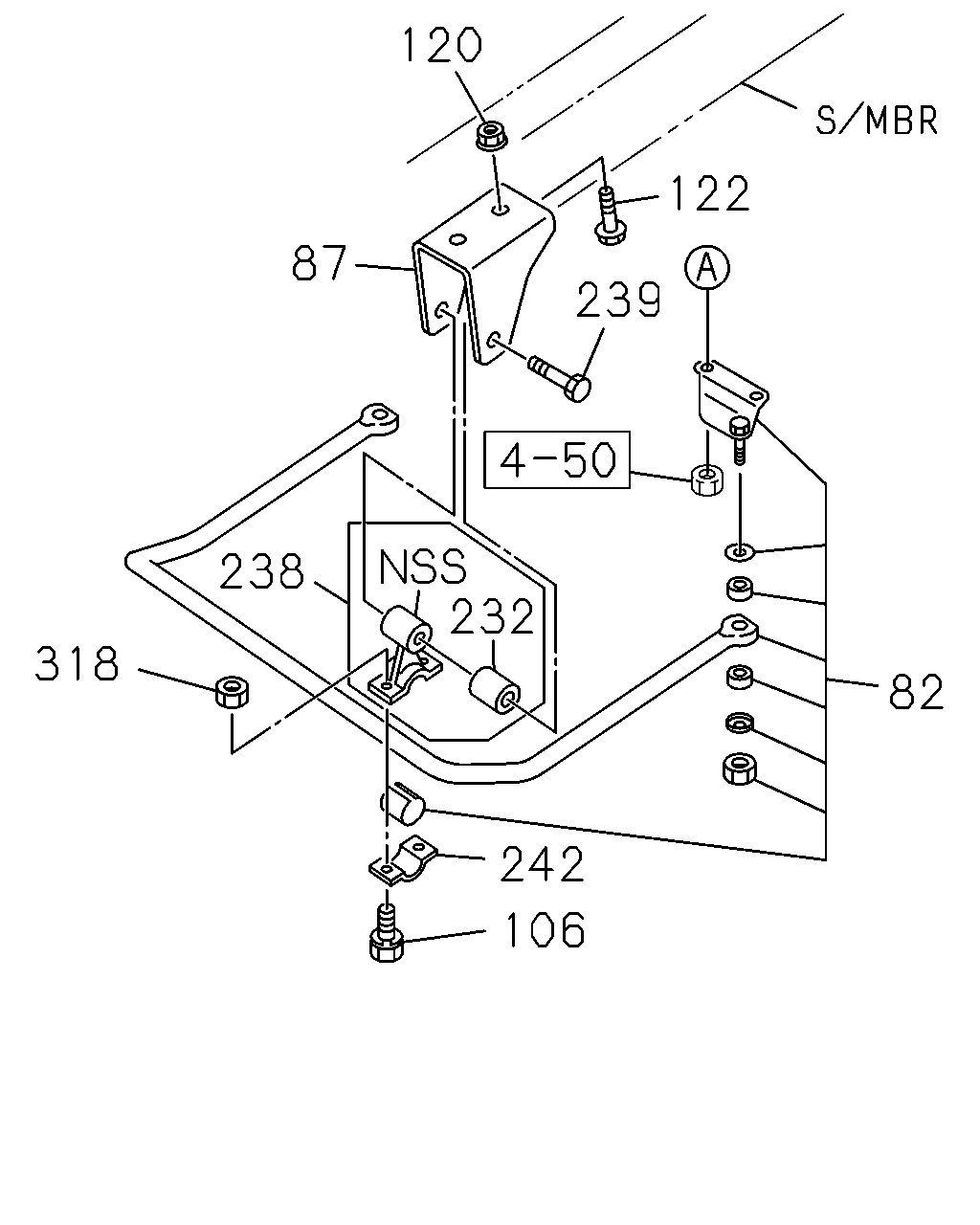

çizim 174972
120 122 87 239 232 238 318 82 242 106
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98002-084-2 01 1 1012- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-506-0 01 1 1012- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-507-0 01 1 1012- ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X25 FLANGE 		0-28651-025-0 04 1 1012- ●
120 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		0-91180-212-0 04 1 1012- ●
122 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE 		0-28661-230-0 04 1 1012- ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97239-911-0 02 1 1012- ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97239-908-0 02 1 1012- ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X70 FLANGE 		0-28851-470-0 02 1 1012- ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94178-430-2 02 1 1012- ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE 		0-91180-110-0 04 1 1012- ●
