4-01 — PROPELLER SHAFT (#54504) — 63 parça

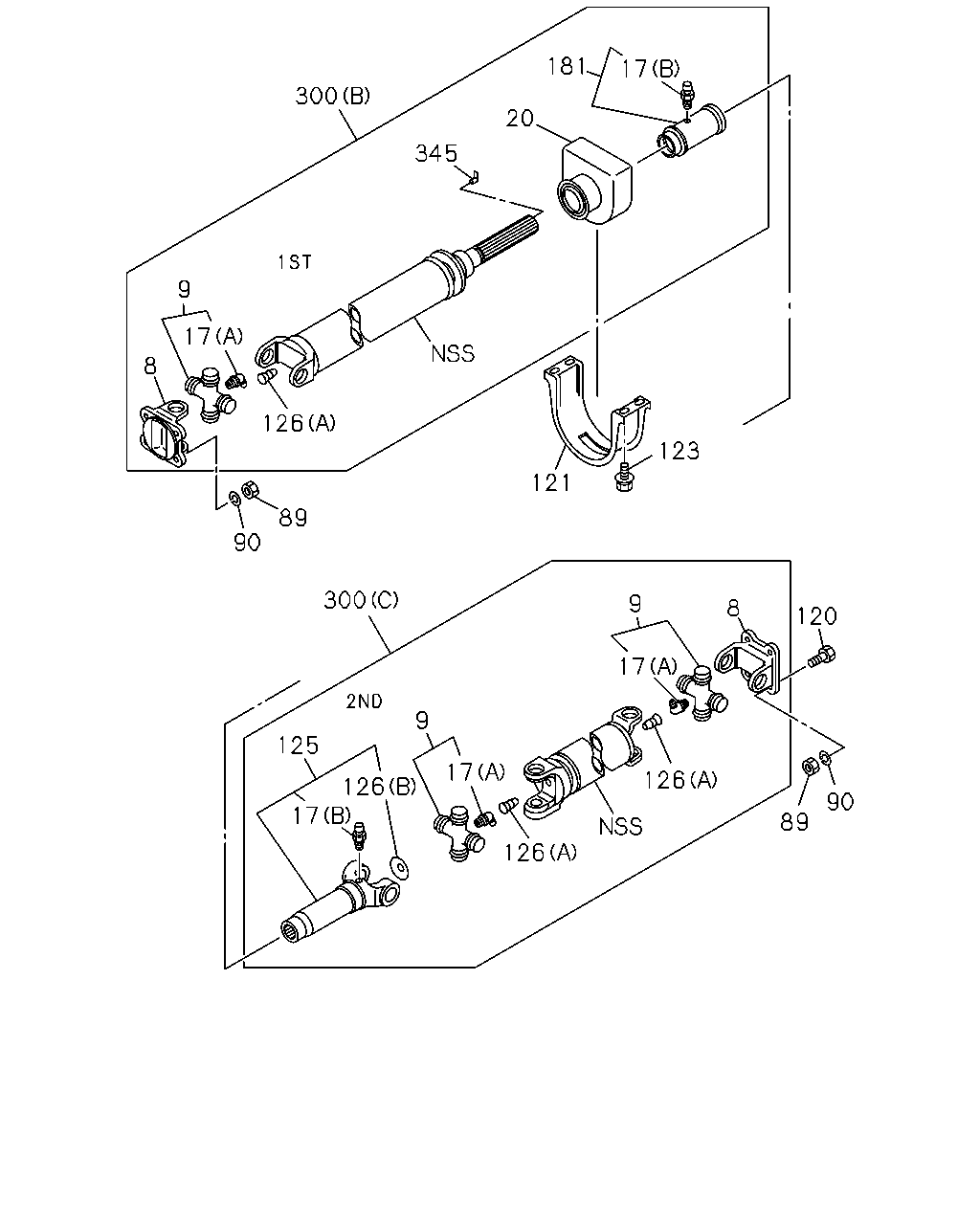

300 9 8 126 17 90 89 300 125 17 9 17 126 126 17 126 9 121 123 8 120 89 90 345 20 181 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1012-	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1012-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-		●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1012-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1012-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-		●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-		●
20	BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1012-		●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1012-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	1012-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1012-	●	●
121	RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1012-		●
123	BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-		●
125	YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1012-	●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1012-		●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1012-		●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1012-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1012-		●
181	COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1012-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=964	8-97383-846-2	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1012-1406	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=979	8-97383-847-2	01	1	1012-1406		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1407-1407	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1408-	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=979	8-97383-847-2	01	1	1408-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1012-		●
345	PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1012-		●

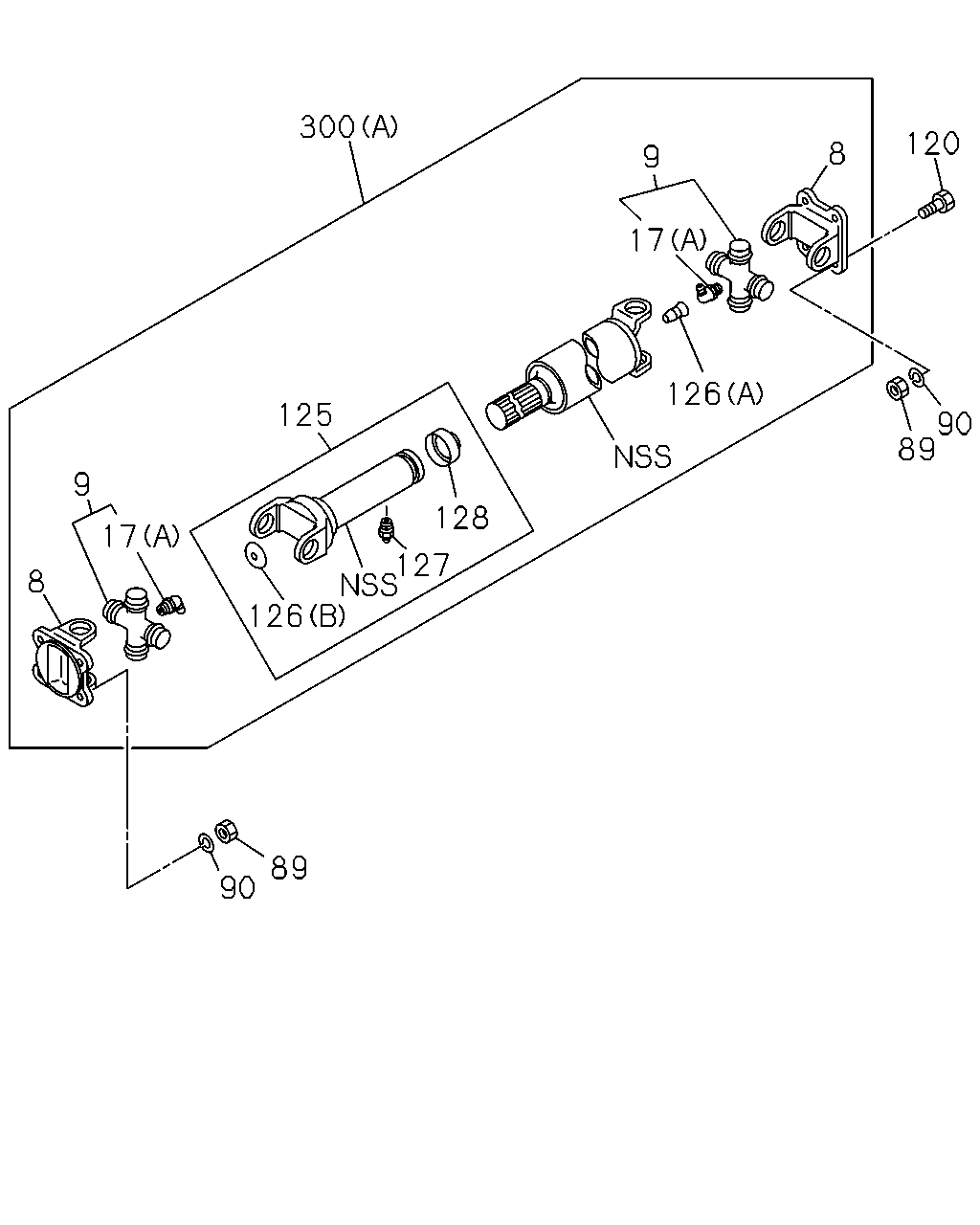

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1012-	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1012-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-		●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1012-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1012-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-		●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-		●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1012-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	1012-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1012-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1012-	●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1012-		●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1012-		●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1012-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1012-		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	1012-	●
127	NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) M6 STRAIGHT	0-90301-406-0	01	1	1012-		●
128	SEAL; SLEEVE	8-97145-746-0	01	1	1012-	●
128	SEAL; SLEEVE WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	1012-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=964	8-97383-846-2	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1012-1406	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=979	8-97383-847-2	01	1	1012-1406		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1407-1407	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	1407-1407		●
300	SHAFT ASM; PROP,RR (A) L=979	8-97383-847-2	01	1	1408-	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=979	8-97383-847-2	01	1	1408-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1012-		●
