Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#54503) — 374 parça

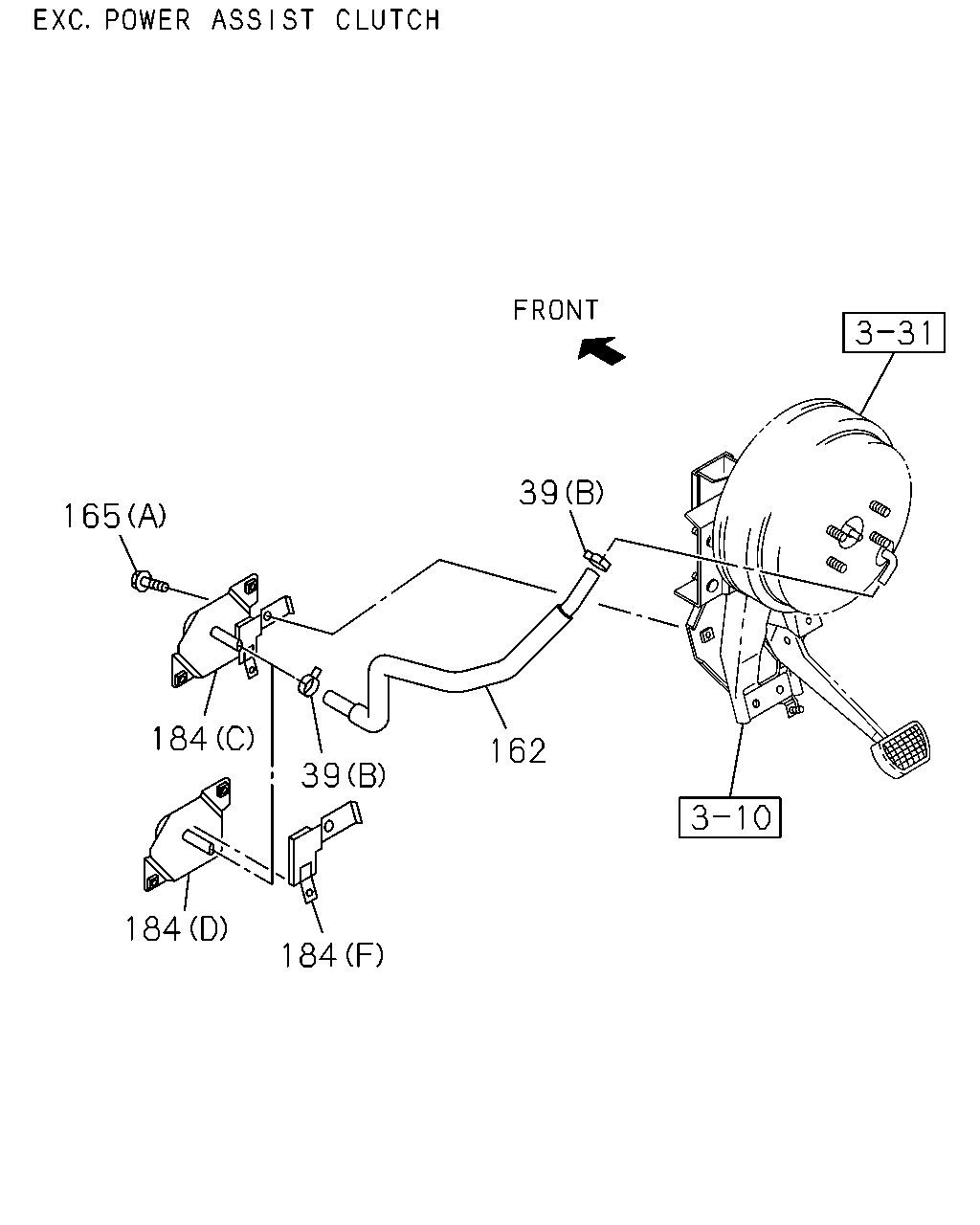

165 184 39 184 184 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1012-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	02	1	1012-1012	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1101-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1012-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1406	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407		●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1408-	●	●

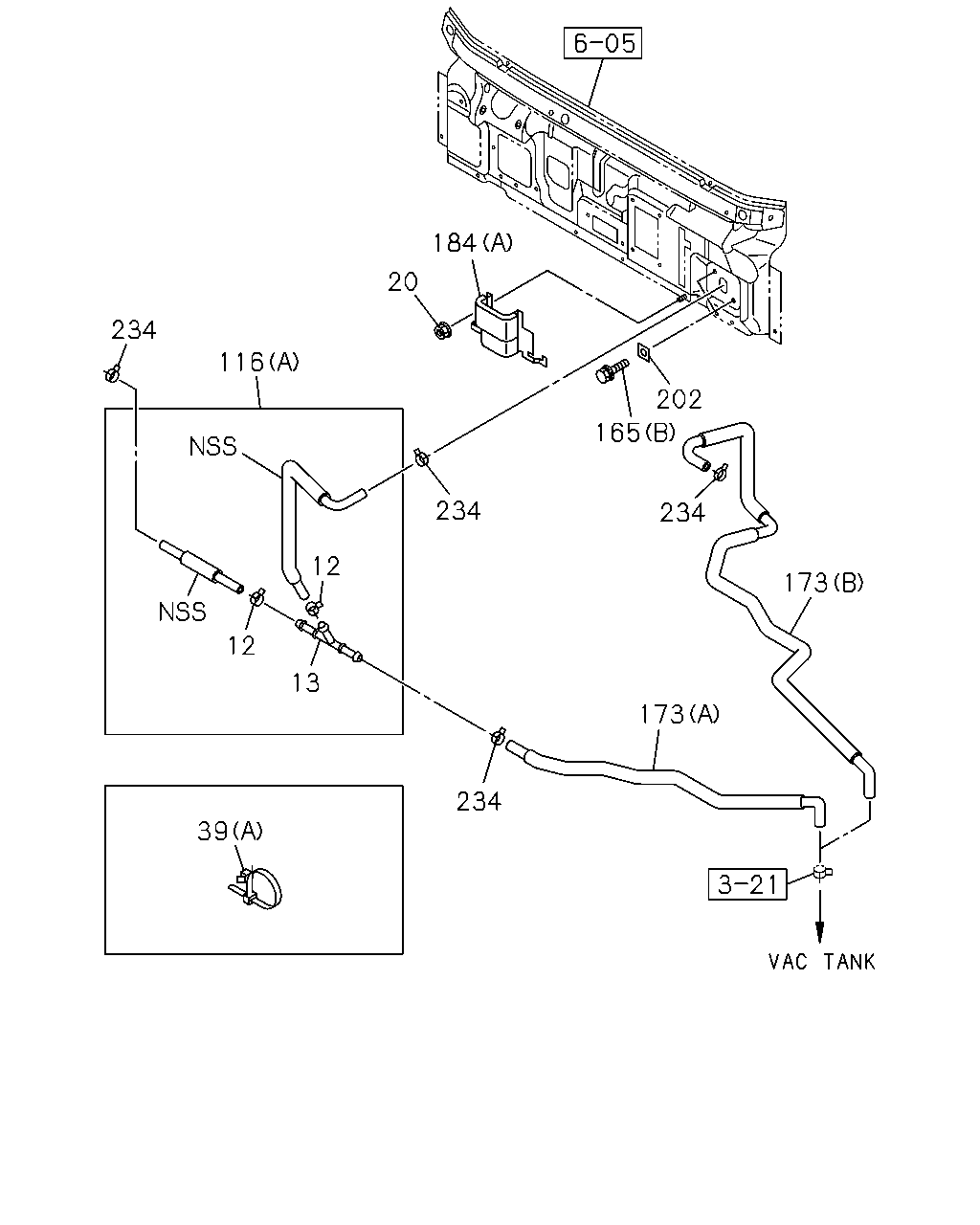

184 20 234 116 202 165 234 234 12 173 12 13 173 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	06	1	1012-	●	●
12	CLIP; HOSE ID=15.5	8-98008-097-0	02	1	1012-	●	●
13	JOINT; HOSE,VAC	8-98035-106-0	01	1	1012-	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1012-1406	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1407-1407	●
20	NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1407-1407		●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1408-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1012-	●	●
116	HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1012-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1012-	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1012-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	02	1	1012-1012	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1101-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1012-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1406	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407		●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1408-	●	●
202	SEAL	8-97856-616-0	02	1	1012-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	04	1	1012-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1012-	●	●

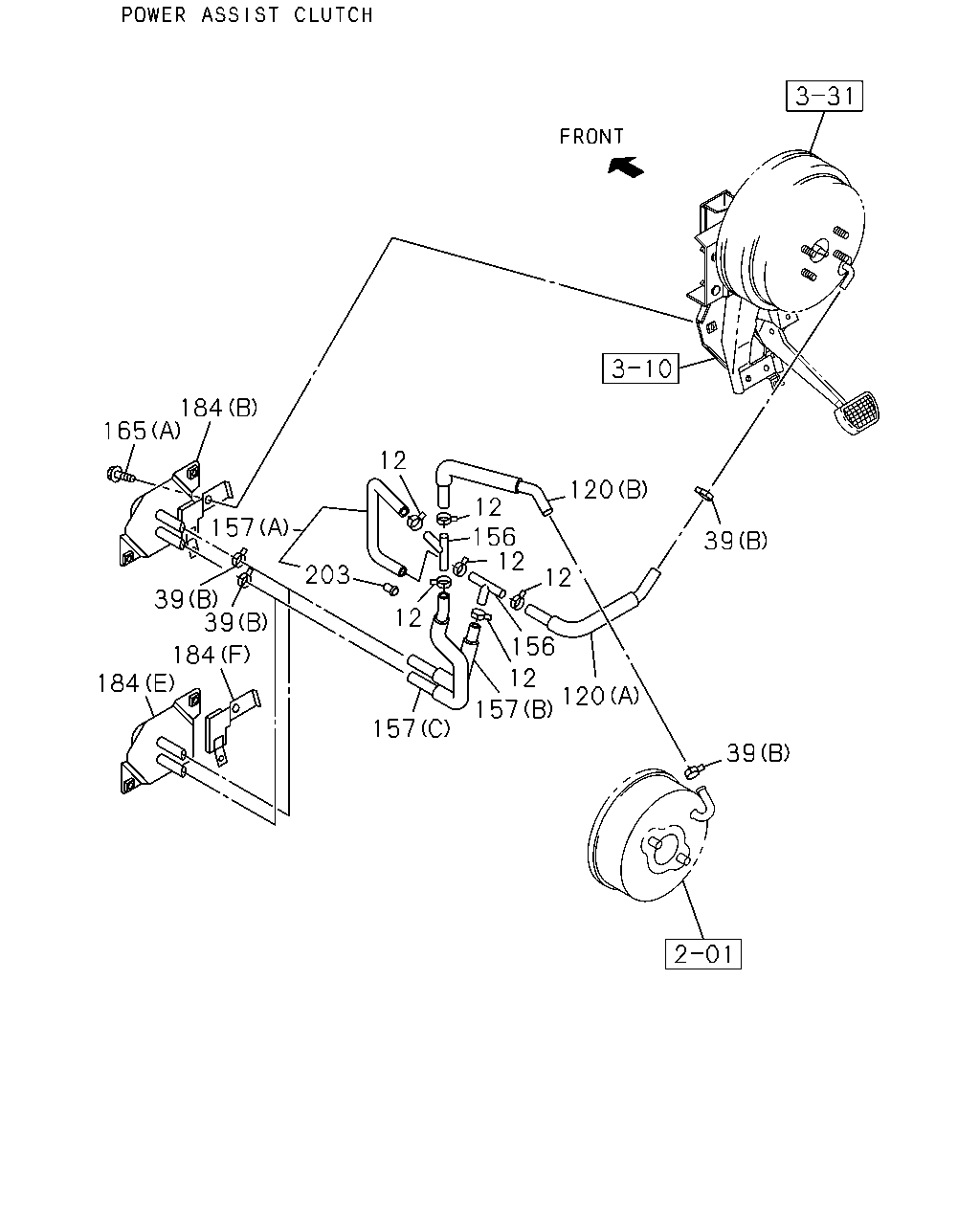

184 165 12 120 12 156 12 157 39 203 12 39 39 12 156 184 184 12 120 157 157 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	06	1	1012-	●	●
12	CLIP; HOSE ID=15.5	8-98008-097-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1012-	●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	1012-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1012-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	02	1	1012-1012	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1101-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1012-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1101	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311	●	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1406	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407	●
184	BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1407-1407		●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1408-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1012-	●	●

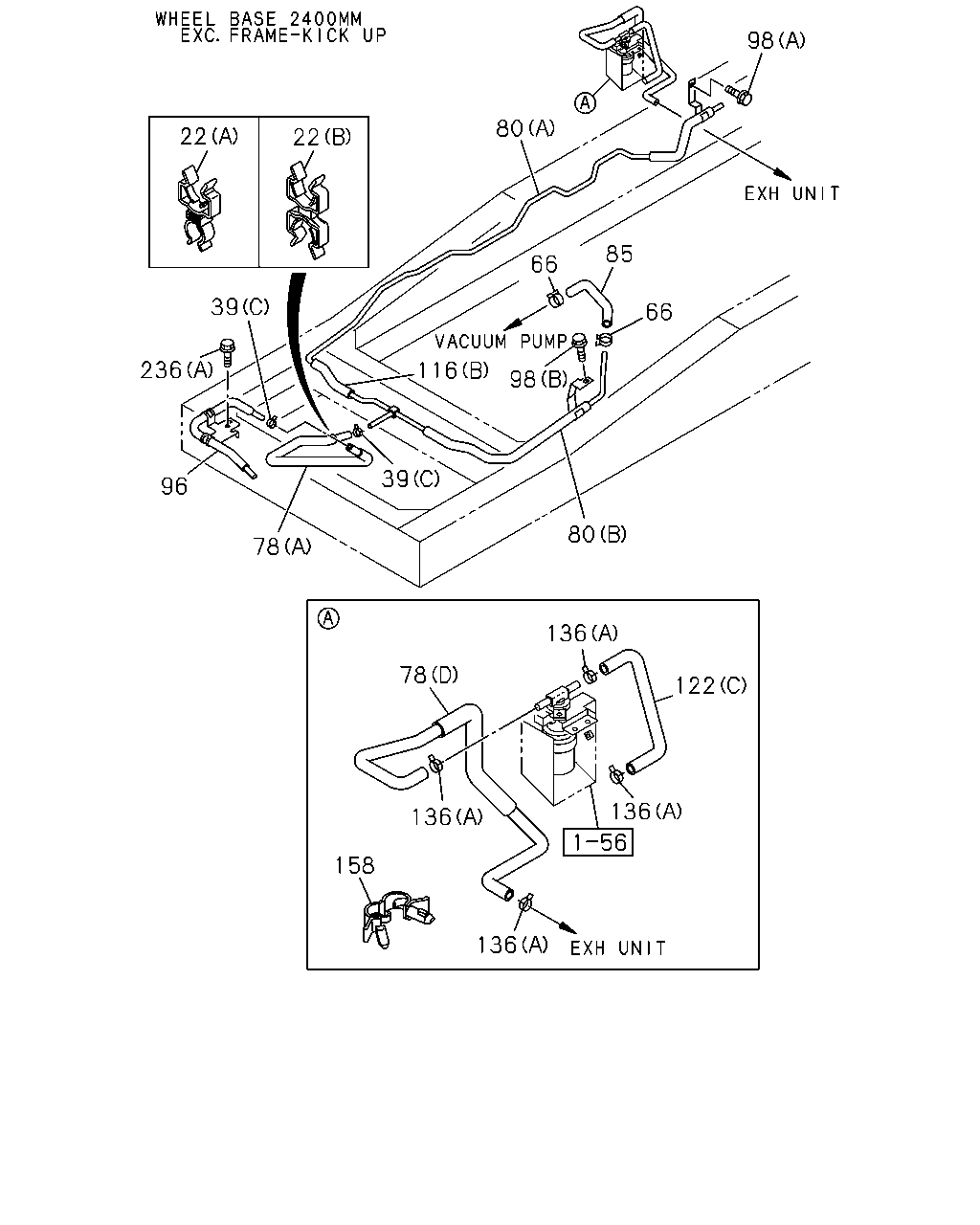

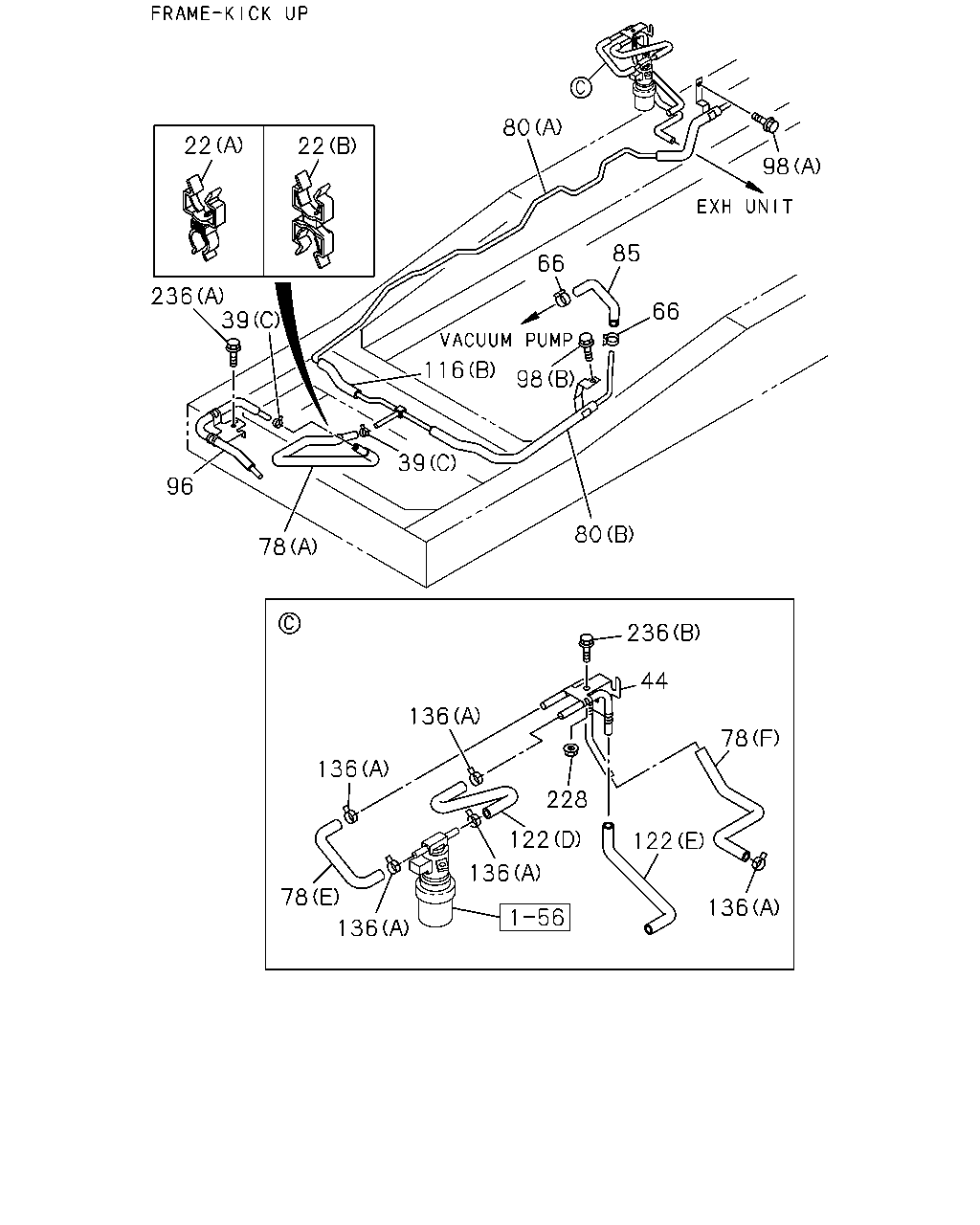

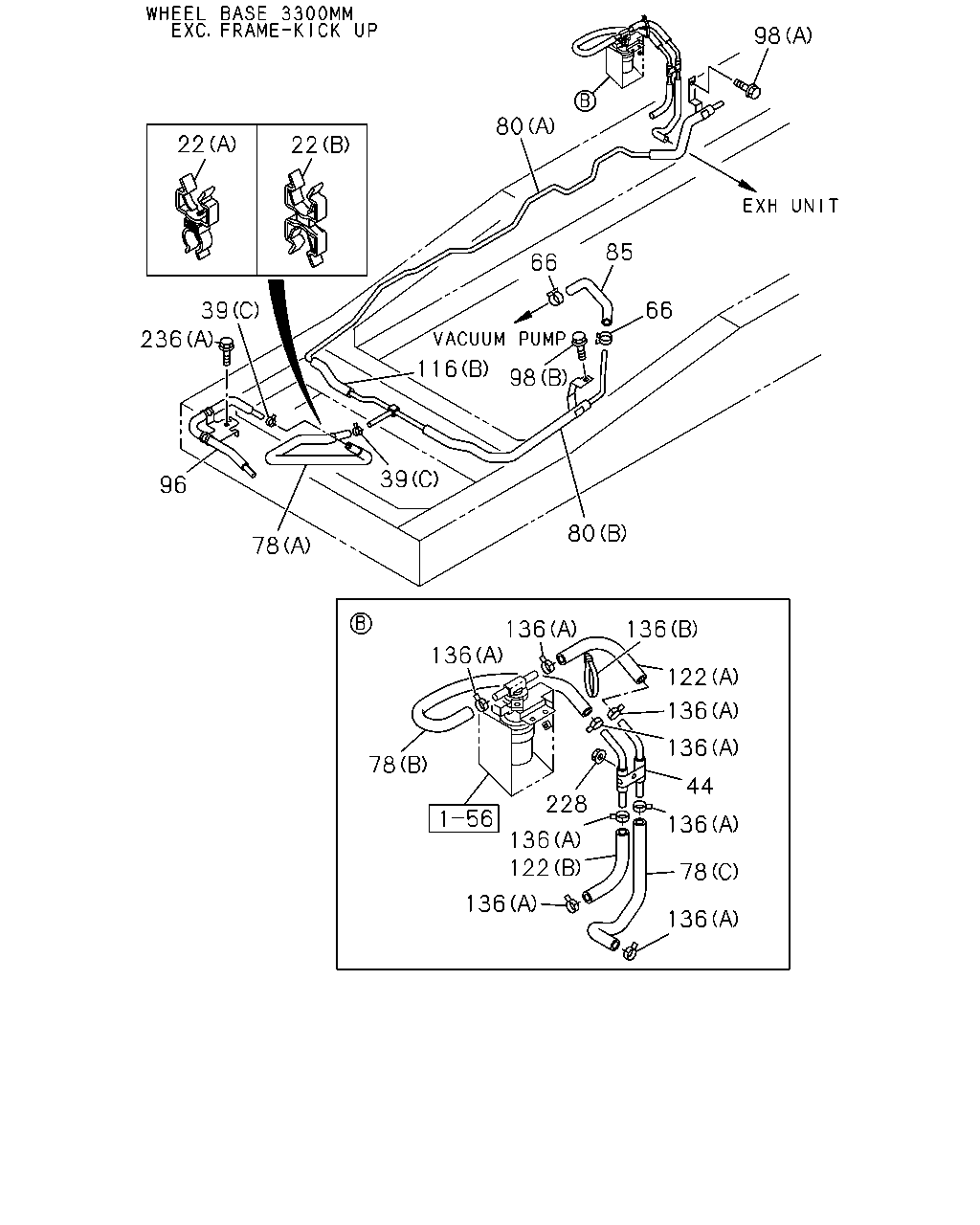

22 22 39 236 96 78 39 80 66 98 116 66 85 80 98 78 136 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; HOSE,VAC TANK (A)	8-97289-095-0	01	1	1012-1101	●	●
22	CLIP; HOSE,VAC TANK (B) ID=22 & 22	8-94464-837-0	01	1	1102-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1012-	●	●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (E)	8-98113-154-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1012-1406	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1012-1406		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1407-1407	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1408-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1012-1112	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1408-		●
80	PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (B)	8-98067-014-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1302-1309		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1310-1406		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1408-		●
80	PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1012-1112	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE (A)	8-98065-063-2	01	1	1012-1301		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1408-	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1201-	●	●
85	HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1012-1112	●	●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1201-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1012-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1201-	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1012-	●	●
116	HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1012-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (D)	8-98113-153-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-155-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1012-1406	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1012-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1407-1407	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1408-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1408-		●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1012-	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1408-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1408-		●
158	CLIP; HOSE ID=18-24 L=14.5	1-09709-298-0	01	1	1012-1406	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1012-1406		●
158	CLIP; HOSE ID=18-24 L=14.5	1-09709-298-0	01	1	1407-1407	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> ID=18-24 L=14.5	1-09709-298-0	01	1	1407-1407		●
158	CLIP; HOSE ID=18-24 L=14.5	1-09709-298-0	01	1	1408-	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1408-		●
236	BOLT; PIPE FRAME-KICK UP<7EW> (B) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407		●
236	BOLT; PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

22 22 39 236 96 78 80 39 98 116 66 85 66 80 98 136 136 78 228 136 122 136 136 78 136 44 136 136 122 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; HOSE,VAC TANK (A)	8-97289-095-0	01	1	1012-1101	●	●
22	CLIP; HOSE,VAC TANK (B) ID=22 & 22	8-94464-837-0	01	1	1102-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
44	PIPE; VAC,MAG VLV FRAME-KICK UP<7EW>	8-98113-192-1	01	1	1407-1407		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1012-1406		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98042-654-0	01	1	1407-1407		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1408-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1012-	●	●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (E)	8-98113-154-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1012-1406	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1012-1406		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1407-1407	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1408-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1012-1112	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1408-		●
80	PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (B)	8-98067-014-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1302-1309		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1310-1406		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1408-		●
80	PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1012-1112	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE (A)	8-98065-063-2	01	1	1012-1301		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1408-	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1201-	●	●
85	HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1012-1112	●	●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1201-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1012-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1201-	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1012-	●	●
116	HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1012-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (D)	8-98113-153-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-155-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1012-1406	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1012-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1407-1407	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1408-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1408-		●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1012-	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1408-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1408-		●
228	NUT; PIPE FRAME-KICK UP<7EW> M8 FLANGE	0-91180-108-0	01	1	1407-1407		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) M6 FLANGE	0-91180-106-0	01	1	1012-1406		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> M6 FLANGE	0-91180-106-0	01	1	1407-1407		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) M6 FLANGE	0-91180-106-0	01	1	1408-		●
236	BOLT; PIPE FRAME-KICK UP<7EW> (B) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407		●
236	BOLT; PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

22 22 236 39 96 78 39 80 98 116 66 85 66 80 98 136 136 78 136 136 122 228 136 122 78 44 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; HOSE,VAC TANK (A)	8-97289-095-0	01	1	1012-1101	●	●
22	CLIP; HOSE,VAC TANK (B) ID=22 & 22	8-94464-837-0	01	1	1102-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1012-	●	●
44	PIPE; VAC,MAG VLV FRAME-KICK UP<7EW>	8-98113-192-1	01	1	1407-1407		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1012-1406		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98042-654-0	01	1	1407-1407		●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1408-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1012-	●	●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (E)	8-98113-154-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1012-1406	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1012-1406		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1407-1407	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98098-174-0	01	1	1408-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1012-1112	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	1201-	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1012-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-1406		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1407-1407		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1408-		●
80	PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (B)	8-98067-014-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1302-1309		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1310-1406		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1408-	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1408-		●
80	PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1012-1112	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1201-	●	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1012-1301	●
80	PIPE; VAC,ENG SIDE (A)	8-98065-063-2	01	1	1012-1301		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1302-1309	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-1406	●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1407-1407	●
80	PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1407-1407		●
80	PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1408-	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1201-	●	●
85	HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1012-1112	●	●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1201-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1012-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1201-	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1012-	●	●
116	HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1012-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (D)	8-98113-153-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-155-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1012-1406	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1012-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1407-1407	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1408-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1408-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1012-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-1406		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1407-1407		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1408-		●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1012-	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=140	5-09707-031-1	01	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140	5-09707-031-1	01	1	1408-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1012-1406		●
136	CLIP; VAC HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	1407-1407		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	1408-		●
228	NUT; PIPE FRAME-KICK UP<7EW> M8 FLANGE	0-91180-108-0	01	1	1407-1407		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) M6 FLANGE	0-91180-106-0	01	1	1012-1406		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> M6 FLANGE	0-91180-106-0	01	1	1407-1407		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) M6 FLANGE	0-91180-106-0	01	1	1408-		●
236	BOLT; PIPE FRAME-KICK UP<7EW> (B) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407		●
236	BOLT; PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
