◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#54500) — 113 parça
çizim 174956
52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1012- ●
52 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1012- ●
52 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1408- ●

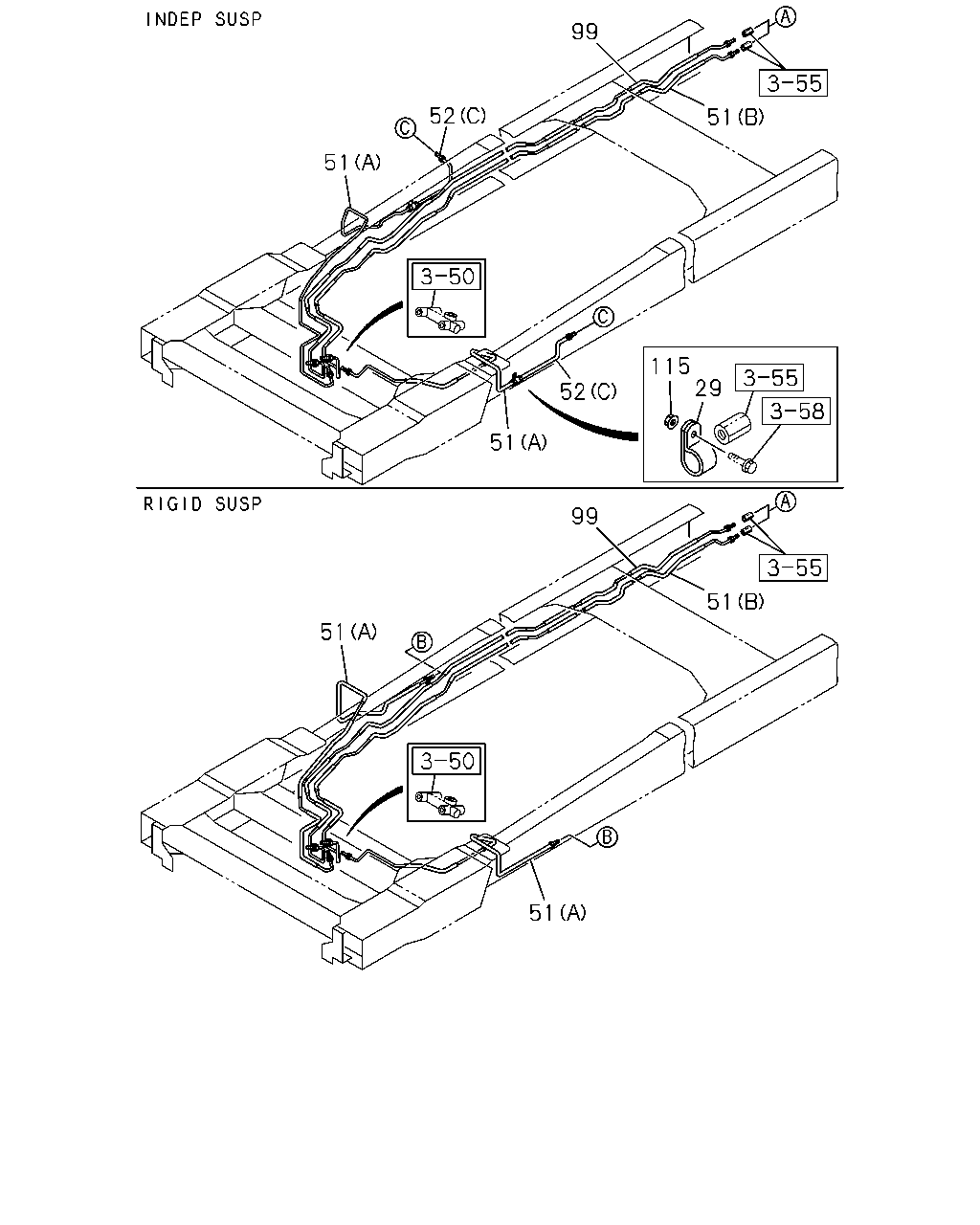

çizim 174963
99 52 51 51 115 29 52 51 99 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1012- ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-97389-389-0 01 1 1012- ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-532-1 01 1 1012- ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1301 ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407-1407 ●
51 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407-1407 ●
51 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407-1407 ●
51 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1408- ●
51 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1408- ●
51 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1408- ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1012-1406 ●
51 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1012-1406 ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1407-1407 ●
51 PIPE; BRK
EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1407-1407 ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1408- ●
51 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1408- ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1012-1406 ●
51 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1012-1406 ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1407-1407 ●
51 PIPE; BRK
EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1407-1407 ●
51 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1408- ●
51 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1408- ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1406 ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407-1407 ●
51 PIPE; BRK
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407-1407 ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1408- ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1012- ●
51 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1012- ●
52 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1012- ●
52 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1012- ●
52 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1408- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012-1406 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1407-1407 ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1408- ●
99 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-98063-431-0 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1012-1301 ●
99 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1302-1309 ●
99 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1302-1309 ●
99 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1310-1406 ●
99 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1310-1406 ●
99 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1310-1406 ●
99 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1408- ●
99 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98051-512-1 01 1 1408- ●
99 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1408- ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98131-078-0 01 1 1012-1301 ●
99 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1012-1301 ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98131-078-0 01 1 1302-1309 ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1310-1406 ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1407-1407 ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1408- ●
115 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) M6 FLANGE 		0-91180-106-0 02 1 1012- ●

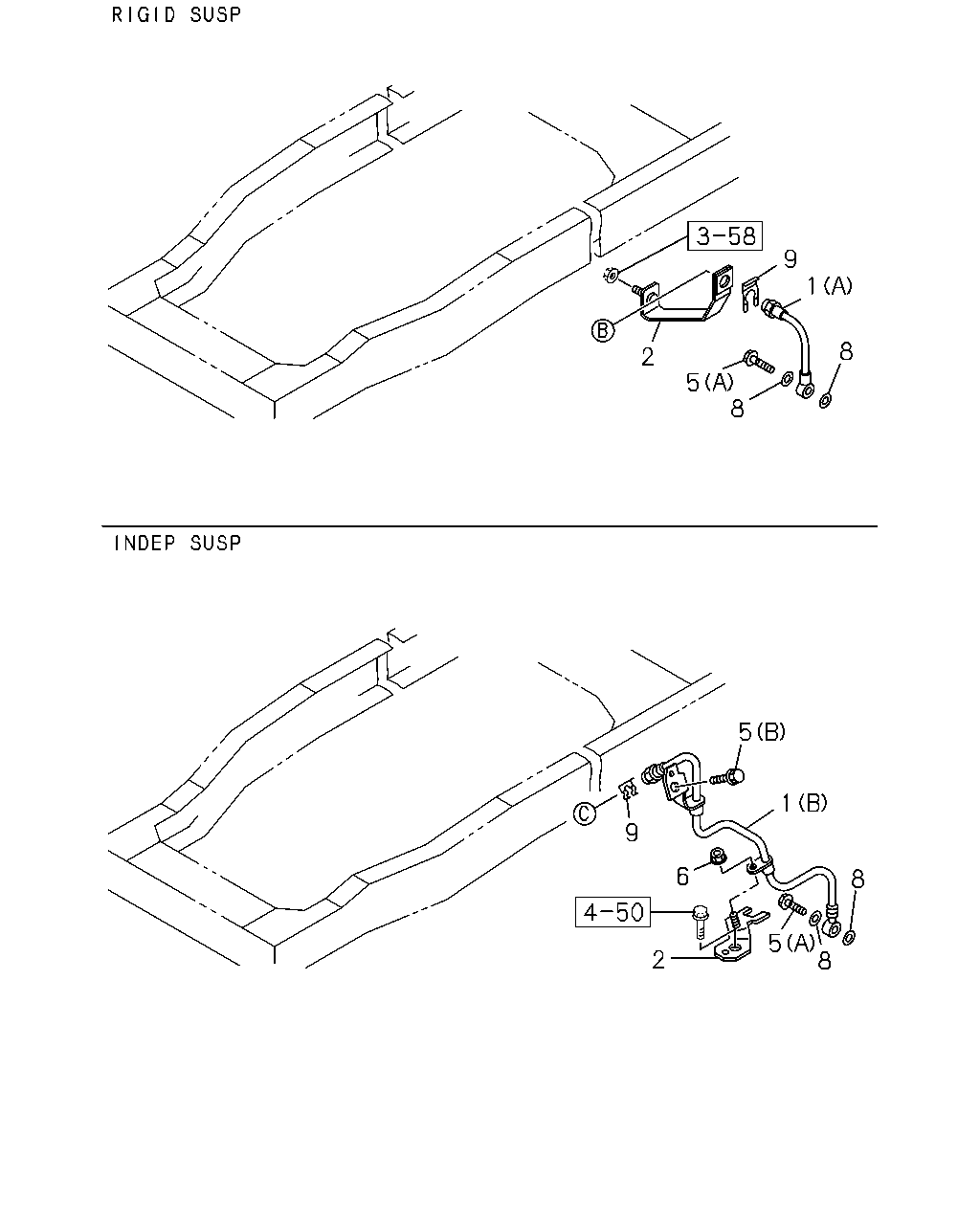

çizim 174964
9 1 8 2 5 8 5 1 9 6 8 8 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97358-770-3 01 1 1012- ●
1 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97358-771-3 01 1 1012- ●
1 HOSE; FLEX,FRT BRK
(A) 		8-97366-925-1 02 1 1012- ●
2 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97369-635-1 01 1 1012- ●
2 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97369-636-1 01 1 1012- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1012-1406 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1012-1406 ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1407-1407 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME-KICK UP<7EW> 		8-97389-691-1 01 1 1407-1407 ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1408- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1408- ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1012-1406 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1012-1406 ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1407-1407 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME-KICK UP<7EW> 		8-97389-692-1 01 1 1407-1407 ●
2 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1408- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1408- ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22 		8-98014-005-0 02 1 1012- ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1012- ●
6 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
8 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ●
