◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#545) — 193 parça

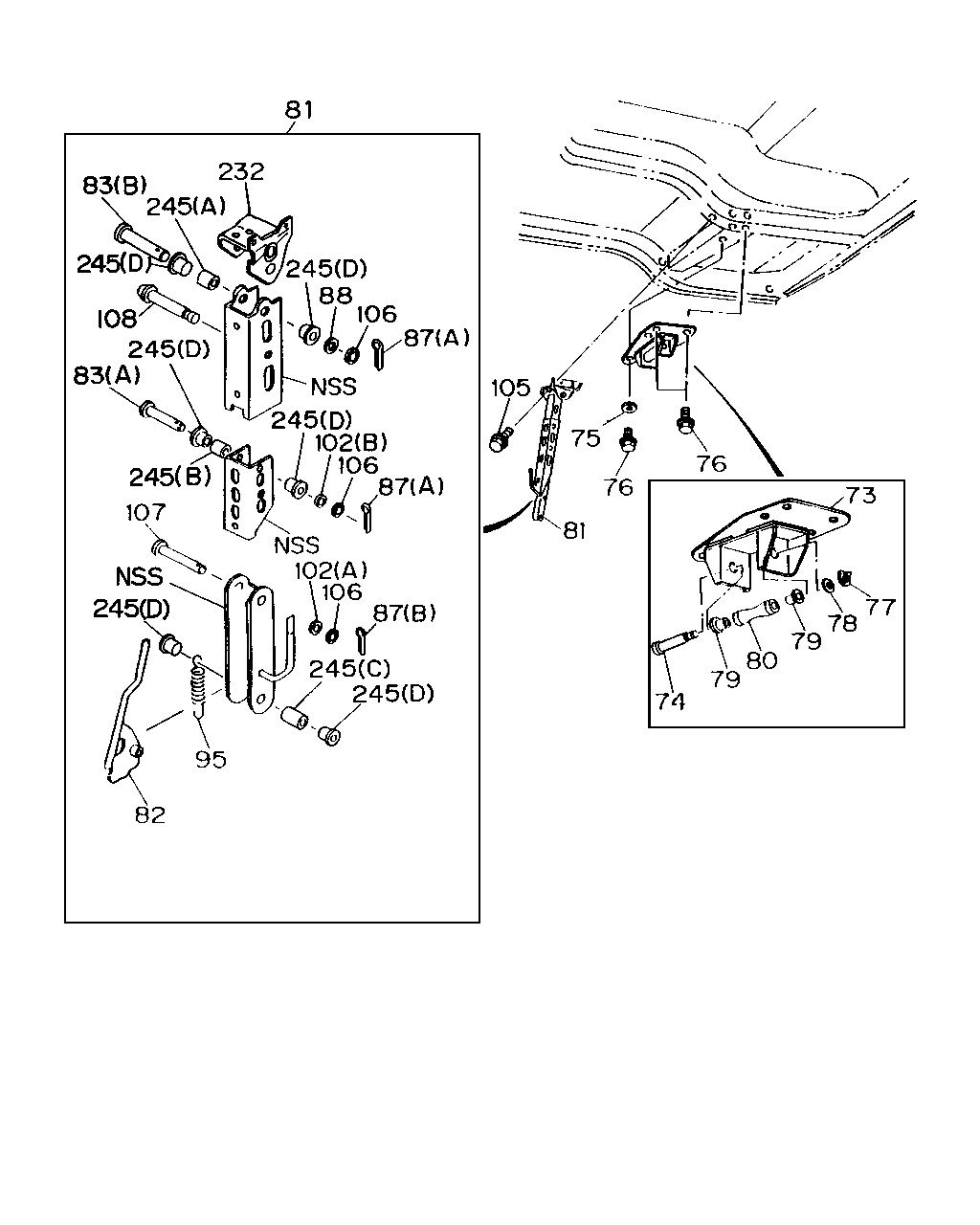

çizim 27126
77 73 78 79 80 79 74 76 76 75 105 81 87 106 88 245 232 81 245 83 245 245 108 83 245 245 102 107 106 87 102 106 87 245 245 95 82 245
BalonParca AdiParca NoAdetTipApplied Date
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-355-4 02 1 8712-8904
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 8905-
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 8712-
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 8712-
75 WASHER; PL,PAD 1-09985-111-0 02 1 8712-
76 BOLT; PAD
M10X25 		9-01971-025-0 06 1 8712-9002
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9003-
77 RING; SNAP 1-09588-032-0 02 1 8712-
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 8712-
79 BUSHING; ROLLER 5-33659-053-0 04 1 8712-
80 ROLLER 1-53459-357-2 02 1 8712-
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-182-1 01 1 8712-8805
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 8806-
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 8712-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 8712-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 8712-
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) L=30 		1-09987-080-0 02 1 8712-
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (B) L=18 		9-08113-018-0 01 1 8712-
88 WASHER; PL,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 8712-
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 8712-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 8712-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 8712-
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 8712-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=11.3 		5-09550-001-0 01 1 8712-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 02 1 8712-
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 8712-
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 8712-
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-183-1 01 1 8712-8805
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 8806-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (A) L=41.0 		1-53459-626-0 01 1 8712-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (B) L=31.5 		1-53459-627-0 01 1 8712-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=27.5 		1-53459-628-0 01 1 8712-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=12.0 		1-53459-971-0 06 1 8712-

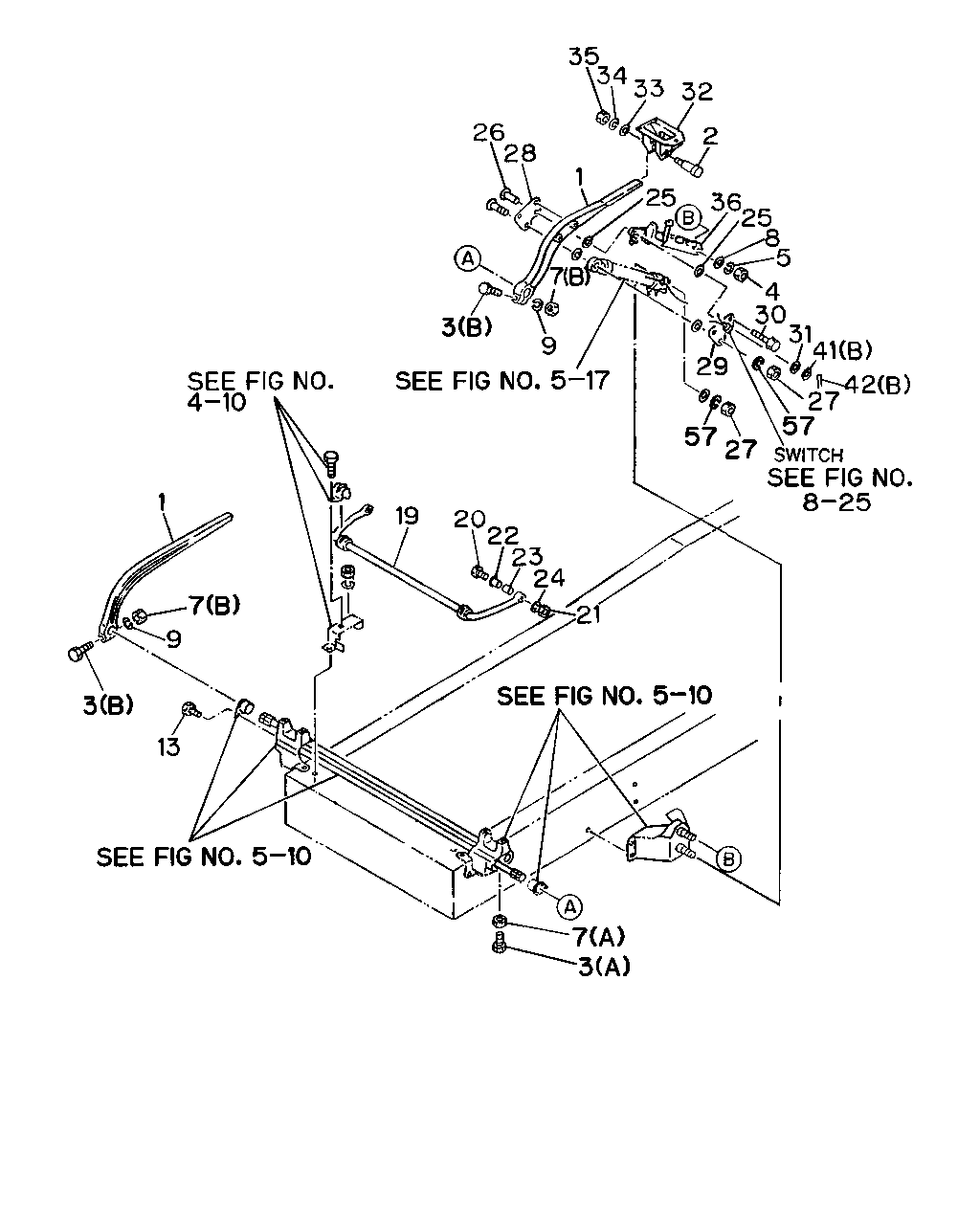

çizim 27612
3 7 13 3 7 9 1 19 20 22 23 24 21 27 57 29 57 27 42 41 31 30 4 5 8 25 36 25 2 32 33 34 35 28 26 1 7 9
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR 1-53459-341-4 01 1 8712-
1 LEVER; TORSION BAR 1-53459-342-4 01 1 8712-
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 8712-
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 8712-
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 8712-
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307-
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 8712-
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 8712-
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 8712-
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 8712-
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 8712-
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 8712-8806
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 8807-9005
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006-
19 BAR; STAB,CAB SUSP 1-53459-573-0 01 1 8712-8801
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 8802-
20 BOLT 1-09000-353-0 02 1 8712-
21 NUT
M10 		9-09111-410-0 02 1 8712-
22 BUSHING; STABILIZER 1-53459-566-0 04 1 8712-8801
22 BUSHING; STABILIZER 1-53459-786-1 01 1 8802-
23 TUBE; DIST 1-53459-610-0 02 1 8712-8801
23 TUBE; DIST 1-53459-787-3 02 1 8802-
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 8712-
25 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 OD=30 		9-09160-614-0 02 1 8712-
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 8712-
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 8712-
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-362-3 01 1 8712-
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-361-2 01 1 8712-
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 		9-01911-245-0 02 1 8712-9005
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006-
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 8712-
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 8712-
33 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 01 1 8712-
34 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 8712-
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9307-
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 8712-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 8712-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 8712-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 8712-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) 		9-08114-025-0 02 1 8712-
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 8712-
çizim 28283
158 157 161 160 162 163 159 158 164 163 163 156 163 162
BalonParca AdiParca NoAdetTipApplied Date
156 STIFFENER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53155-310-1 01 1 8712-9001
157 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-425-1 01 1 8712-9001
157 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-579-2 01 1 9002-9206
157 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-964-4 01 1 9207-
158 BUSHING; PUMP,OIL
AUTO CAB TILT<WV2> 		5-15549-001-1 02 1 8712-
159 PIN
AUTO CAB TILT<WV2> 		1-09744-063-1 01 1 8712-
160 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 8712-
161 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 8712-
162 BRACKET; COVER
AUTO CAB TILT<WV2> (A) 		1-53459-426-3 01 1 8712-
162 BRACKET; COVER
AUTO CAB TILT<WV2> (B) 		1-53459-965-0 01 1 9207-
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (A) M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9303-
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (B) M8X25 W/LK WASHER 		9-01900-825-0 04 1 8712-9204
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (B) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9206
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (B) M8X25 W/LK WASHER 		0-50040-825-0 06 1 9207-9302
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (B) M8X25 FLANGE 		0-28080-825-0 06 1 9303-
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (A) M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 8712-9204
163 BOLT; BRKT FIX
AUTO CAB TILT<WV2> (A) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205-
164 BRACKET; COVER CATCH
AUTO CAB TILT<WV2> 		1-53459-427-0 01 1 8712-

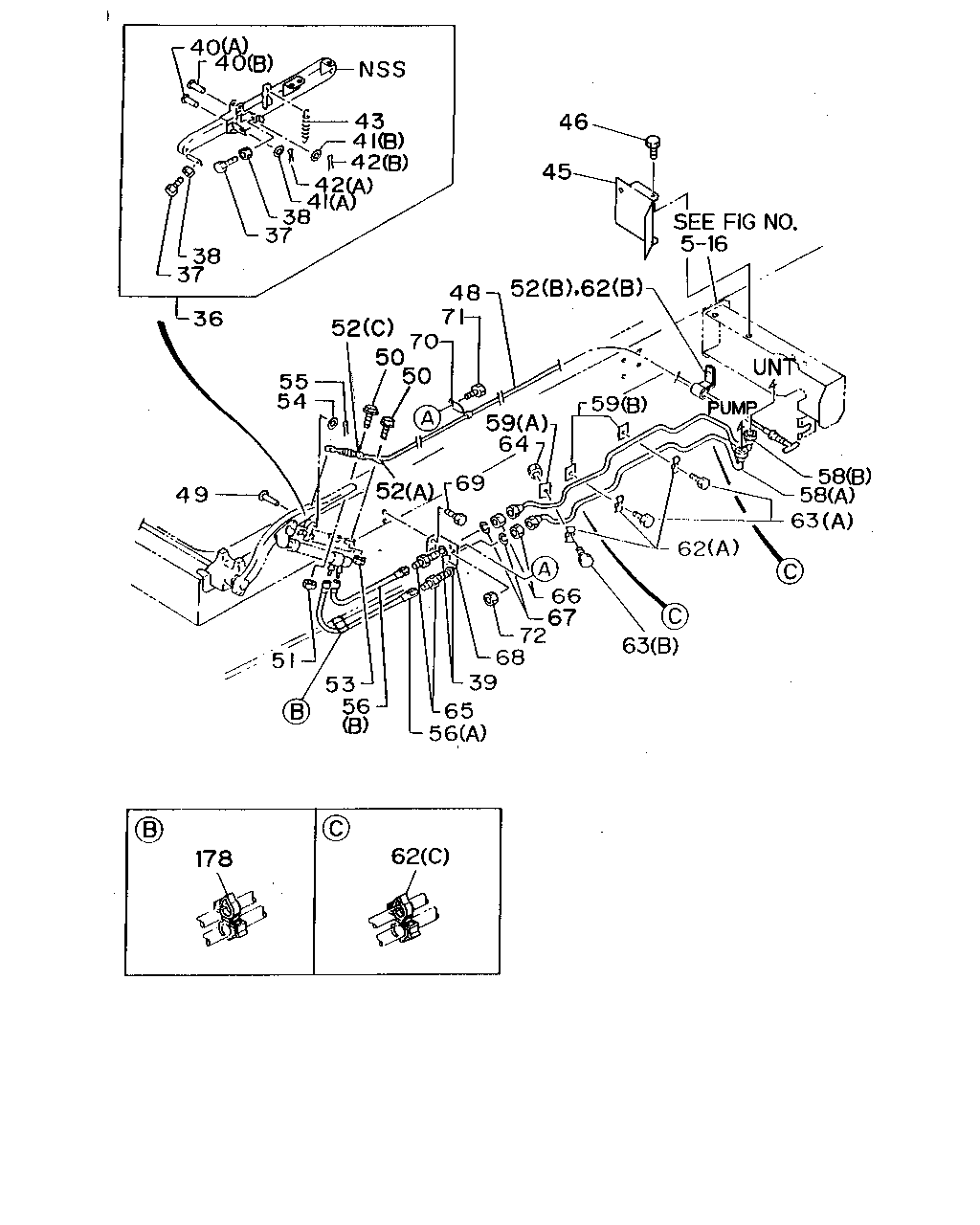

çizim 28545
62 178 51 53 56 56 65 39 68 72 63 67 66 62 63 58 58 45 46 62 52 48 71 70 50 50 55 52 54 52 69 64 59 49 36 37 38 37 38 41 42 42 41 43 40 40
BalonParca AdiParca NoAdetTipApplied Date
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 8712-
37 BOLT; STOP SW ADJ
AUTO CAB TILT<WV2> 		1-09000-330-0 02 1 8712-
38 NUT; LK
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 8712-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=26 T=2.3 		9-09160-514-0 01 1 8712-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=30 T=2.6 		9-09160-614-0 01 1 8712-
40 PIN; LK
AUTO CAB TILT<WV2> (B) OD=14 L=52 		1-09744-062-0 01 1 8712-
40 PIN; LK
AUTO CAB TILT<WV2> (A) OD=10 L=42 		9-08234-042-0 01 1 8712-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 8712-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 8712-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 8712-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) 		9-08114-025-0 02 1 8712-
43 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		9-09942-604-0 01 1 8712-
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53459-420-2 01 1 8712-9001
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53459-869-1 01 1 9002-
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 04 1 8712-9001
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 04 1 9303-
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53459-721-1 01 1 8712-9206
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53458-467-0 01 1 9207-
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-828-0 01 1 8712-
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01910-820-0 01 1 8712-9005
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-
51 NUT; CONT CABLE
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) ID=10 		1-09700-725-0 01 1 8712-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=11 L=28 		9-09525-055-0 01 1 8712-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (C) ID=11 L=40 		9-09525-075-0 01 1 8712-9204
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 8712-
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 8712-
55 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 8712-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (A) L=750 		1-09364-438-5 01 1 8712-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (B) L=700 		1-09364-460-3 01 1 8712-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=2091 SERVICED BY L=2150 		1-47437-958-0 01 1 8712-9306
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=2130 SERVICED BY L=2150 		1-47426-394-0 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=2094 SERVICED BY L=2150 		1-47437-958-0 01 1 8712-9306
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=2132 SERVICED BY L=2150 		1-47426-394-0 01 1 9307-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) L=50 		1-47475-299-2 01 1 8712-9206
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 04 1 8712-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) 		1-09700-651-0 04 1 8712-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) 		8-94252-372-0 02 1 8712-9006
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) 		1-09709-192-1 02 1 9007-9309
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-1 03 1 9310-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) 		1-09700-655-0 01 1 9002-9204
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) 		1-09700-654-0 01 1 9205-9206
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X16 W/LK WASHER 		9-01900-816-0 01 1 8712-9204
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9206
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X40 W/LK WASHER 		9-01900-840-0 04 1 8712-9204
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X40 W/LK WASHER 		0-50040-840-0 04 1 9205-9302
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X40 FLANGE 		0-28080-840-0 04 1 9303-
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 8712-9206
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> M14 		9-09223-308-1 02 1 8712-
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 8712-
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 8712-
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47475-314-1 01 1 8712-9210
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 01 1 9211-
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X25 W/LK WASHER 		9-01901-025-0 04 1 8712-8810
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X25 		9-01911-025-0 02 1 8811-9002
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003-
70 CLIP; UNION BRKT
AUTO CAB TILT<WV2> 		1-09700-098-0 01 1 8712-
71 BOLT
AUTO CAB TILT<WV2> M6X20 		9-01910-620-0 01 1 8712-9005
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9006-9210
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9211-
72 NUT
AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 8712-
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=6-10 & 10-14 		1-09709-201-1 01 1 9207-9409
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=12-16 & 12-16 		1-09709-191-0 01 1 9410-

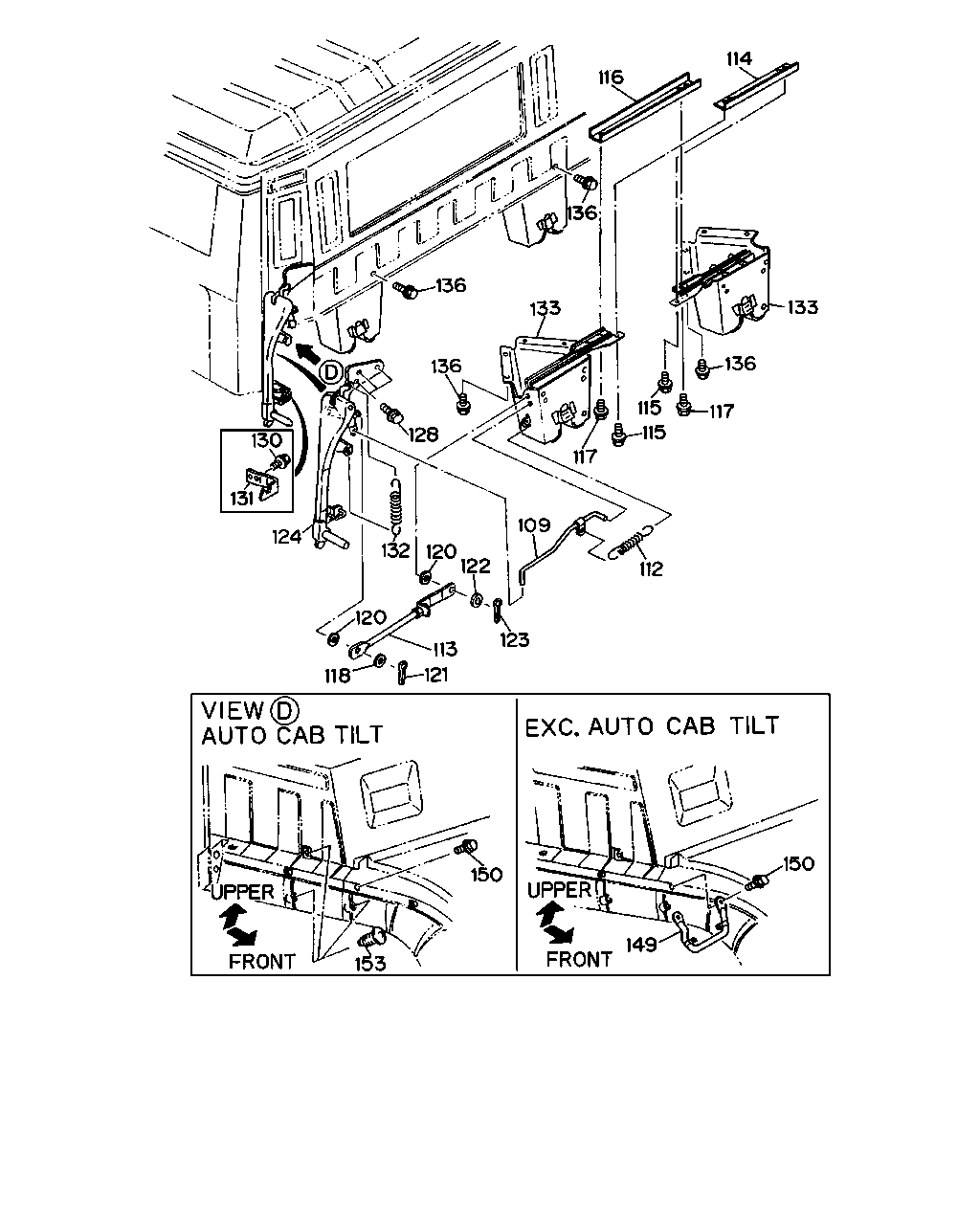

çizim 92748
149 150 150 153 118 121 120 132 120 122 109 123 113 112 124 131 130 128 136 136 133 117 115 115 117 136 133 114 116
BalonParca AdiParca NoAdetTipApplied Date
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 8712-
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 8712-
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 8712-
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 8712-
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 8712-
116 ARM ASM; CONN 1-79717-435-1 01 1 8712-
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 8712-
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 8712-
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 8712-
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 8712-
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 8712-
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 8712-
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> CAB UP +50MM<W60> 		1-79717-600-2 01 1 9103-
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> EXC. CAB UP +50MM<W60> 		1-79717-595-2 01 1 9103-
124 LEVER ASM; HAND,CAB LK
CAB UP +50MM<W60> 		1-79717-502-6 01 1 8712-9102
124 LEVER ASM; HAND,CAB LK
CAB UP +50MM<W60> EXC. AUTO CAB TILT<WV2> 		1-79717-502-9 01 1 9103-
124 LEVER ASM; HAND,CAB LK
EXC. CAB UP +50MM<W60> 		1-79717-494-6 01 1 8712-9102
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2>,CAB UP +50MM<W60> 		1-79717-494-9 01 1 9103-
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 8712-
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 8712-
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 8712-
132 SPRING; HAND LEVER 1-09985-148-0 01 1 8712-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-508-6 01 1 8712-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-507-6 01 1 8712-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-506-6 01 1 8712-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-505-6 01 1 8712-
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 8712-
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2> 		1-71997-502-2 01 1 8712-
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 8712-
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 8712-
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 03 1 8712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
