0-40 — FUEL INJECTION SYSTEM (#54497) — 608 parça

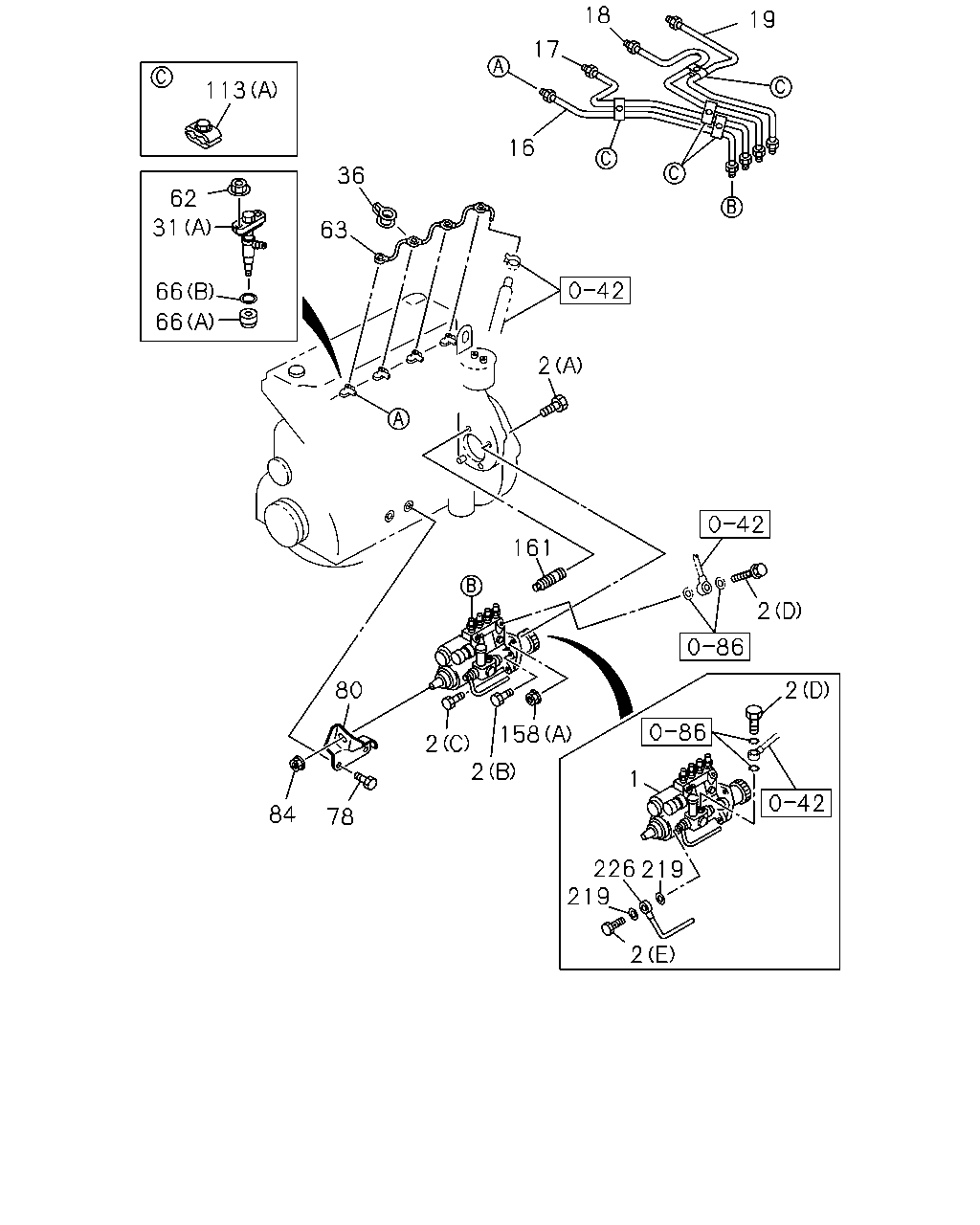

çizim 175871
18 19 17 113 16 36 62 31 63 66 66 2 161 2 80 2 158 2 2 1 84 78 219 2 226 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-613-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) EXC. HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2), VINMODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97609-788-6 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-98011-604-5 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) 		8-98209-783-0 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012-1302 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 07.003 (A) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98181-540-0 04 1 1104- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1012- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) 		8-98209-944-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012-1302 ● ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
EXC. MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1012- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ● ●

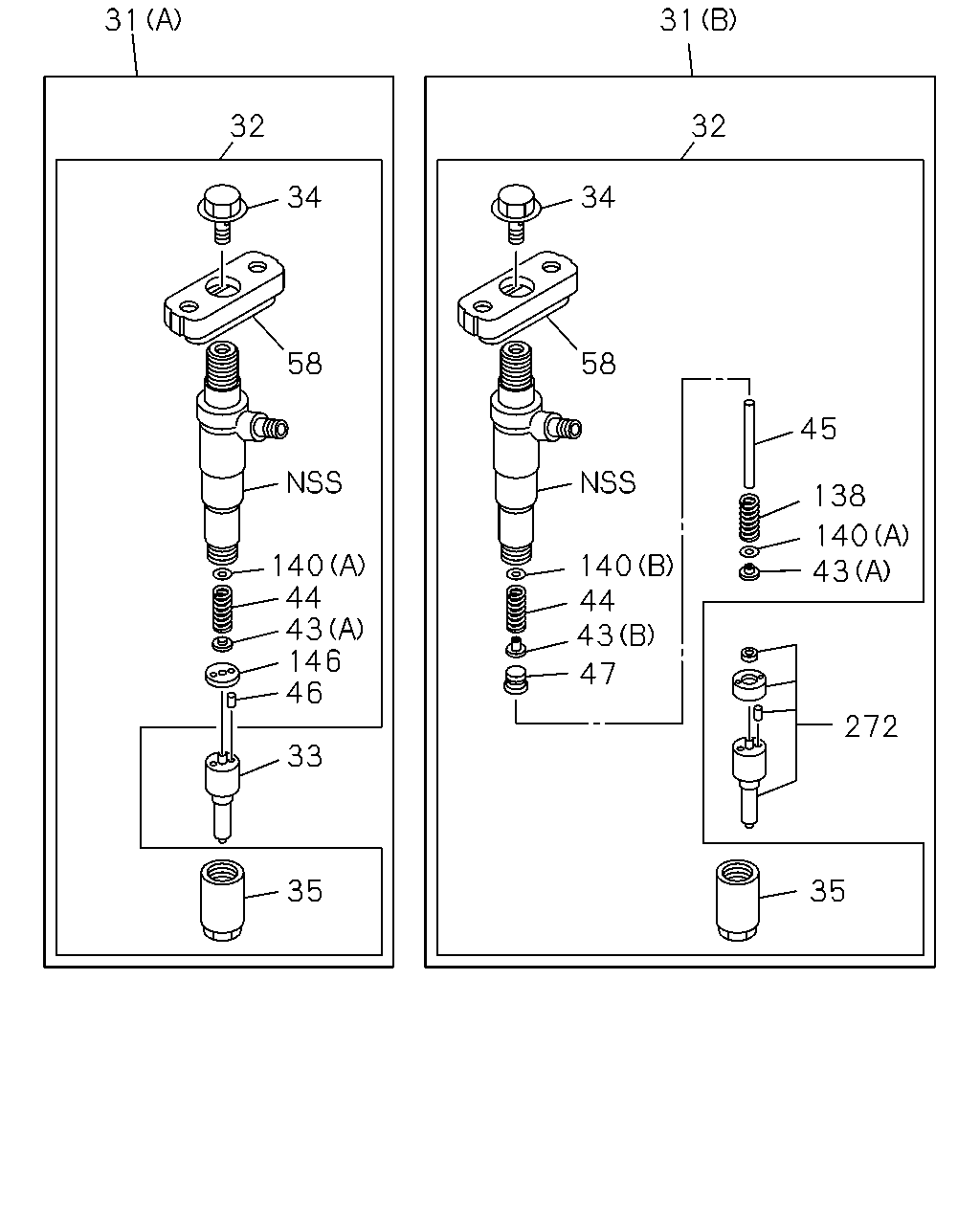

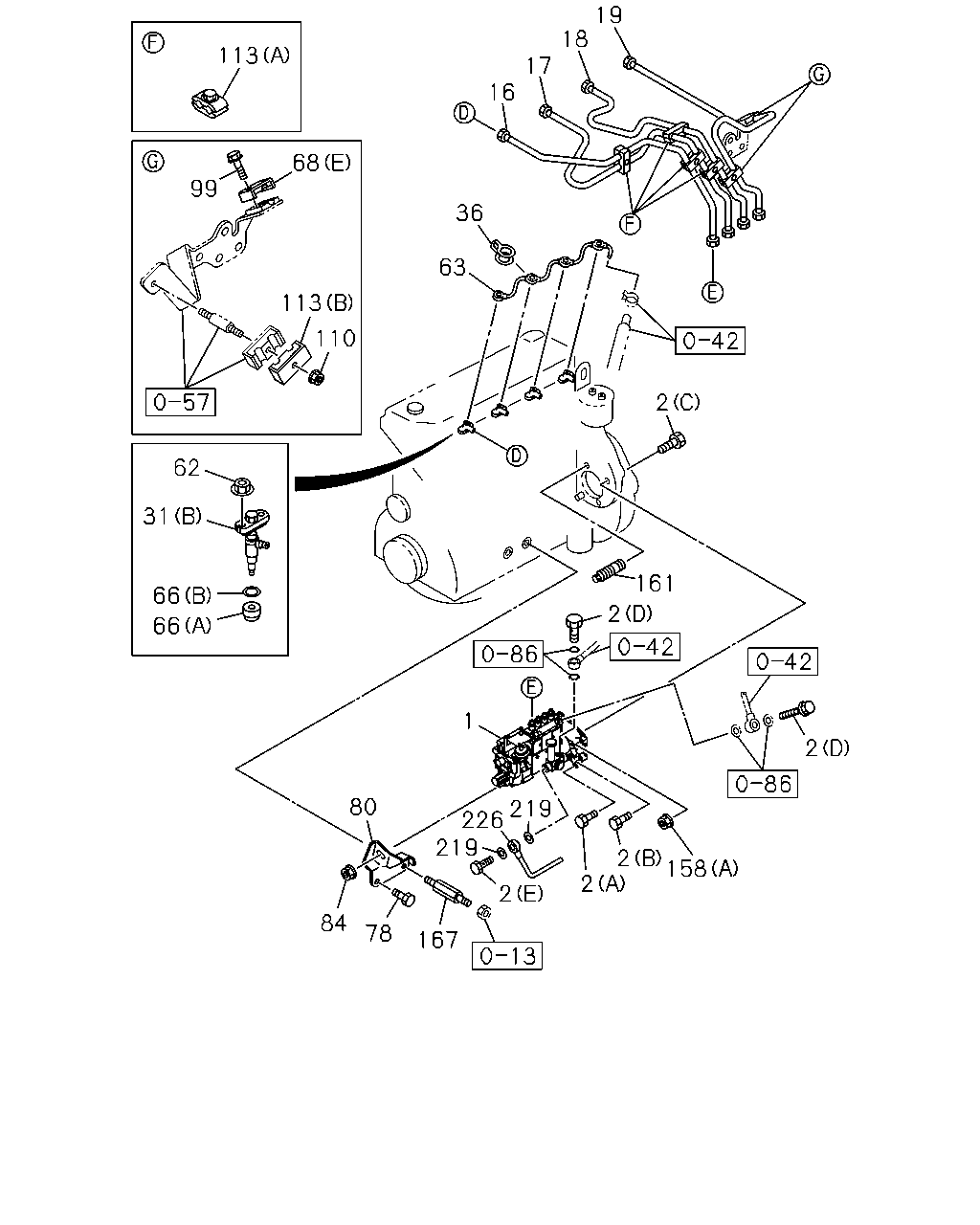

çizim 175875
31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97609-788-6 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-98011-604-5 04 1 1012- ●
32 03.332 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 1012- ●
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 1012- ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97223-339-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) 		8-97349-452-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-94329-555-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 1012- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 1012- ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 1012- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 1012- ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1012- ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=1.20 		1-15349-004-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		1-15349-042-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		1-15349-043-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		1-15349-044-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		1-15349-045-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		1-15349-046-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		1-15349-047-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.60 		1-15349-048-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.70 		1-15349-049-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.10 		8-97116-029-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.20 		8-97116-032-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.30 		8-97116-033-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.40 		8-97116-034-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.50 		8-97116-035-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.51 		8-97116-036-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		8-97116-037-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.53 		8-97116-038-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		8-97116-039-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.55 		8-97116-040-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		8-97116-041-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.57 		8-97116-042-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		8-97116-043-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.59 		8-97116-044-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 1012- ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 1012- ●
272 03.332 NOZZLE KIT; INJ 8-97352-267-0 04 1 1012- ●
çizim 175876
19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 158 2 2 84 78 167
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-613-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) EXC. HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2), VINMODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97609-788-6 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-98011-604-5 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) 		8-98209-783-0 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012-1302 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 07.003 (A) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98181-540-0 04 1 1104- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 1012-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1012- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) 		8-98209-944-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012-1302 ● ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
EXC. MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
99 03.330 BOLT; CLIP,INJ,PIPE
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1012- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ● ●

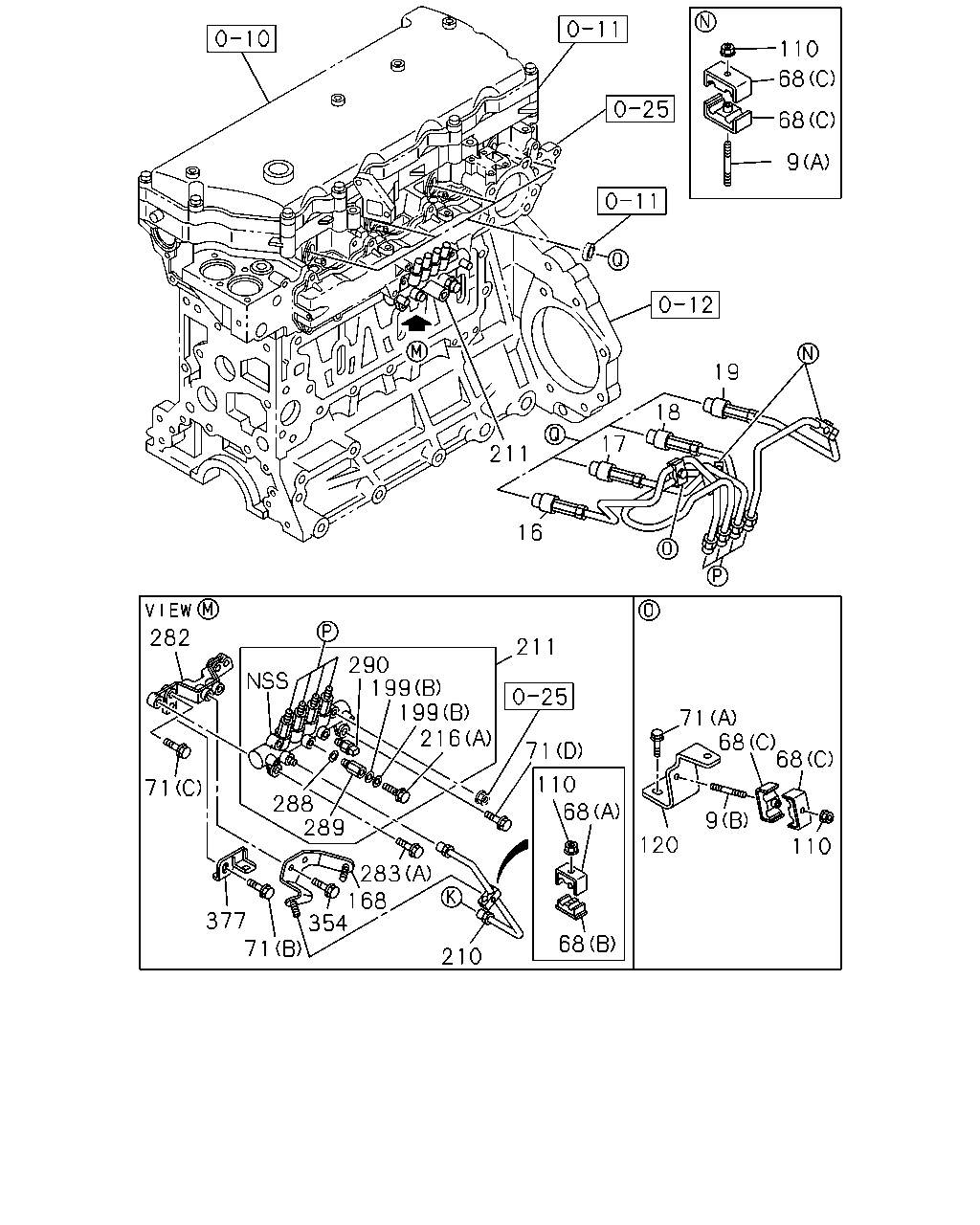

çizim 175878
110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 110 68 71 288 289 9 120 110 283 168 354 71 377 68 210
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1012-1201 ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1202- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1012- ●
9 03.340 STUD; CLIP
03.162 (C) M6X25 L=36 		8-97214-234-1 02 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 1012-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1012- ●
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1012- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1012- ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 1012- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1012- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1012- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
377 03.332 BRACKET; HARNESS 8-97310-438-1 01 1 1012- ●

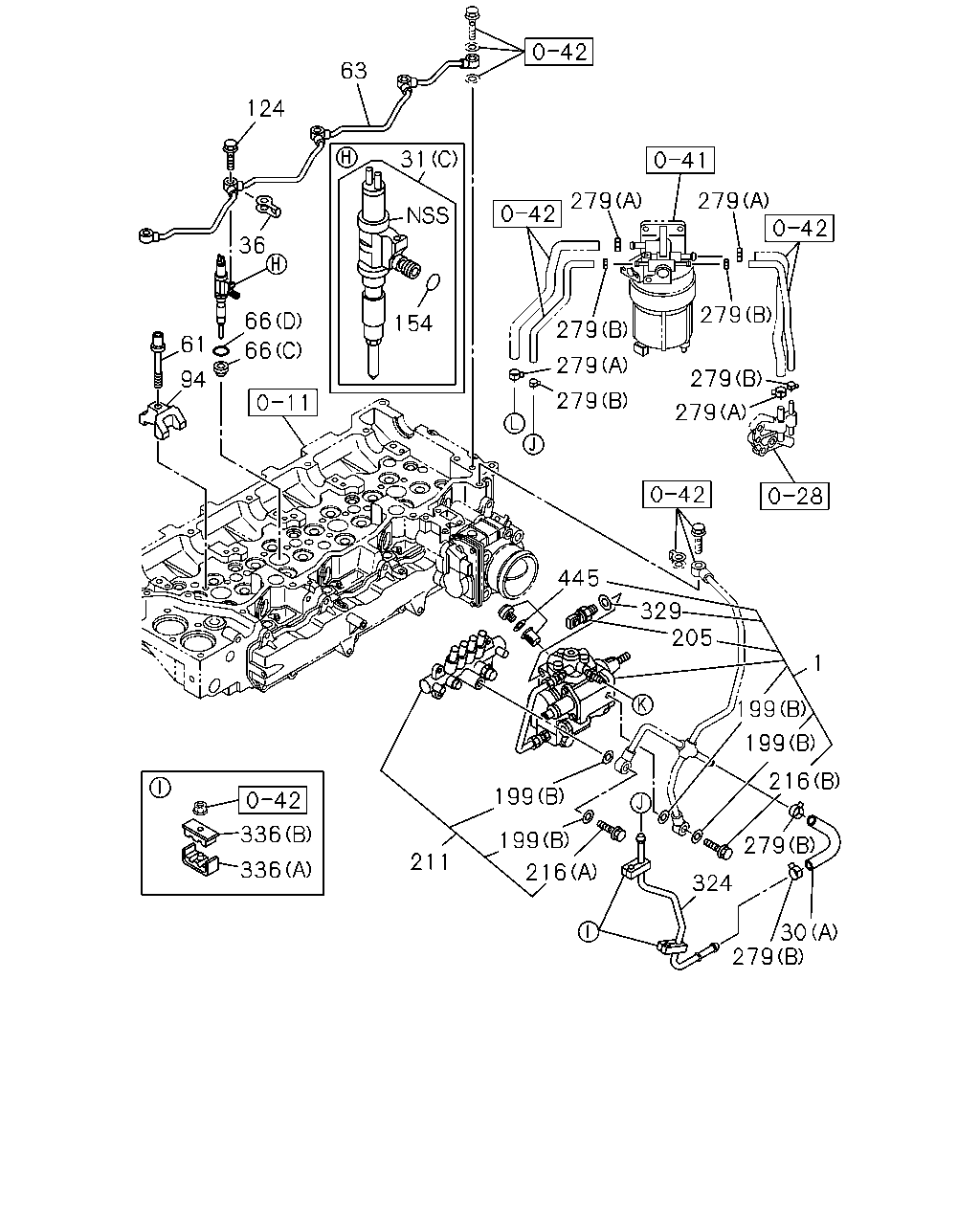

çizim 175883
63 124 31 154 36 66 66 61 94 279 279 279 279 279 279 279 279 445 329 205 1 199 199 216 279 324 216 199 199 211 336 336 30 279
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-613-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) EXC. HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2), VINMODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97609-788-6 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-98011-604-5 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) 		8-98209-783-0 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-783-0 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012-1302 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1303-1406 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) 		8-97148-969-2 01 1 1407- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 07.003 (A) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98181-540-0 04 1 1104- ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 1012-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1012- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1012- ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1012- ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 06 1 1012- ●
324 03.330 PIPE; FUEL RETURN 8-98036-173-0 01 1 1012- ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1012- ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1012- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ● ●

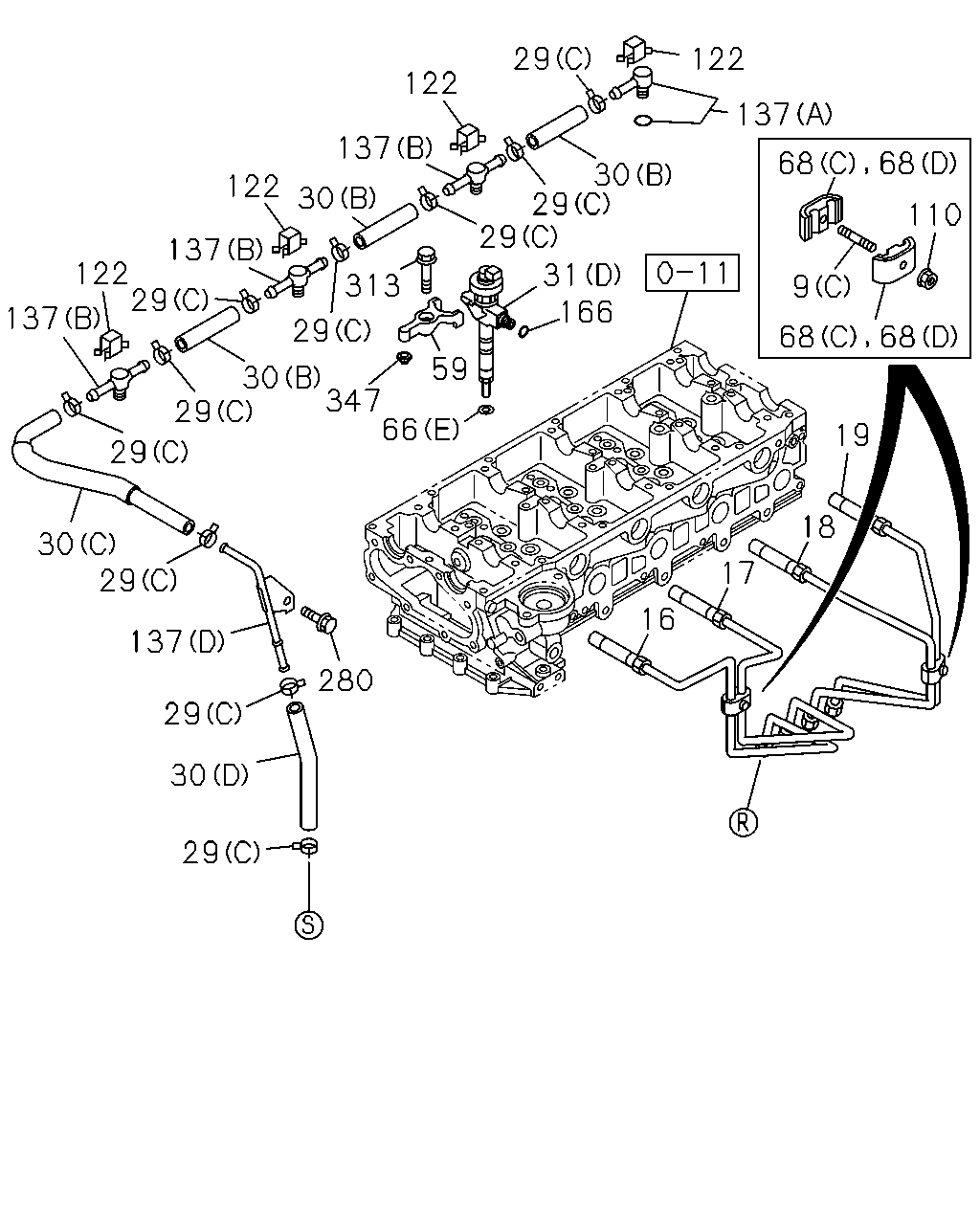

çizim 175884
68 68 110 9 68 68 122 137 29 30 29 29 122 137 122 30 31 166 59 66 347 29 313 137 30 29 29 29 122 137 30 29 137 29 30 29 280 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1012-1201 ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1202- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1012- ●
9 03.340 STUD; CLIP
03.162 (C) M6X25 L=36 		8-97214-234-1 02 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97609-788-6 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-98011-604-5 04 1 1012- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 07.003 (A) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98077-165-0 04 1 1012-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98181-540-0 04 1 1104- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 1012-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1012- ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1012- ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ●
347 03.332 PIN 8-98165-035-0 04 1 1012- ●

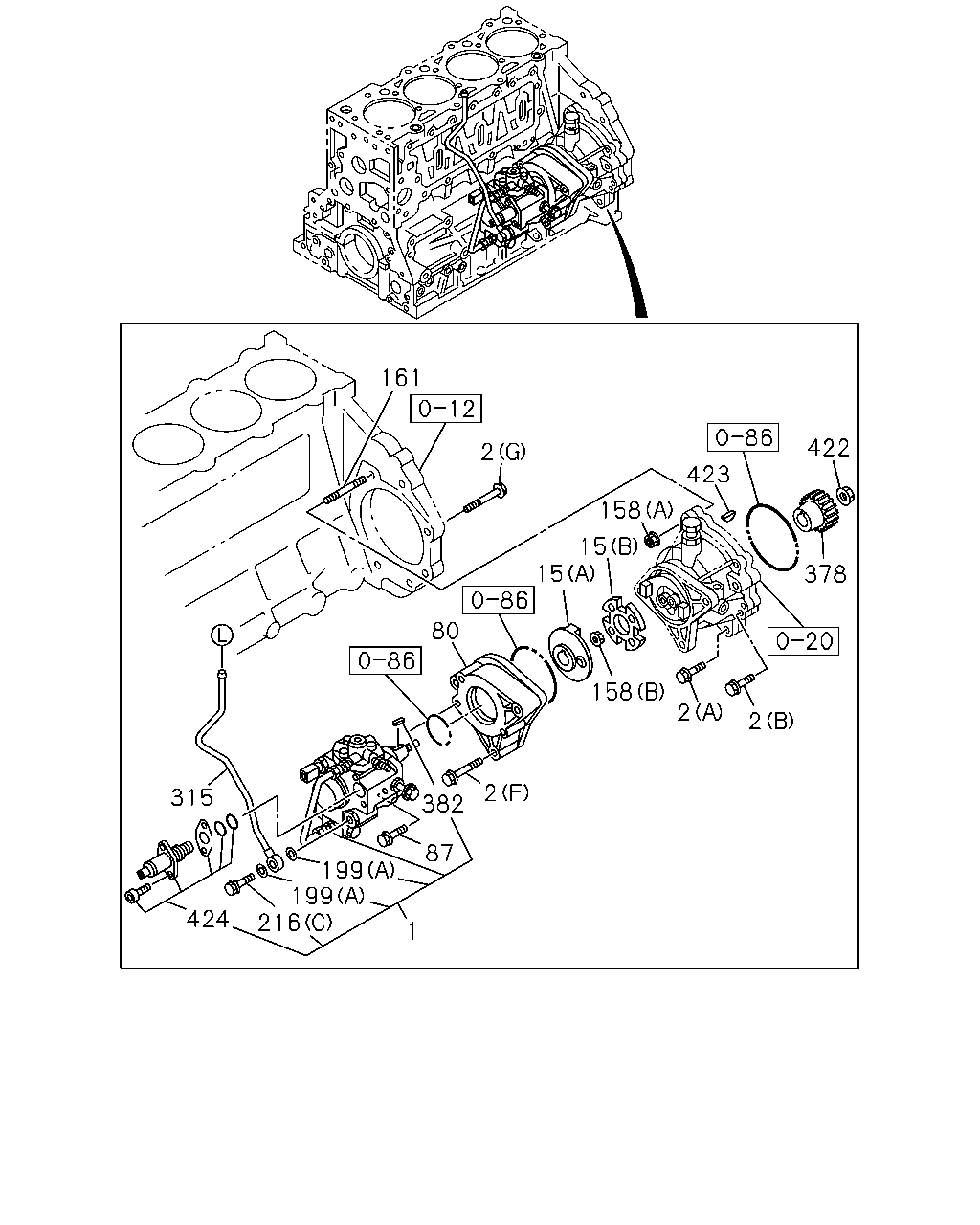

çizim 175885
161 422 2 423 158 15 15 378 80 158 2 2 2 315 382 87 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-613-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) EXC. HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 03.306 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1507- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2), VINMODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1012- ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1012- ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) 		8-98209-944-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98209-944-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012-1302 ● ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP
EXC. MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1303-1406 ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97136-677-0 01 1 1407- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1012- ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1012- ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1012- ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1012- ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1012- ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1104 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1012- ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1012- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ● ●

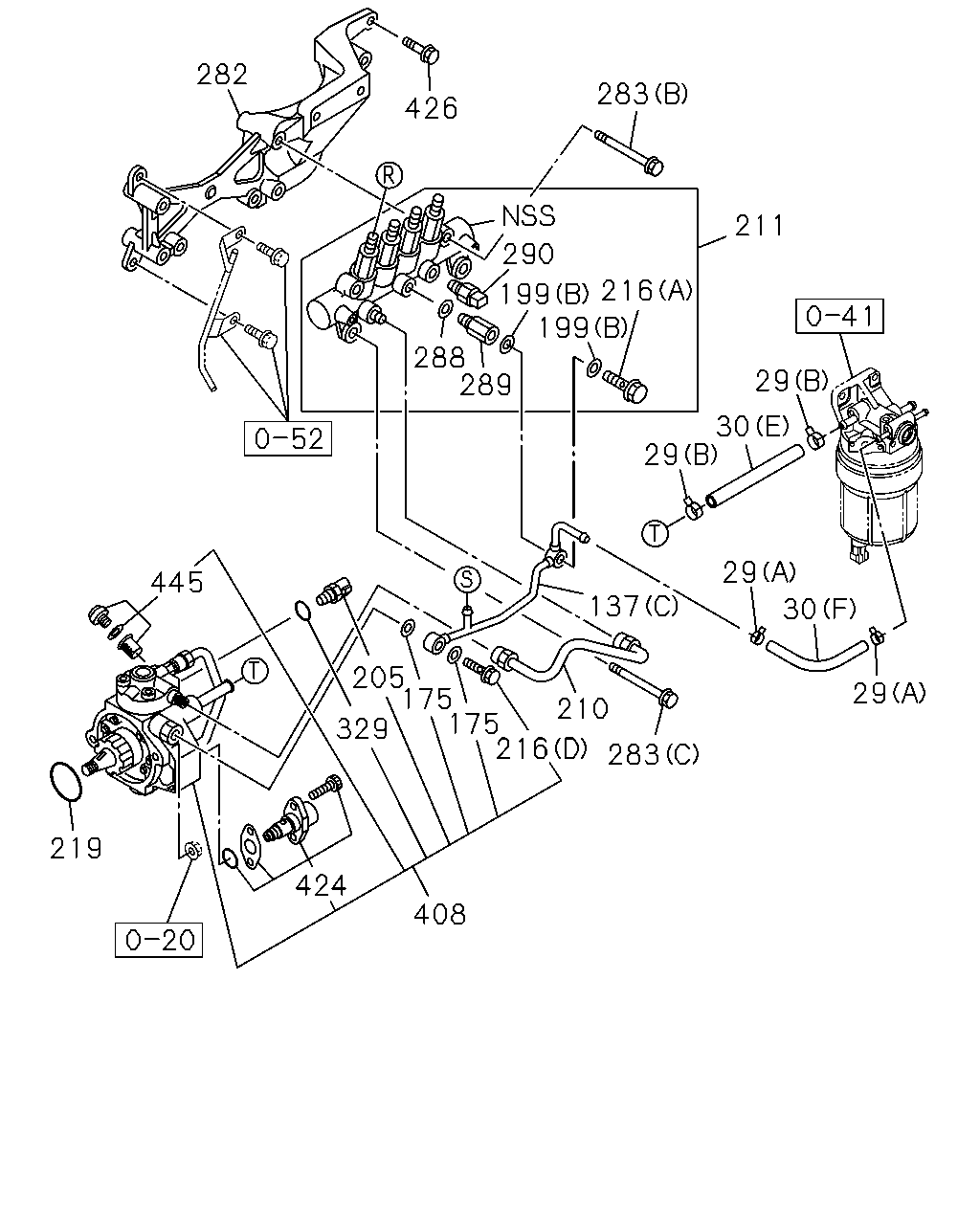

çizim 175888
282 283 426 211 290 199 216 199 288 289 29 30 29 29 445 137 30 205 175 175 216 29 210 329 283 219 424 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1012- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 1012- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1012- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 1012- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1012- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ● ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1012- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
